20M MELLANOX COMP AMPO-12 F/F AQUA OM4 LSZH FIBER PATCH CABLE

Name: 20M MELLANOX COMP AMPO-12 F/F AQUA OM4 LSZH FIBER PATCH CABLE
Brand: ADDON
SKU: SM2496
Price: 171.47 USD
Availability: InStock

ADDON

PCN#

SM2496

MFG#

MFP7E10-N020-AO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$171.47

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

65.62 ft Fiber Optic Network Cable for Network Device
First End: 1 x MPO
12/APC Network
Female
Second End: 1 x MPO
12/APC Network
Female
Patch Cable
LSZH, OFNG
50/125 µm
Aqua
1 Piece

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

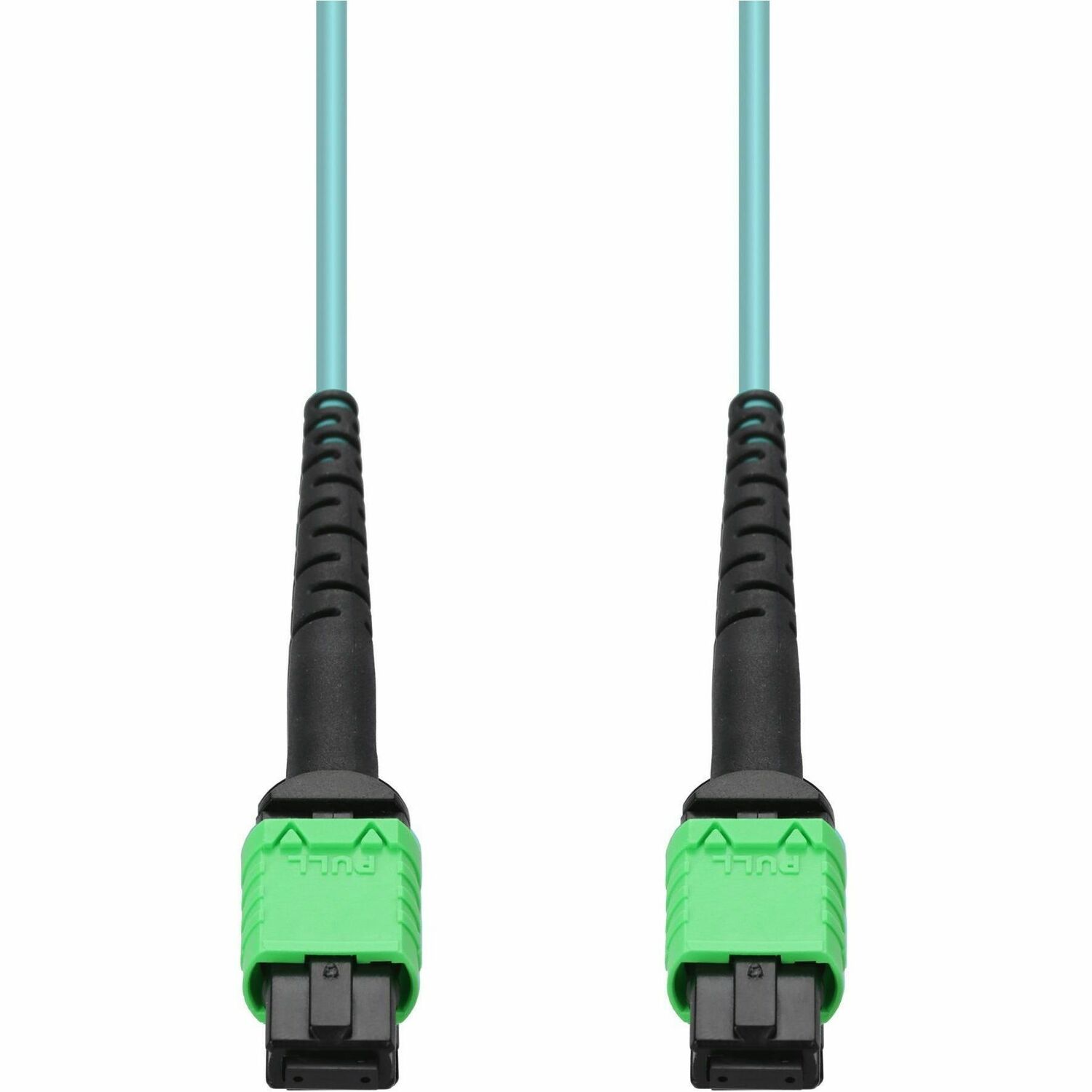

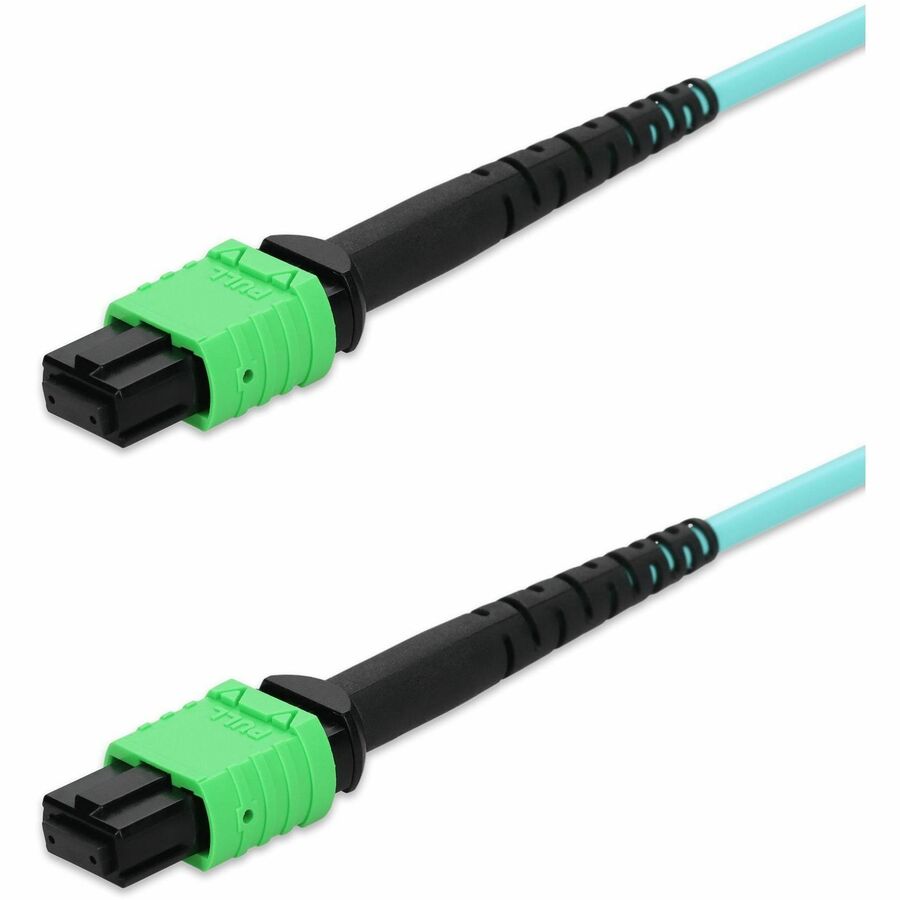

AddOn 20m MPO/APC to MPO/APC Aqua OM4 LSZH 12-Strand Fiber Patch Cable

Overview

Tech Specs

Specifications

Manufacturer	AddOn
Manufacturer Part Number	MFP7E10-N020-AO
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	20m MPO/APC to MPO/APC Aqua OM4 LSZH 12-Strand Fiber Patch Cable
Marketing Information	This is a 20m MPO/APC to MPO/APC Aqua OM4 LSZH 12-Strand Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Packaged Quantity	1 Piece
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Cable Configuration	Crossover
Fiber Optic Mode	Multi-mode
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Fiber Category	OM4
Cable Length	65.62 ft
Maximum Distance	492.13 ft
Connector Type on First End	MPO-12/APC Network - Female
Connector Gender on First End	Female
Connector on First End Details	1 x MPO-12/APC Network - Female
Connector Type on Second End	MPO-12/APC Network - Female
Connector Gender on Second End	Female
Connector on Second End Details	1 x MPO-12/APC Network - Female
Conductor	Fiber
Shielding	No
Jacket Type	LSZH OFNG
Device Supported	Network Device
Boot Type	Standard
Bend Insensitivity	G.657.A1
Features	Fire Resistant Stranded Angled Physical Contact (APC) Fire Proof EMI Protection

Physical Characteristics

Color Family	Green
Product Color	Aqua
Connector Color	Green
Color Details	Connector 1 Color: Green Connector 2 Color: Green
Jacket Material	Low Smoke Zero Halogen
Height	0.1"
Width	0.3"
Weight (Approximate)	1 lb
Shipping Height	5"
Shipping Width	2.75"
Shipping Weight (Approximate)	1.10 lb

Miscellaneous

Additional Information	Compatible OEM: Mellanox Strand Count: 12 Polarity: Method B Insertion Loss Grade: Grade C Outer Diameter: 3.0mm
Application/Usage	Data Transmission Indoor Business Data Center
Certifications & Standards	TIA Compliant
Country of Origin	China
TAA Compliant	No
