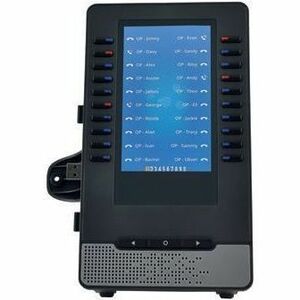

EM200 SMART EXPANSION MODULE

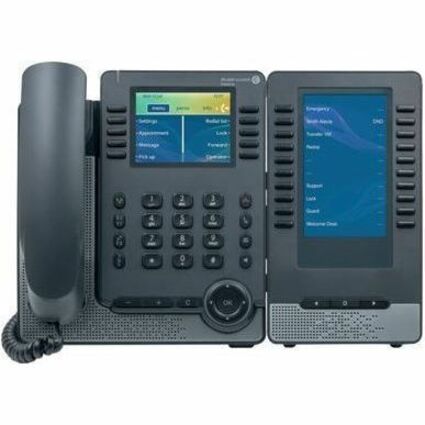

The Alcatel-Lucent Enterprise EM200 Smart Expansion Module is a stylish accessory that expands functionality of ALE DeskPhones.

The EM200 is specifically designed for receptionist, secretarial and other customer profiles who require multiple concurrent telephone services. Hard keys allow users to set functions, such as speed dial, that improve productivity.

The EM200 is fully compatible with ALE SIP DeskPhones Myriad range (M3s/M5s/M7s/M7s Pro/M8) and ALE DeskPhones Essential range (ALE-20/ALE-20h/ALE-30/ALE-30h).

The EM200 is supported on Open SIP servers and Alcatel-Lucent Enterprise communications systems.

• LED Indicator
• Busy Lamp Field (BLF)
• Call Hold
• Call Park
• Call Transfer
• Call Forward
• Conference Call
• DND (Do Not Disturb)
• Directory
• Group Pick-up
• Intercom
• Speed Dial
• Voice Mail
• Programmable

• 20 x Hard Keys
• 3 x Turn-page Keys
• Blue and Red Dual-color LED-related with Keys

• EM200 Smart Expansion Module
• 2-degree Adjustable Foot
• Quick User Guide (SIP)
• Safety and regulatory Instructions
• 2 x M3 Screw

Connectivity

• 2x USB-A (left and right)
• Left USB-A port connects to DeskPhone
• Right USB-A port connects headset, Wi-Fi dongle or additional extension module
• 1x USB-C, supporting external power adapter (5V/2A)
• Daisy chain up to 6x EM200 on M7s/M7s Pro/M8

Environmental conditions

• Operating temperature: -5°C to 45°C
• Relative humidity: 5% to 95%
• Storage temperature: -25°C to 70°C

Power

• Power consumption idle/active (max): 0.6W/2.2W
• Myriad
• DeskPhone with single EM200 can be powered by the set
• 2x/3x EM200 support requires local PS on Myriad and one for the first EM200
• 4x/5x/6x EM200 support requires local PS on Myriad and two for the first and fourth EM200
• Essential
• Up to 3x EM200 with local PS on first module for Hybrid (150W rack) or IP (PoE Class 1)
• Up to 3x EM200 support with local PS on set for Hybrid (110W rack) or IP powered with local PS
• Up to 3x EM200 when set-powered with PoE Boost mode activated

Programmable features

• Account
• Audio hub
• Group listening
• Headset
• Hot Desking
• Phone Lock
• DTMF
• Prefix
• Recall
• XML Browser

• IEC 60950-1
• EN 62368-1
• CSA-C22.2
• EN 55032, CISPR 32
• EN 55024, CISPR 24
• FCC 47 CFR Part 15 Subpart B
• ICES-003 Issue 6 Canada
• EN 61000-4-2
• EN 61000-4-3

• Waste Electrical and Electronic Equipment Directive (WEEE)
• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
