CRESTRON FLEX TABLETOP MEDIUM ROOM CONFERENCE SYSTEM FOR MICROSOFT TEAMS ROOMS

The UC-M50-NC-T Crestron Flex tabletop conferencing system provides a medium room conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, UC bracket assembly, power supply, and cables.

Native Microsoft Teams® Rooms Experience

The UC-M50-NC-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Intuitive User Interface with Impressive Audio

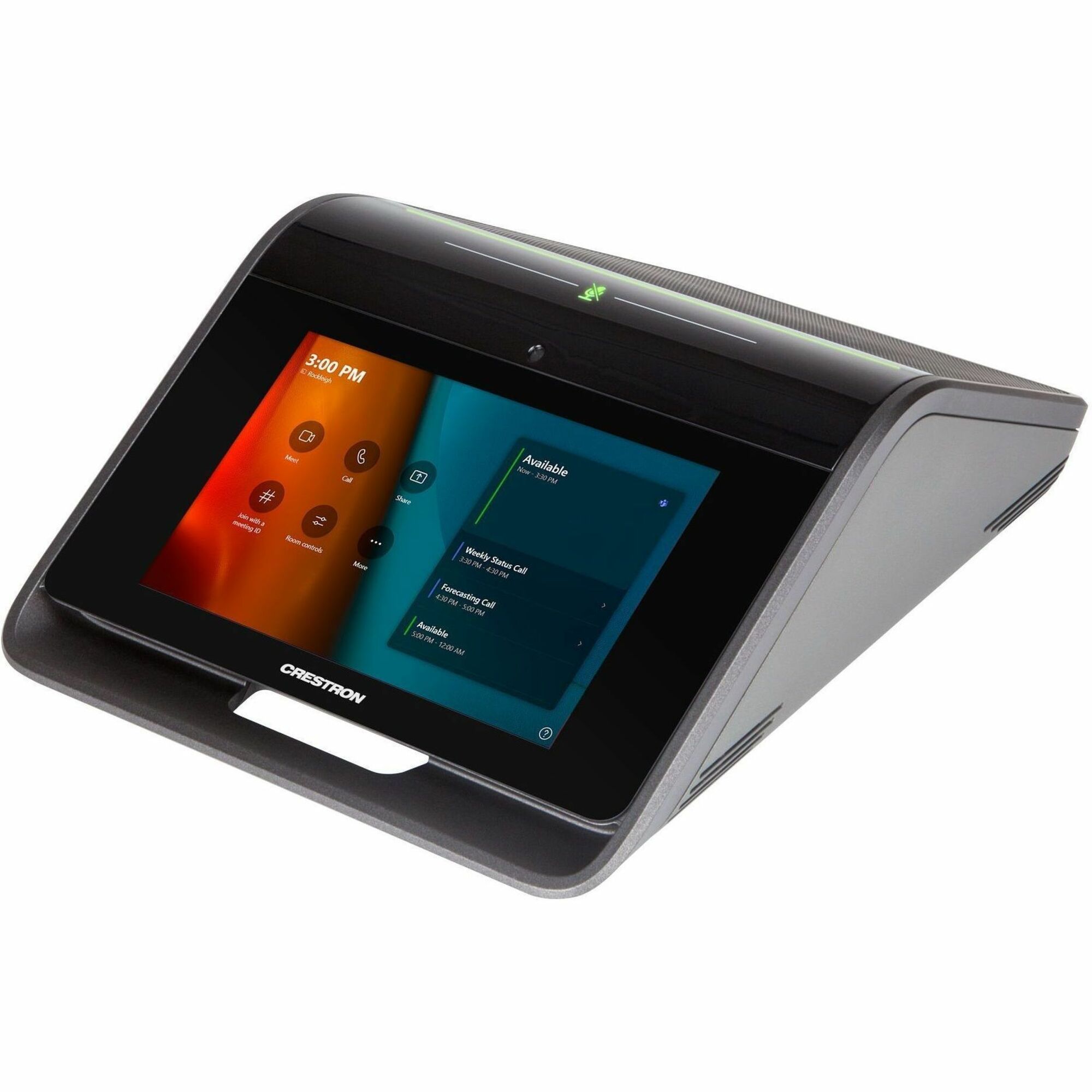

With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS-UC-1-T-V) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. The conference device also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The bracket comes supplied with either a HD-CONV-USB 200 or HD-CONV-USB-300 convertor. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Crestron Flex tabletop conference device to the UC Bracket Assembly.

High-Definition Video Conferencing

High-definition video conferencing is supported by using the following Crestron 1 Beyond cameras: IV-CAM-P12-B, IV-CAM-P12-W, IV-CAM-P20-B, IV-CAM-P20-W, IV-CAM-I12-B, IV-CAM-I20-B, and IV-CAM-I20-W. Microsoft Teams certified third-party cameras are also compatible with the system.

Crestron Control System Integration

The UC-M50-NC-T integrates with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

Enterprise-Grade Security

Crestron Flex is an enterprise-grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

• Video Conference Equipment
• Meeting Room
• Table
• Conference
• Huddle Room
• Office
• Lighting Control
• Thermostat
• Wall Mount
• Wall
• Cable Management

• Network (RJ-45)
• USB
• HDMI
• DisplayPort
• USB Type C
• USB Type B
• USB Type A
• Micro USB

• 120 V AC
• 230 V AC
• 24 V DC

• Crestron Flex Tabletop Conferencing DeviceMic Mute Symbol and Light Bar: (2) Capacitive buttons with bi-color LEDs
• UC Bracket Assembly:Black

UC Bracket Assembly Construction: Metal Mounting Bracket

Crestron Flex Tabletop Conferencing Device:

• Screen Size: 7 in. (178 mm)
• Height: 4.11 in. (104 mm)
• Width: 8.92 in. (227 mm)
• Depth: 12.74 in. (324 mm)
• Microphones: Pickup Range (typical): 20 ft (6 m)
• Occupancy Sensor: 6 ft (1.83 m) PIR range in front of touch screen

UC Bracket Assembly |Dimensions:

• Height: 15.00 in. (381 mm)
• Width: 14.50 in. (368 mm)
• Depth: 1.87 in. (48 mm) (UC Bracket Assembly with HD-CONV-USB-200)
• 1.93 in. (49 mm) (UC Bracket Assembly with HD-CONV-USB-300)

Crestron Flex Tabletop Conferencing Device:

• Weight 5.5 lb (2.5 kg)

UC Bracket Assembly Weight:

• 7.7 lb (3.5 kg) (UC Bracket Assembly with HD-CONV-USB-200)
• 7.95 lb (3.6 kg) (UC Bracket Assembly with HD-CONV-USB-300)

• Table
• Wall

Crestron Flex Tabletop Conferencing Device

• Touch Screen 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
• UI Microsoft Teams Rooms UI plus optional Crestron room control UI
• Mic Mute Symbol and Light Bar (2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute
• AEC Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant
• Speaker Full range speaker; Amplifier Power: 11 W; 95 dB SPL at 0.5 m maximum output; Frequency Response: 90 Hz to 22 kHz
• Microphones 360° quad mic array; Pickup Range (typical): 20 ft (6 m)
• Extension Microphones Supports two mic pods, model CCS-UCA-MIC (sold separately)
• Occupancy Sensor 6 ft (1.83 m) PIR range in front of touch screen
• Ethernet 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/ IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory® authentication, digest access authentication, password login, XiO Cloud client, Microsoft Intune® client, IEEE 802.3at Type 2 PoE+ compliant
• USB USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included)
• Power Options PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W) PoE+ Powered Device

UC Bracket Assembly

• UC Engine Mini PC, Intel Core® processor, with Windows® 11 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
• UC Client Microsoft Teams Rooms
• Management Client XiO Cloud Service
• Content Ingest HDMI input via HDMI to USB 3.0 converter
• Display Output Single or dual display supported
• Display Output Resolution 1080p
• Power 100-240VAC, 50/60 Hz adapter (included)

https://www.crestron.com/Products/Catalog/Unified-Communications/Flex-Conferencing/Room-Kits/UC-M50-NC-T

• Tabletop
• Wall Mountable
• Surface Mount
