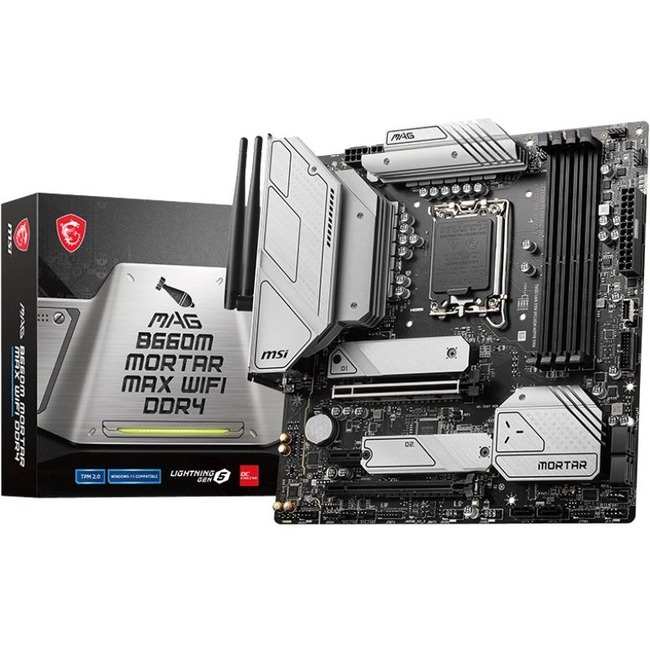

MSI MAG MAG B660M MORTAR MAX WIFI DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX

Name: MSI MAG MAG B660M MORTAR MAX WIFI DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX
Brand: MSI
SKU: 2689BS
Price: 201.99 USD
Availability: InStock

MSI

PCN#

2689BS

MFG#

B660MMOMXD4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$201.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Pentium Gold, Celeron, Core i3, Core i9, Core i5 Processor Supported
128 GB DDR4 SDRAM Maximum RAM
DIMM, UDIMM
4 x Memory Slots
2.5Gigabit Ethernet
IEEE 802.11 a/b/g/n/ac/ax
HDMI
DisplayPort
6 x SATA Interfaces

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

MSI MAG MAG B660M MORTAR MAX WIFI DDR4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX

Overview

Tech Specs

Specifications

Manufacturer	MSI
Manufacturer Part Number	B660MMOMXD4
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Line	MAG
Product Model	MAG B660M MORTAR MAX WIFI DDR4
Product Name	MAG B660M MORTAR MAX WIFI DDR4 Desktop Motherboard
Marketing Information	With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. AUDIO BOOST: Reward your ears with studio grade sound quality. Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Product Type	Desktop Motherboard

Processor & Chipset

Chipset Manufacturer	Intel
Chipset Model	B660
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Processor Generation Supported	12th Gen
Processor Supported	Pentium Gold Celeron Core i3 Core i9 Core i5
Multi GPU Supported	CrossFire

Memory

Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Memory Speed Supported	5333 MHz 5200 MHz 5066 MHz 5000 MHz 4800 MHz 4600 MHz 4400 MHz 4266 MHz 4200 MHz 4000 MHz 3800 MHz 3733 MHz 3600 MHz 3466 MHz 3400 MHz 3333 MHz 3200 MHz 2933 MHz 2666 MHz 2400 MHz 2133 MHz
Intel Optane Memory Ready	Yes

I/O Controller

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0 1 5 10

Video

Onboard Video

CPU Dependent Video

Audio

Audio Channels

7.1

Network & Communication

Bluetooth	Yes
2.5Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Total Number of Expansion Slots	3
Total Number of PCI Express Slots	3
Number of PCI Express x1 Slots	1
Number of PCI Express x16 Slots	2

Interfaces/Ports

Total Number of USB Ports	8
Number of USB 2.0 Ports	4
Number of USB 3.2 Ports	1
Number of USB 3.2 Gen 2 Type-A Ports	3
S/PDIF	Yes
HDMI	Yes
DisplayPort	Yes
Number of Network (RJ-45) Ports	1

Onboard Interfaces

Number of SATA Interfaces	6
Number of M.2 Interfaces	2
Total Number of Onboard USB Ports	7
Number of Onboard USB 2.0 Ports	4
Number of Onboard USB 3.2 Ports	3

Physical Characteristics

Form Factor	Micro ATX
Width	9.6"
Depth	9.6"

Miscellaneous

Package Contents

MAG B660M MORTAR MAX WIFI DDR4 Desktop Motherboard
MAG Stickers
EZ M.2 Clips
2 x SATA Cables
Wi-Fi Antenna
