10M MPO F/F AQUA OM4 ARMORED OFNP-PLENUM FIBER PATCH CABLE

Name: 10M MPO F/F AQUA OM4 ARMORED OFNP-PLENUM FIBER PATCH CABLE
Brand: ADDON
SKU: YS9562
Price: 381.1 USD
Availability: InStock

ADDON

PCN#

YS9562

MFG#

ADD-MPOMPO-10M5OM4AP

$381.10

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

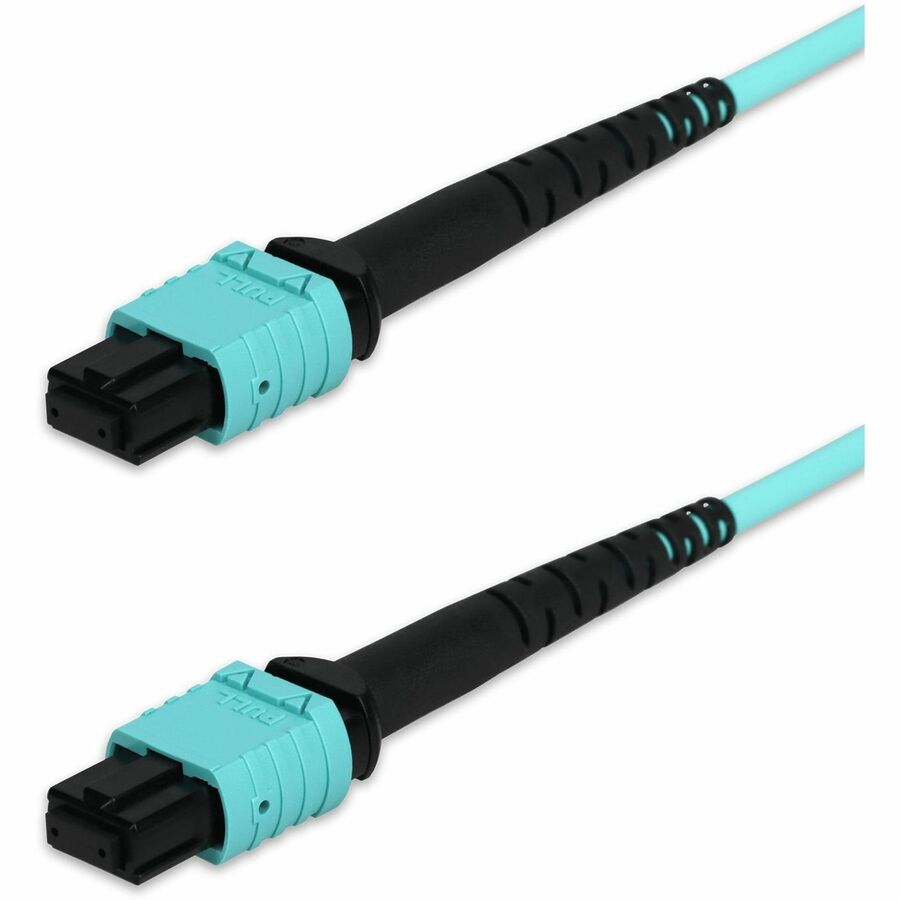

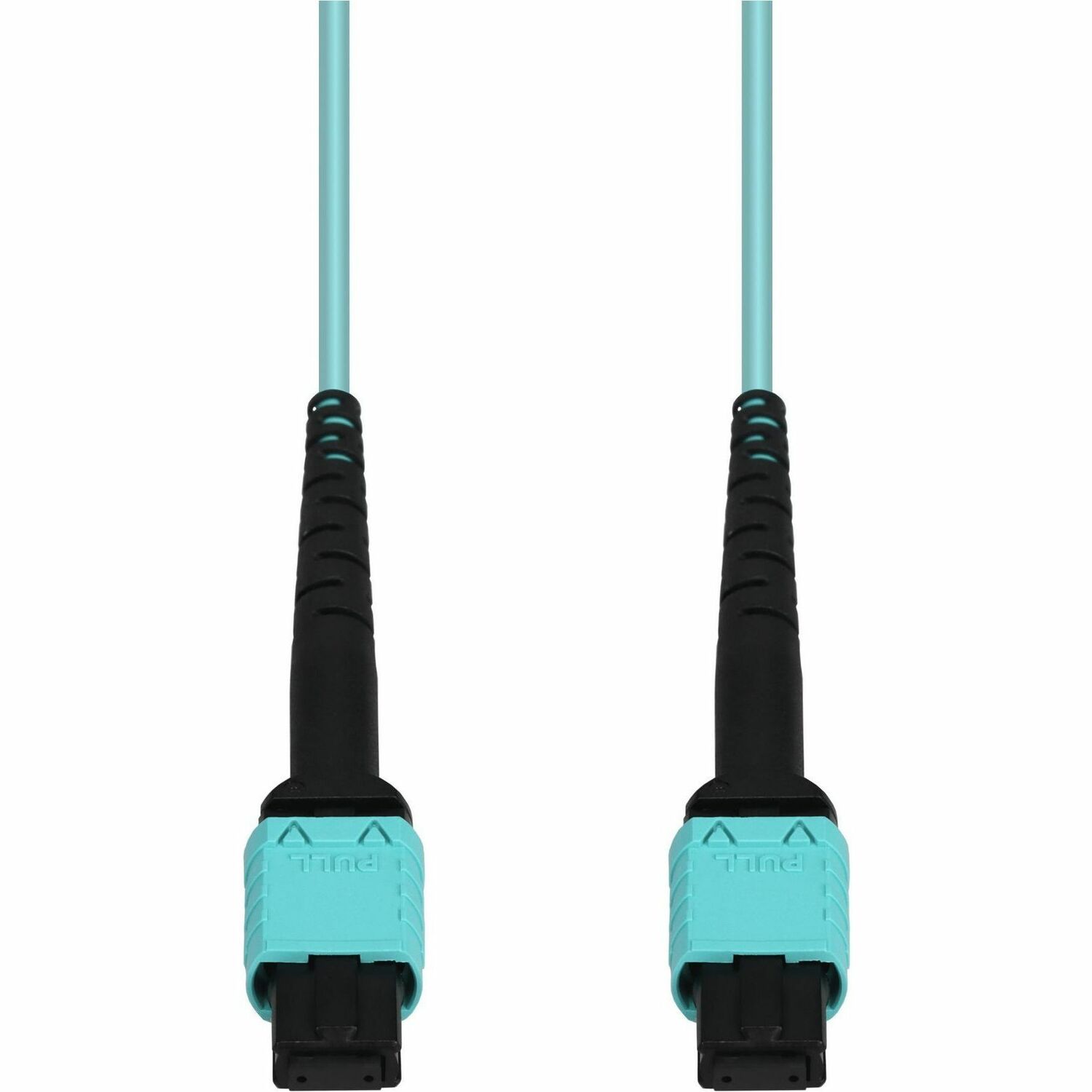

AddOn 10m MPO/UPC to MPO/UPC Aqua OM4 Armored OFNP (Plenum-Rated) 12-Strand Fiber Patch Cable

Tech Specs

Specifications

Manufacturer	AddOn
Manufacturer Part Number	ADD-MPOMPO-10M5OM4AP
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	Fiber Optic Network Cable
Marketing Information	This is a 10m MPO/UPC to MPO/UPC Aqua OM4 Armored OFNP (Plenum-Rated) 12-Strand Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNP plenum fiber cable jackets are engineered for use in air-handling spaces, such as ceilings and ducts, offering the highest fire resistance to prevent flame spread and reduce smoke in the event of a fire. These cables meet stringent safety standards, making them the top choice for businesses that need safe, reliable networking in critical building areas. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Packaged Quantity	1 Piece
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Cable Configuration	Crossover
Fiber Optic Mode	Multi-mode
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Fiber Category	OM4
Cable Length	32.80 ft
Maximum Distance	492.13 ft
Connector Type on First End	MPO-12 Network
Connector Gender on First End	Female
Connector on First End Details	1 x MPO-12 Network
Connector Type on Second End	MPO-12 Network
Connector Gender on Second End	Female
Connector on Second End Details	1 x MPO-12 Network
Shielding	No
Jacket Type	Plenum Armored OFNP
Device Supported	Network Device
Boot Type	Standard
Bend Insensitivity	G.657.A1
Features	Stranded Ultra Physical Contact (UPC) Bend Insensitive

Physical Characteristics

Color Family	Green
Product Color	Aqua
Connector Color	Aqua
Connector Material	Fiber
Jacket Material	Polyvinylidene Fluoride (PVDF)
Height	0.1"
Width	0.3"
Weight (Approximate)	0.50 lb
Shipping Height	5"
Shipping Width	2.75"
Shipping Weight (Approximate)	9.60 oz

Miscellaneous

Application/Usage	Data Transmission Business Data Center Indoor
Compatibility	Compatible OEM: Industry Standard
Certifications & Standards	TIA Compliant
Country of Origin	China
TAA Compliant	No
