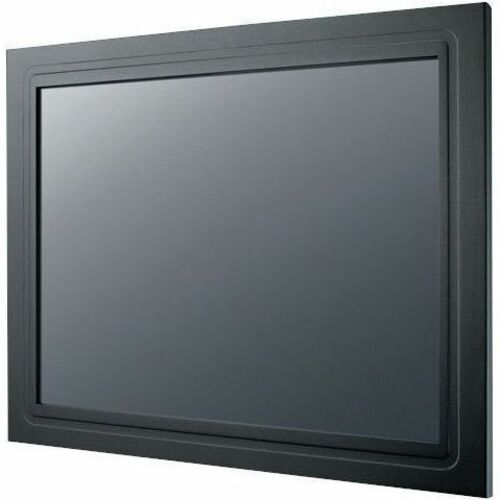

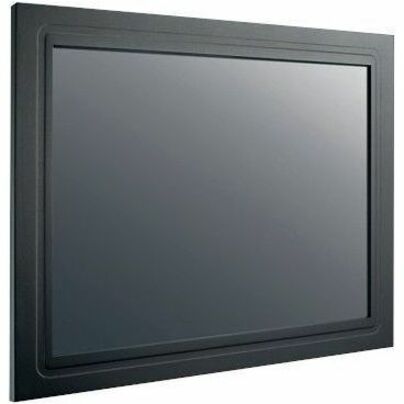

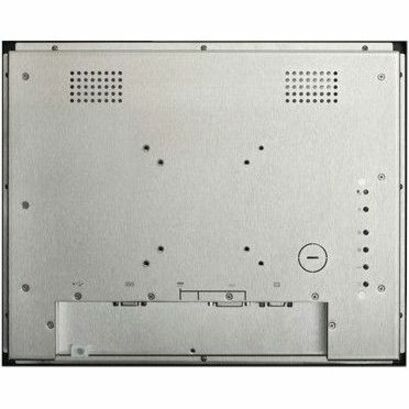

Advantech IDS-3210EG-23SVA1E 10" Class SVGA LED Monitor

Name: Advantech IDS-3210EG-23SVA1E 10" Class SVGA LED Monitor
Brand: ADVANTECH
SKU: 3330AG
Price: 320.61 USD
Availability: InStock

ADVANTECH

PCN#

3330AG

MFG#

IDS-3210EG-23SVA1E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

10.4" Viewable
LED Backlight
800 x 600
16.2 Million Colors
230 Nit
35 ms
VGA

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

Advantech IDS-3210EG-23SVA1E 10" Class SVGA LED Monitor

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IDS3210EG23SVA1E
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	IDS-3210
Product Model	IDS-3210EG-23SVA1E
Product Name	IDS-3210 10.4" SVGA / XGA Industrial Panel Mount Monitor
Marketing Information	Introduction The Advantech IDS-3210 Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
Product Type	LED Monitor

Technical Information

Number of Screens	1
Screen Size Class	10"
Viewable Screen Size	10.4"
Screen Mode	SVGA
Response Time	35 ms
Horizontal Viewing Angle	160°
Vertical Viewing Angle	130°
Mount Type	Panel Mount Rear Mount
Backlight Technology	LED
Features	Anti-reflective On-screen Display (OSD) Tempered Glass

Video

Maximum Resolution	800 x 600
Color Supported	16.2 Million Colors
Native Contrast Ratio	500:1
Brightness	230 Nit

Interfaces/Ports

USB	Yes
VGA	Yes
Number of USB Ports	1
Number of VGA Ports	1

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 113°F (45°C)
Operating Humidity Range	10% to 90% (Non-condensing)

Physical Characteristics

VESA Mount Compatible	Yes
Height	9.4"
Width	11.4"
Depth	1.4"
Weight (Approximate)	3.20 lb
