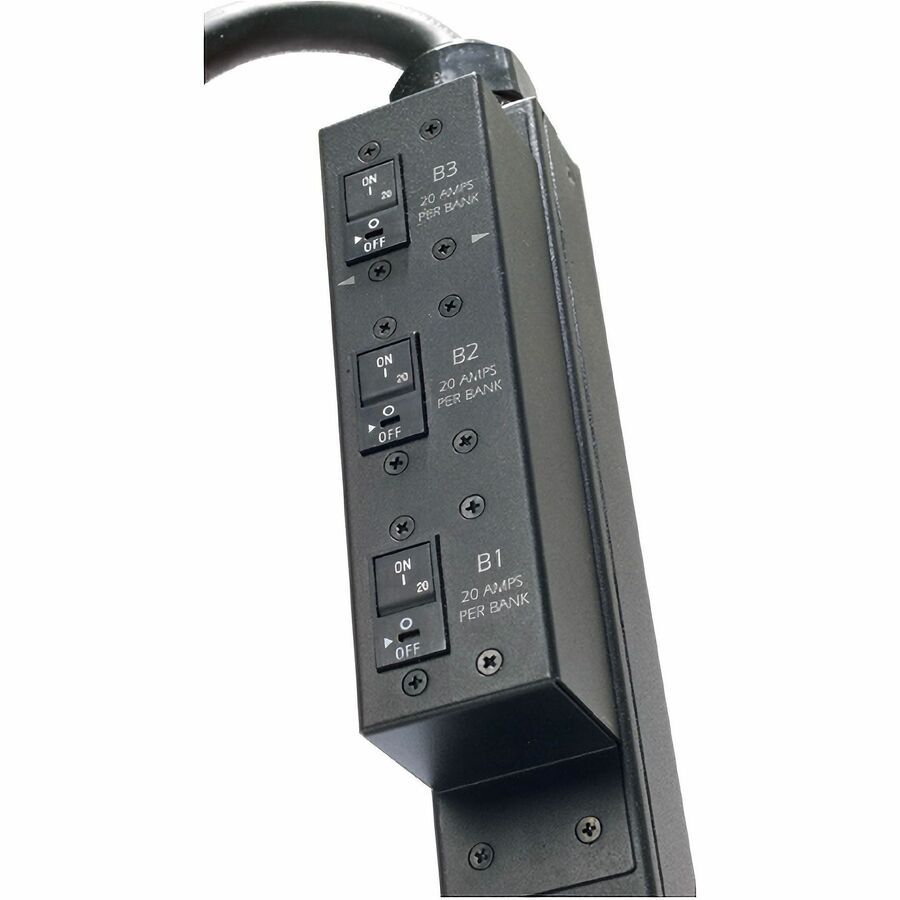

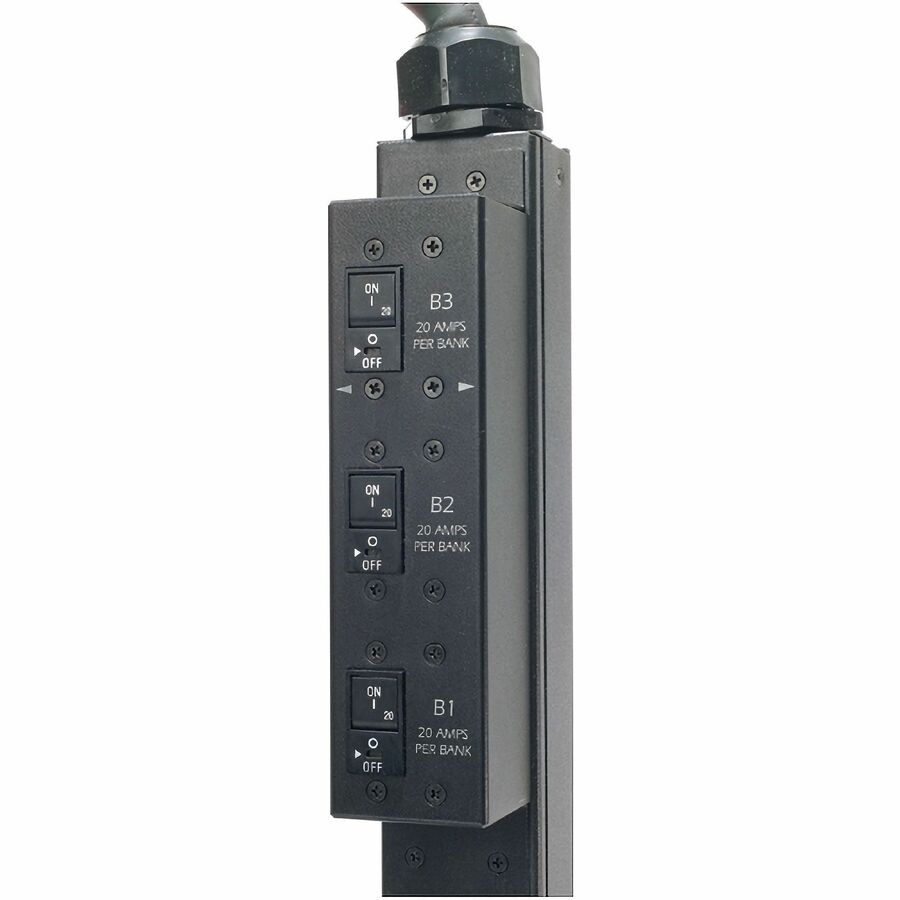

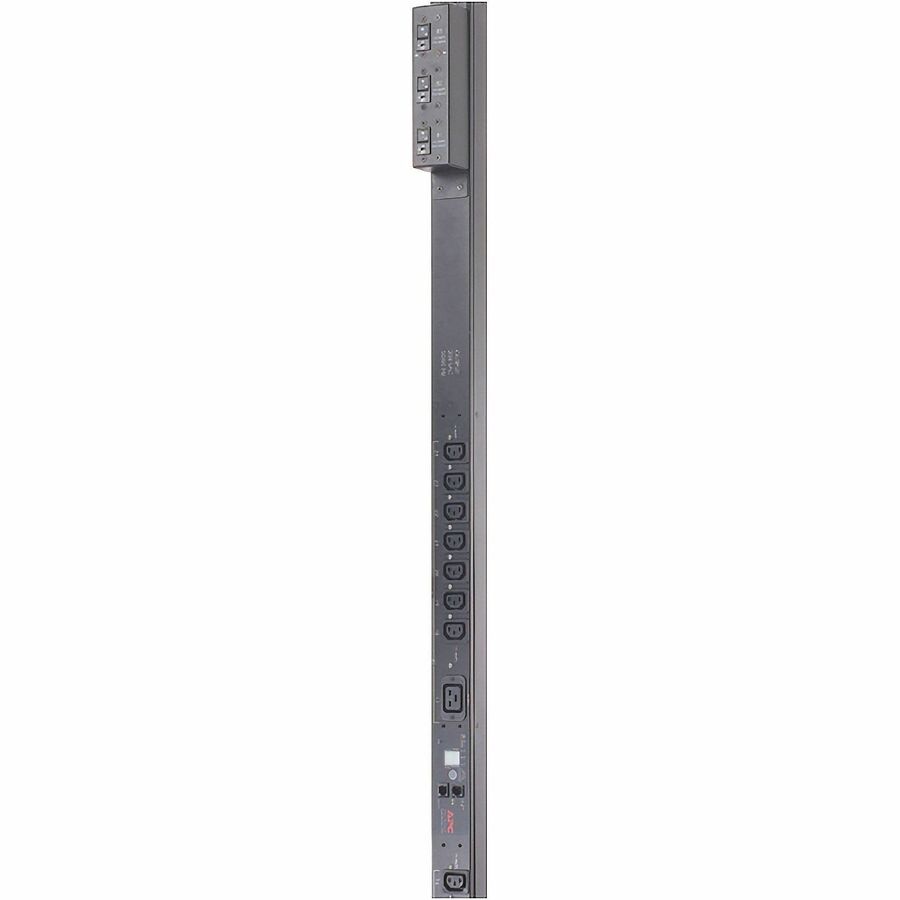

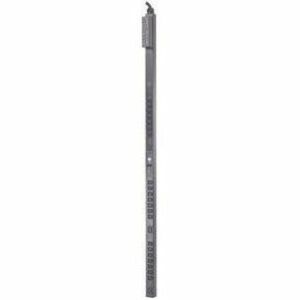

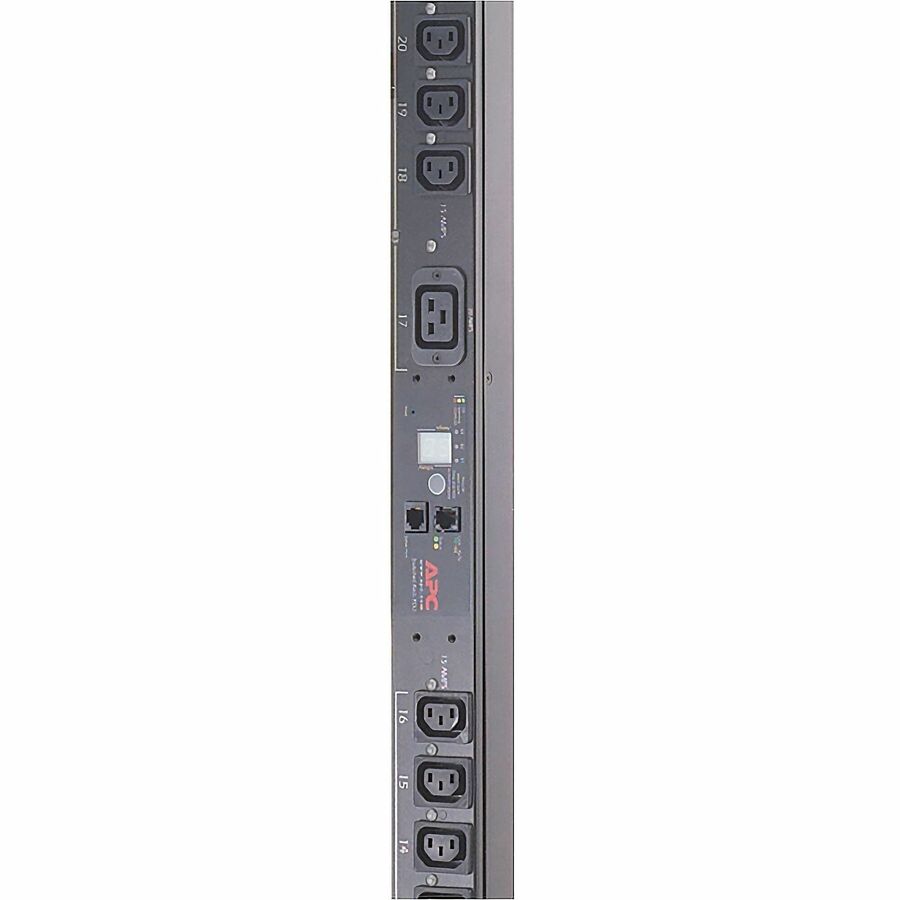

APC by Schneider Electric Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13 10' Cord

Name: APC by Schneider Electric Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13 10' Cord
Brand: APC
SKU: 9W2813
Price: 1950.85 USD
Availability: InStock

APC

PCN#

9W2813

MFG#

AP7998B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,950.85

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched
CS8365
3 x IEC 60320 C19, 21 x IEC 60320 C13
208 V
12.50 kW
Overload Protection
10 ft Cord Length
0U
Vertical
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information2 years repair or replace

Shipping Weight: 29 lbs.

RACK PDU,SWITCHED,ZEROU,12.5KW,208V,(21)C13&(3)C19;10 CORD

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP7998B
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Name	Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13&(3)C19; 10' Cord
Marketing Information	It is a switched rack PDU with a maximum current capacity of 35A and an input voltage of 208V. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets. The PDU has a ZeroU form factor and a cord length of 10 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed, ensuring high safety and performance standards.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	CS8365
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	3 x IEC 60320 C19 21 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	208 V
Output Voltage	208 V AC
Power Rating (Watt)	12.50 kW
Input Current	50 A

Physical Characteristics

Mounting Orientation	Vertical
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Side
Rack Height	0U
Cord Length	10 ft
Height	70"
Width	2.2"
Depth	3.5"
Weight (Approximate)	21.32 lb

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13&(3)C19; 10' Cord Cord retention bracket(s) Documentation CD Installation guide Rack mounting brackets RS-232 configuration cable Toolless mounting kit
Certifications & Standards	cUL Listed\|CSA\|Industry Canada\|UL Listed
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
REACH free of SVHC	Yes
Mercury Free	Yes
Lead Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7998B_ROHS_DECLARATION&p_FileName=AP7998BKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899734&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899734&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace
