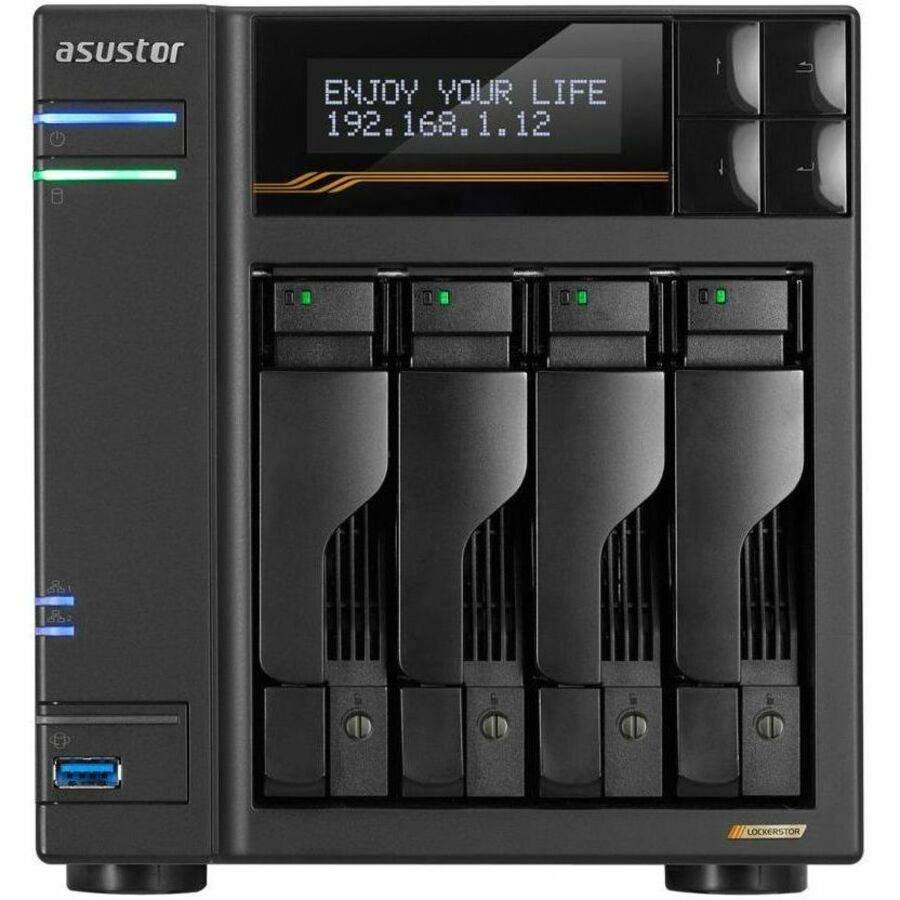

LOCKERSTOR GEN3 4 BAY NAS AMD QUOD CORE CPU 2 USB 4+10GBE

Server-grade ECC memoryECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever. Speeds keep Ryzen and Ryzen!The Lockerstor Gen3 series is ASUSTOR's fastest NAS ever! The combination of AMD's Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity. PCI Express 4.0 Brings Doubled PerformanceThe Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs to accelerate tasks that require high random IO performance to save unbelievable amounts of time in applications that can take advantage of SSDs, such as content creation. Each M.2 slot for NVMe SSDs is tool-free for easier installation while the cooling vents ensure SSDs run at optimum performance. USB4 is More Than Just StorageThe Lockerstor Gen3 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever.When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time. The Hottest NAS Ever is also the CoolestWith all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it. Exclusive MyArchive Cold Backup Technology | Unlimited Capacity ExpansionMyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content. Packaged Quantity1Product TypeSAN/NAS Storage SystemStorageNumber of Hard Drives Supported4Number of Hard Drives Installed0Number of Solid State Drive Supported4Number of Solid State Drive Installed0Flash Memory Capacity8 GBProcessor & ChipsetProcessor TypeRyzen EmbeddedProcessor ModelV3C14Processor CoreQuad-core (4 Core)Processor Speed2.30 GHzMemoryStandard Memory16 GBMemory TechnologyDDR5 SDRAMMemory Form FactorSODIMMNetwork & CommunicationEthernet Technology

• 10 Gigabit Ethernet
• 5 Gigabit Ethernet

I/O ExpansionsNumber of Total Expansion Bays4Number of 2.5"/3.5" Bays4Total Number of Expansion Slots1Expansion Slot TypePCI Express 4.0 x4ControllersController TypeSerial ATA/600RAID SupportedYesRAID Levels0, 1, 5, 6, 10, JBODInterfaces/PortsDrive InterfaceSerial ATA/600Total Number of USB Ports5Number of USB 3.2 Gen 2 Ports3Number of USB4 Ports2Network (RJ-45)YesNumber of Network (RJ-45) Ports4SoftwareOperating SystemADM 5.0Management & ProtocolsProtocols

• TCP/IP
• HTTPS
• LDAP
• L2TP
• SFTP
• UDP
• SSH
• CHAP
• FTPS
• AFP
• RTSP
• FTP
• SMB 2.0
• IPv4
• PAP
• WEBDAV
• SSL
• iSCSI
• SNMP
• TLS
• HTTP
• TFTP
• NFS
• UPnP
• RSync
• DDNS
• CIFS/SMB
• IPv6
• SMB 3.0

Power DescriptionMaximum Power Supply Wattage90 WPhysical CharacteristicsHeight7.3"Width6.7"Depth9.1"Form FactorDesktopWeight (Approximate)7.05 lbMiscellaneousPackage Contents

• LOCKERSTOR 4 Gen3 AS6804T SAN/NAS Storage System
• Quick Installation Guide
• 1 x AC Power Cord
• 1 x AC Power Adapter
• 4 x 10GbE LAN Cable(Cat 6a)
• 16 x Flat Head Screw (for 3.5" HDD)
• 16 x Flat Head Screw (for 2.5" HDD)

WarrantyLimited Warranty3 Year
