CYBERPOWER CP2000PFCRM2U UPS 8X5-20R 5-15P 6FT CORD 3YR WTY

Name: CYBERPOWER CP2000PFCRM2U UPS 8X5-20R 5-15P 6FT CORD 3YR WTY
Brand: CYBERPOWER
SKU: YS6433
Price: 449.95 USD
Availability: InStock

CYBERPOWER

PCN#

YS6433

MFG#

CP2000PFCRM2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$449.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

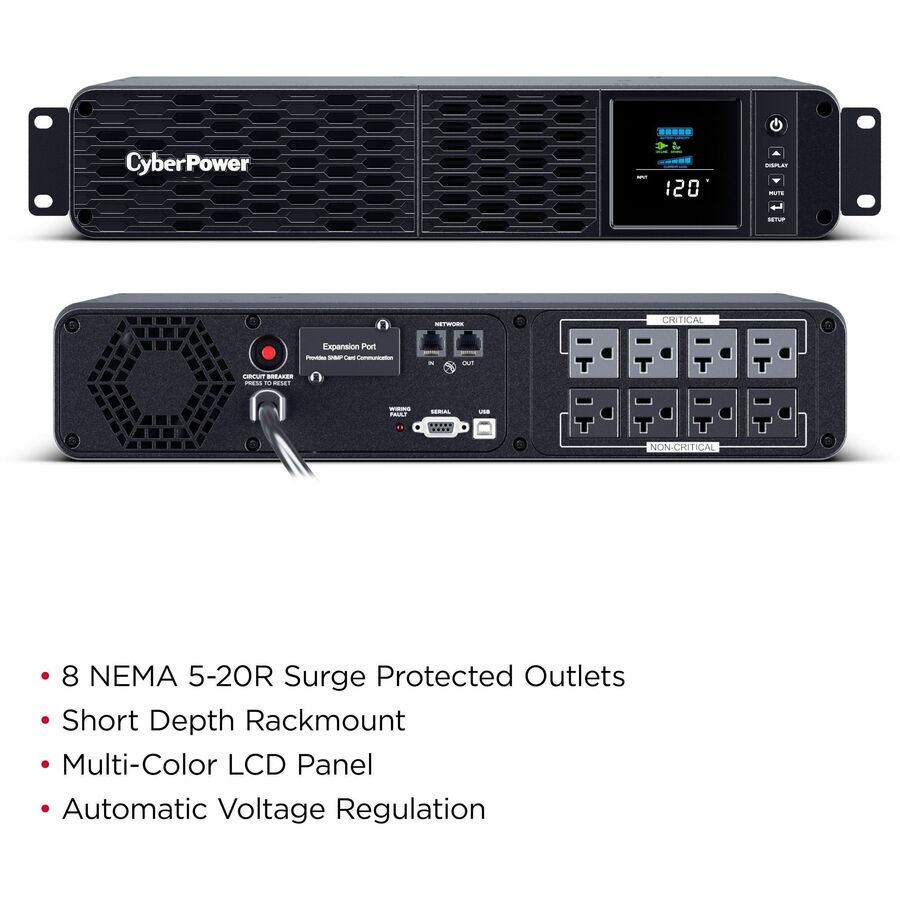

2000VA/1200W, 120 VAC, NEMA 5
20P, 2U, Rackmount, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $500000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778Energy StarYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 33 lbs.

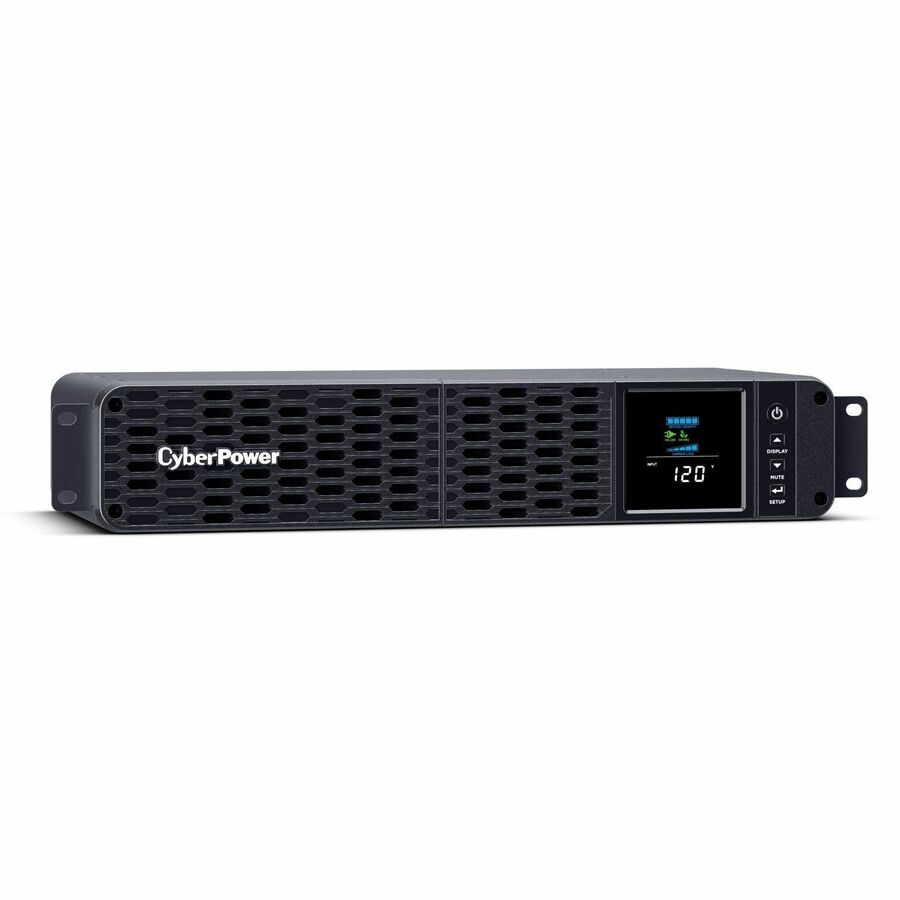

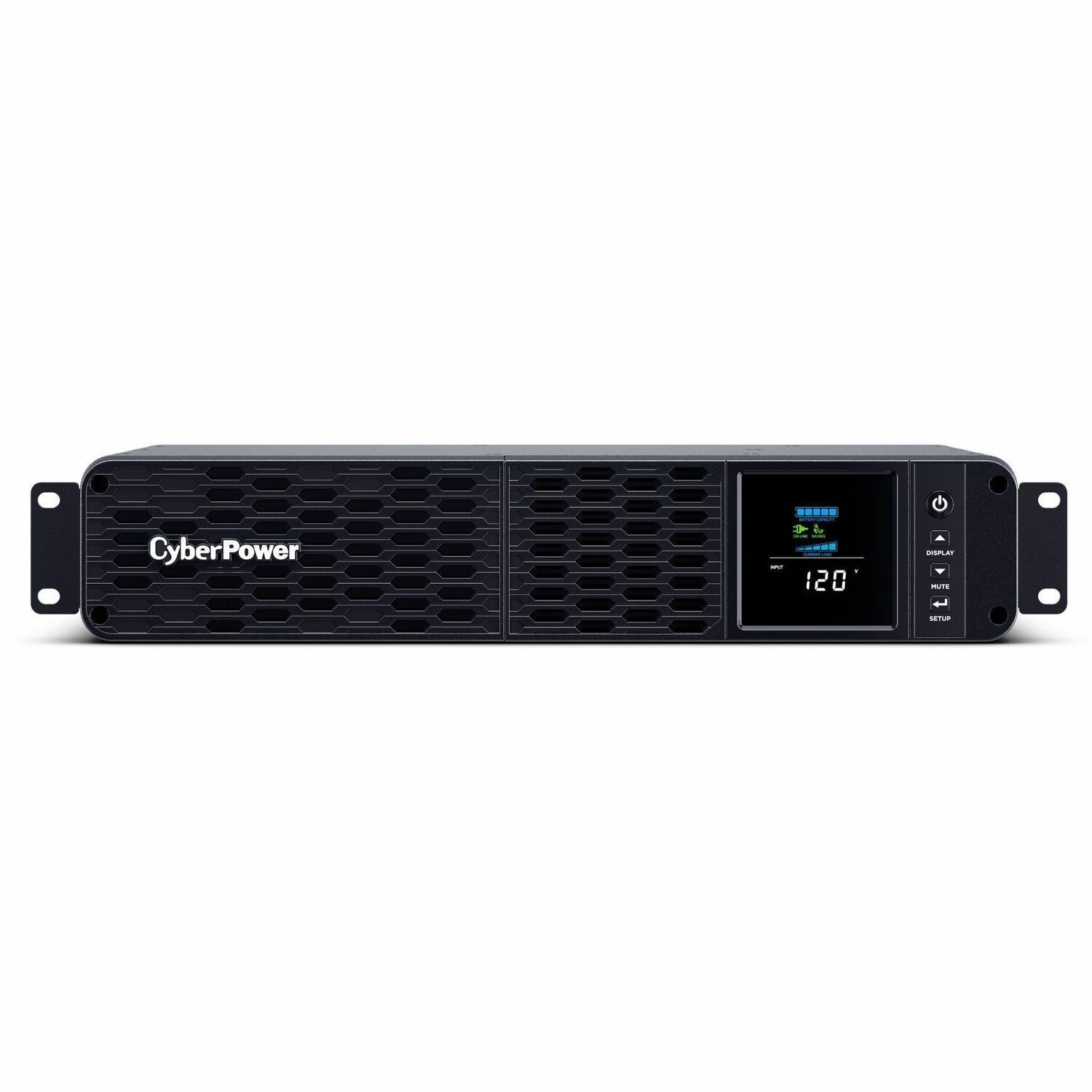

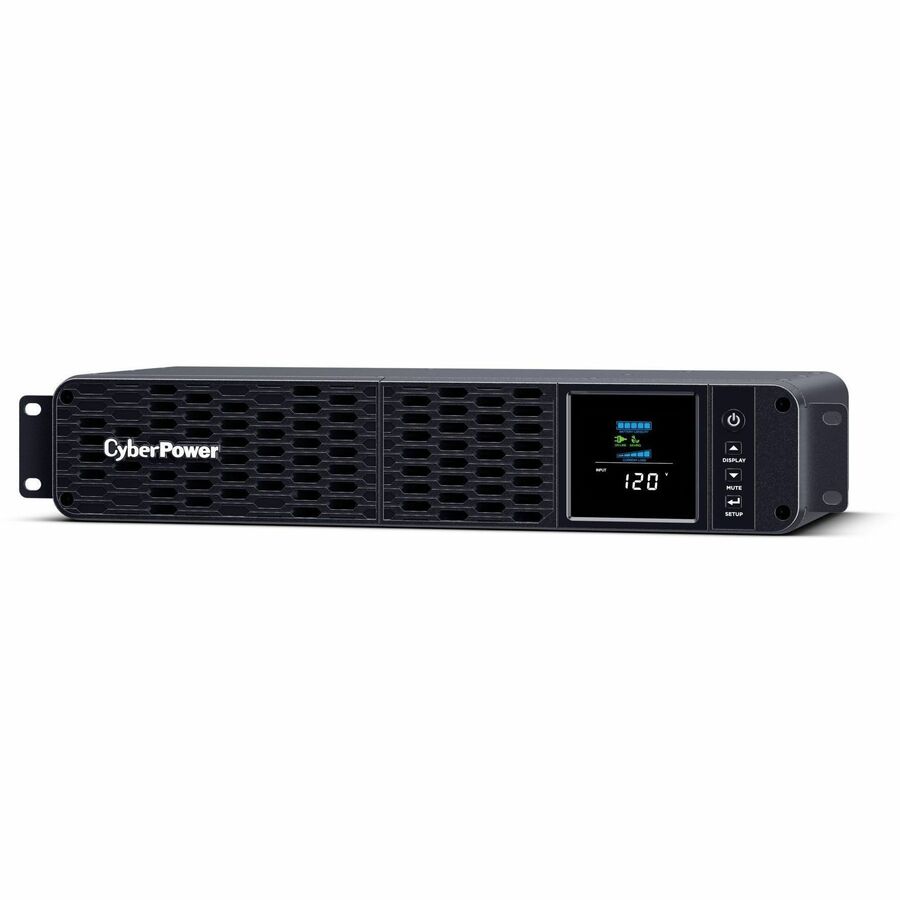

CyberPower CP2000PFCRM2U PFC Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP2000PFCRM2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	PFC Sinewave UPS
Product Model	CP2000PFCRM2U
Product Name	CP2000PFCRM2U PFC Sinewave UPS Systems

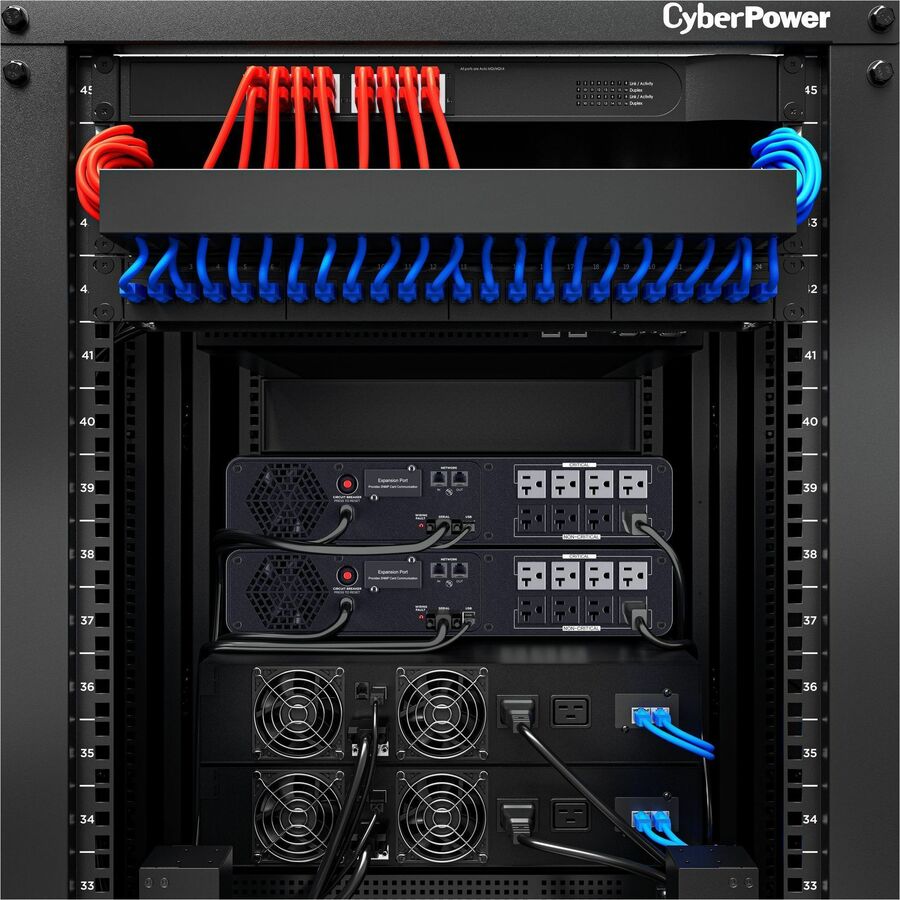

Marketing Information	The CP2000PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility. The CP2000PFCRM2U is equipped with Automatic Voltage Regulation (AVR) technology, enabling it to stabilize minor voltage fluctuations without engaging the battery, thereby extending battery life. It features an advanced multifunction control interface with a color LCD, providing real-time system status and alert notifications for at-a-glance monitoring. For enhanced system oversight, remote management and monitoring capabilities are supported via optional Remote Network Management Card or Cloud Monitoring Card integration. With a compact chassis depth of just 10.8 inches, the CP2000PFCRM2U is optimized for deployment in shallow-depth rack environments where space constraints are a critical consideration. The CP2000PFCRM2U comes with a three-year warranty (including coverage of batteries) and a 500,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes

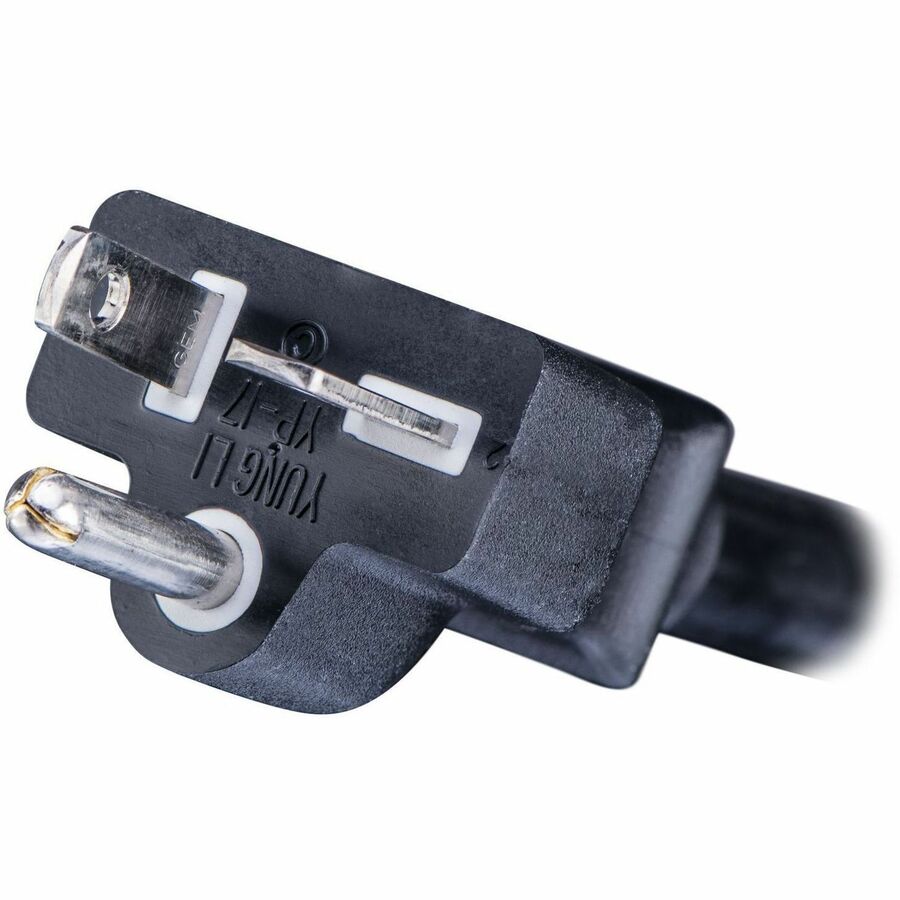

Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20R

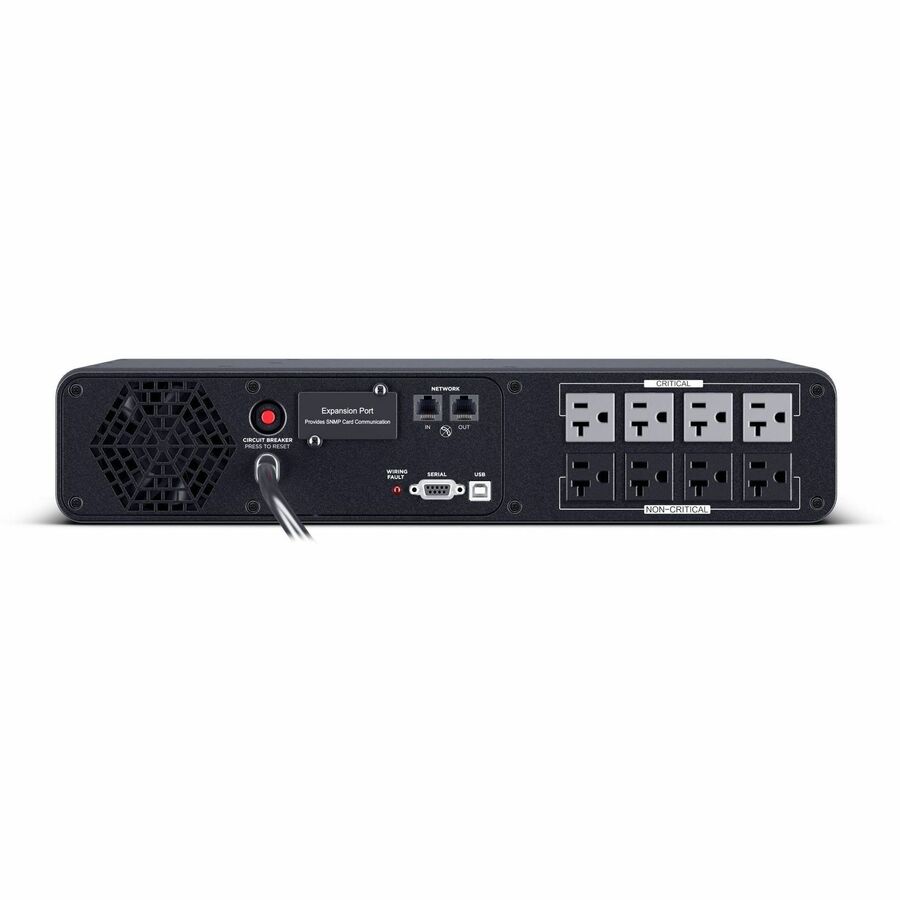

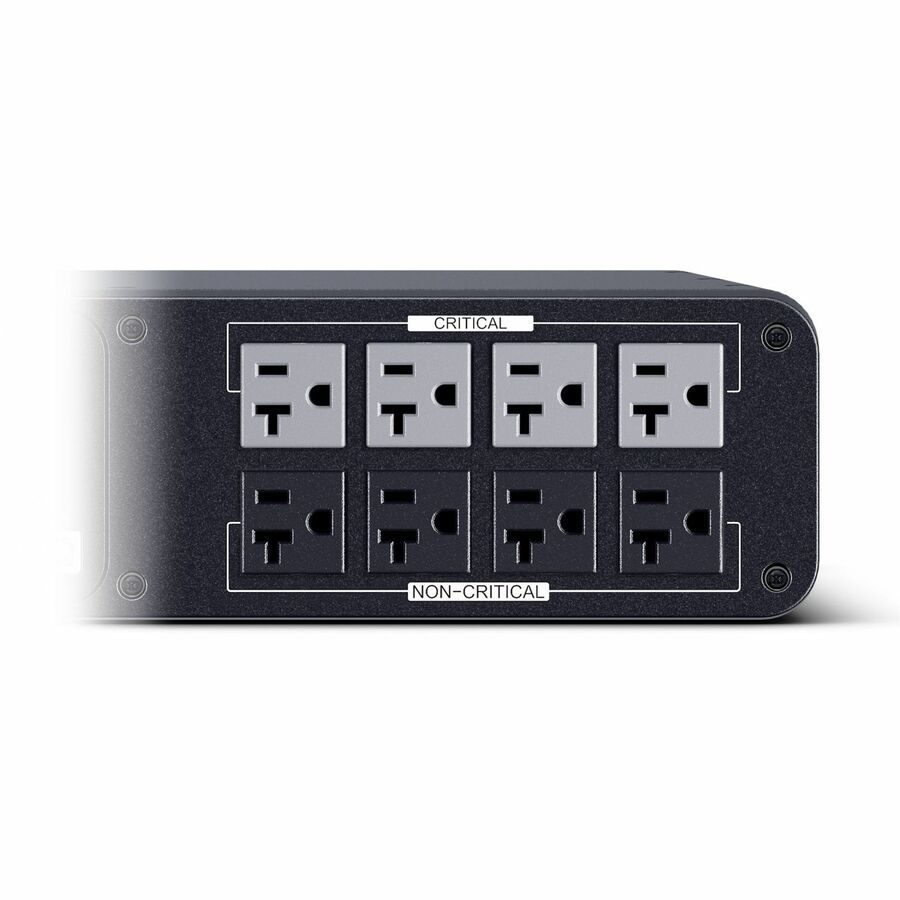

Receptacle Detail	8 x NEMA 5-20R
Number of Battery & Surge Outlets	8
Dataline Protection	RJ-45
Overload Protection	Yes
Cord Length	6 ft
Transfer Time	8 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Application/Usage	Security System Audio/Video Equipment Network Equipment
Surge Suppression	Yes
Features	Audible Alarm

Power Description

Load Capacity (VA)	2000 VA
Load Capacity (Watt)	1200 W
Input Voltage	120 V AC
Input Voltage Range	82 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	50 Hz 60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	1500 J
Circuit Breaker	Yes
Output Power Factor	0.6

Display & Graphics

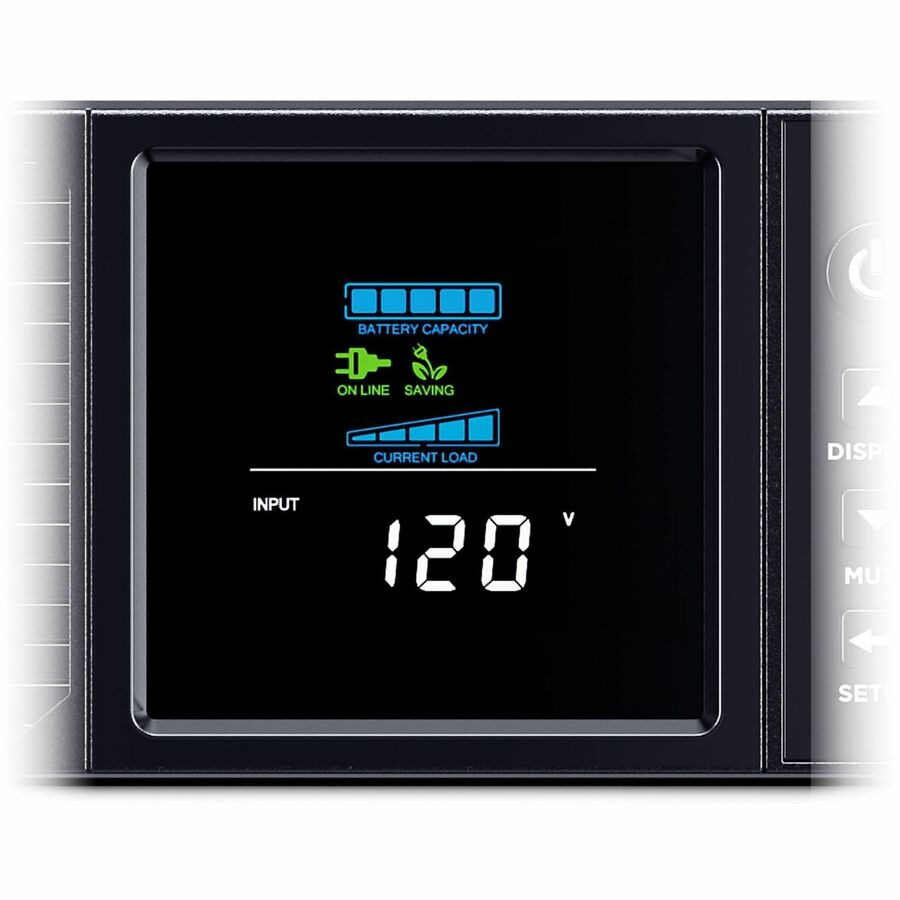

Display

LCD

Management

Network Management	Dry Contact SNMP/HTTP Remote Monitoring
Alarm	Battery Mode

Controls/Indicators

Status Indicators

Wiring Fault

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	2
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	2.20 Minute
Backup/Run Time (Half Load)	9 Minute
Typical Battery Recharge Time	8 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 95%
Thermal Dissipation	16.88 W

Physical Characteristics

Color Family	Black
Product Color	Black

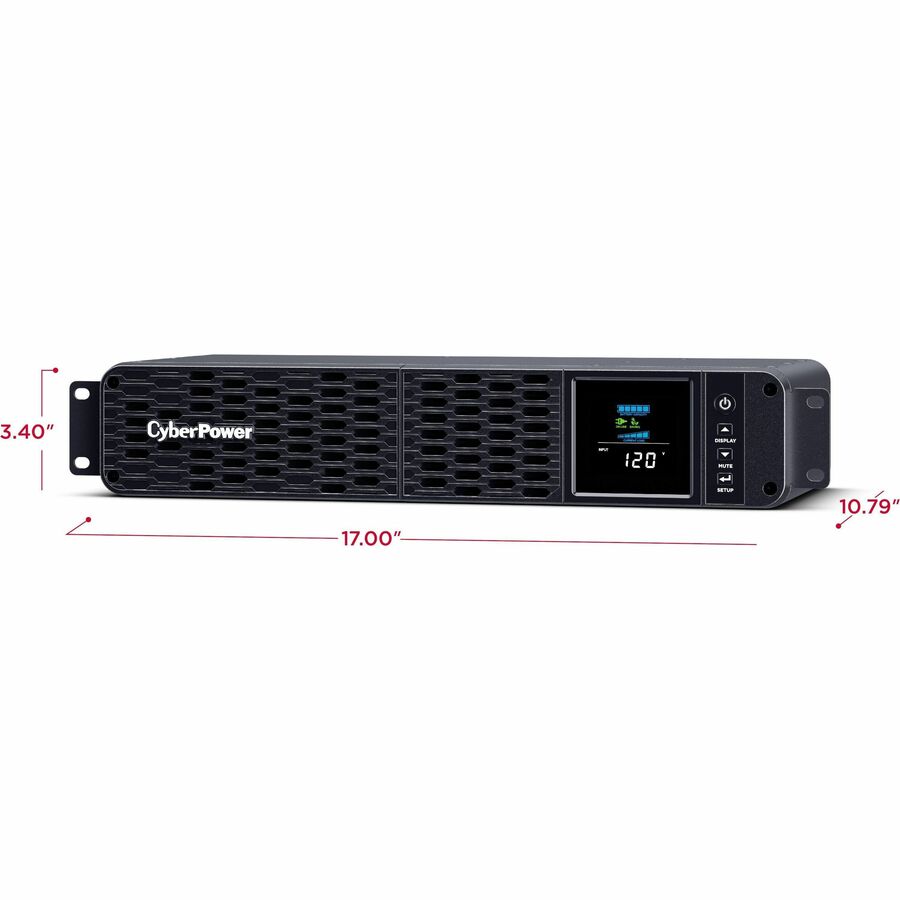

Height	3.39"
Width	17.05"
Depth	10.79"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	28.68 lb

Miscellaneous

Additional Information	Active PFC Compatible : Yes Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1290X2G Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 2.2 min Runtime at Half Load : 9.0 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.61 x 27.41 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.39 x 10.79 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 86 x 274 (mm) Weight (kg) : 13.01 Weight (lb) : 28.68 Shipping Dimensions - (WxHxD) (cm) : 52.3 x 19.0 x 37.39 (cm) Shipping - Dimensions (WxHxD, in) : 20.59 x 7.48 x 14.72 (in) Shipping - Dimensions (WxHxD, mm) : 522.99 x 189.99 x 373.89 (mm) Shipping - Weight (kg) : 14.24 Shipping - Weight (lb) : 31.39 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-20P Input Voltage Range : 88 VAC - 144 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlets - Widely Spaced : 0 Outlet Type COMPUTED : 8 - NEMA 5-20R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +11% VA : 2000 VA Watts : 1200 W EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Wiring Fault Management Cable : USB Cable Serial Port : 1 Dry Contact SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rackmount Material of Construction : Plastic Rack Height : 2U AC Mode Thermal Dissipation : 57.6 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 500000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778
Energy Star	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	500000 Lifetime
