CyberPower CPS1220RM 120 - 120 VAC 20A Basic PDU

Name: CyberPower CPS1220RM 120 - 120 VAC 20A Basic PDU
Brand: CYBERPOWER
SKU: 9GM222
Price: 111.12 USD
Availability: InStock

CYBERPOWER

PCN#

9GM222

MFG#

CPS1220RM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$111.12

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

12 Outlets, 15 ft, NEMA 5
20P, Horizontal, 1U, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterCertifications & Standards UL Recognized UL 498A UL1449 4th Edition cUL Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 7 lbs.

CyberPower CPS1220RM 120 - 120 VAC 20A Basic

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CPS-1220RM
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Model	CPS-1220RM
Product Name	CPS1220RM 120 - 120 VAC 20A Basic

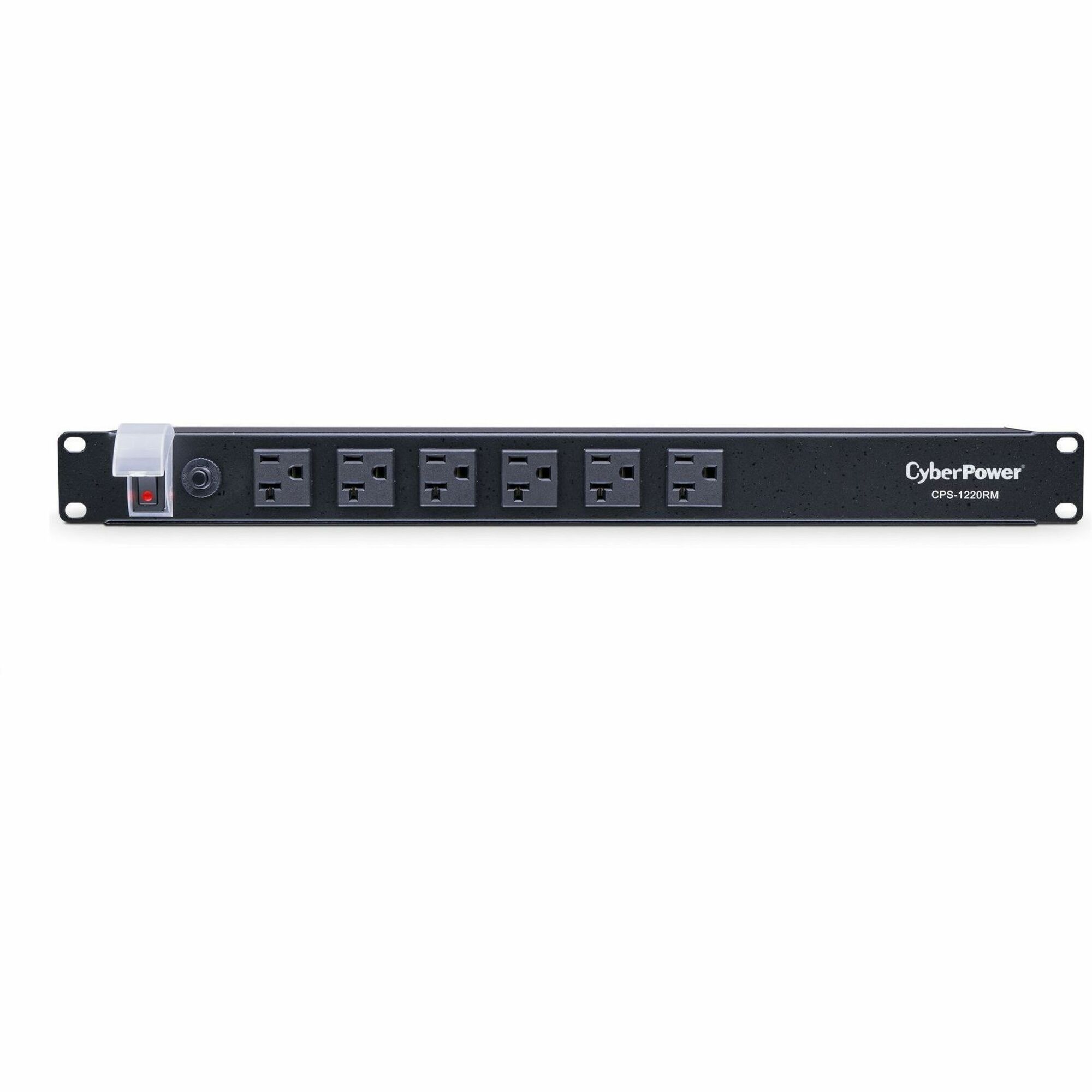

Marketing Information	The CyberPower CPS1220RM, a 12-outlet (6 front, 6 rear) rackmount power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1220RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is ETL/RoHS certified. A three-year warranty covers the CPS1220RM for three years for as long as you own the product.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase

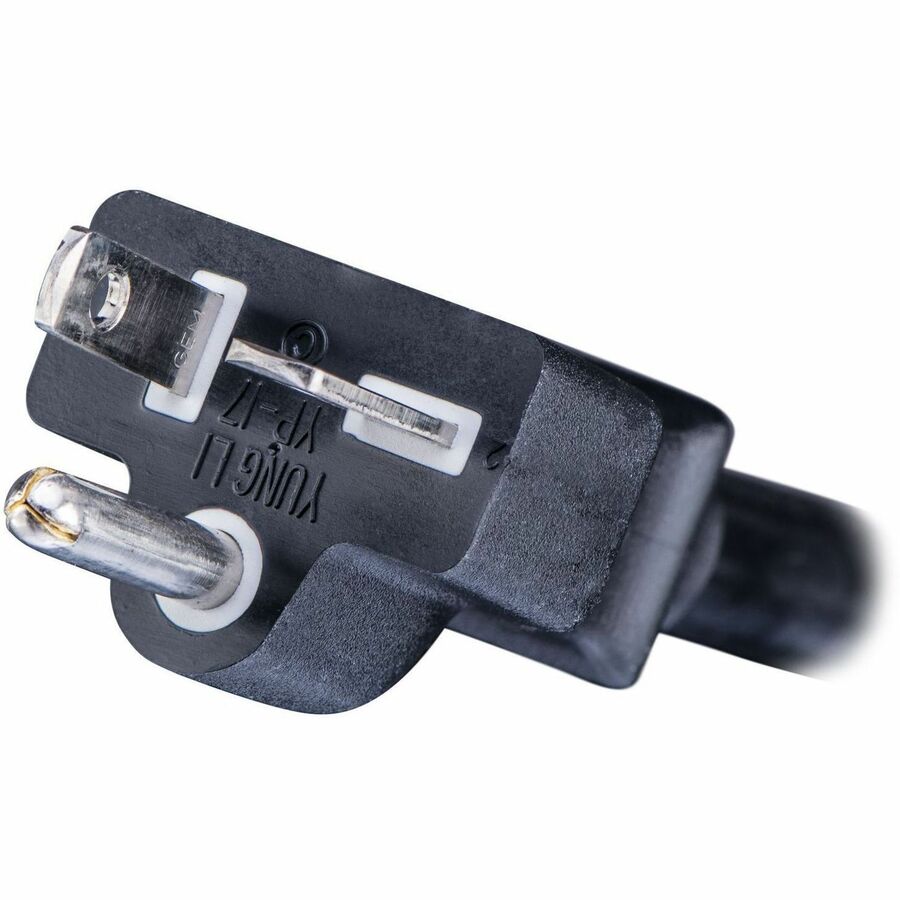

Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	12 x NEMA 5-20R
Protection Type	Overload Protection Short Circuit Protection
Locking Receptacles	Cord Retention Tray

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage	120 V AC
Power Rating (VA)	1800 VA
Input Current	20 A
Circuit Breaker	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	1U
Number of Cord/Cable	1
Cord Length	15 ft
Height	1.8"
Width	17.3"
Depth	4.8"
Weight (Approximate)	6 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	113°F (45°C)

Miscellaneous

Package Contents	CPS1220RM Warranty Card/Manual
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.82 x 4.45 x 12.07 (cm) Physical Dimensions - (WxHxD) (in) : 17.25 x 1.75 x 4.75 (in) Physical Dimensions - (WxHxD) (mm) : 438 x 44 x 121 (mm) Weight (kg) : 2.72 Weight (lb) : 6 Shipping Dimensions - (WxHxD) (cm) : 20.32 x 5.72 x 55.25 (cm) Shipping - Dimensions (WxHxD, in) : 8.0 x 2.25 x 21.75 (in) Shipping - Dimensions (WxHxD, mm) : 203.2 x 57.15 x 552.45 (mm) Shipping - Weight (kg) : 10.09 Shipping - Weight (lb) : 22.25 Circuit Breaker : 20 A Cord Length : 15 ft (4.6 m) Input Plug Type : NEMA 5-20P Maximum Input Current : 20A Nominal Input Voltage : 120 VAC Plug Style : Straight Switch : Lighted On/Off Nominal Output Voltage : 120 - 120 VAC Outlets - Front : 6 Outlets - Rear : 6 Outlets - Total : 12 Outlet Type COMPUTED : 12 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Clamping Voltage : 800V (H-N) Clamping Voltage : 800V (H-N) Color : Black Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL Recognized\|UL 498A\|UL1449 4th Edition\|cUL Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center
Certifications & Standards	UL Recognized UL 498A UL1449 4th Edition cUL
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty	3 Year
Parts Warranty/Labor	3 Year Parts & Labor
Additional Warranty Information	CyberPower stands behind its products with an industry-leading 3 year warranty. CyberPower also offers a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of Charge.
