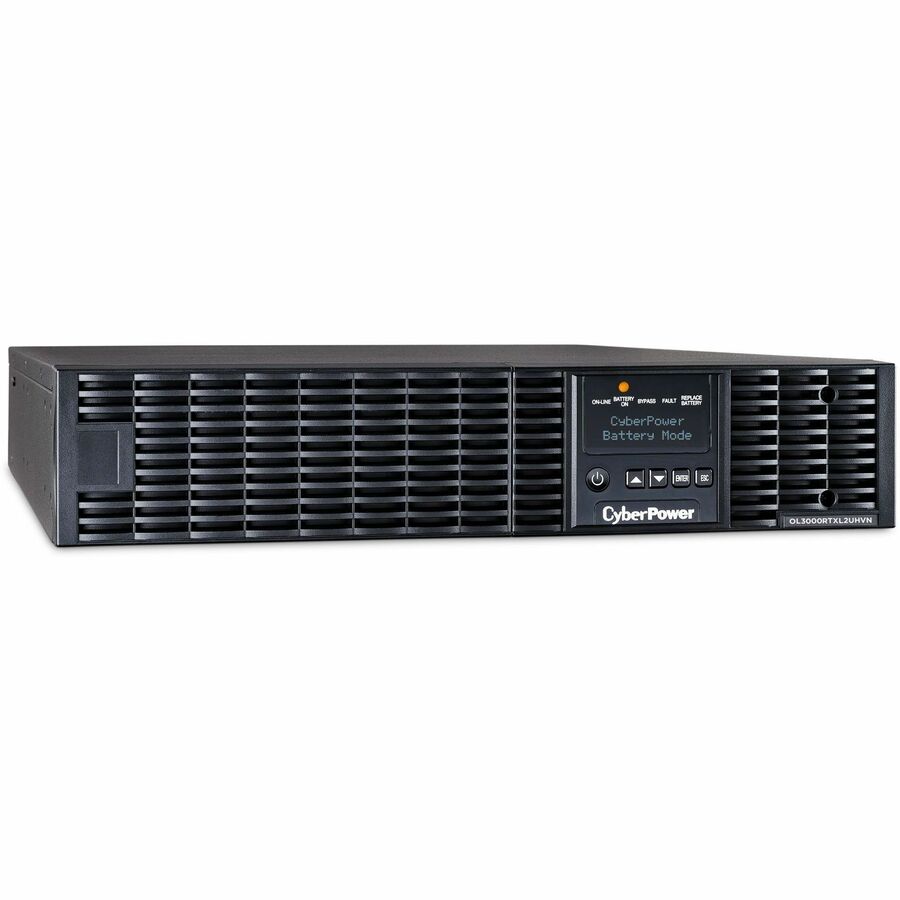

CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems

Name: CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems
Brand: CYBERPOWER
SKU: 9MF645
Price: 2569.95 USD
Availability: InStock

CYBERPOWER

PCN#

9MF645

MFG#

OL3000RTXL2UHVN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

3000VA/2700W, 200
240 VAC, NEMA L6
20P, 2U, Rack / Tower, Sine Wave, 3 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearDirectly Connected Equipment Guarantee400000 Lifetime

Shipping Weight: 84 lbs.

CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OL3000RTXL2UHVN
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Smart App Online UPS
Product Model	OL3000RTXL2UHVN
Product Name	Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS
Marketing Information	Prevent business interruptions and safeguard mission-critical enterprise network equipment. The CyberPower OL3000RTXL2UHVN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode. The OL3000RTXL2UHVN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output. With a 400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA L6-20P
Receptacle Type	NEMA L6-20R NEMA L6-30R
Receptacle Detail	2 x NEMA L6-20R 1 x NEMA L6-30R
Transfer Time	0 ns
Dataline Protection	RJ-11 RJ-45
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	ECO Mode Efficiency >97%
Application/Usage	Server Network Device Lab Equipment Electronic Device High-end System Component Edge Computing PBX System VoIP

Power Description

Load Capacity (VA)	3000 VA
Input Voltage	120 V AC 230 V AC
Input Voltage Range	120 V AC - 139 V AC 200 V AC - 240 V AC
Output Voltage	200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	445 J

Management

Network Management	SNMP/HTTP/CLI Remote Monitoring
Alarm	Battery Mode Low Battery Overload UPS Fault

Controls/Indicators

Status Indicators

Power On (white)
Line Mode (green)
Battery Mode (yellow)
Bypass Mode (yellow)
Fault (red)
Replace Battery (red)

Interfaces/Ports

Serial Port	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes

Battery Information

DC System Voltage	12 V DC
Number of Batteries	6
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	3.50 Minute
Backup/Run Time (Half Load)	11 Minute
Typical Battery Recharge Time	4 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 90%
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	38 dB(A)
Thermal Dissipation	231.53 W

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack/Tower
Rack Height	2U
Height	3.5"
Width	17"
Depth	23.6"
Weight (Approximate)	68.20 lb

Miscellaneous

Package Contents	Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS User Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line USB Communication Cable Serial Interface Cable (RS-232) 8 x M5X7L Black Flat Head Screws 12 x M5X12L Black Pan Head Screws 6 x M5X6L Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads Software Download Card
Additional Information	Replacement Battery Cartridge Quantity: 1 Smart Battery Management (SBM) Mode: Yes Circuit Breaker: 20A Cold Start: Yes Input Power Factor: 0.99 Crest Factor: 3:1 ECO Mode Voltage Regulation: ±10%, ±15% (Configurable) Harmonic Distortion: < 3% at Linear Load Nominal Output Voltage: 200 - 240 VAC On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable) Output Power Factor: 0.9 Overload Protection: Line Mode: 105% ~ 125% Load - 1 min Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo) Dry Contacts: Yes Expansion Slot: Yes - RMCARD205 pre-installed LCD: Multifunction LCD Management Cable: USB Cable Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included) Rotatable LCD Control Panel Option: Yes Upgradeable firmware: Yes Material of Construction: Metal Mounting Hardware: Yes ECO Mode Thermal Dissipation: 207 BTU/hr
Certifications & Standards	UL 1778
Software Included	PowerPanel® Business
Energy Star	Yes
Environmentally Friendly	Yes
Country of Origin	Philippines

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	400000 Lifetime
