CyberPower Switched ATS PDU PDU24005 10-Outlets PDU

Name: CyberPower Switched ATS PDU PDU24005 10-Outlets PDU
Brand: CYBERPOWER
SKU: 01FL40
Price: 544.95 USD
Availability: InStock

CYBERPOWER

PCN#

01FL40

MFG#

PDU24002

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$544.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

10 Outlets, 10 ft, 2 x NEMA L5
20P, Horizontal, 1U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterNetwork ClosetCertifications & StandardsUL62368 via cTUVusFCC Class AICES-003: Issue 7Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 15 lbs.

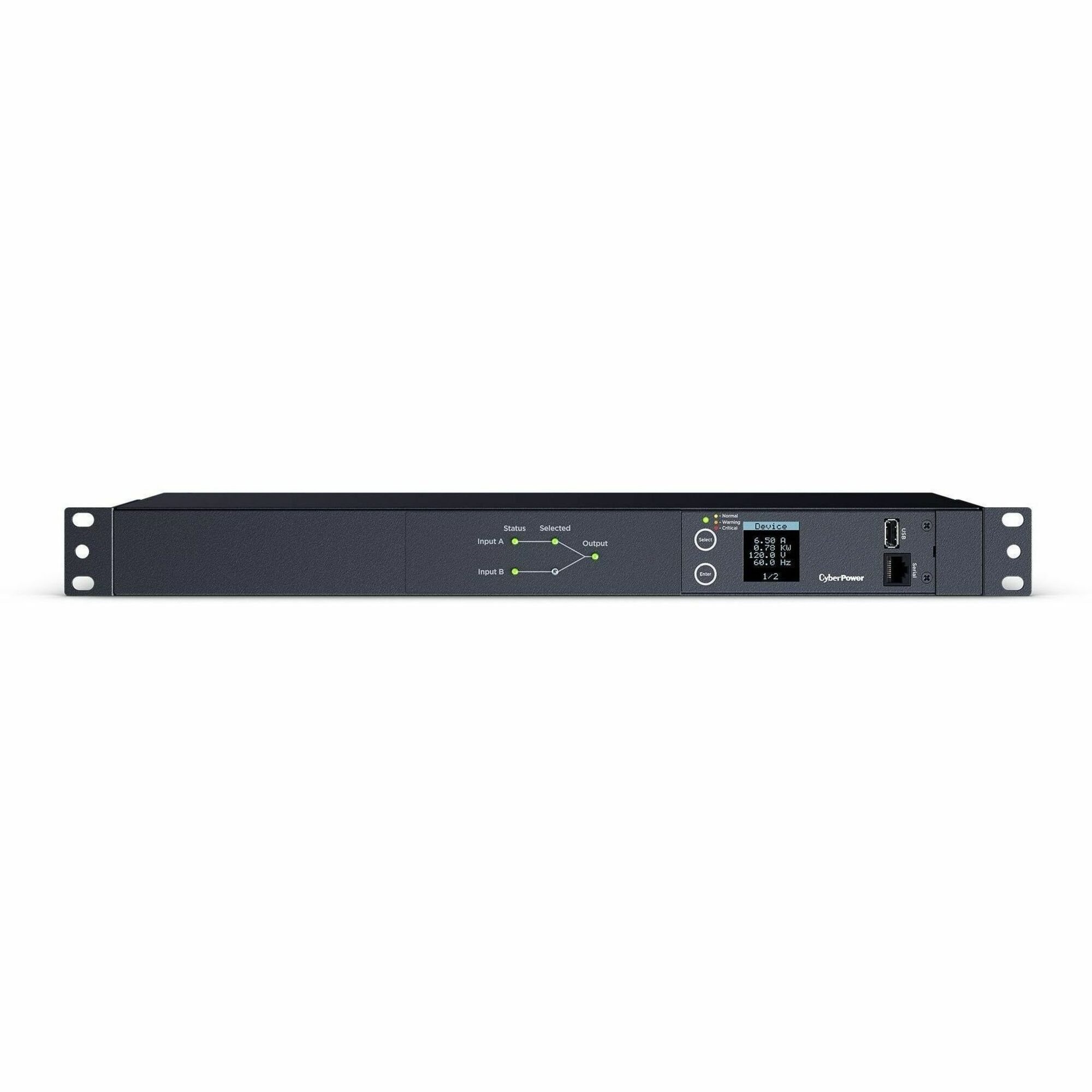

CyberPower PDU24002 Single Phase 100 - 120 VAC 20A Metered ATS PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU24002
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Metered ATS PDU
Product Model	PDU24002
Product Name	PDU24002
Marketing Information	Ensure continued operation of critical devices with the CyberPower PDU24002 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU24002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P (L5-20P to non-locking 5-20P adpaters included) power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24002 is protected by a three-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Metered
Design	Modular
Phase	Single Phase
Plug/Connector Type	NEMA L5-20P
Plug/Connector Detail	2 x NEMA L5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	10 x NEMA 5-20R
Locking Receptacles	Cord Retention Tray
Features	LCD Display LED Status Indicator

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	120 V AC
Output Voltage Range	100 V AC - 120 V AC
Input Current	20 A
Input Frequency	60 Hz

Management

Protocols:

IPv4
TCP
IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD
SNMP

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	10 ft
Height	1.8"
Width	17.1"
Depth	8.5"
Weight (Approximate)	10.60 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	131°F (55°C)

Miscellaneous

Package Contents	PDU24002 L5-20P to non-locking 5-20P Adapter
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 4.81 Weight (lb) : 10.6 Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm) Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in) Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm) Shipping - Weight (kg) : 6.67 Shipping - Weight (lb) : 14.7 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : 2 x NEMA L5-20P Maximum Input Current : 20A Nominal Input Voltage : 100 - 120 VAC Phase : Single Phase Plug Style : Straight Nominal Output Voltage : 100 - 120 VAC Outlet Banks : 1 Outlets - Total : 10 Outlet Type COMPUTED : 10 - NEMA 5-20R Overload Protection : None Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Hardware Connection Port : Serial (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 via cTUVus Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet
Certifications & Standards	UL62368 via cTUVus FCC Class A ICES-003: Issue 7
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
