CYBERPOWER PDU41023 PDU 16 OUTLETS 12 FT NEMA L5-30P

Name: CYBERPOWER PDU41023 PDU 16 OUTLETS 12 FT NEMA L5-30P
Brand: CYBERPOWER
SKU: SQ4035
Price: 1295.95 USD
Availability: InStock

CYBERPOWER

PCN#

SQ4035

MFG#

PDU41023

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,295.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Outlets, 12 ft, NEMA L5
30P, Horizontal, 1U, SNMP, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterNetwork ClosetVoIP Phone SystemCertifications & StandardsUL62368FCC Class AEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 15 lbs.

CyberPower PDU41023 Single Phase 100 - 120 VAC 30A Switched PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU41023
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched PDU
Product Model	PDU41023
Product Name	PDU41023

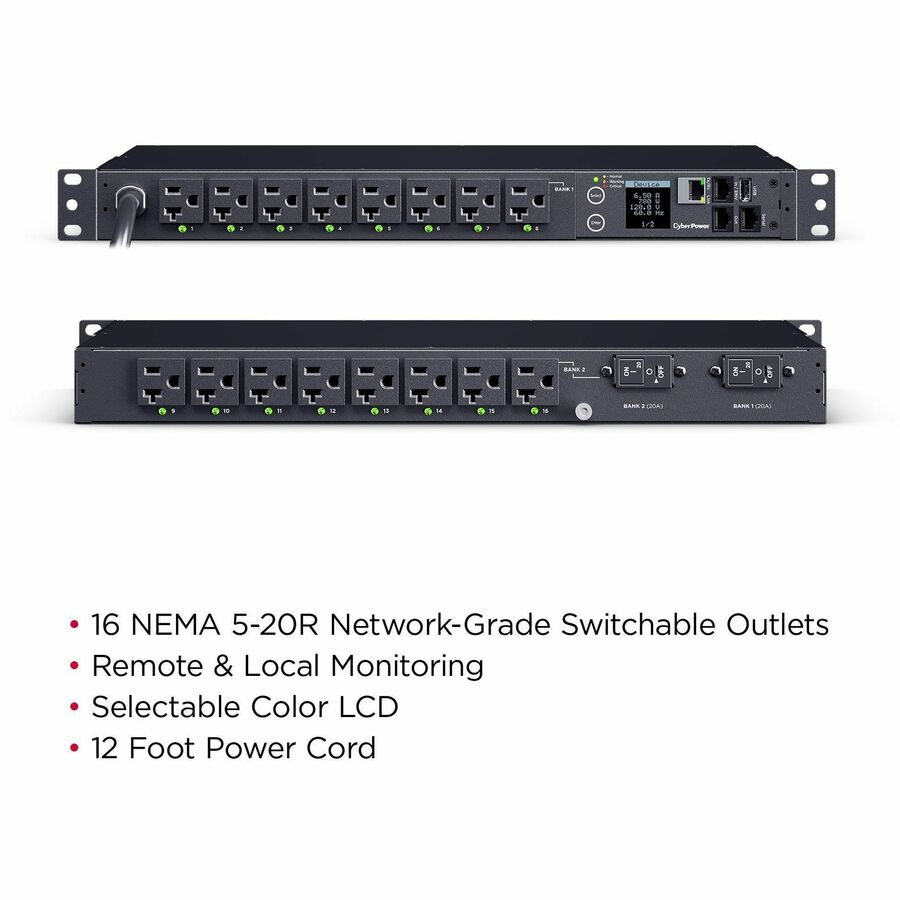

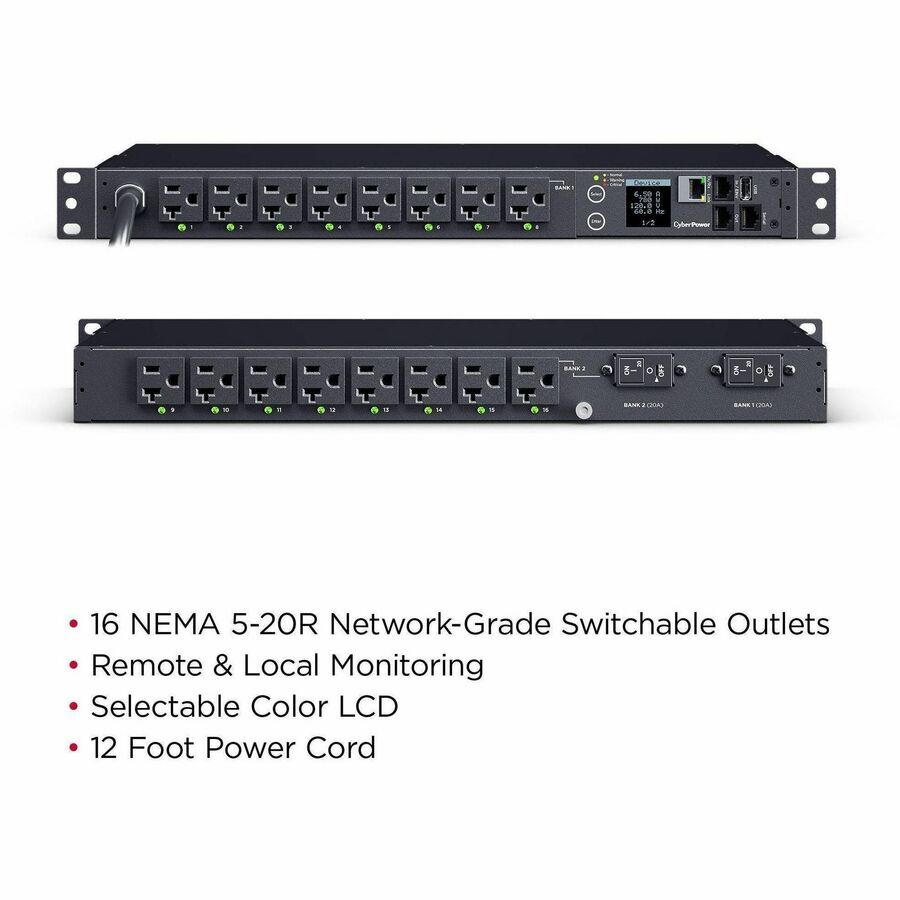

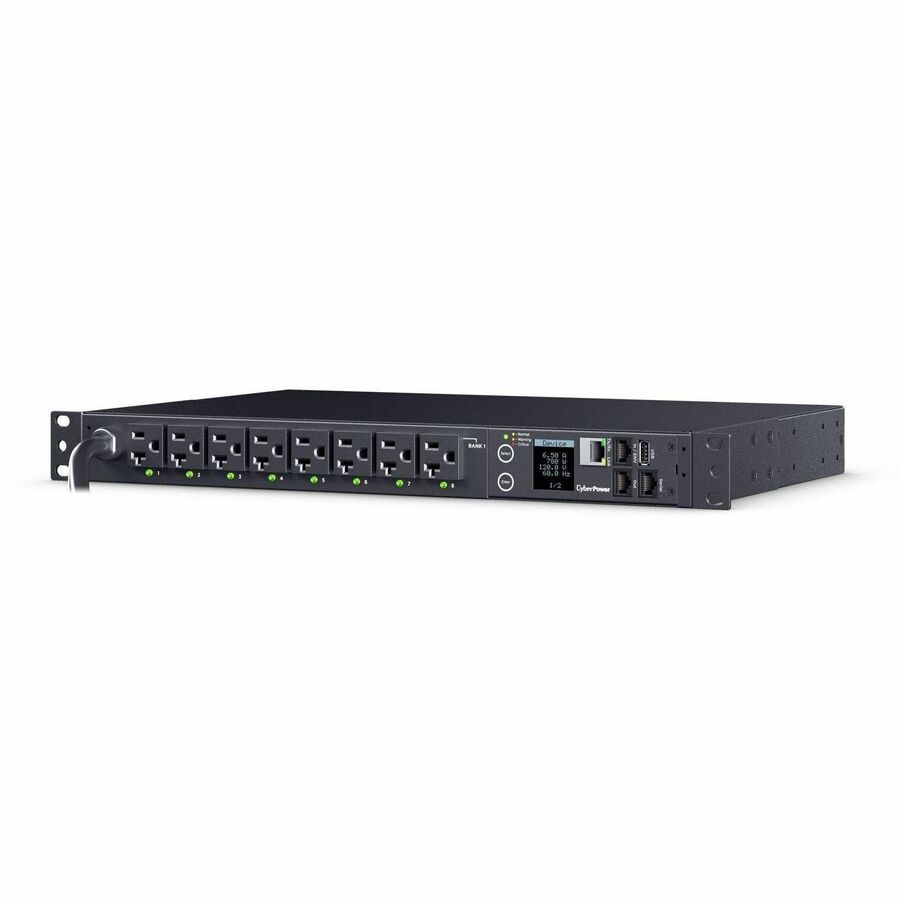

Marketing Information	The CyberPower PDU41023, a 1U rackmount, switched power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase

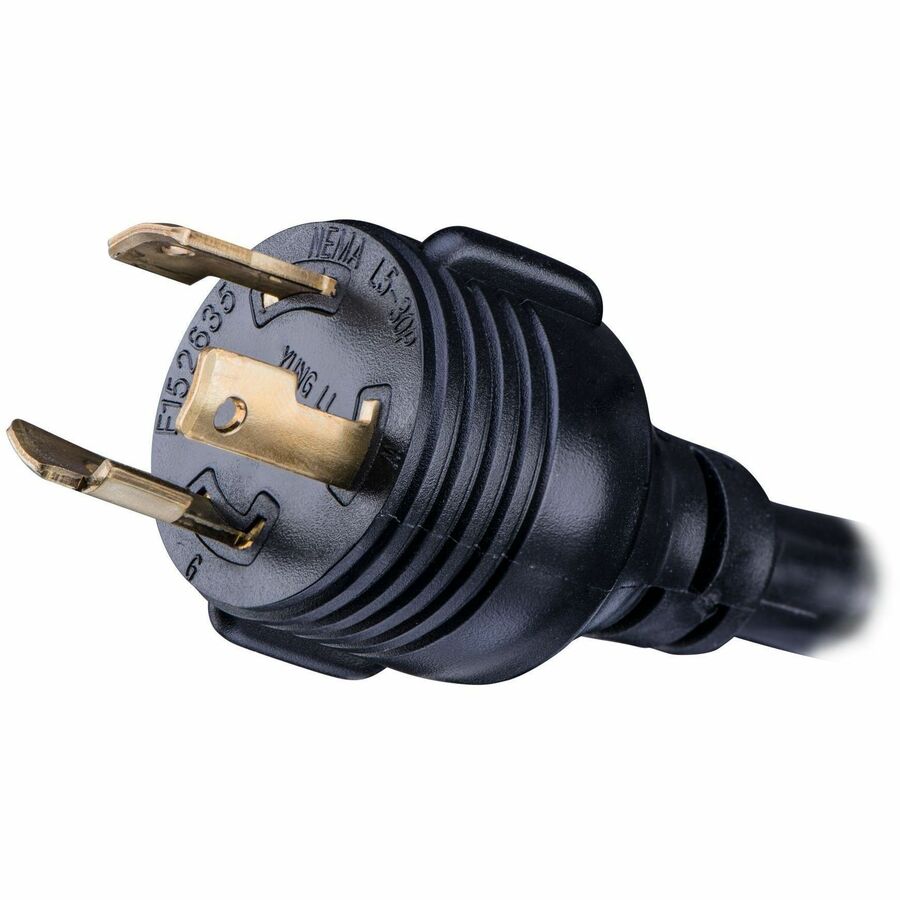

Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	16 x NEMA 5-20R
Protection Type	Overload Protection
Locking Receptacles	Cord Retention Tray
Features	Onboard Display LED Status Indicator

Power Description

Output Voltage	120 V AC
Output Voltage Range	100 V AC - 120 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	IPv4/v6 SNMPv1/v3 HTTP/HTTPs TCP/IP UDP DHCP NTP DNS SMTP SSH SSL TLS Telnet FTP Syslog RADIUS LDAP LDAPS Windows AD
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	12 ft

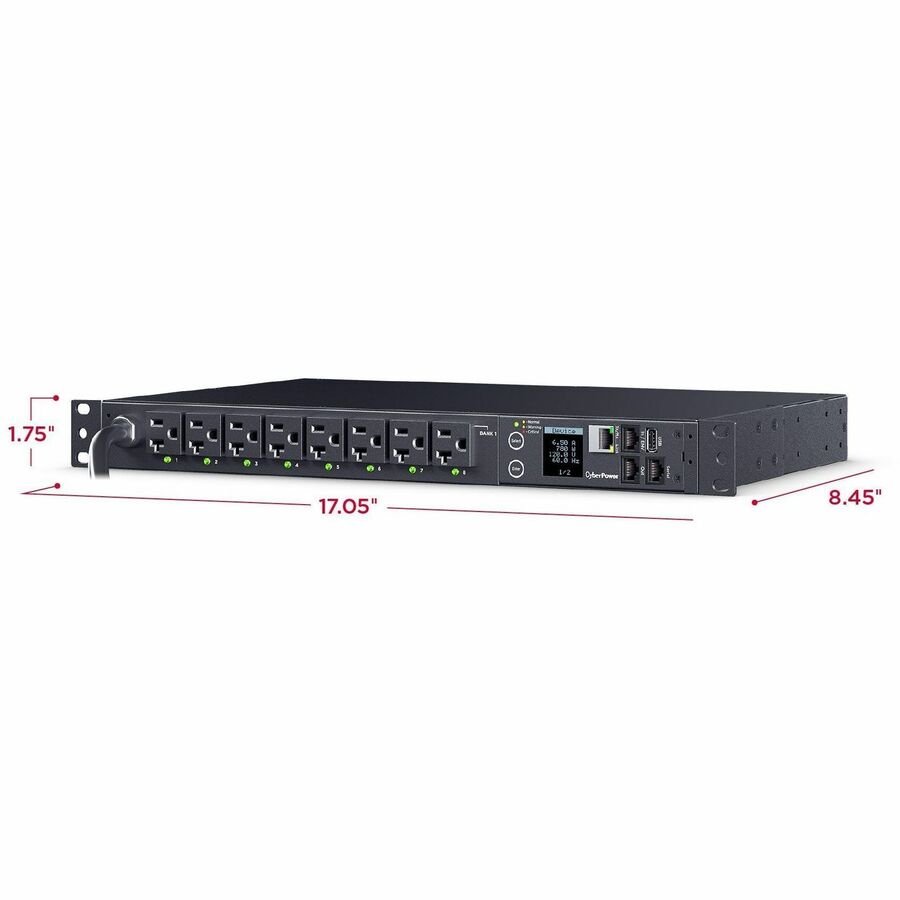

Height	1.8"
Width	17.1"
Depth	8.5"
Weight (Approximate)	9.90 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	149°F (65°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 4.49 Weight (lb) : 9.9 Shipping Dimensions - (WxHxD) (cm) : 55.25 x 12.7 x 40.64 (cm) Shipping - Dimensions (WxHxD, in) : 21.75 x 5 x 16 (in) Shipping - Dimensions (WxHxD, mm) : 552.45 x 127.0 x 406.4 (mm) Shipping - Weight (kg) : 6.71 Shipping - Weight (lb) : 14.8 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-30P Maximum Input Current : 30A Phase : Single Phase Plug Style : Straight Controllable Outlets : 16 Meter Readout : Power Control Display Nominal Output Voltage : 100 - 120 VAC Outlets - Front : 8 Outlets - # of Banks : 2 Outlets - Rear : 8 Outlets - Total : 16 Outlet Type COMPUTED : 16 - NEMA 5-20R Overload Protection : 20A x 2 Overload Protection (Each Bank) : 20A USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Tx/Rx SNMP / HTTP Remote Monitoring : IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog, RADIUS, LDAP, LDAPS, Windows AD Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Horizontal Rackmount Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet VoIP Phone System
Certifications & Standards	UL62368 FCC Class A
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
