CYBERPOWER PR3000RTXL2UCN UPS 3000VA/3000W 120 VAC NEMA L5-30P

Name: CYBERPOWER PR3000RTXL2UCN UPS 3000VA/3000W 120 VAC NEMA L5-30P
Brand: CYBERPOWER
SKU: SQ4037
Price: 2995.95 USD
Availability: InStock

CYBERPOWER

PCN#

SQ4037

MFG#

PR3000RTXL2UCN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,995.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

3000VA/3000W, 100
120 VAC, NEMA L5
30P, 2U, Rack / Tower, Sine Wave, 9 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778VCCIFCC Class ACSA C22.2 No 107.3Energy StarYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 90 lbs.

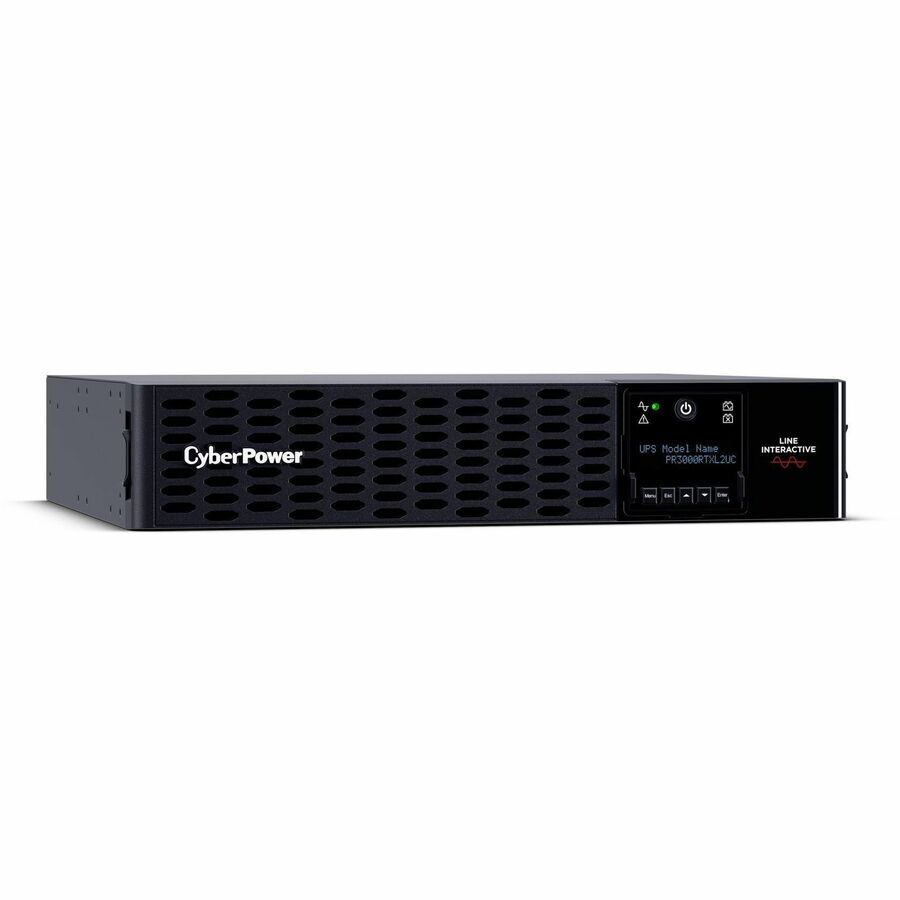

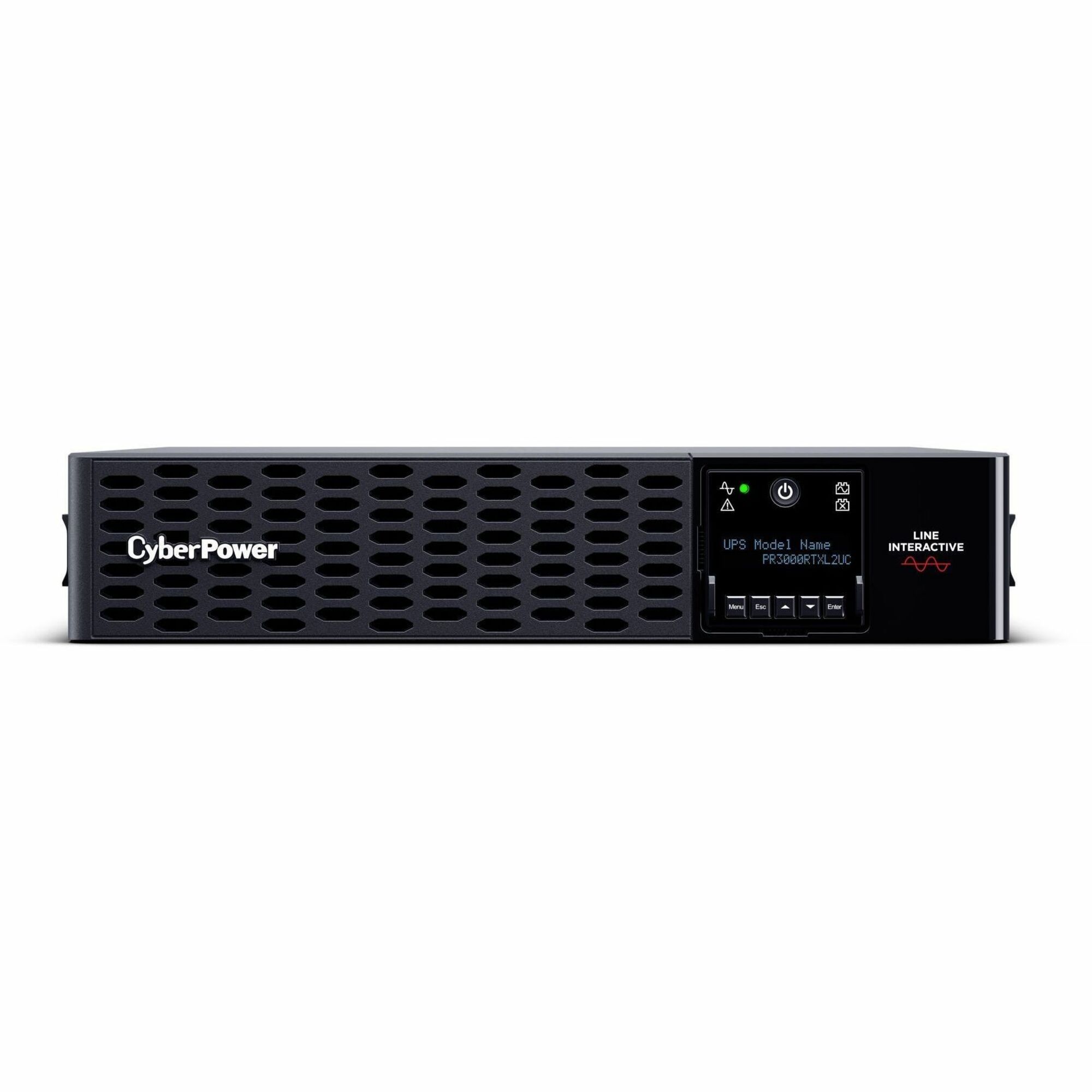

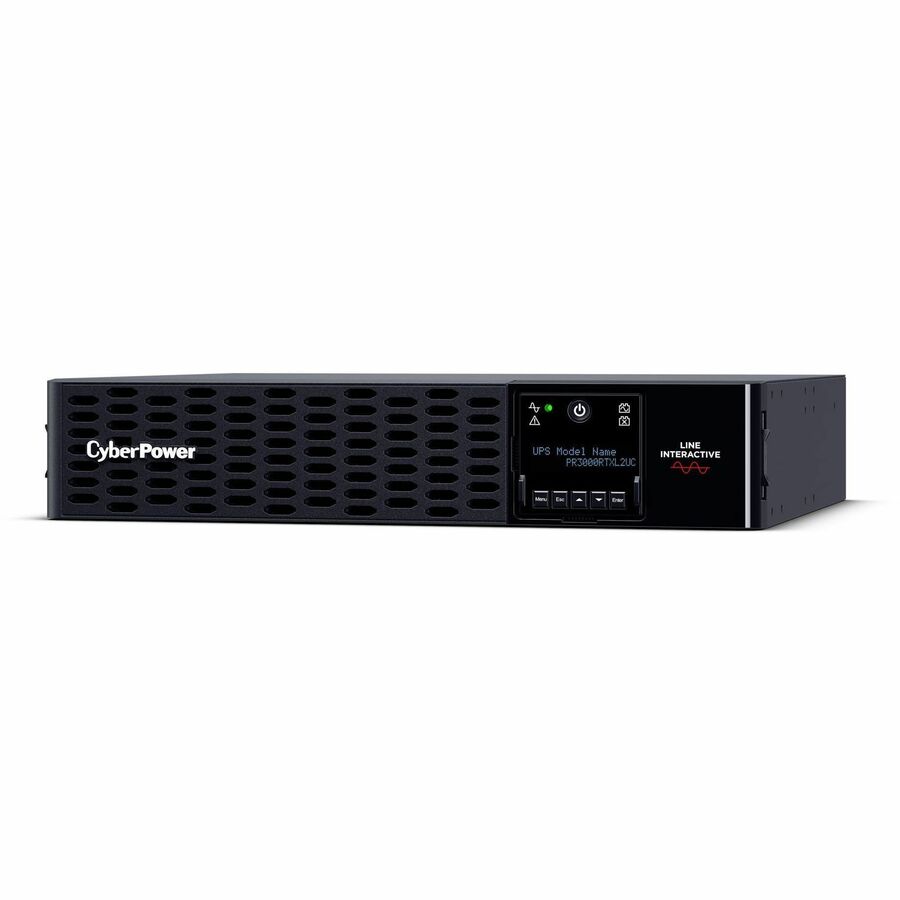

CyberPower PR3000RTXL2UCN Smart App Sinewave UPS Systems

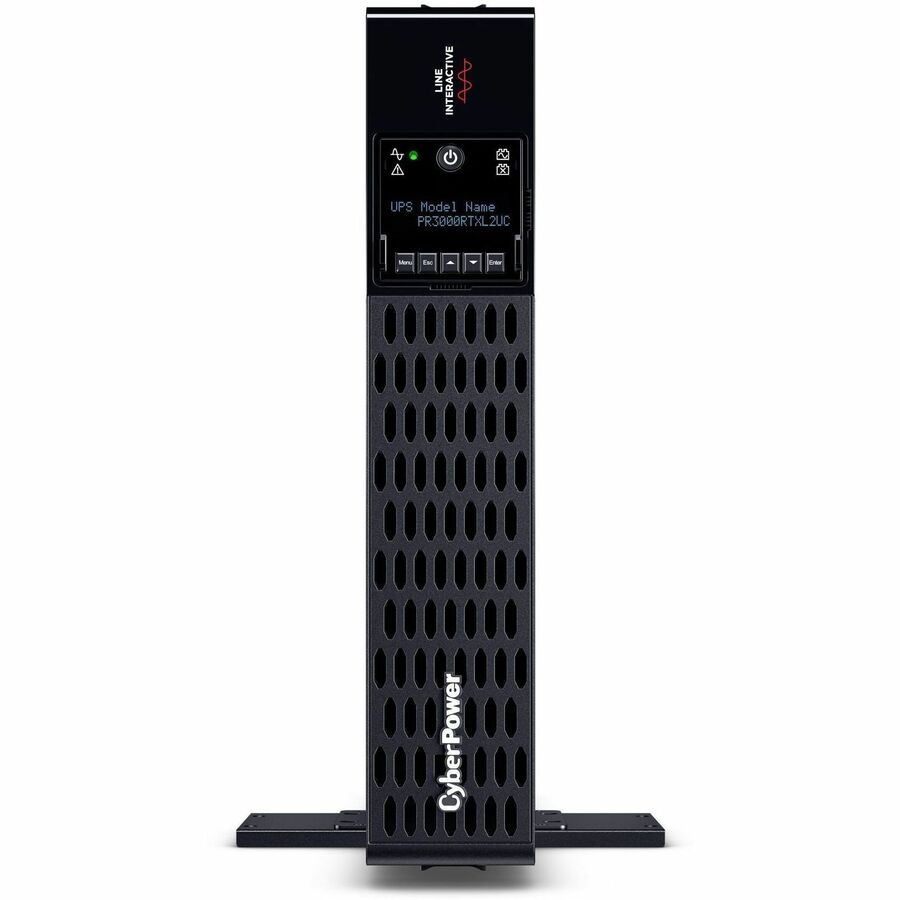

The PR3000RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

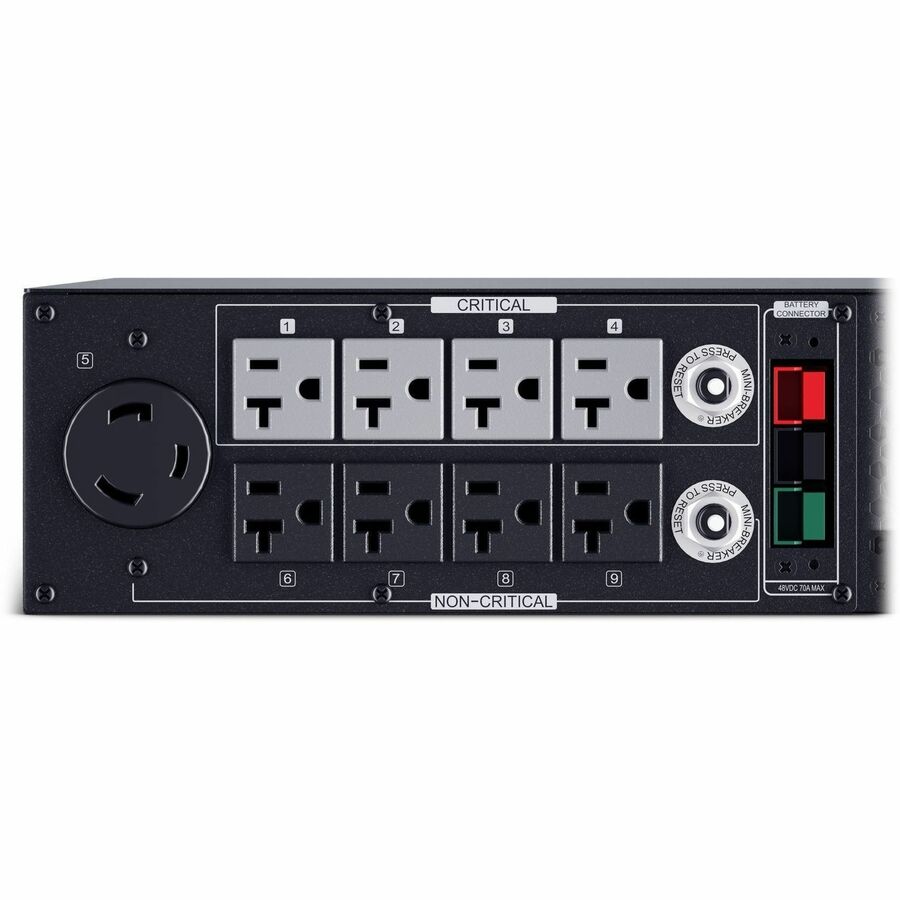

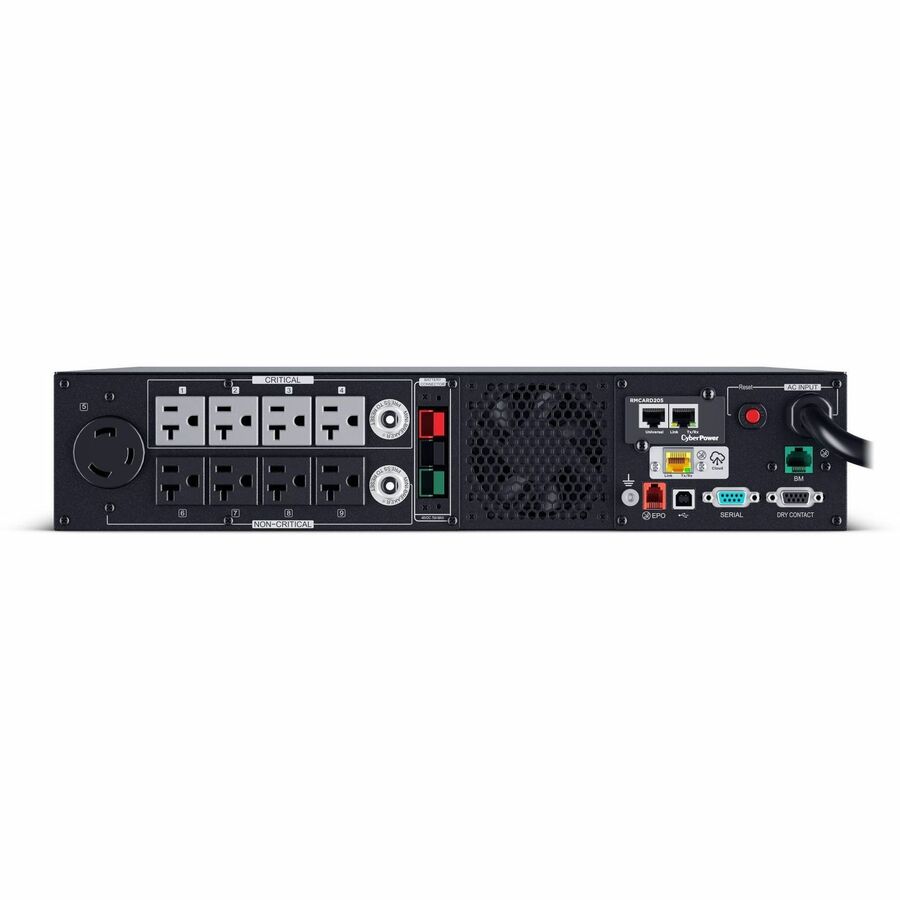

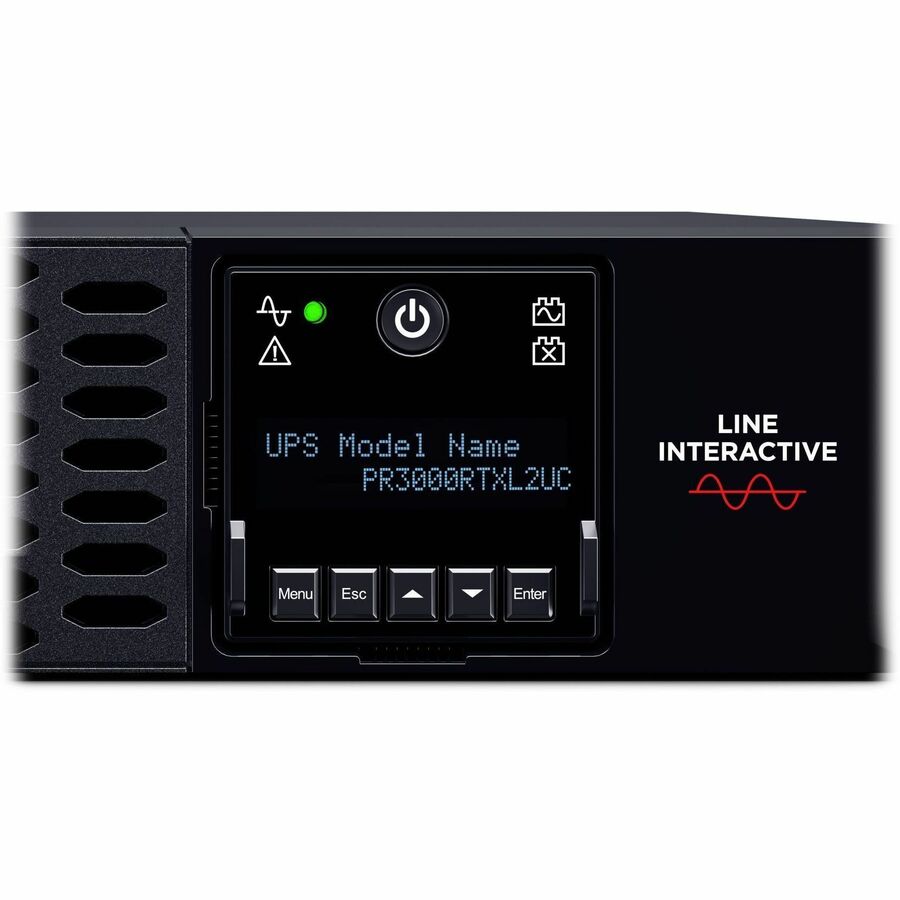

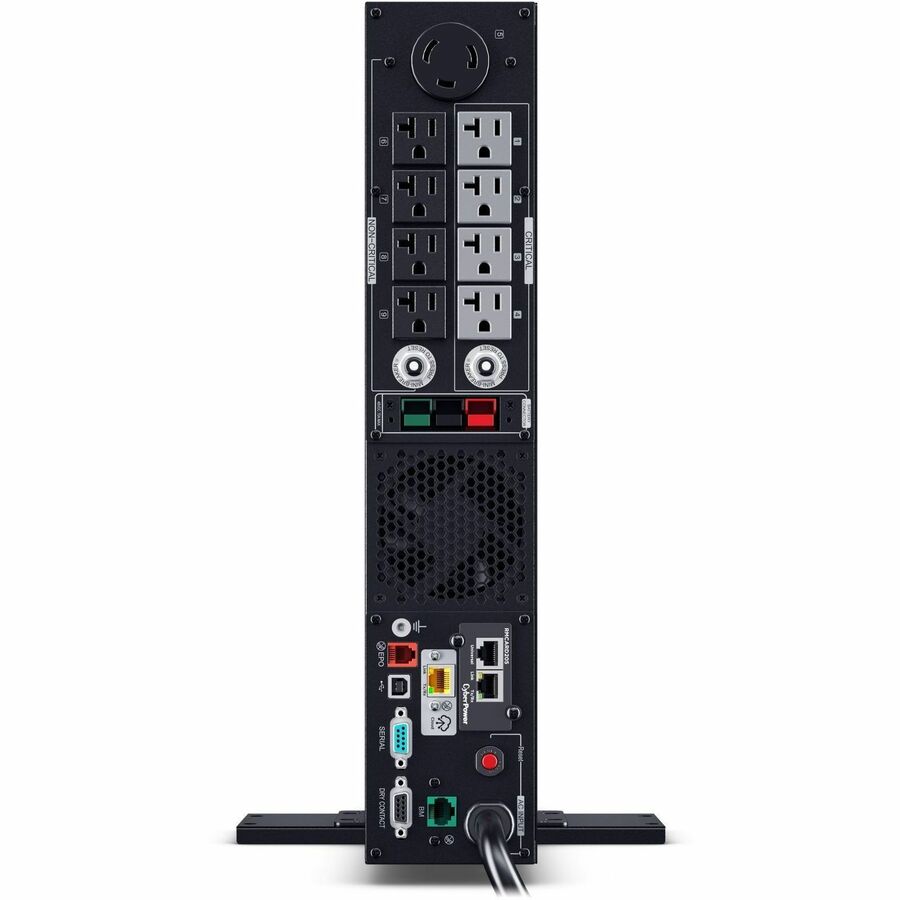

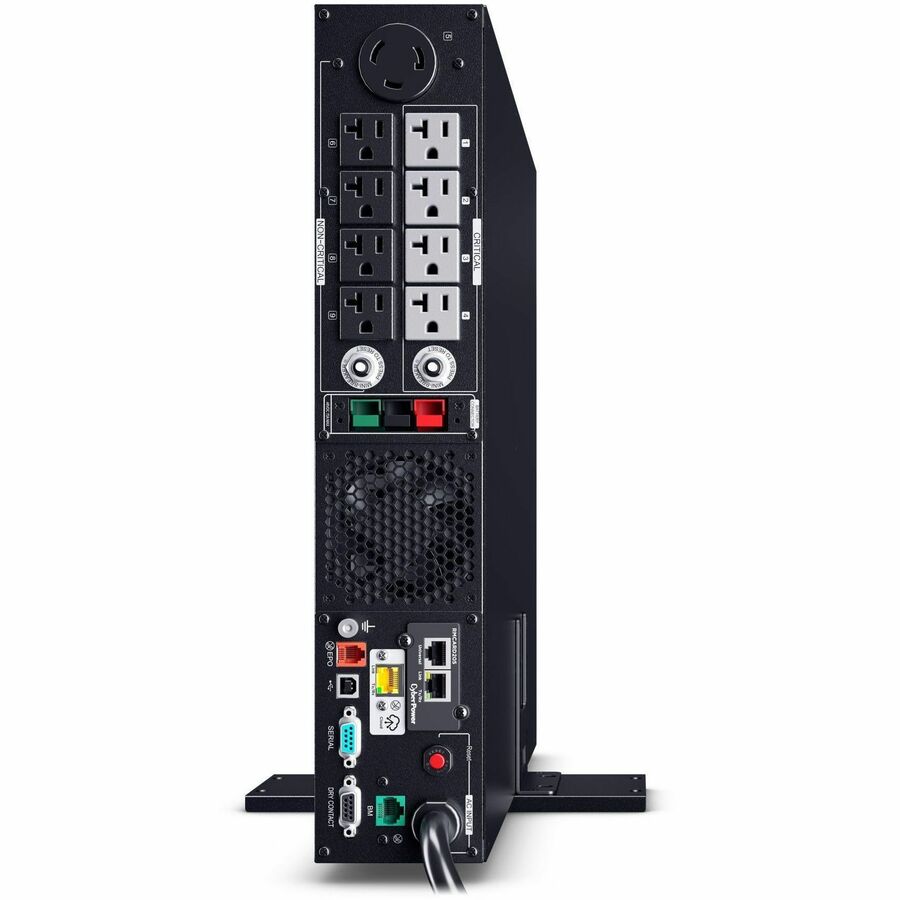

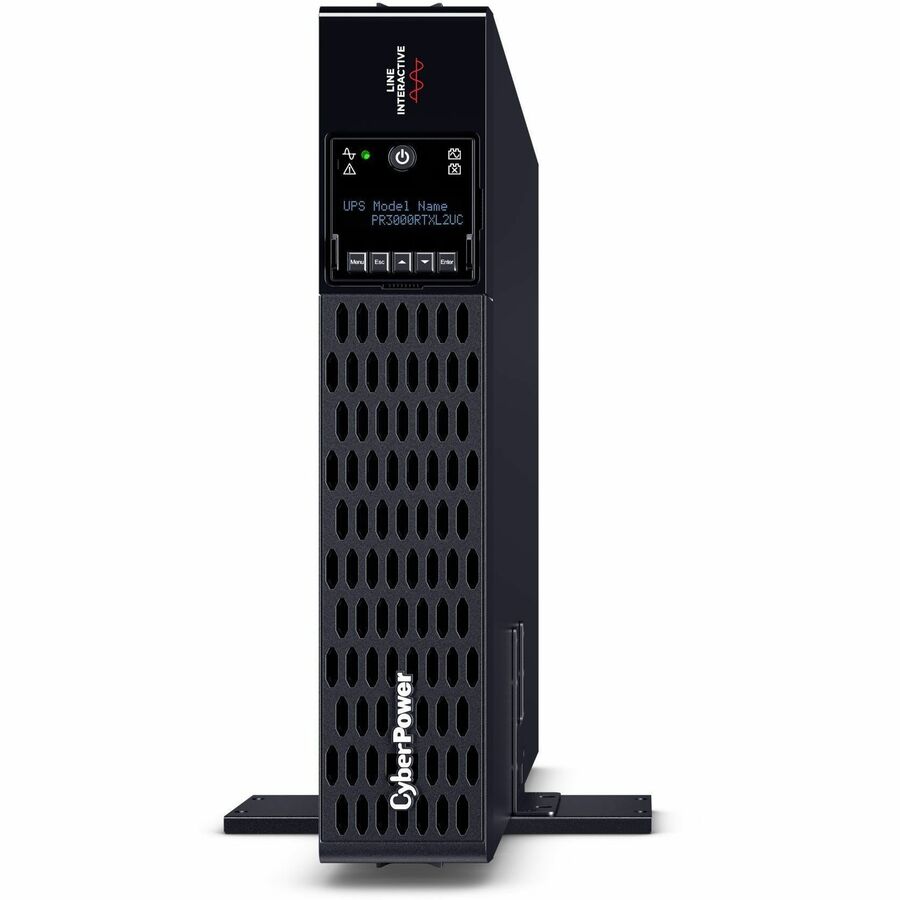

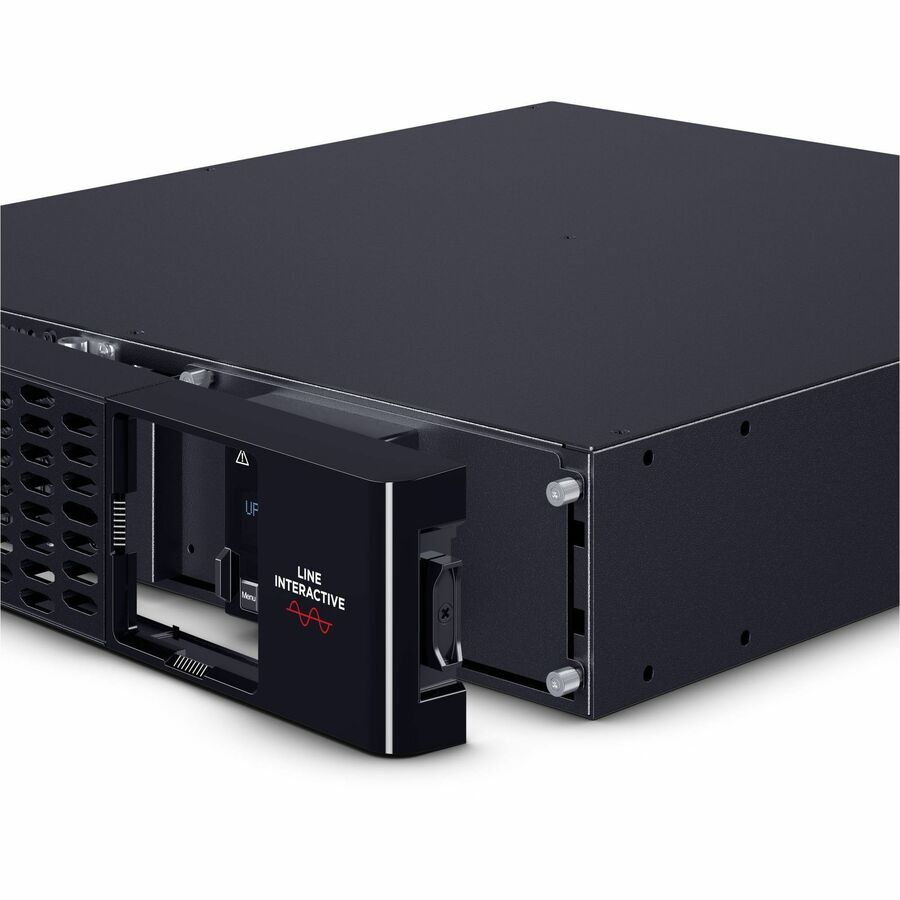

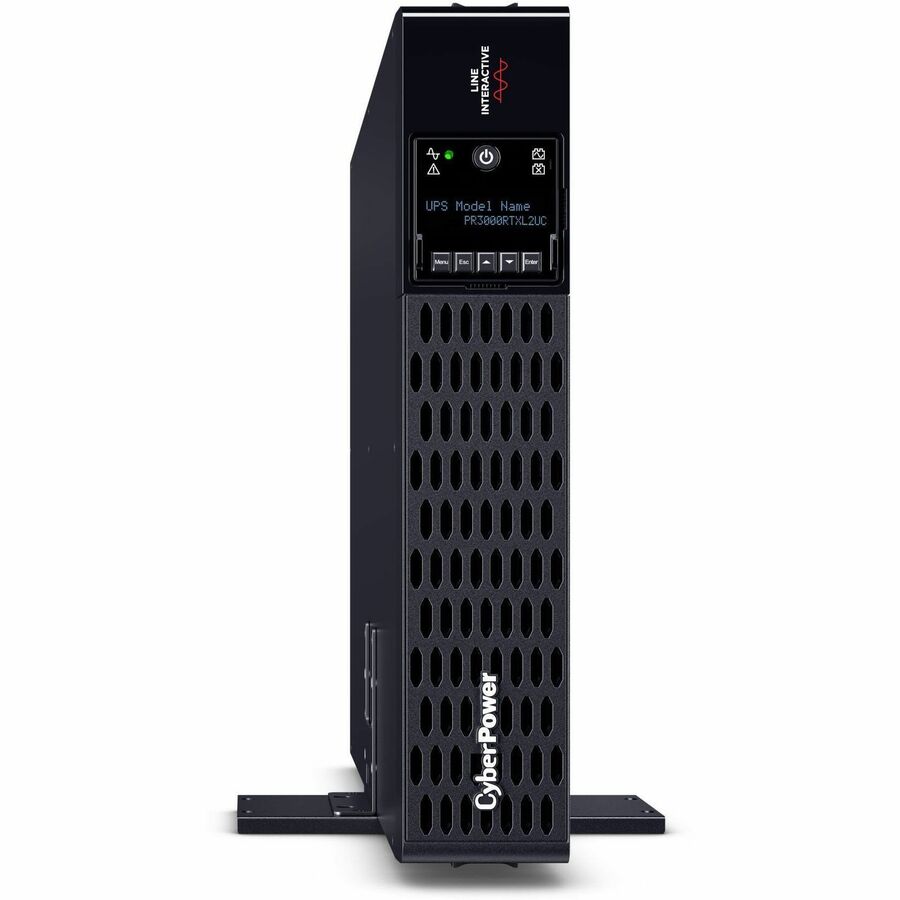

The Smart App Sinewave PR3000RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

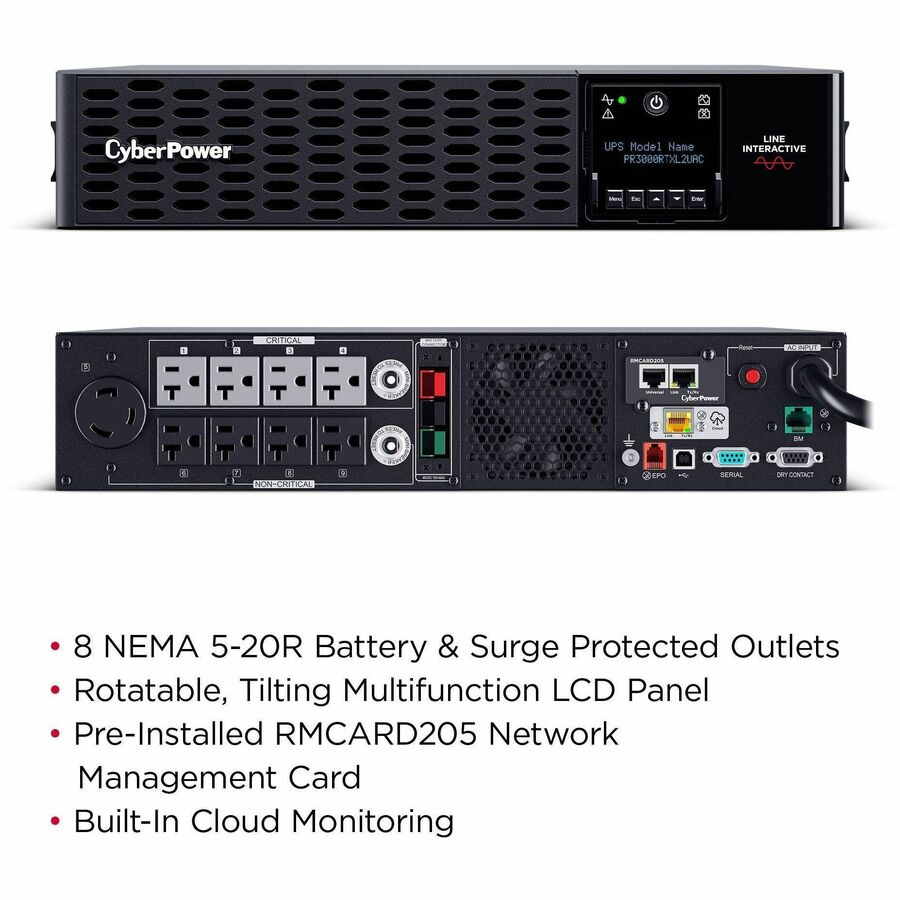

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.

With a 400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UCN.

Product Type

Line-interactive UPSTechnical Information

AVR

Yes

Plug/Connector Type

NEMA L5-30P

Receptacle Type

NEMA 5-20RNEMA L5-30R

Receptacle Detail

8 x NEMA 5-20R1 x NEMA L5-30R

Number of Battery & Surge Outlets

Number of Critical Load Outlets

Overload Protection

Yes

Cord Length

10 ft

Transfer Time

13 ms

EMI/RFI Noise Filter

Yes

Energy Saving

GreenPower UPS™ Bypass Technology

Application/Usage

NetworkServerTelecommunicationVoIP Phone SystemEquipmentStorage DeviceNetwork DeviceCorporate

Surge Suppression

Yes

Features

Audible AlarmPower Description

Load Capacity (VA)

3000 VA

Load Capacity (Watt)

3000 W

Input Voltage

120 V AC

Input Voltage Range

100 V AC - 120 V AC75 V AC - 149 V AC70 V AC - 155 V AC

Output Voltage

100 V AC110 V AC120 V AC

Input Frequency

47 Hz63 Hz

Output Frequency

50 Hz60 Hz

Waveform Type

Sine Wave

Surge Energy Rating

2430 J

Circuit Breaker

Yes

Output Power Factor

1Display & Graphics

Display

LCDManagement

Network Management

SNMP/HTTP Remote MonitoringNetwork CardDry ContactRelay-MS Card

Alarm

Battery ModeLow BatteryOverloadOver-chargeOverheatControls/Indicators

Status Indicators

Overview

LED Indicators

Power OnLine ModeBattery ModeFaultNight ModeWiring FaultInterfaces/PortsSerial PortYesNetwork (RJ-45)YesEPO PortYesUSB (HID Compliant) PortYesBattery InformationNumber of Batteries4Battery CharacteristicsSealedBattery ChemistryLead AcidBattery Size12VBattery Capacity9000 mAhBackup/Run Time (Full Load)1.70 MinuteBackup/Run Time (Half Load)7 MinuteTypical Battery Recharge Time3 HourHot SwappableYesReplaceable BatteryYesEnvironmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)Storage Temperature5°F (-15°C) - 113°F (45°C)Maximum Operating Elevation9843 ftMaximum Storage Elevation49213 ftStorage Relative Humidity0% - 95%Sound Emission (A-Weighted)57.5 dB(A)Thermal Dissipation56.42 WPhysical CharacteristicsColor FamilyBlackProduct ColorBlackHeight3.40"Width17.10"Depth19.70"Rack Height2UForm FactorRack/TowerWeight (Approximate)75.40 lbMiscellaneousAdditional InformationActive PFC Compatible

YesEnergy Saving

GreenPower UPS™ Bypass TechnologyEnergy Star Certified

YesUPS Topology

Line InteractiveBattery Quantity

4Battery Size

12 V / 9 AhBattery Type

Sealed Lead-Acid BatteryExtended Battery Module

BP48VP2U02Hot Swappable

YesReplacement Battery Cartridge

RB1290X4JReplacement Battery Cartridge Quantity

1Runtime at Full Load

1.7 minRuntime at Half Load

7 minTypical Recharge Time

3 Hours (0% to 90% charged)User Replaceable Battery

YesPhysical Dimensions - (WxHxD) (cm)

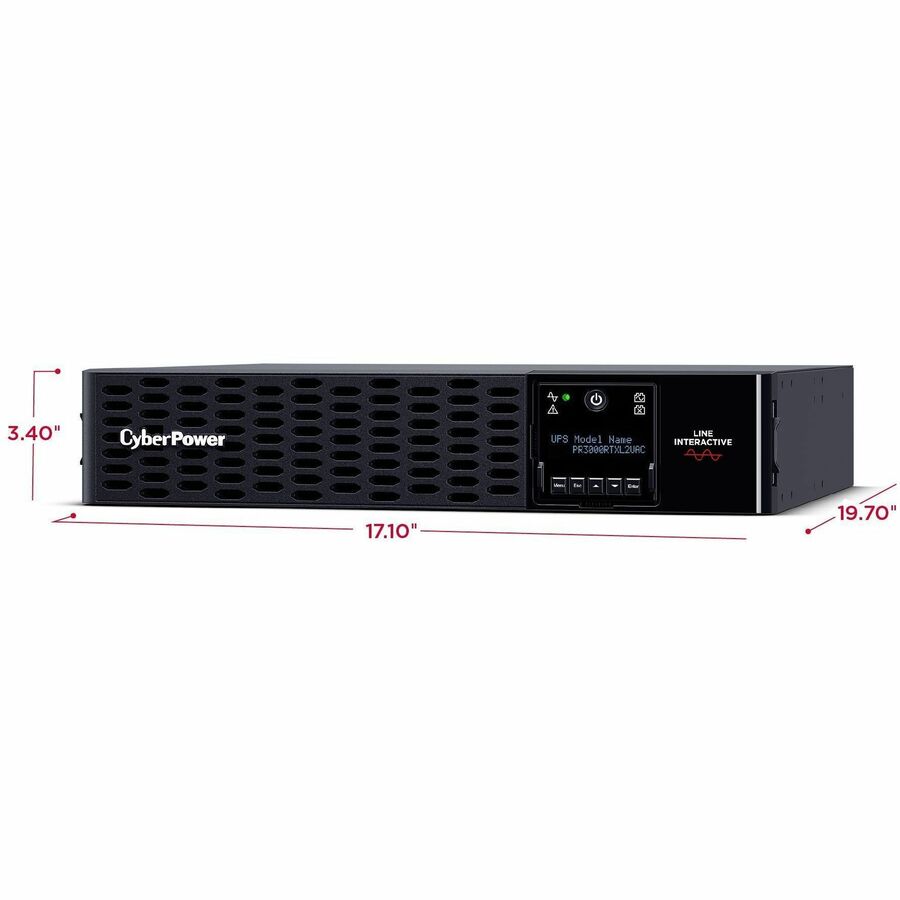

43.43 x 8.64 x 50.04 (cm)Physical Dimensions - (WxHxD) (in)

17.1 x 3.4 x 19.7 (in)Physical Dimensions - (WxHxD) (mm)

434 x 86 x 500 (mm)Weight (kg)

34.2Weight (lb)

75.4Shipping Dimensions - (WxHxD) (cm)

55.25 x 26.67 x 61.6 (cm)Shipping - Dimensions (WxHxD, in)

21.75 x 10.5 x 24.25 (in)Shipping - Dimensions (WxHxD, mm)

552.45 x 266.7 x 615.95 (mm)Shipping - Weight (kg)

40.51Shipping - Weight (lb)

89.3Adjustable Voltage Range

70 - 155 VACCircuit Breaker

30 ACord Length

10 ft (3.0 m)Input Frequency Range

47 Hz - 63 HzInput Plug Type

NEMA L5-30PInput Voltage

100 - 120 VACInput Voltage Range

75 VAC - 149 VACNominal Input Voltage

100 - 120 VACPlug Style

Straight (Twist Lock)Automatic Voltage Regulation

Double BoostOn AC WaveForm

Sine WaveOn Battery Frequency

50/60 Hz ± 1%On Battery Voltage

100/110/120 VAC ± 5%On Battery Waveform

Sine WaveOutlets - Battery & Surge Protected

9Outlets - Critical Load

4Outlets - Total

9Outlet Type COMPUTED

8 - NEMA 5-20ROutput Power Factor

1Overload Protection

Internal Circuitry LimitingTypical Transfer Time

6ms; Max 13ms at normal sensitivityUSB Charge Port

NoVA

3000 VAWatts

3000 WEMI/RFI Filtration COMPUTED

YesSurge Suppression (Joules)

2430 JEMI/RFI Filtration COMPUTED

YesSurge Suppression (Joules)

2430 JAudible Alarms

Battery ModeEmergency Power Off (EPO) Port

YesHID Compliant USB Port

YesLCD

Multifunction LCDLED Indicators

Power OnManagement Cable

USB CableSerial Port

1 SerialSNMP / HTTP Remote Monitoring

Yes - RMCARD205 pre-installedSoftware (Free Download)

PowerPanel® BusinessColor

BlackForm Factor

Rack / TowerMaterial of Construction

MetalRack Height

2UAudible noise at 1m from surface of unit

57.5 dBAOnline Thermal Dissipation

192.5 BTU/hrOperating Elevation

0 - 9843 ft (0 - 3000 m)Operating Relative Humidity

0 - 95 % (non-condensing)Operating Temperature

32 - 104 °F (0 - 40 °C)Storage Elevation

0 - 49213 ft (0 - 14999 m)Storage Relative Humidity

0 - 95% (non-condensing)Storage Temperature

5 - 113 °F (-15 - 45 °C)Environmental

RoHS CompliantSafety

UL1778CEG Amount

400000Connected Equipment Guarantee

LifetimeExtended Warranty Option

WEXT5YR-U4BProduct Warranty

3 Year Limited WarrantyCertifications & StandardsUL1778VCCIFCC Class ACSA C22.2 No 107.3Energy StarYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 YearDirectly Connected Equipment Guarantee400000 LifetimeProduct TypeLine-interactive UPSTechnical InformationAVRYesPlug/Connector TypeNEMA L5-30PReceptacle TypeNEMA 5-20RNEMA L5-30RReceptacle Detail8 x NEMA 5-20R1 x NEMA L5-30RNumber of Battery & Surge Outlets9Number of Critical Load Outlets4Overload ProtectionYesCord Length10 ftTransfer Time13 msEMI/RFI Noise FilterYesEnergy SavingGreenPower UPS™ Bypass TechnologyApplication/UsageNetworkServerTelecommunicationVoIP Phone SystemEquipmentStorage DeviceNetwork DeviceCorporateSurge SuppressionYesFeaturesAudible AlarmPower DescriptionLoad Capacity (VA)3000 VALoad Capacity (Watt)3000 WInput Voltage120 V ACInput Voltage Range100 V AC - 120 V AC75 V AC - 149 V AC70 V AC - 155 V ACOutput Voltage100 V AC110 V AC120 V ACInput Frequency47 Hz63 HzOutput Frequency50 Hz60 HzWaveform TypeSine WaveSurge Energy Rating2430 JCircuit BreakerYesOutput Power Factor1Display & GraphicsDisplayLCDManagementNetwork ManagementSNMP/HTTP Remote MonitoringNetwork CardDry ContactRelay-MS CardAlarmBattery ModeLow BatteryOverloadOver-chargeOverheatControls/IndicatorsStatus Indicators
