5P1000 + NETWORK-MS INSTALLED

Name: 5P1000 + NETWORK-MS INSTALLED
Brand: EATON
SKU: 6NA581
Price: 694.43 USD
Availability: InStock

EATON

PCN#

6NA581

MFG#

5P1000NC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$694.43

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Tower
5 Minute Stand
by
120 V AC Input
100 V AC, 120 V AC, 125 V AC Output
Sine Wave, True Sine Wave
Serial Port
USB
LCD Display
8 x NEMA 5
15R Receptacle(s)
RS
232, Network
M2 Card

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information 3 year on batteries with registration

Shipping Weight: 27 lbs.

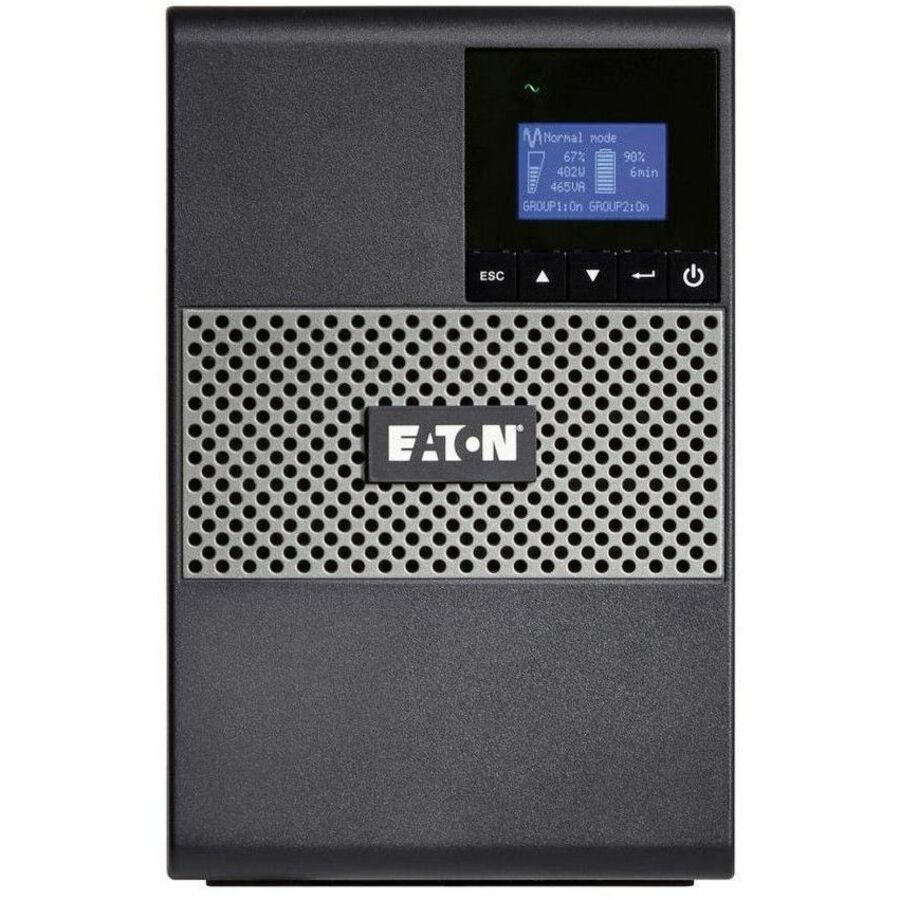

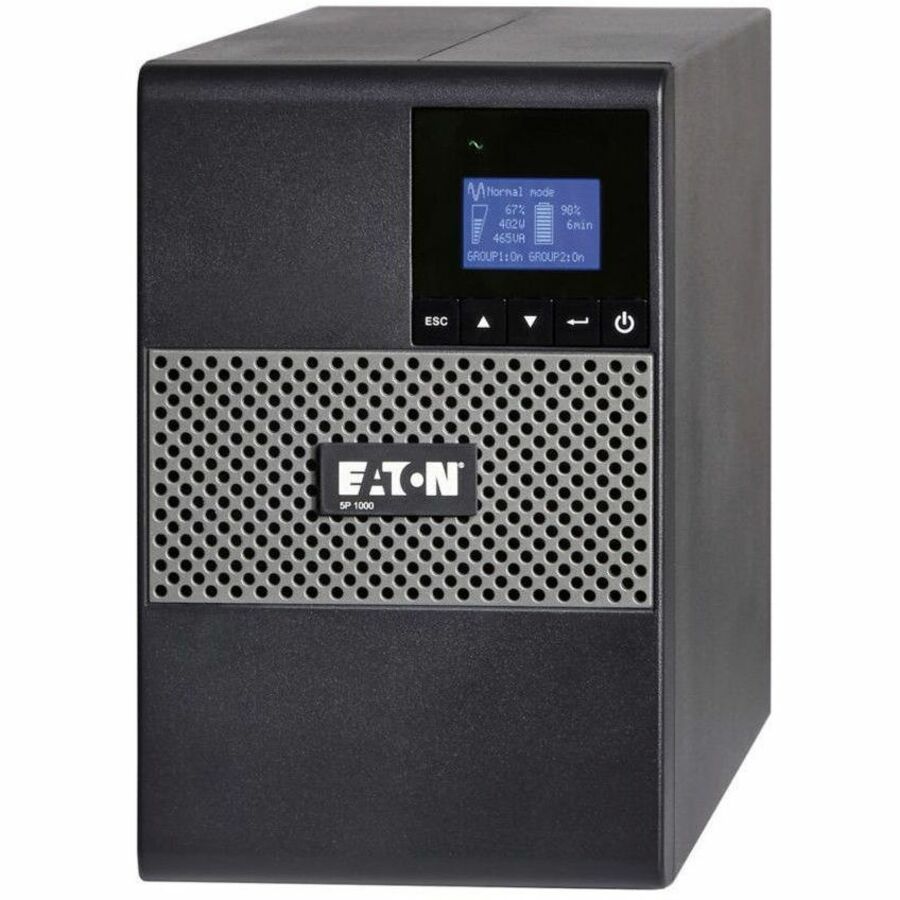

Eaton 5P 1000VA Tower UPS

Overview

Tech Specs

Specifications

Manufacturer	Eaton Corporation
Manufacturer Part Number	5P1000NC
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Series	5P
Product Model	5P1000
Product Name	5P 1000VA Tower UPS
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

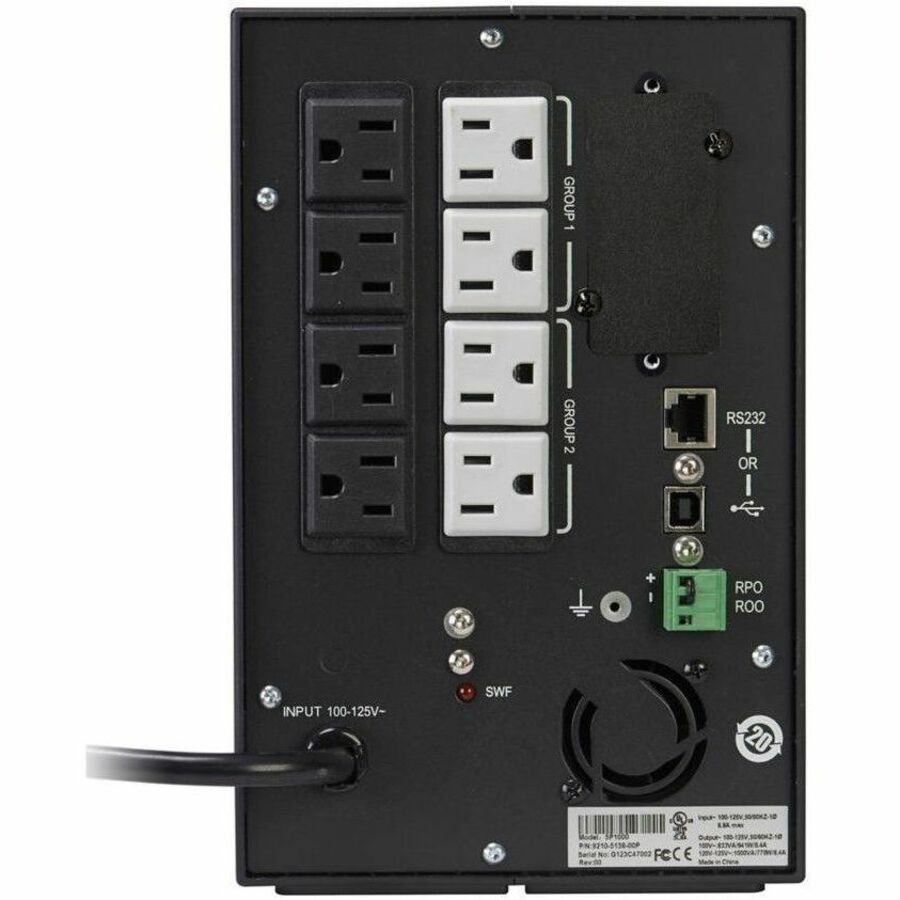

Receptacle Detail	8 x NEMA 5-15R
Cord Length	6 ft
Efficiency Detail	97% (AC Mode)
Features	Advanced Battery Management (ABM)

Power Description

Load Capacity (VA)	1000 VA
Load Capacity (Watt)	770 W
Input Voltage	120 V AC
Input Voltage Range	70 V AC - 153 V AC
Output Voltage	100 V AC 120 V AC 125 V AC
Input Frequency	47 Hz 70 Hz 50 Hz 56.50 Hz 60 Hz
Waveform Type	Sine Wave True Sine Wave
Input Power Factor	0.77
Output Power Factor	0.77

Display & Graphics

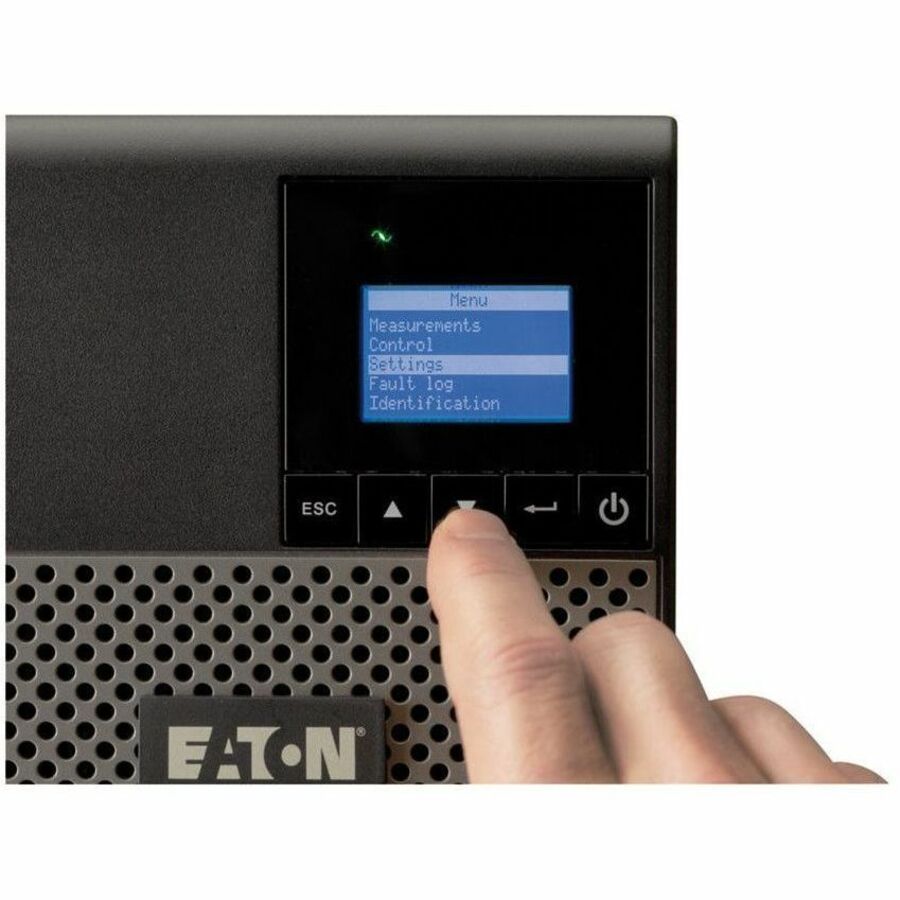

Display

LCD

Management

Network Management

RS-232
Network-M2 Card

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes
Expansion Slot Detail	1 x Gigabit Network Card (Network-M2)

Battery Information

Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	12 Minute

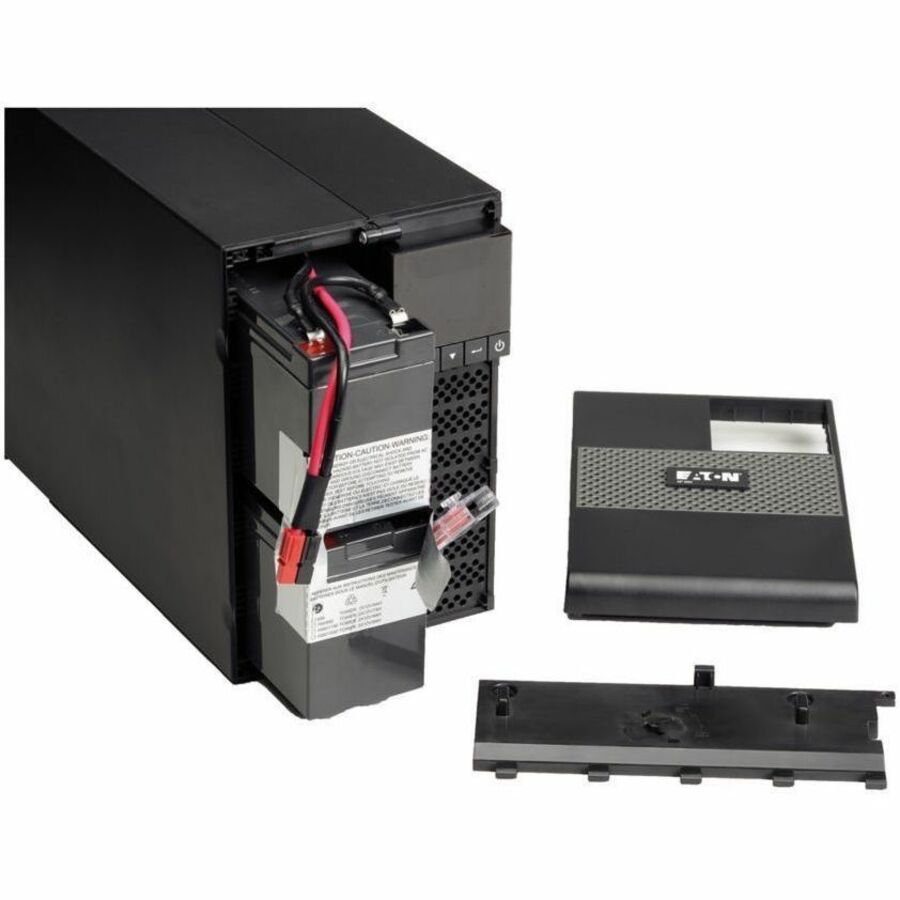

Replaceable Battery	Yes

Environmental Conditions

Thermal Dissipation

146.54 W

Physical Characteristics

Height	9.10"
Width	5.90"
Depth	13.60"
Form Factor	Tower
Weight (Approximate)	25.30 lb

Miscellaneous

Package Contents	5P 1000VA Tower UPS User Manual CD Intelligent Power Software Suite CD Quick Start Guide USB Cable RS-232 Serial Cable
Certifications & Standards	CE Marked IEC 62040-2 C1-C2 EN 55024 CISPR22 Class B FCC part 15 Class B UL 1778 UL 497A cULus Listed
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 year on batteries with registration
