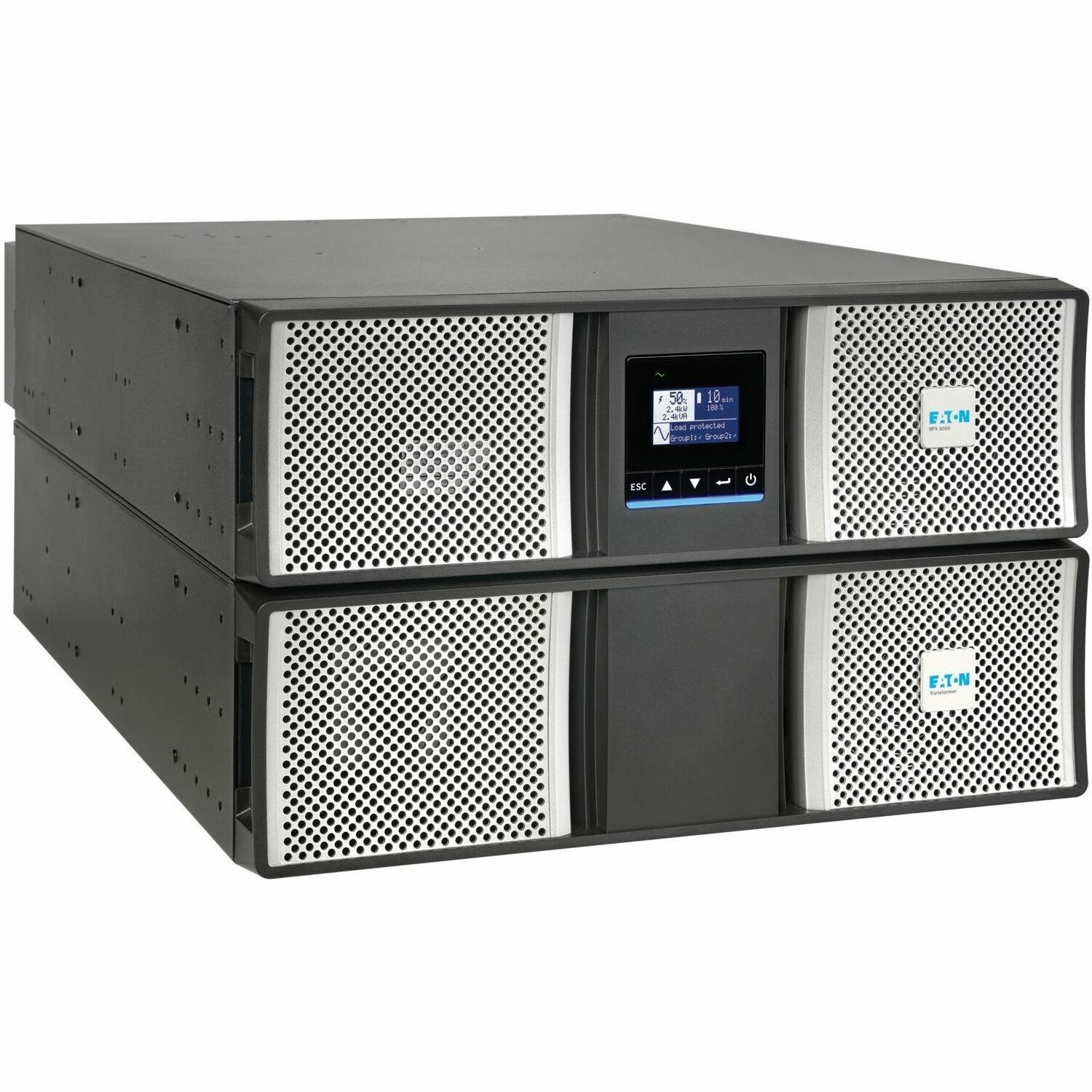

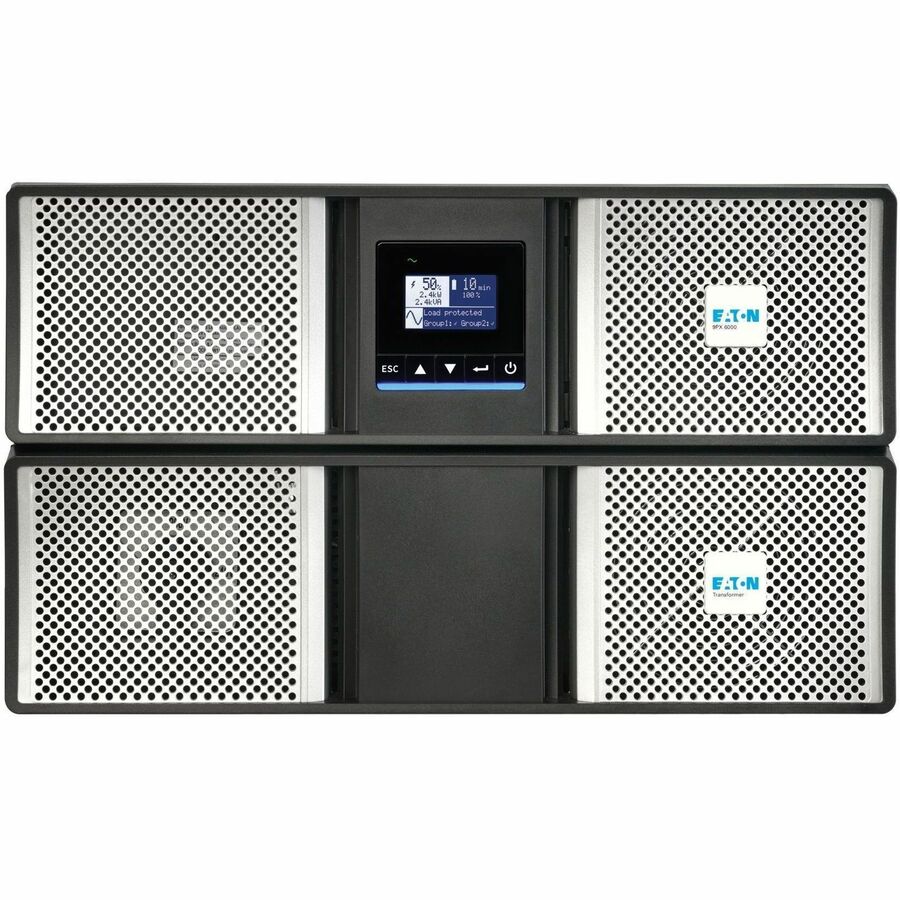

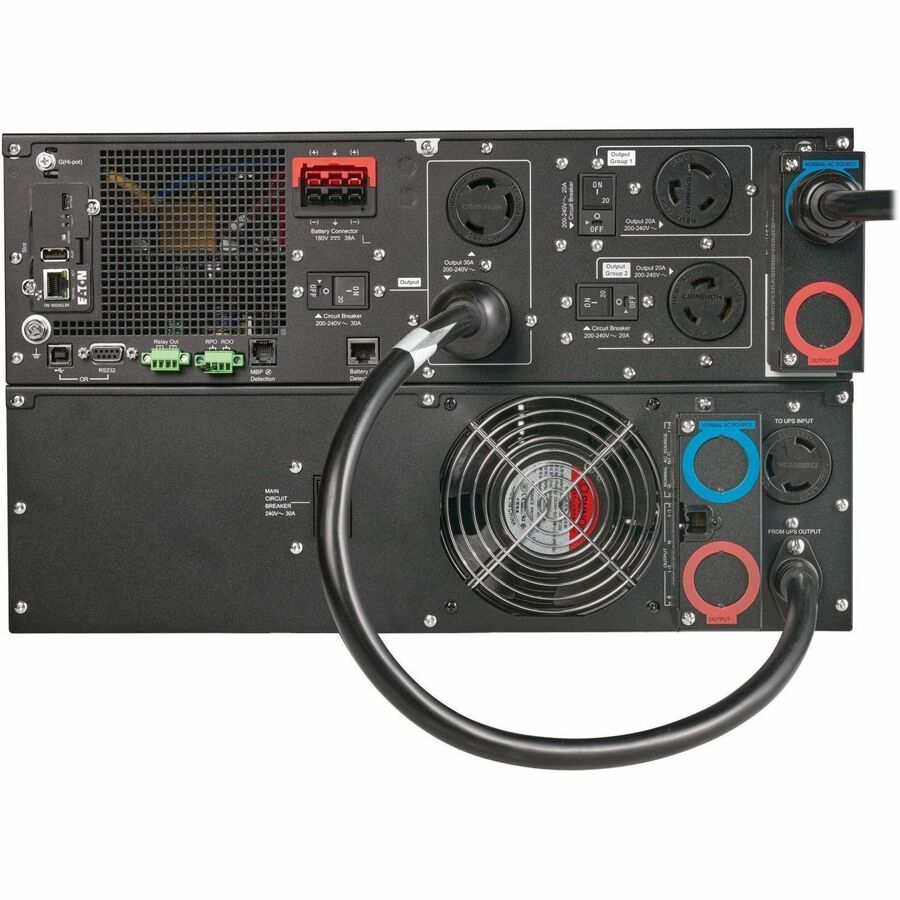

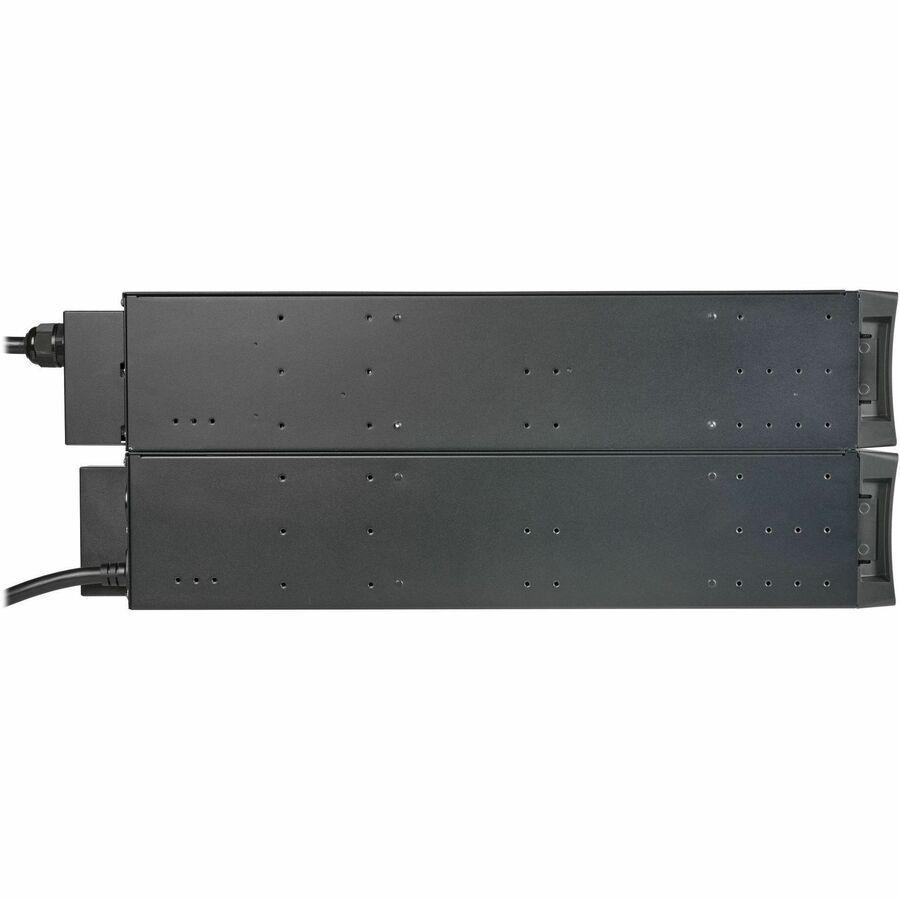

9PX G2 5KVA 5KW 208/120V ONLINE UPS HW INPUT/OUTPUT 6U RACK/TOWER

Delivers Maximum Power Reliability with Best-in-Class EfficiencyWith unity power factor (5000VA/5000W output), the 9PX5KP2G2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, the 9PX5KP2G2 complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Load segments with energy metering help you optimize energy use. Expandable Internal Battery Backup Keeps You Operational Through Power OutagesExclusive ABM+ technology improves predictive battery replacement analytics to better pinpoint when you should replace UPS batteries. By adding this predictive algorithm, you can determine the expected battery failure date based on real-life usage and conditions. This prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon. ABM+ also optimizes charging to increase battery lifespan up to 50%. You can connect up to 12 extended battery modules (9PXEBM180RTG2, sold separately) to add necessary runtime during prolonged power outages. Included Distribution Module Helps Accommodate a Range of Connected EquipmentThe 9PXPPDM2G2 PowerPass Distribution Module permits step-down voltage from 208V to 120V to allow the connection of a variety of IT components. It also features a maintenance bypass, which lets you service or replace the UPS power module without powering down any connected equipment. Included Gigabit Network Interface Offers 24/7 Remote AccessThe NETWORK-M3 cybersecure network management card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be upgraded remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. High-Visibility LCD Interface Keeps You Informed at a GlanceThe high-contrast color LCD provides control settings and critical information to help diagnose any issues. A large color LED bar makes it easy to diagnose UPS status from a distance and quickly locate units that require attention. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing. Versatile Installation OptionsYou can mount the 9PX5KP2G2 in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation. A cable gland is included for hardwire input.Product TypeDouble Conversion Online UPSTechnical InformationPlug/Connector TypeHardwiredReceptacle TypeHardwiredEMI/RFI Noise FilterYesPhaseSingle PhaseEfficiency Detail

• 98.9% (Eco Mode)
• 96.3% (AC Mode)

Application/Usage

• Mission Critical Equipment
• IT
• Edge Computing
• Network
• Equipment
• IT Equipment
• Data Center
• Business
• Education
• Government
• Healthcare
• Retail
• Server
• PoE System
• Switch

Surge SuppressionYesFeatures

• Advanced Battery Management (ABM+)
• Built-in Bypass Switch

Power DescriptionLoad Capacity (VA)5000 VALoad Capacity (Watt)5000 WInput Voltage230 V ACInput Current24.40 AOutput Voltage

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC
• 100 V AC
• 110 V AC
• 120 V AC

Output Frequency

• 50 Hz
• 60 Hz

Waveform Type

• Sine Wave
• Pure Sine Wave

Output Power Factor1Display & GraphicsDisplayLCDManagementNetwork Management

• INDGW-M2 Card
• Relay-MS Card
• Network-M3 Card
• Network Card

Alarm

• Utility Power Failure
• Low Battery
• Overload
• UPS Fault
• Battery Fault
• Remote Shutdown

Controls/IndicatorsStatus Indicators LED Indicators

• LED status bar

Interfaces/PortsSerial PortYesUSBYesEPO PortYesBattery InformationDC System Voltage180 V DCBattery CharacteristicsValve-regulatedBattery ChemistryLead AcidBackup/Run Time (Full Load)3.50 MinuteBackup/Run Time (Half Load)9.40 MinuteTypical Battery Recharge Time3 HourHot SwappableYesReplaceable BatteryYesEnvironmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)Thermal Dissipation274.02 WPhysical CharacteristicsHeight10.20"Width17.30"Depth27"Rack Height6UForm FactorRack/TowerWeight (Approximate)203 lbMiscellaneousPackage Contents

• 9PX G2 9PX5KP2G2 5000VA Rack/Tower UPS
• 9PXPPDM2G2 PowerPass Distribution Module with Maintenance Bypass
• NETWORK-M3 Gigabit Network Card
• USB Cable
• RS-232 Cable
• Cable Gland for Hardwire Connection
• Rack-mounting Hardware
• Tower Support Stands
• Quick Start Guide

Certifications & Standards

• NOM (Mexico)
• cUL Listed
• EN 62040-2
• FCC Part 15 Class A (USA)
• CE (Europe)
• FCC (USA)

Energy StarYesCountry of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
