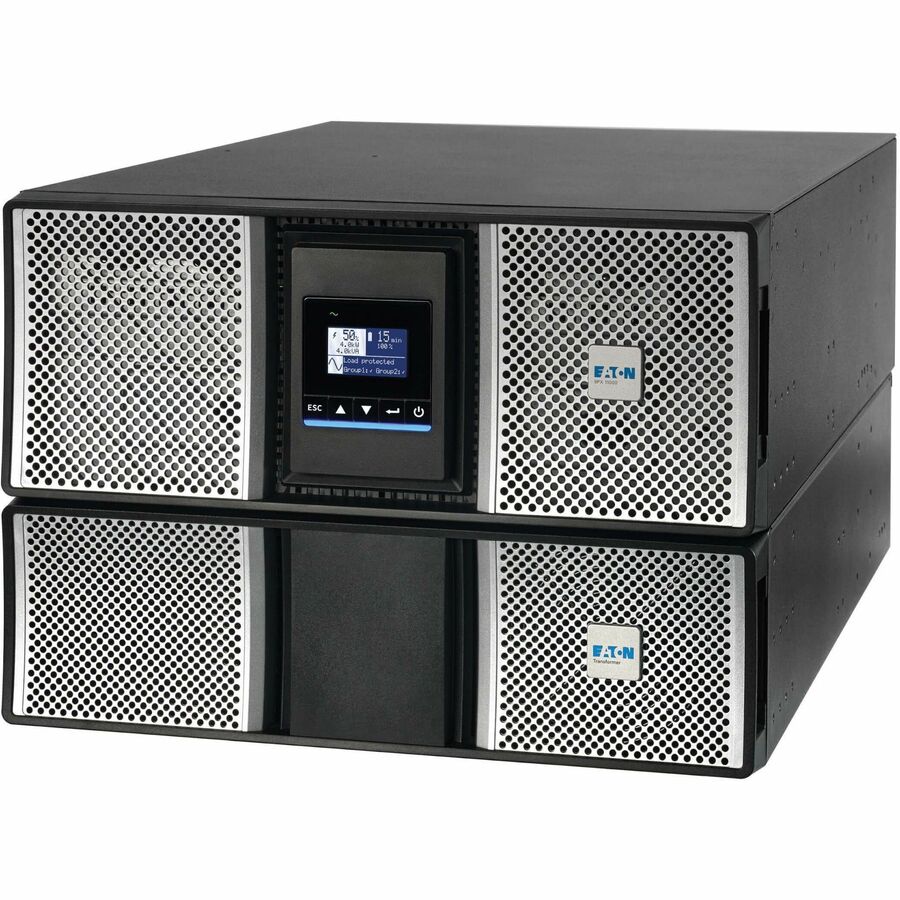

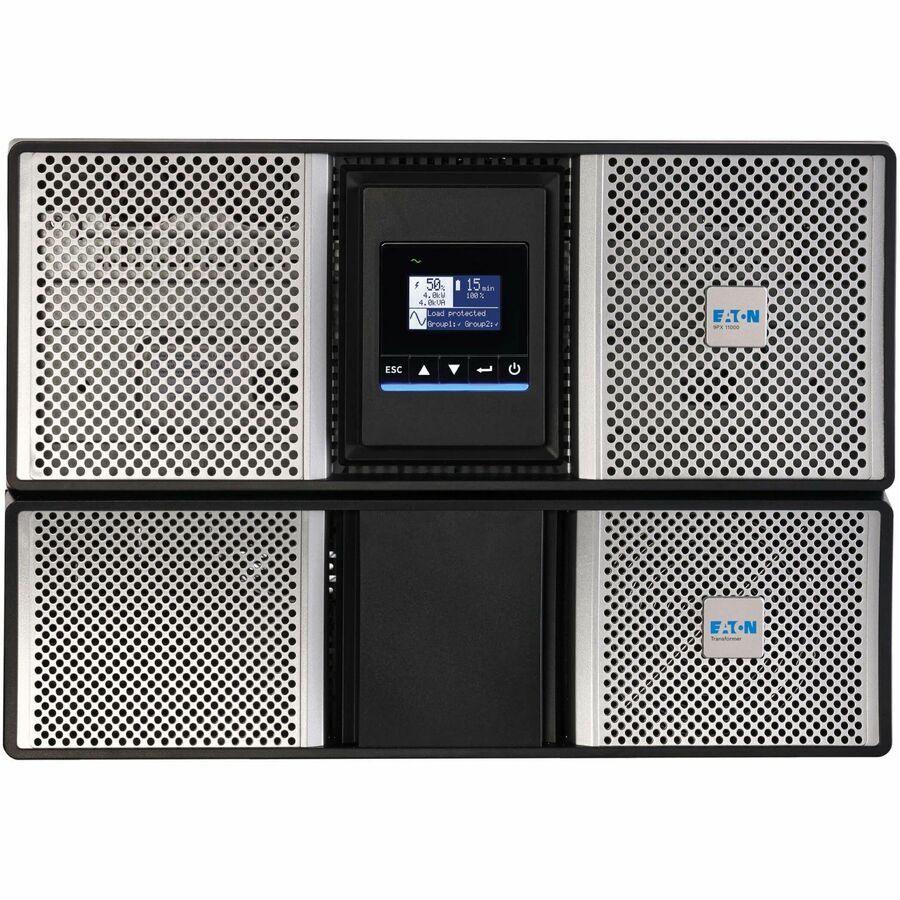

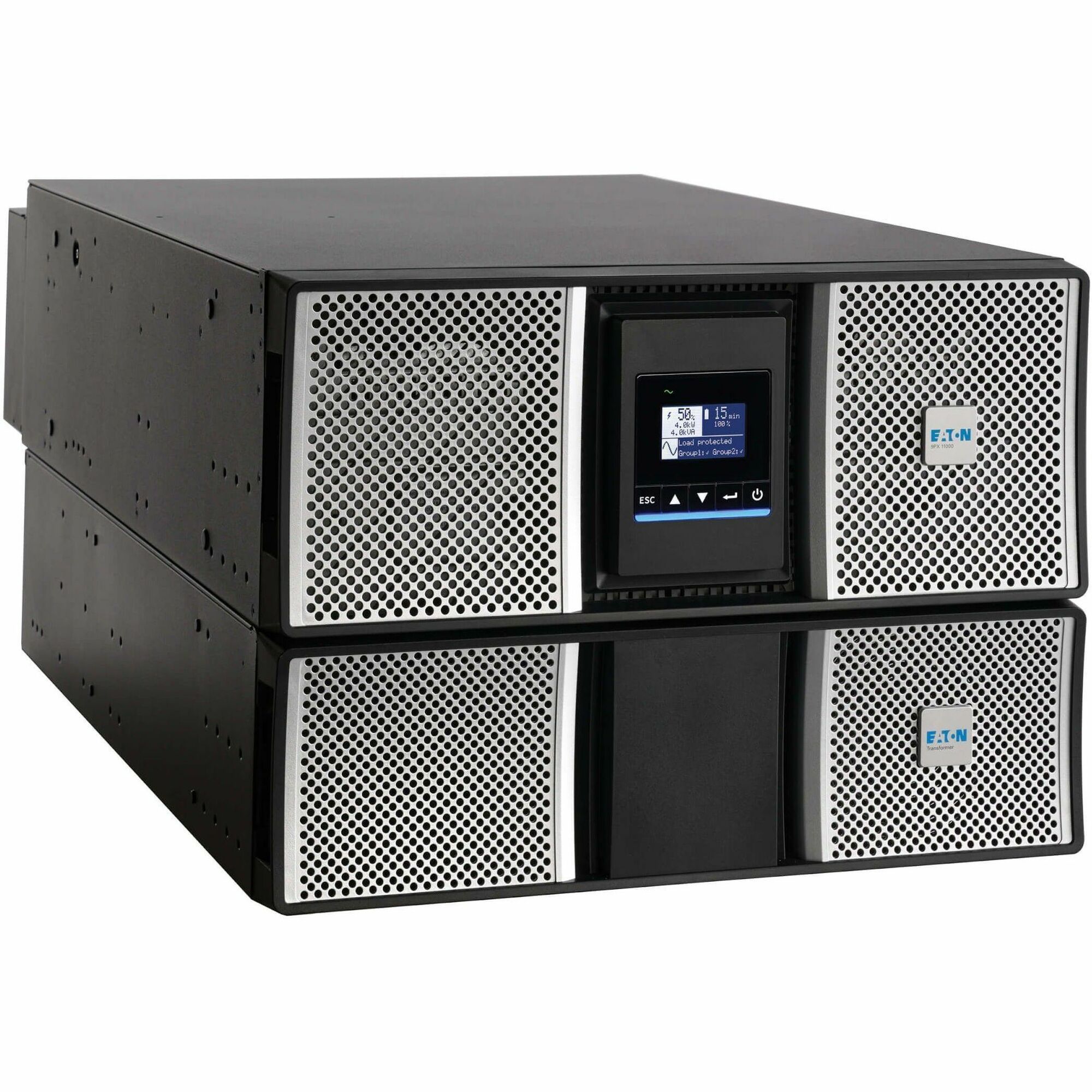

9PX 8KVA/KW 208/120V ONLINE UPS HW IN 18X 5-20R 3XL6-30R BYPASS 7U

Delivers Maximum Power Reliability with Best-in-Class EfficiencyWith unity power factor (8000VA/8000W output), the 9PX8KTF5G2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, the 9PX8KTF5G2 complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Load segments with energy metering help you optimize energy use. Expandable Internal Battery Backup Keeps You Operational Through Power OutagesExclusive ABM+ technology improves predictive battery replacement analytics to better pinpoint when you should replace UPS batteries. By adding this predictive algorithm, you can determine the expected battery failure date based on real-life usage and conditions. This prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon. ABM+ also optimizes charging to increase battery lifespan up to 50%. You can connect up to 12 extended battery modules (9PXEBM240RTG2, sold separately) to add necessary runtime during prolonged power outages. Included Transformer and Bypass Help Accommodate a Range of Connected EquipmentThe 9PXTFMR5G2 transformer permits step-down voltage from 208V to 120V to allow connection of a wider range of components. The included MBP11K208G2 maintenance bypass lets you service or replace the UPS power module without powering down any connected equipment. Included Gigabit Network Interface Offers 24/7 Remote AccessThe NETWORK-M3 cybersecure network management card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be upgraded remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. High-Visibility LCD Interface Keeps You Informed at a GlanceThe high-contrast color LCD provides control settings and critical information to help diagnose any issues. A large color LED bar makes it easy to diagnose UPS status from a distance and quickly locate units that require attention. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing. Versatile Installation OptionsYou can mount the 9PX8KTF5G2 in 7U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation. A cable gland is included for hardwire input.Product TypeDouble Conversion Online UPSTechnical InformationPlug/Connector TypeHardwiredReceptacle Type

• NEMA 5-20R
• NEMA L6-30R
• Hardwired

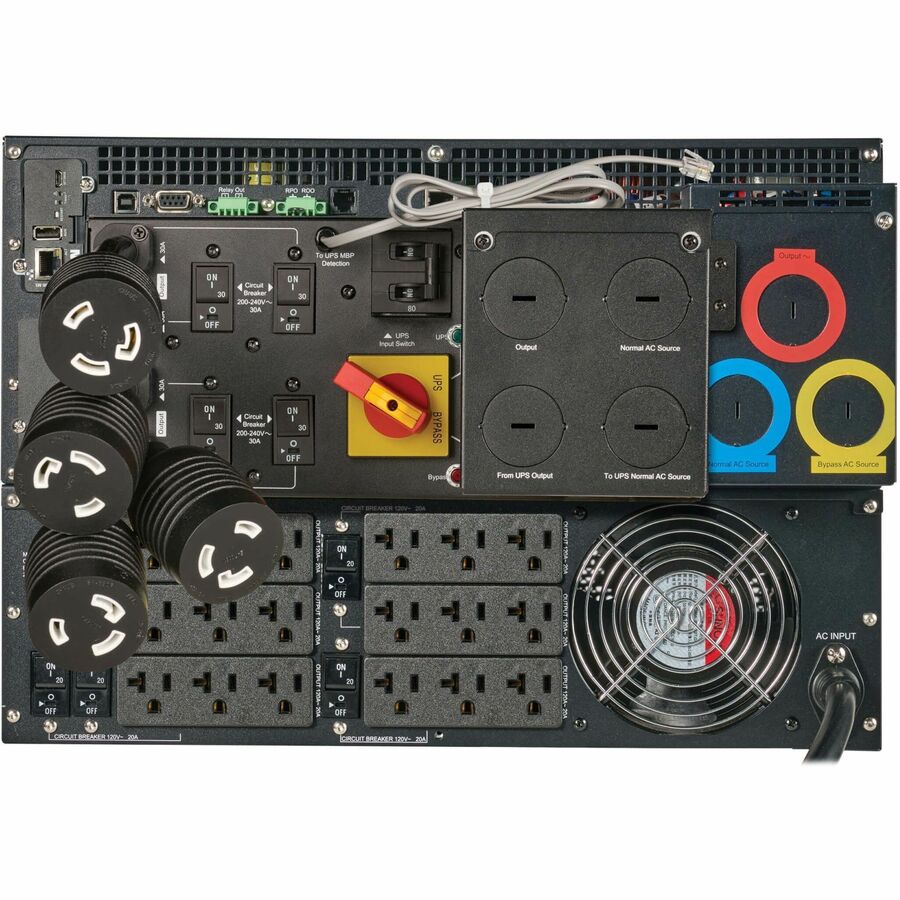

Receptacle Detail

• 18 x NEMA 5-20R
• 3 x NEMA L6-30R

EMI/RFI Noise FilterYesPhaseSingle PhaseEfficiency Detail

• 96.5% (AC Mode)
• 99.4% (Eco Mode)

Application/Usage

• Mission Critical Equipment
• Network
• IT Equipment
• Data Center
• Electronic
• Edge Computing
• Education
• Government
• Healthcare
• Retail
• Server
• Switch
• Network Equipment

Surge SuppressionYesFeatures

• Audible Alarm
• Advanced Battery Management (ABM+)
• Built-in Bypass Switch

Power DescriptionLoad Capacity (VA)8000 VALoad Capacity (Watt)8000 WInput Voltage230 V ACInput Current38.40 AOutput Voltage

• 240 V AC
• 230 V AC
• 220 V AC
• 208 V AC
• 200 V AC
• 100 V AC
• 110 V AC
• 120 V AC

Output Frequency

• 50 Hz
• 60 Hz

Waveform TypePure Sine WaveOutput Power Factor1Display & GraphicsDisplayLCDManagementNetwork Management

• Network-M3 Card
• INDGW-M2 Card
• Relay-MS Card

Alarm

• Utility Power Failure
• Low Battery
• Overload
• UPS Fault
• Battery Fault
• Remote Shutdown

Controls/IndicatorsStatus IndicatorsLED IndicatorsInterfaces/PortsSerial PortYesUSBYesEPO PortYesBattery InformationDC System Voltage240 V DCBattery CharacteristicsValve-regulatedBattery ChemistryLead AcidBackup/Run Time (Full Load)5.40 MinuteBackup/Run Time (Half Load)15.20 MinuteTypical Battery Recharge Time3 HourHot SwappableYesReplaceable BatteryYesEnvironmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)Thermal Dissipation333.22 WPhysical CharacteristicsHeight12"Width17.30"Depth32.60"Rack Height7UForm FactorRack/TowerWeight (Approximate)315 lbMiscellaneousPackage Contents

• 9PX G2 9PX8KTF5G2 8000VA Rack/tower UPS
• 9PXTFMR5G2 120V Step-down Transformer
• MBP11K208G2 Maintenance Bypass
• NETWORK-M3 Gigabit Network Card
• USB Cable
• RS-232 Cable
• Cable Gland for Hardwire Connection
• Rack-mounting Hardware
• Tower Support Stands
• Quick Start Guide

Certifications & Standards

• UL 2900-1
• IEC 62443-4-2
• cUL Listed
• EN 62040-2
• FCC Part 15 Class A
• FCC

Energy StarYesCountry of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
