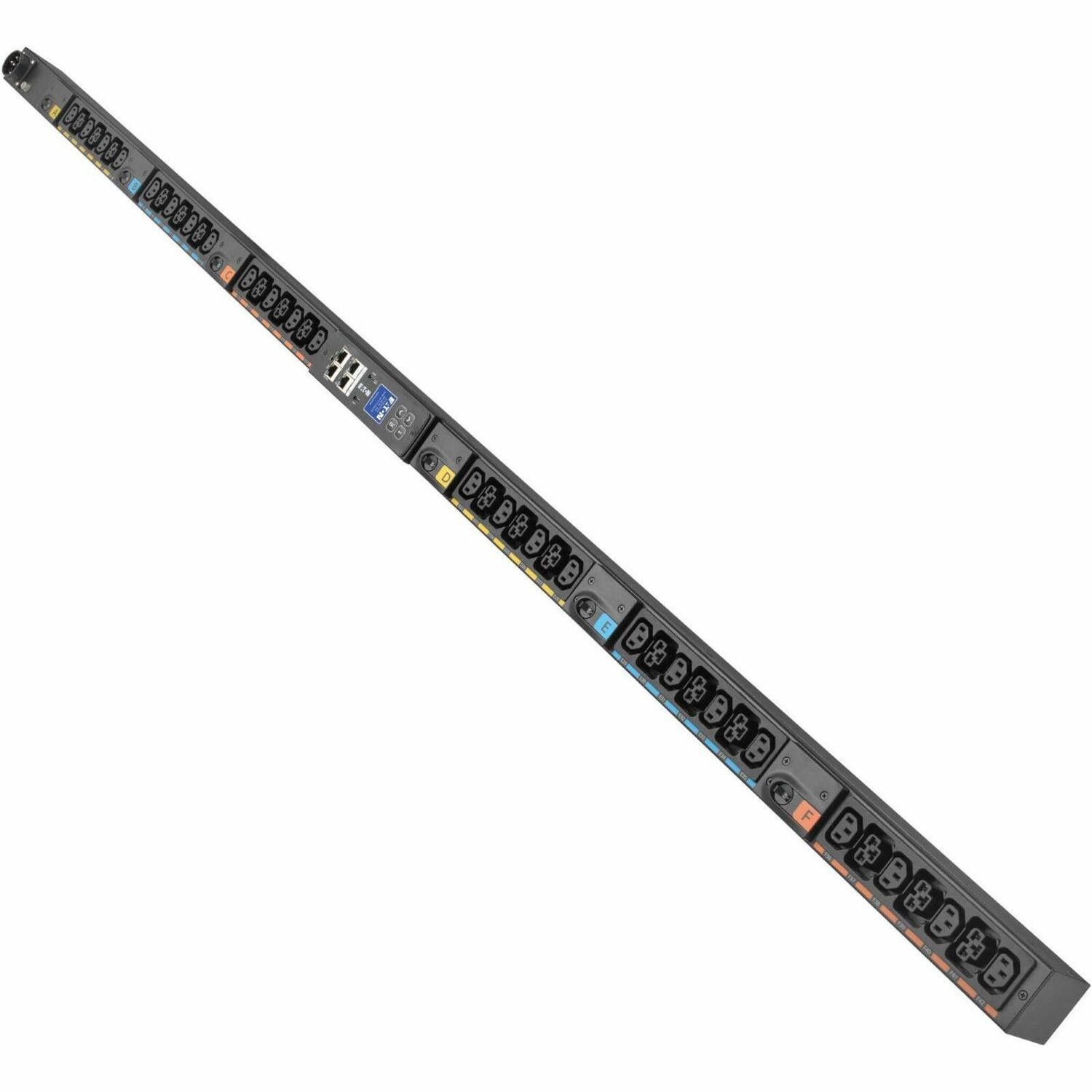

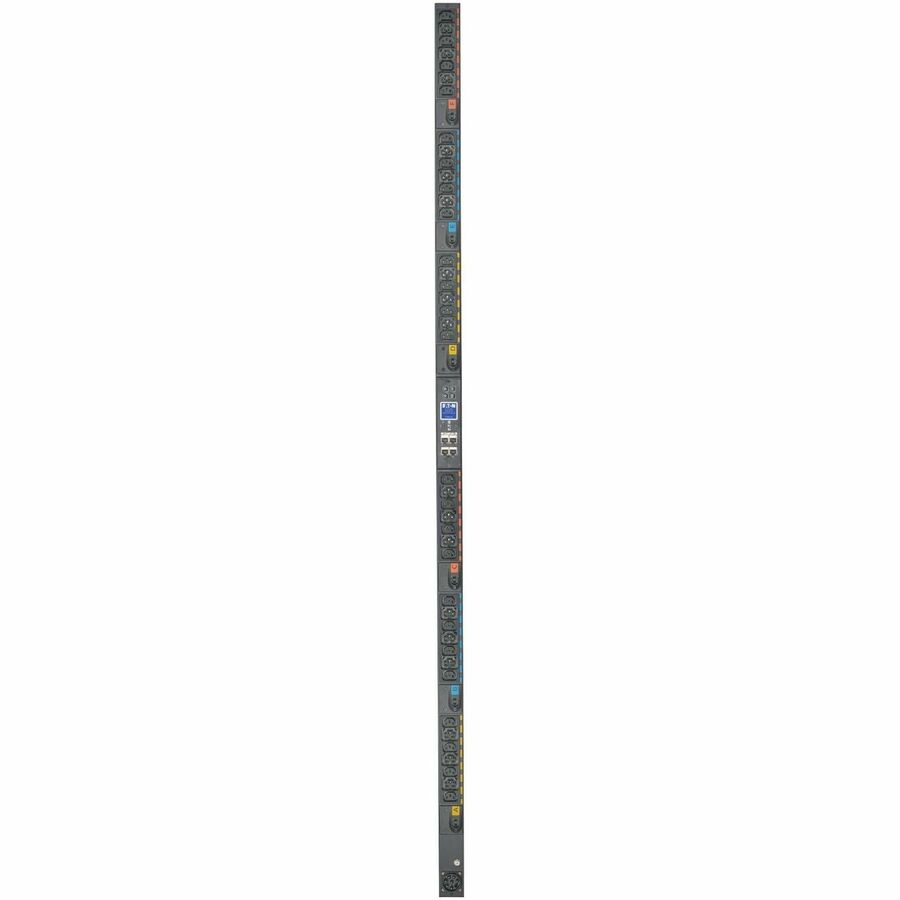

METERED OUTLET RACK PDU G4 0U 41U UNIV INPUT 5-23KW 16-55A 42 OUT

Market-Leading Cybersecurity Ensures Your Data Is Kept SafeChain-of-trust encryption and secure firmware boot capability prevent the EVMOGU23X UPDU from being a cyberattack vulnerability point on a network. An embedded, hot-swappable Gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMOGU23X is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity.  Remote Management Saves Time and MoneyThe GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMOGU23X is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections. 42 Outlets Give You Plenty of Power OptionsThe EVMOGU23X features 24 C13 outlets, which accept C14 connectors, and 18 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install. Outlet-Level Metering Boosts Performance and EfficiencyAll outlets provide metering and monitoring for granular power data and precision control of power delivery. The outlets are evenly distributed into six color-coded load banks, each with its own circuit breaker, to improve load balancing and organize connections in a crowded rack. Convenient Box-to-Rack InstallationThis UPDU G4 features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. Choose from a collection of 17 power cables and 15 plug options (all power cables sold separately). Low-profile circuit breakers are flush with the lightweight aluminum chassis, and its narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 40 EVMOGU23X models with each model maintaining its own individual IP address from a single network connection point. Meets Global ApprovalThe EVMOGU23X UPDU meets industry standards all over the world, making it compatible in a broad range of IT facilities, not just physically, but also from a regulatory perspective.Product TypePDUTechnical InformationPDU Type

• Metered
• Metered-by-Outlet

PhaseSingle Phase/Three PhasePlug/Connector Type

• Universal Input
• Hardwired

Receptacle Type

• IEC 60320 C13
• IEC 60320 C39

Receptacle Detail

• 24 x IEC 60320 C13
• 18 x IEC 60320 C39

Protection Type

• Overload Protection
• Double Pole

Features

• LCD Display
• LED Status Indicator

Load Capacity (VA)23 kWLoad Capacity (Watt)23 kWPower DescriptionInput Voltage

• 120 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC
• 400 V AC
• 415 V AC

Input Voltage Range208 V AC - 240 V ACInput Current63 AInput Frequency60 HzCircuit BreakerYesManagementManagement

• Gigabit Network Module G4
• SNMP

Interfaces/PortsNetwork (RJ-45)YesPhysical CharacteristicsColor FamilyBlackProduct ColorBlackMounting OrientationVerticalMount Type

• Rack-mountable
• Button Mount

Form FactorVerticalRack Height0UHeight72"Width2"Depth2.6"Weight (Approximate)13.70 lbEnvironmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature140°F (60°C)Minimum Storage Temperature-13°F (-25°C)Maximum Storage Temperature149°F (65°C)MiscellaneousPackage Contents

• EVMOGU23X 42-Outlets PDU

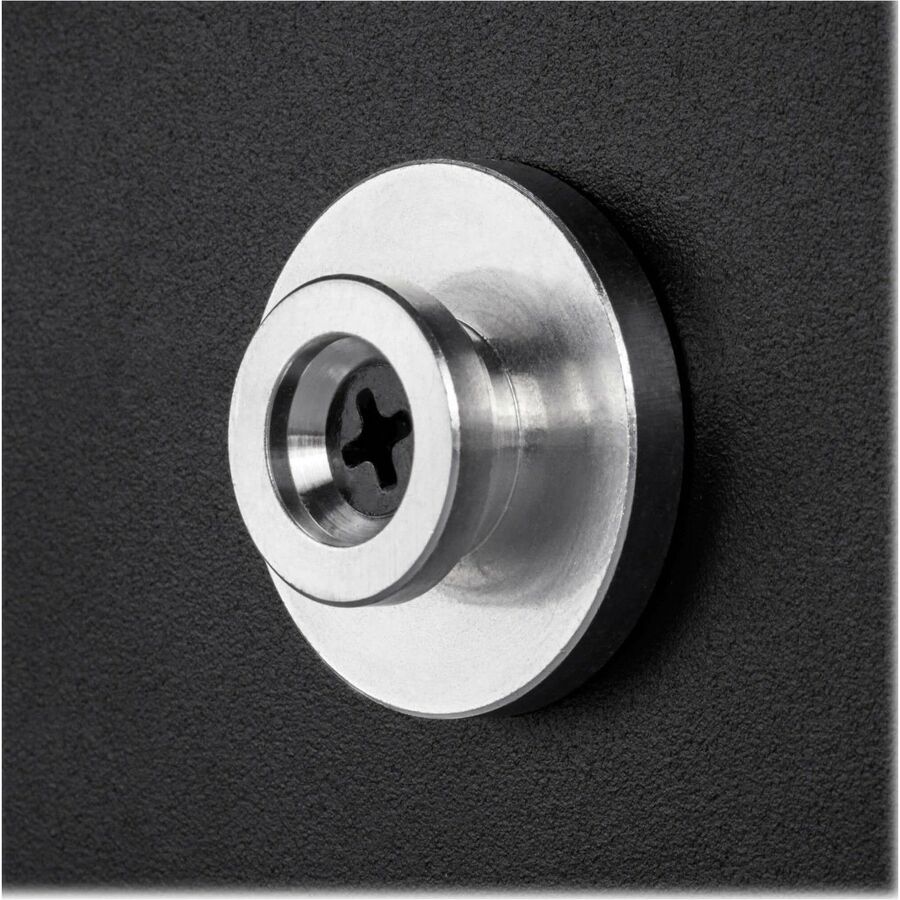

• Mounting Buttons

Application/UsageData CenterCertifications & Standards

• IEC 62368-1
• UL 62368-1
• cTUVus
• CE (Europe)
• FCC Part 15 Class A (USA)
• UKCA

Country of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
