MAINT BYPASS 8KVA 11KVA G2 UPS HW INPUT/OUTPUT 4 L6-30R OUT 0URM

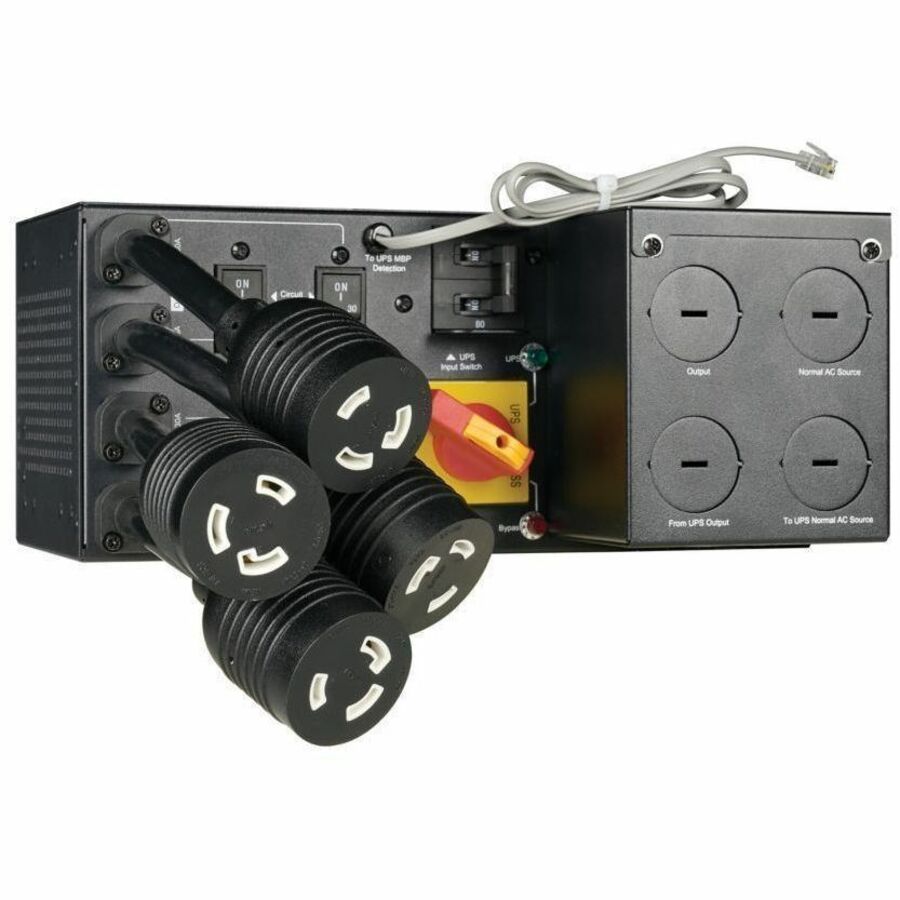

Versatile Connection and Installation OptionsThe MBP11K208G2 features hardwired input and output connections, as well as four NEMA L6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.Product TypeBypass SwitchTechnical InformationPlug/Connector TypeHardwiredReceptacles4 x NEMA L6-30RPower DescriptionLoad Capacity (VA)11 kWLoad Capacity (Watt)11 kWOutput Voltage

• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Physical CharacteristicsForm FactorRackmount/Tower/Wall-mountableRack Height0UHeight5.1"Width11.2"Depth5.1"MiscellaneousPackage Contents

• MBP11K208G2 Bypass Switch
• 2 x Input/output Covers
• Input/output Cover Fixation Kit
• 2 x Conduits for UPS Input/output Connection
• 4 x Conduit Fittings
• Mounting Hardware

Compatibility Eaton 9PX G2 UPS Systems

• 9PX8KG2
• 9PX8KTF5G2
• 9PX11KG2
• 9PX11KTF11G2
• 9PX11KTF5G2

Certifications & Standards

• cUL Listed
• NOM (Mexico)

Country of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
