16-PORT 10/100/1000 MBPS GBE UNMANAGED SWITCH POE+ 220W METAL 1U

Provides a Gigabit Ethernet connection and power for PoE devices in your small office network or workgroup.

• Supports PoE to save you expense and effort of powering PoE devices individually
• 16 twisted-pair auto-negotiable RJ45 ports support auto MDI/MDIX functionality
• Unused ports shift into low-power state without interrupting network connection
• Consumes just 10W maximum input power to help you save energy costs
• Designed for either desktop installation or 1U rack mounting with included hardware
• 3-year limited warranty

Features | 16-Port Unmanaged Gigabit Ethernet Switch for Home Offices and Workgroups

The energy-efficient NG16POE-1 network switch connects up to 16 devices to a Gigabit Ethernet network and allows them to communicate with each other. It's recommended for your home network, small office, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit (1000 Mbps/1 Gbps) speeds, improving efficiency and cutting costly downtime.

Maximum Network Functionality

The NG16POE-1 features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices

Because this network switch supports PoE, it can supply the power to operate compatible PoE devices, such as wireless LAN access points and bridges, VoIP phones and/or IP video cameras. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. RJ45 ports support up to 30W per port with a total PoE budget of 220W.

Complies with IEEE Energy Efficient Ethernet Standards

The NG16POE-1 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.

Plug-and-Play Functionality for Easy Use

No configuration is required in setting up the unmanaged NG16POE-1, so you can have your 10/100/1000 Mbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG16POE-1 supports MAC address auto-learning and auto-aging for efficient routing.

• Plug and Play
• Energy Efficient
• Fanless

• IEEE 802.3at
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3az
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3x

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• Rack-mountable
• Desktop

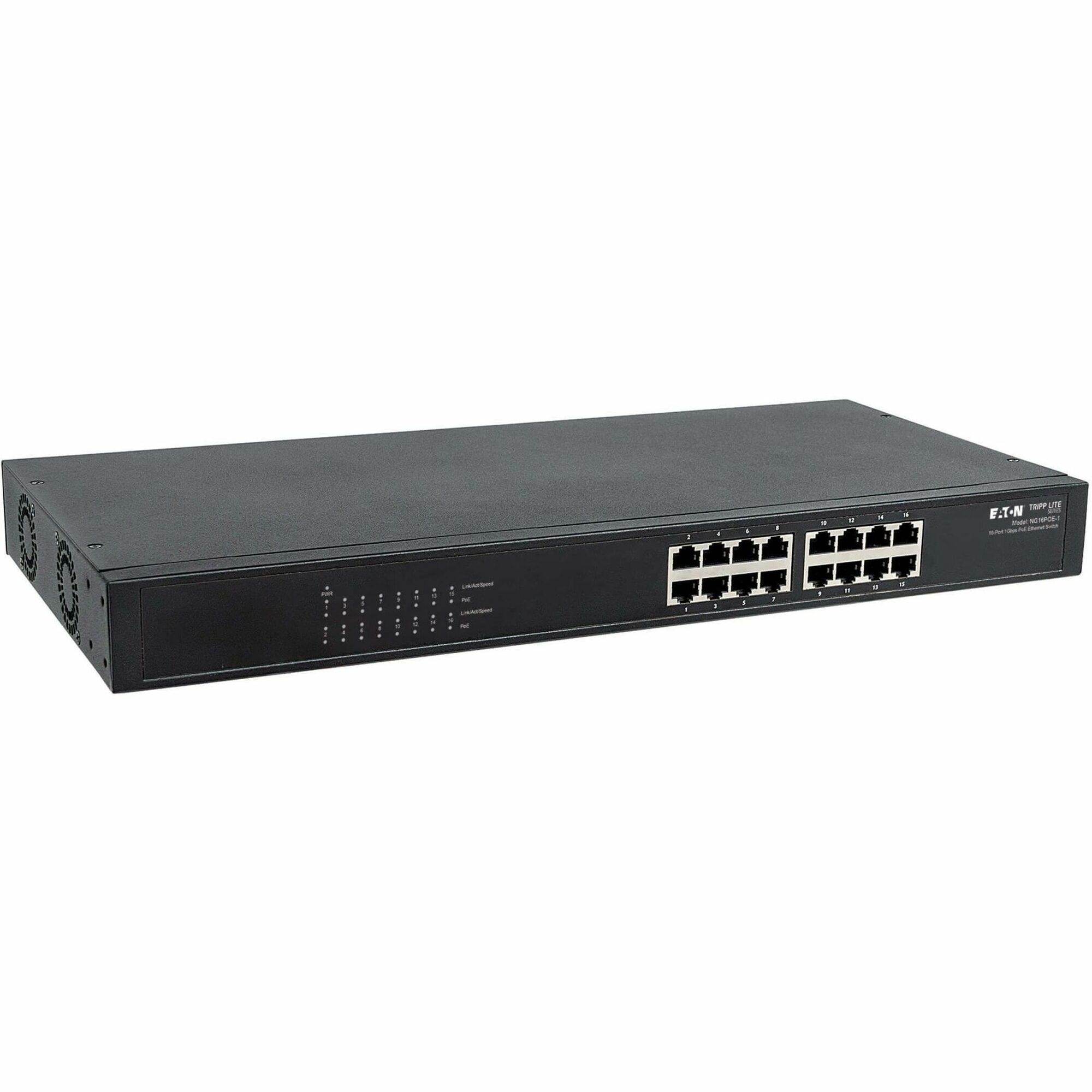

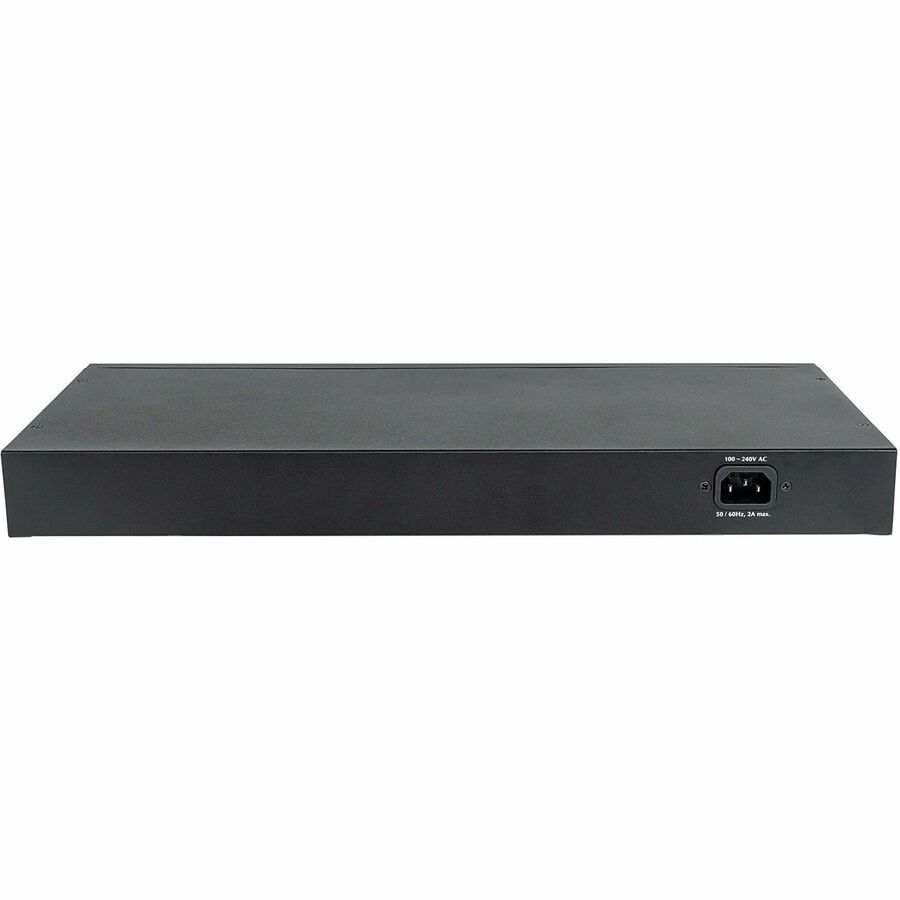

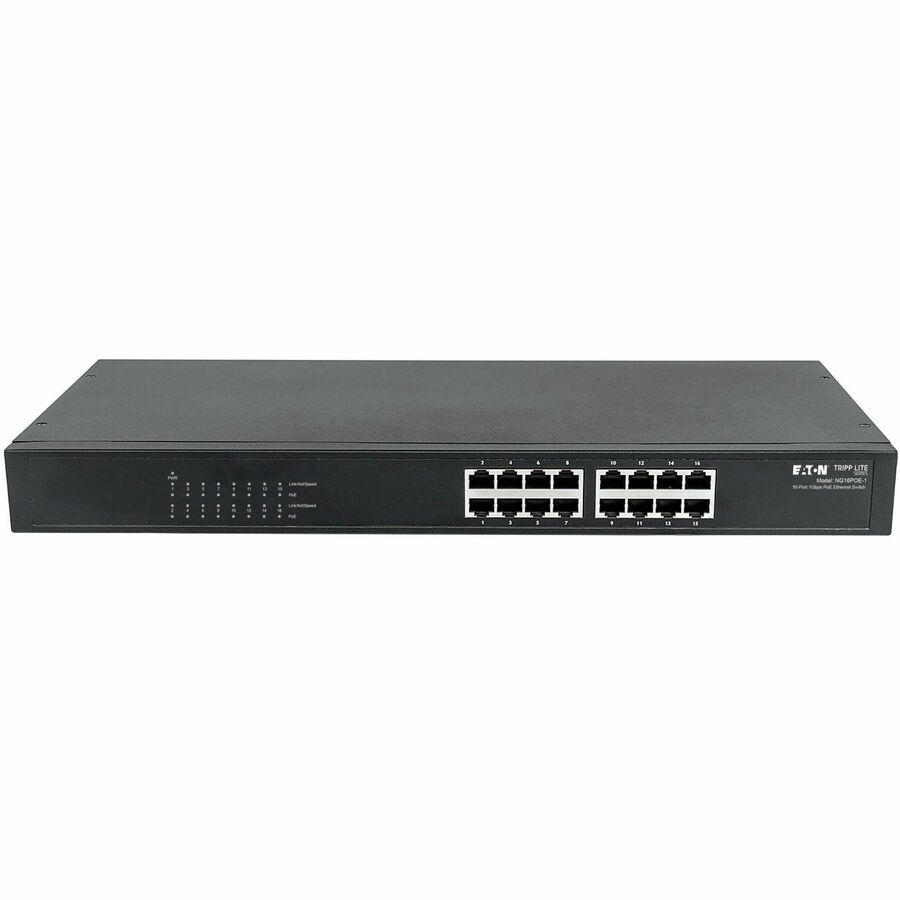

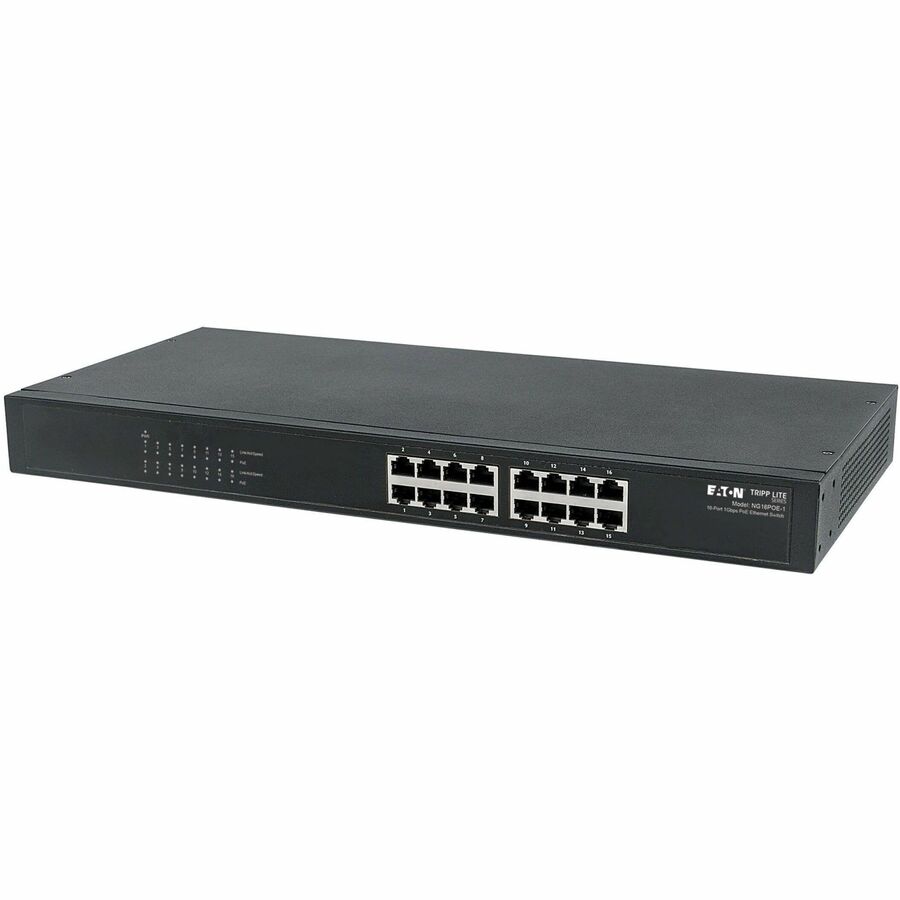

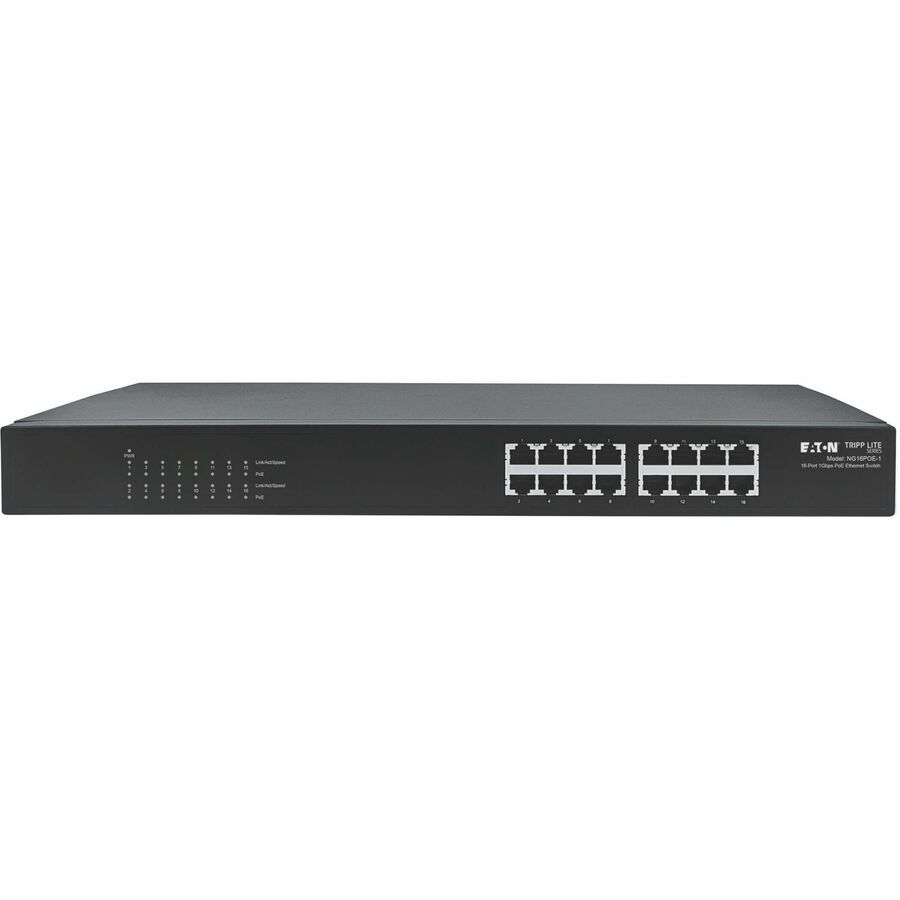

• NG16POE-1 16-Port Gigabit Ethernet Unmanaged Switch with PoE+

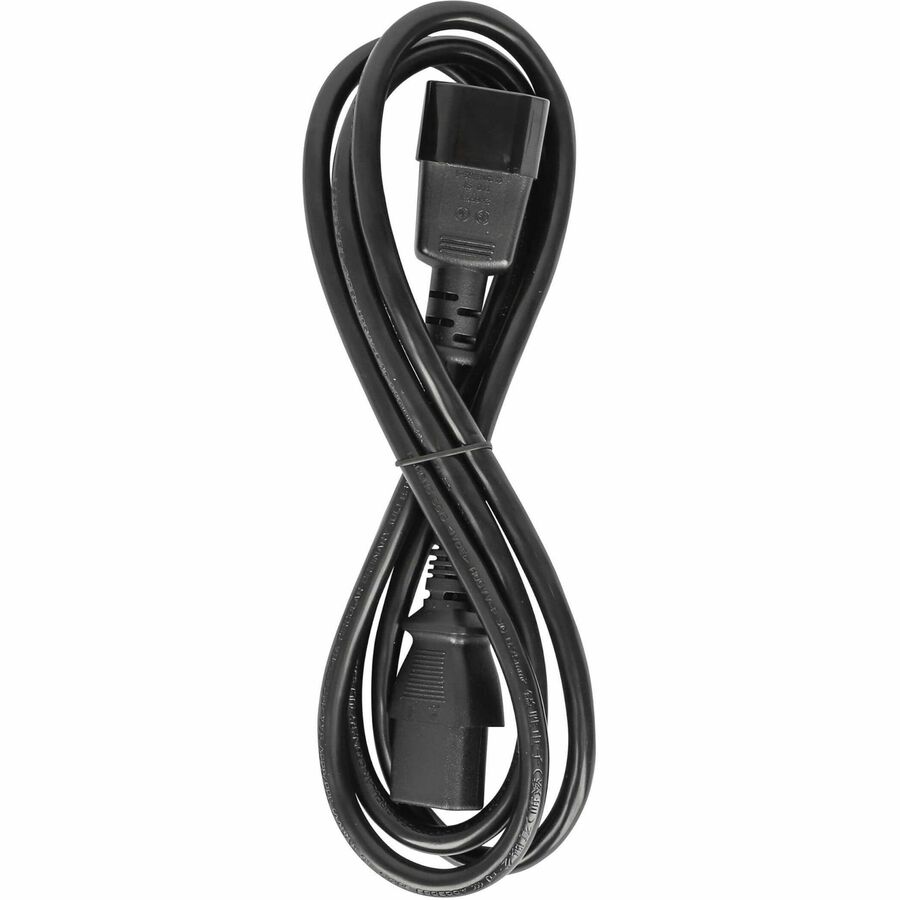

• Detachable C13 to C14 Power Cord, 5 ft. (1.5 m)
• 2 x Rack-Mounting Brackets
• 8 x Bracket Screws
• 4 x Rubber Feet
• Owner's Manual

• Network
• Home Office
• Small Office
• VoIP Phone
• IP Camera
• Video
• Home Network
• Router
• PC
• Wireless Access Point

• CAN/CSA-C22.2 No. 62368-1 (Canada)
• IEC 62368-1
• UL 62368-1

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
