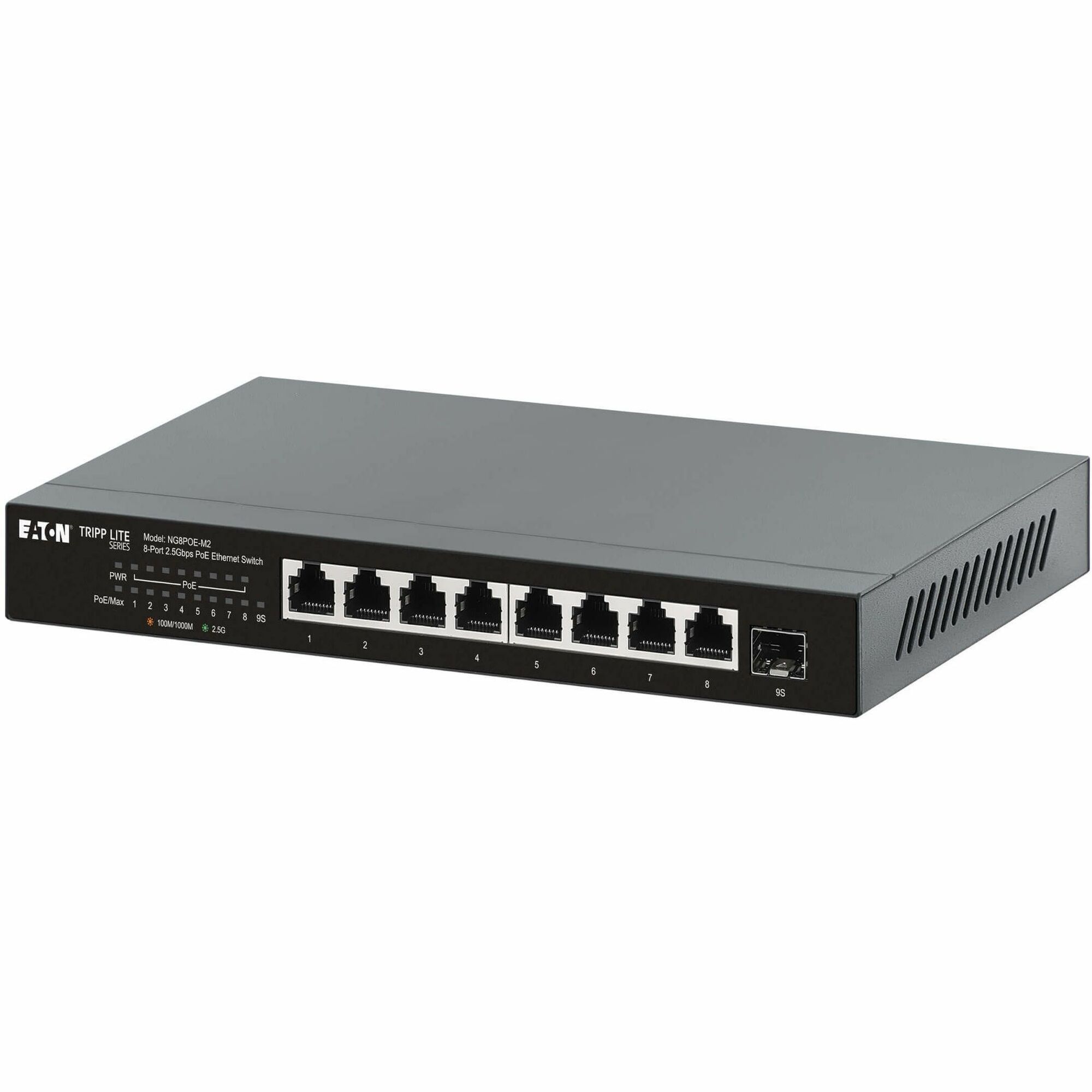

DESKTOP GIGABIT ETHERNET SWITCH UNMANAGED POE+ 8-PORT 2.5 GBPS 100W

Maximum Network FunctionalityThe NG8POE-M2 features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 2.5 Gbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex), back pressure (half duplex) and 60 Gbps switching capacity allow smooth transmission of large files. One 10 Gbps SFP+ port is included for uplinking data to other switches using optical fiber cabling. Supports Power over Ethernet to Save You Money and Give You More Installation ChoicesBecause this network switch supports PoE, it can supply the power to operate compatible PoE devices, such as wireless LAN access points and bridges, VoIP phones and IP video cameras. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Eight RJ45 ports support up to 30W each with a total PoE budget of 100W when using the included AC power adapter. Complies with IEEE Energy Efficient Ethernet StandardsThe NG8POE-M2 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It also meets IEEE 802.3ab, 802.3i and 802.3u standards. Plug-and-Play Functionality for Easy UseNo configuration is required in setting up the unmanaged NG8POE-M2, so you can have your 2.5 Gbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG8POE-M2 supports MAC address auto-learning and auto-aging for efficient routing.Product TypeEthernet SwitchTechnical InformationFeatures

• Energy Efficient
• Fanless

Interfaces/PortsTotal Number of Network Ports6Uplink PortYesModularYesNetwork (RJ-45)YesPort/Expansion Slot Details

• 8 x 2.5 Gigabit Ethernet Network
• 1 x 10 Gigabit Ethernet Expansion Slot

Media & PerformanceMedia Type Supported

• Twisted Pair
• Optical Fiber

Ethernet Technology

• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology

• 2.5GBase-T
• 10GBase-X

I/O ExpansionsTotal Number of Expansion Slots1Expansion Slot TypeSFP+Number of SFP+ Slots1Network & CommunicationLayer Supported2Networking Standards

• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3az
• IEEE 802.3bt
• IEEE 802.3u

Management & ProtocolsManageableNoPower DescriptionPoE (RJ-45) PortYesPoE Budget100 WInput Voltage

• 120 V AC
• 230 V AC

Frequency

• 50 Hz
• 60 Hz

Power Source

• Power Adapter
• AC
• DC

Power Consumption120 WPlug/Connector TypeC14Input ReceptaclesNEMA 5-15PPhysical CharacteristicsColor FamilyBlackProduct ColorBlackProduct MaterialMetalForm Factor

• Desktop
• Wall Mountable

Height1.1"Width9.5"Depth4.1"Weight (Approximate)1.10 lbMiscellaneousPackage Contents

• NG8POE-M2 Ethernet Switch
• AC Power Adapter
• External Power Supply
• NEMA 5-15P to C13 Power Cord, 5 ft. (1.5 m)
• Schuko to C13 Power Cord, 5 ft. (1.5 m)
• Rubber Mounting Feet
• Owner's Manual

Application/Usage

• Network
• Small Office
• Wireless Access Point
• VoIP Phone
• IP Camera
• Router
• PC

Certifications & Standards

• EN 55032
• EN 55035
• NOM (Mexico)

Country of OriginTaiwanTAA CompliantYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
