24-PORT MANAGED GIGABIT ETHERNE T SWITCH - LAYER 2 1 GBPS 2X GBE

Enterprise Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN

This space-saving desktop switch transmits data over a Gigabit Ethernet (GbE) network. Twenty-four auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a/8 cable only to the computers, routers, hubs and other devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are connected and showing activity.

Recommended for IT Managers in Server Message Block (SMB) and Enterprise Network Installs

The NGS24C2-1 is ideal for IT pros needing a high-performance managed network switch for white space installations. It is also recommended for data centers using Layer 2 and Layer 3 management of connected servers, as well as small installations that manage multiple products within their network closets.

Built-In Web Smart Management Software

The Web Smart software provides rich Layer 2 functionality for monitoring and controlling connected equipment via a simple web interface. VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance.

Dual Dedicated SFP Ports

Two GbE SFP ports connect to user-supplied SFP modules (sold separately) for uplinking data to other switches via optical fiber or copper. LEDs indicate interface traffic.

Compliant with Energy Efficient Ethernet Standards

The NGS24C2-1 automatically shifts unused ports to a low power state without interrupting its network connection. The switch meets IEEE 802.3, 802.3ab, 802.3ad, 802.3i, 802.3u, 802.3x, 802.1d, 802.1q and 802.1w standards.

Works with the Most Popular Web Browsers

The NGS24C2-1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGS24C2-1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Versatile Installation Options

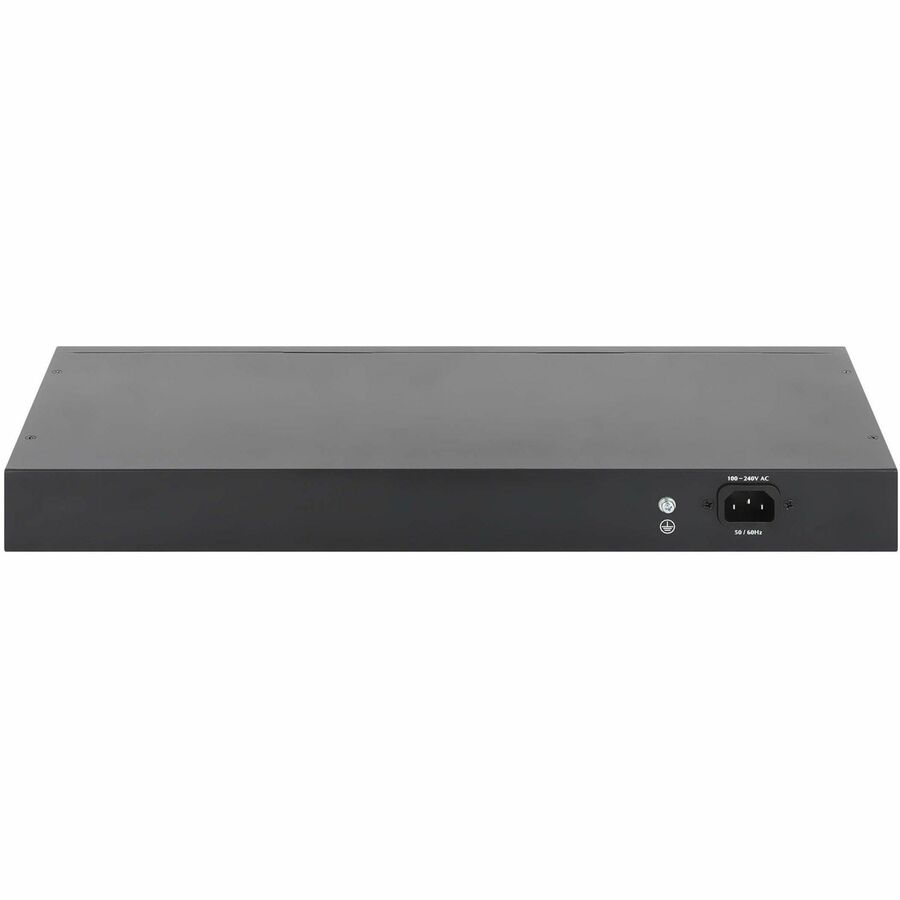

The heavy-duty metal housing can be positioned on a level surface using the included rubber feet to minimize external vibration or mounted into 1U of an EIA-standard 19-inch rack using the included brackets and screws. The detachable C14 to C13 power cord connects to a protected UPS, generator or mains input AC source.

• Built-in Fan
• VLAN Segmentation
• Remote Monitoring (RMON)
• Broadcast Storm Control
• DHCP Snooping
• Energy Efficient

• 24 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

• 1000Base-SX
• 1000Base-LX
• 10/100/1000Base-T

• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3

• 120 V AC
• 230 V AC

• Rack-mountable
• Desktop

• NGS24C2-1 Ethernet Switch
• Rack-mounting Hardware
• 4 x Rubber Feet
• C14 to C13 power cord, 5 ft. (1.5 m)
• Owner's Manual

• Network
• Data Center
• Server
• Router
• PC

• CAN/CSA-C22.2 No. 62368-1 (Canada)
• IEC 62368-1
• UL 62368-1
• CE (Europe)
• FCC Part 15 Class B (USA)
• UKCA
