EATON TRIPP LITE SERIES 8.6/12.6KW 3-PHASE VERTICAL PDU STRIP, 208V OUTLETS (42

Name: EATON TRIPP LITE SERIES 8.6/12.6KW 3-PHASE VERTICAL PDU STRIP, 208V OUTLETS (42
Brand: EATON
SKU: 2687BL
Price: 407.01 USD
Availability: InStock

EATON

PCN#

2687BL

MFG#

PDU3V20D354A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$407.01

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

54 Outlet Strip for 3
Phase ATS PDU

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 15 lbs.

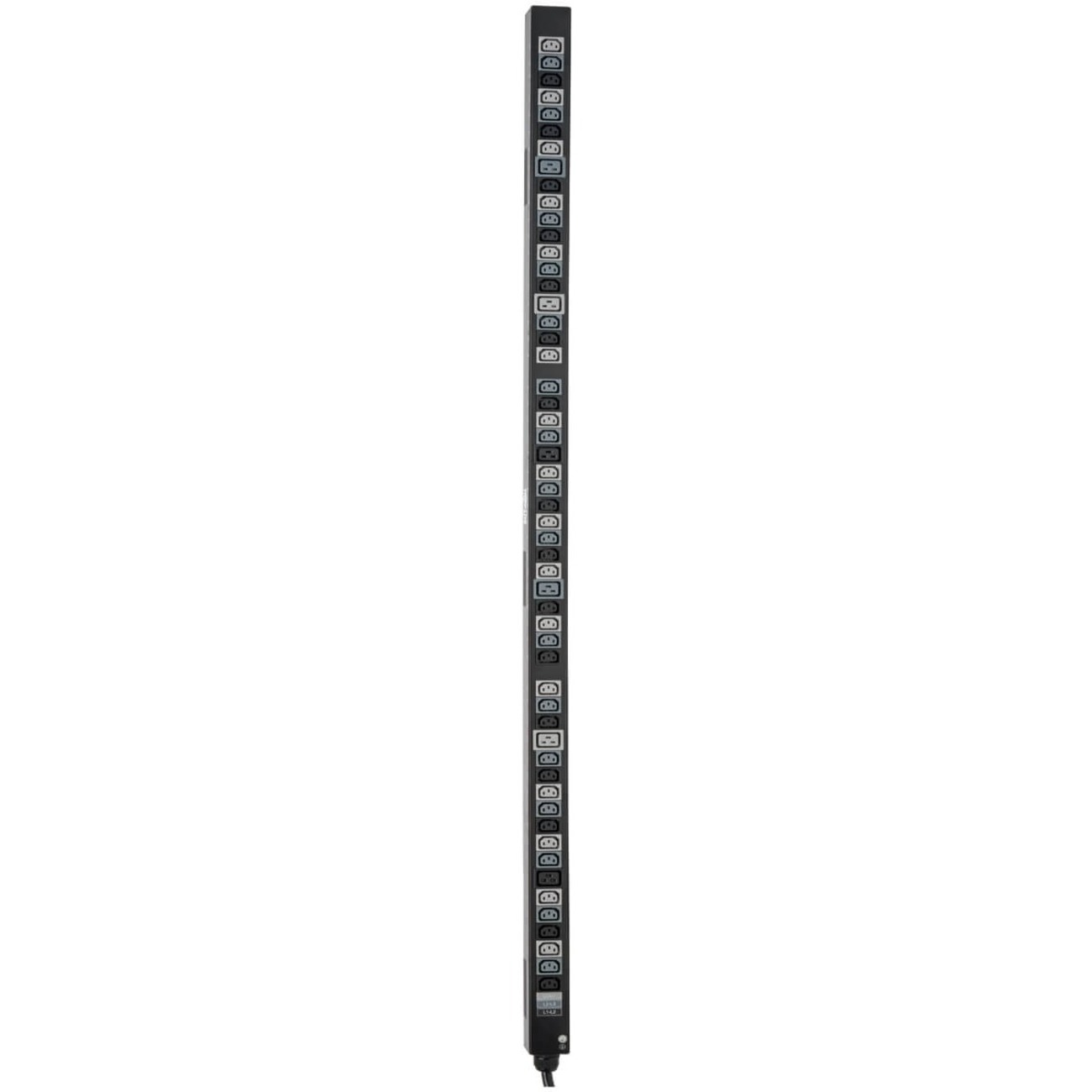

Tripp Lite by Eaton 8.6/12.6kW 3-Phase Vertical PDU Strip, 208V Outlets (42 C13 & 12 C19), 0U Rack-Mount, Accessory for Select ATS PDUs

Overview

Tech Specs

Specifications

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDU3V20D354A
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	PDU3V20D354A
Product Name	PDU3V20D354A 54-Outlet PDU
Marketing Information	The PDU3V20D354A 8.6/12.6kW 3-Phase Vertical Power Distribution Unit(PDU) Outlet Strip is a required accessory option for Tripp Lite's PDU330AT6L21, PDU330AT6L15, PDU330AT6L2130, PDU330AT6L1530, PDU350AT6H50 and other 3-phase auto-transfer switch(ATS) PDUs that specify compatibility with this model. It's ideal for high-density equipment racks in data centers and server rooms. When used with 208V ATS models with a 35A input rating(such as PDU350AT6H50), the PDU3V20D354A supports up to 12.6kW total output with 20A maximum full balanced load per phase combination output bank(L1-L2, L2-L3, L3-L1). When used with 208V ATS models with a 24A input rating(such as PDU330AT6L21, PDU330AT6L2130, PDU330AT6L1530 or PDU330AT6L15), it supports up to 8.6kW total output with 13.9A maximum balanced load per phase combination output bank. The 42 C13 and 12 C19 single-phase outlets receive power from the connected ATS PDU. The outlets are interlaced to help you balance loads by spreading connections across the phase combinations(L1-L2, L2-L3, L3-L1) throughout the rack. Each outlet is numbered and color-coded to help you keep track of connected devices and which phase combination powers each. The 2.5-foot power cord with 8-position plug connects directly to the PDU's rear receptacle. The PDU3V20D354A's rugged all-metal housing mounts in compatible racks in seconds with no tools needed. Vertical 0U installation reduces cord clutter and improves airflow through the rack.
Product Type	PDU

Technical Information

Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	42 x IEC 60320 C13 12 x IEC 60320 C19

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
Power Rating (Watt)	12.60 kW
Input Current	35 A

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70"
Width	2.2"
Depth	2.2"
Weight (Approximate)	9.26 lb

Miscellaneous

Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
