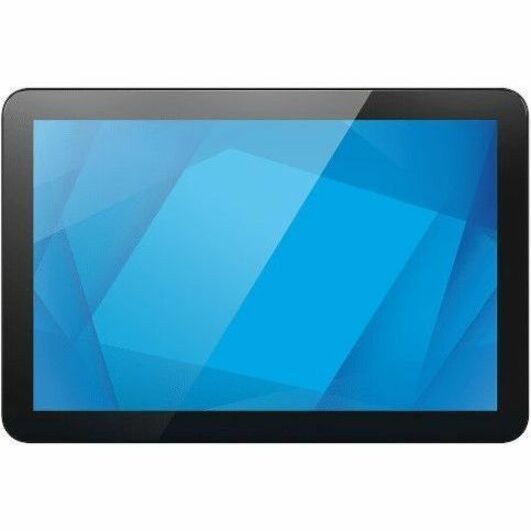

1004L 10.1IN WIDE LCD MONITOR HD 1280X800 PCAP 10-TOUCH

Name: 1004L 10.1IN WIDE LCD MONITOR HD 1280X800 PCAP 10-TOUCH
Brand: ELO
SKU: SN7505
Price: 425.23 USD
Availability: InStock

ELO

PCN#

SN7505

MFG#

E968703

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$425.23

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

10.1" Viewable
Projected Capacitive
10 Point(s) Multi
touch Screen
1280 x 800
WXGA
Thin Film Transistor (TFT)
16.7 Million Colors
360 Nit
LED Backlight
Speakers
HDMI
USB
USB Type
C
Black
USB Hub

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

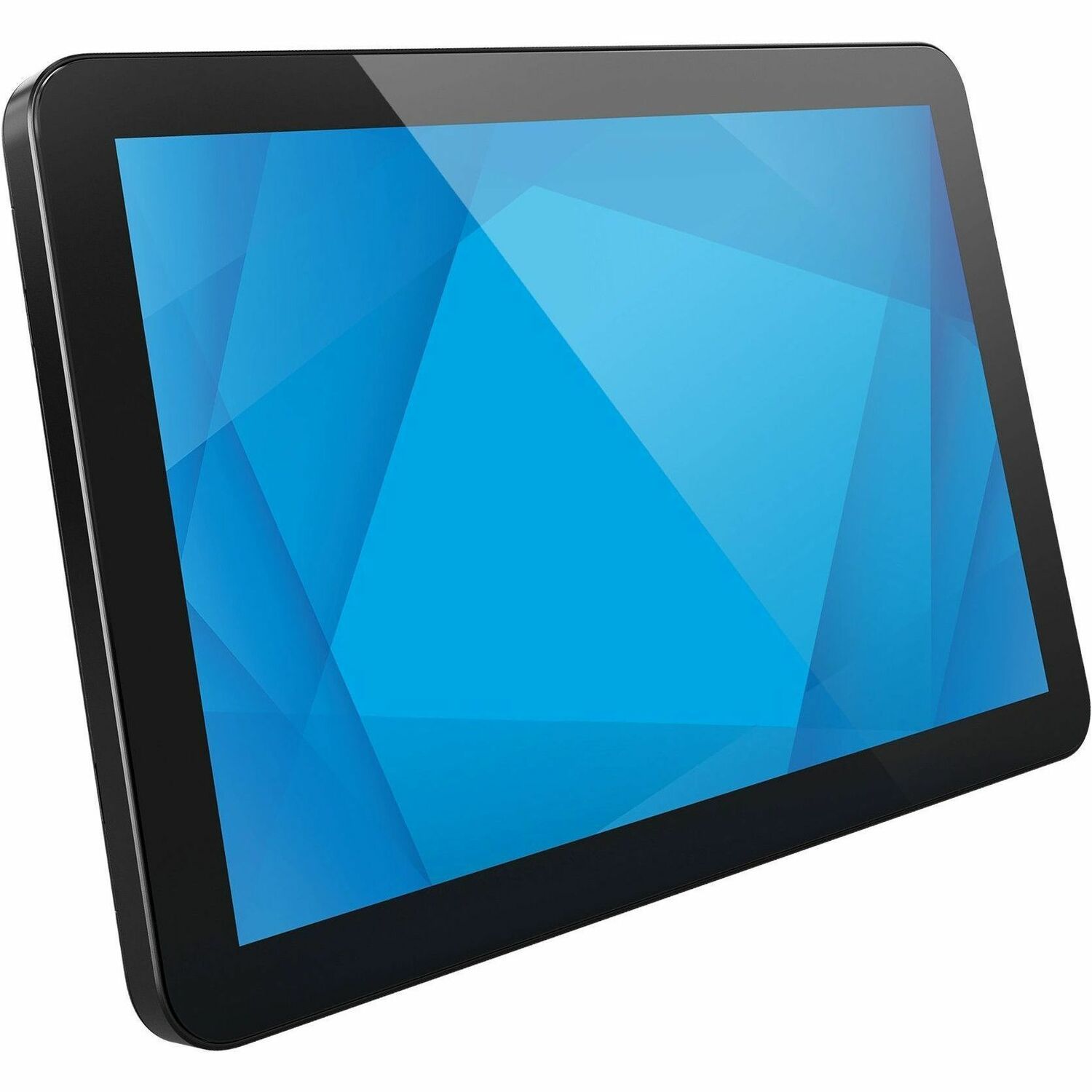

Elo 1004L 10" Class LED Touchscreen Monitor - 16:10 - 30 ms

Overview

Tech Specs

Specifications

Manufacturer	Elo Touch Solutions, Inc
Manufacturer Part Number	E968703
Manufacturer Website Address	http://www.elotouch.com
Brand Name	Elo
Product Model	1004L
Product Name	1004L 10-inch Touchscreen Monitor

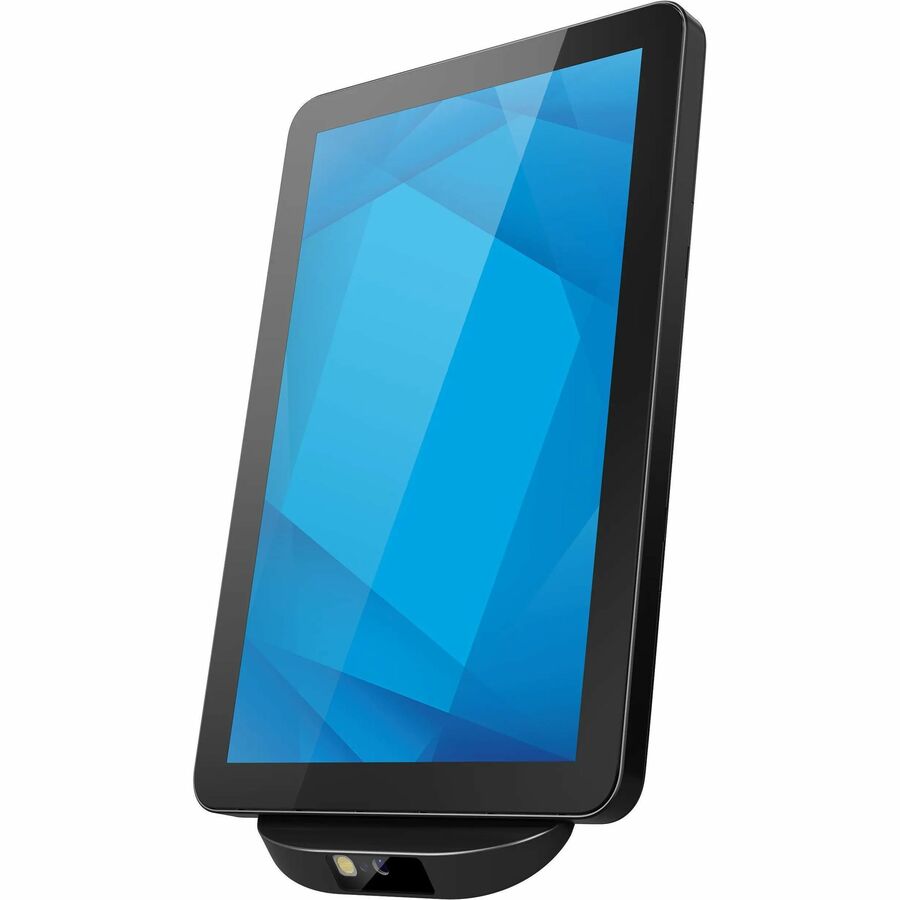

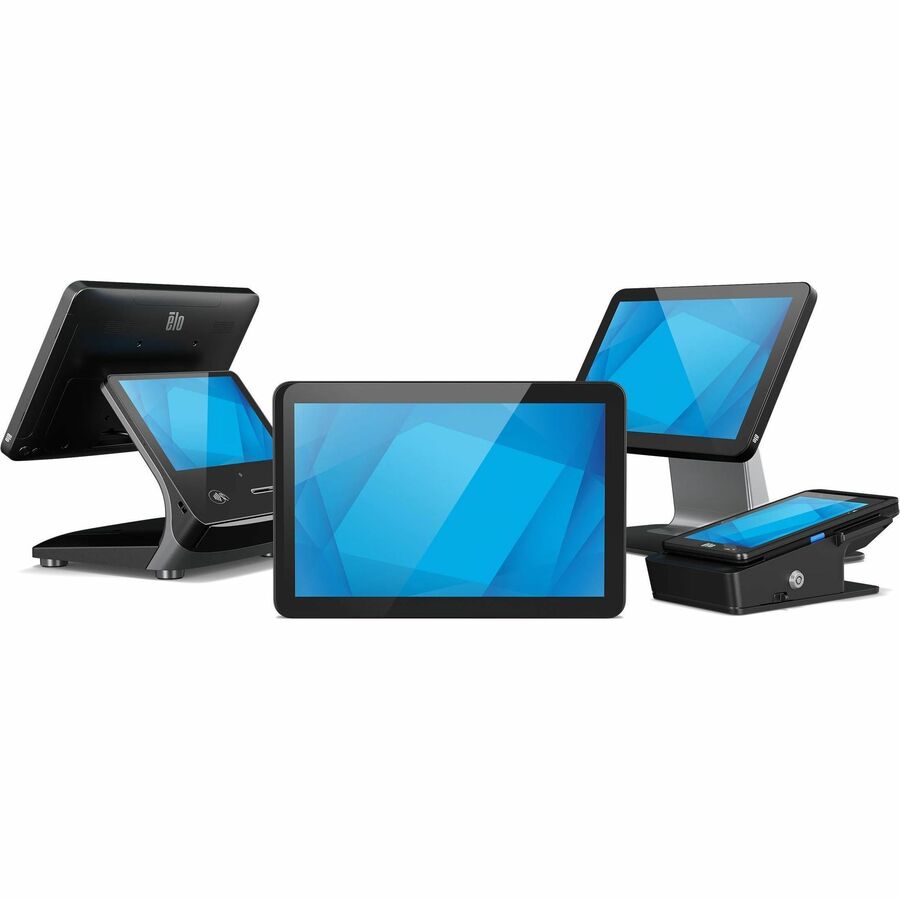

Marketing Information	The 1004L touch monitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 10" touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI. Create the perfect payment stack with the 10" touchscreen. Easily pair the 10-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7" , the 1004L offers the perfect compact touch display with the connectivity you need at the point of sale. State of the art optical viewing. Designed with high quality optical bonding, anti- glare coverglass and low-blue light settings - the 1004L 10-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity. Connect accessories to the edge. Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more. Navigate the OSD directly on the touchscreen. The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security. Expand the possibilities with touch through. Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.
Product Type	LED Touchscreen Monitor

Technical Information

Screen Size Class	10"
Viewable Screen Size	10.1"
Screen Mode	WXGA
Panel Technology	Thin Film Transistor (TFT)
Response Time	30 ms
Response Time Details	30 ms Typical
Aspect Ratio	16:10
Horizontal Viewing Angle	170°
Vertical Viewing Angle	170°
Mount Type	Rear Mount
Backlight Technology	LED
Features	Anti-glare On-screen Display (OSD) Color Temperature Selection Low Blue Light ComfortView Scratch Resistant On-screen Display (OSD) Lock
Horizontal Frequency	30 kHz to 80 kHz
Vertical Frequency	60 Hz
Ingress Protection (IP) Rating	IP54
Impact Protection (IK) Rating	IK07
Active Display Area (H x V)	8.50" x 5.30"

Video

Maximum Resolution	1280 x 800
Color Supported	16.7 Million Colors
Native Contrast Ratio	800:1
Brightness	360 Nit
Maximum Refresh Rate	60 Hz

Audio

Speakers	Yes
Number of Speakers	2

Touchscreen Information

Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10

Interfaces/Ports

HDMI	Yes
USB	Yes
Mini DisplayPort	Yes
USB Type-C	Yes
Total Number of HDMI Ports	1
Number of USB Ports	5
Number of DisplayPorts	1
Total Number of USB Type-C Ports	1

Built-in Devices

USB Hub

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 104°F (40°C)
Operating Humidity Range	20% to 80% (Non-condensing)

Physical Characteristics

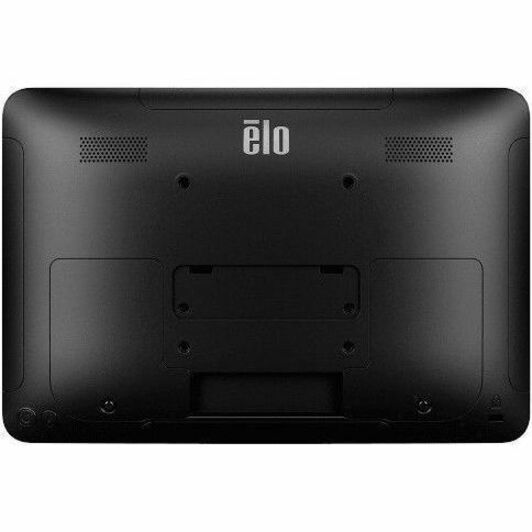

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Color Family	Black
Product Color	Black
Height	6.6"
Width	9.8"
Depth	1"
Weight (Approximate)	1.98 lb

Miscellaneous

Application/Usage

Point of Sale (POS)
Automation
