ET1564L-2UWA-0-MT-ZB-NPB-G

Name: ET1564L-2UWA-0-MT-ZB-NPB-G
Brand: ELO
SKU: 3863BL
Price: 591.94 USD
Availability: InStock

ELO

PCN#

3863BL

MFG#

E971256

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$591.94

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

15.6" Viewable
TouchPro Projected Capacitive
10 Point(s) Multi
touch Screen
1920 x 1080
Full HD
Thin Film Transistor (TFT)
16.7 Million Colors
450 Nit
LED Backlight
HDMI
USB
DisplayPort
USB Type
C
Black

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

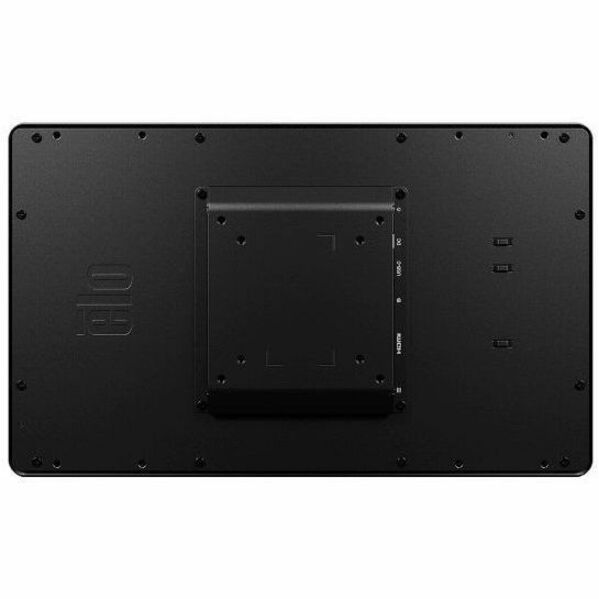

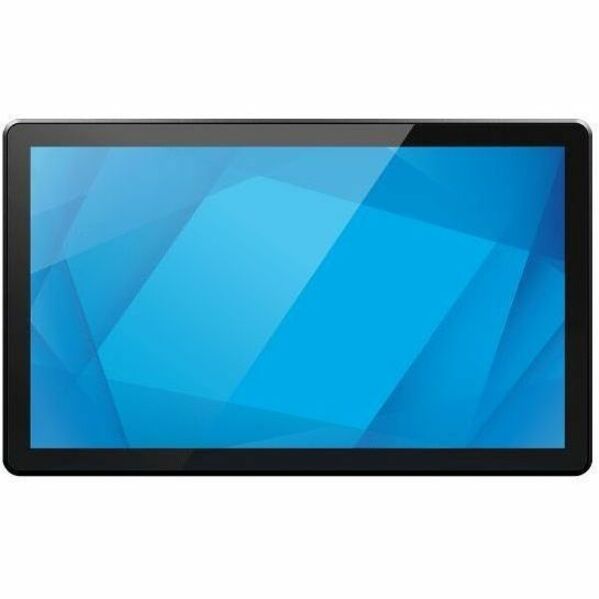

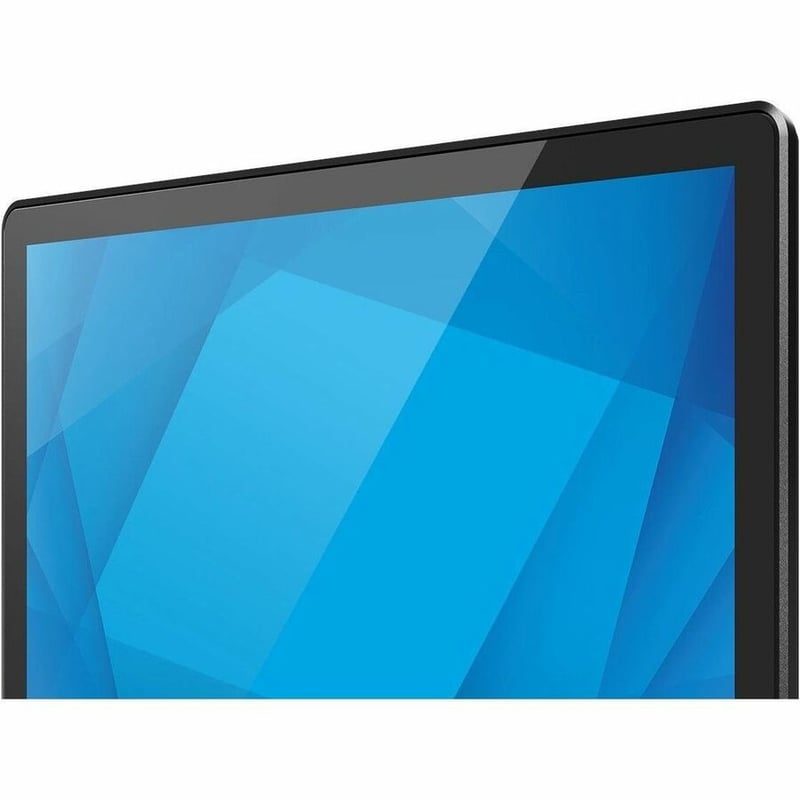

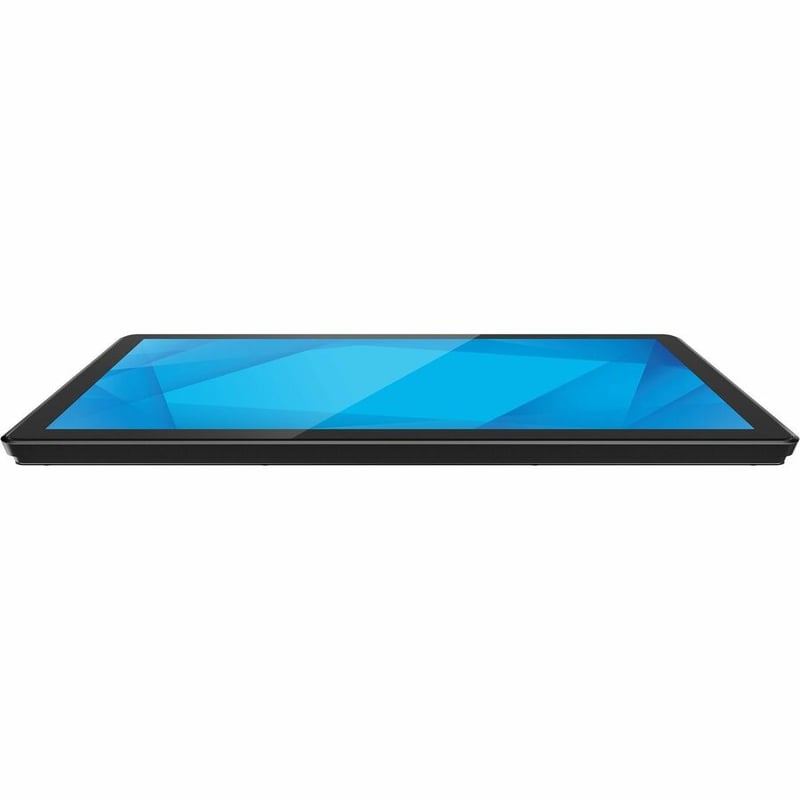

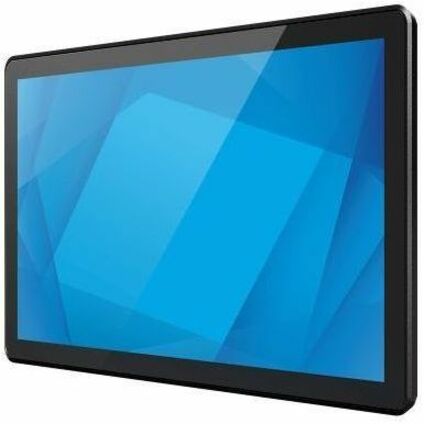

Elo 1564L 16" Class Open-frame LED Touchscreen Monitor - 16:9 - 25 ms

Overview

Tech Specs

Enable power, video and touch with a single USB-C cable. | Durable, energy efficient touchscreen.

UL62368 & IK08 compliance
Chemically-strengthened glass
Ready for24/7 use
Wide operaing voltage range (12V-24V)
Energy Star 8.0 certified

Navigate the OSD directly on the touchscreen.We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor. Touch thru glass enabled with PCAP.For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk. Designed for easy integration.Elo's 15-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience. Computing power that scales with a single cable.With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.Product TypeOpen-frame LED Touchscreen MonitorTechnical InformationScreen Size Class16"Viewable Screen Size15.6"Screen ModeFull HDPanel TechnologyThin Film Transistor (TFT)Response Time25 msResponse Time Details25 ms TypicalAspect Ratio16
9Horizontal Viewing Angle178°Vertical Viewing Angle178°Mount TypeFlush MountBacklight TechnologyLEDFeatures

On-screen Display (OSD)
Landscape/Portrait Viewable
Low Blue Light

Horizontal Frequency30 kHz to 80 kHzVertical Frequency50 Hz to 75 HzOperation Hours24 Hours/7 DaysIngress Protection (IP) RatingIPX1Impact Protection (IK) RatingIK08Active Display Area (H x V)13.50" x 7.60"On Screen Display (OSD) Controls

Brightness
Contrast
Sharpness
Color Temperature

VideoMaximum Resolution1920 x 1080Color Supported16.7 Million ColorsNative Contrast Ratio1,000
1Brightness450 NitTouchscreen InformationTouchscreen TypeTouchPro Projected CapacitiveMulti-touch ScreenYesNumber of Simultaneous Touchpoints10Interfaces/PortsHDMIYesUSBYesDisplayPortYesUSB Type-CYesEnvironmental ConditionsOperating Temperature Range32°F (0°C) to 104°F (40°C)Power DescriptionFrequency

50 Hz
60 Hz

Voltage Current3 APhysical CharacteristicsVESA Mount CompatibleYesVESA Mount Standard100 x 100Color FamilyBlackProduct ColorBlackHeight8.8"Width14.8"Depth1.2"Weight (Approximate)4.91 lbMiscellaneousEnergy StarYesApplication/Usage

Automation
Gaming
Commercial
Kiosk System
