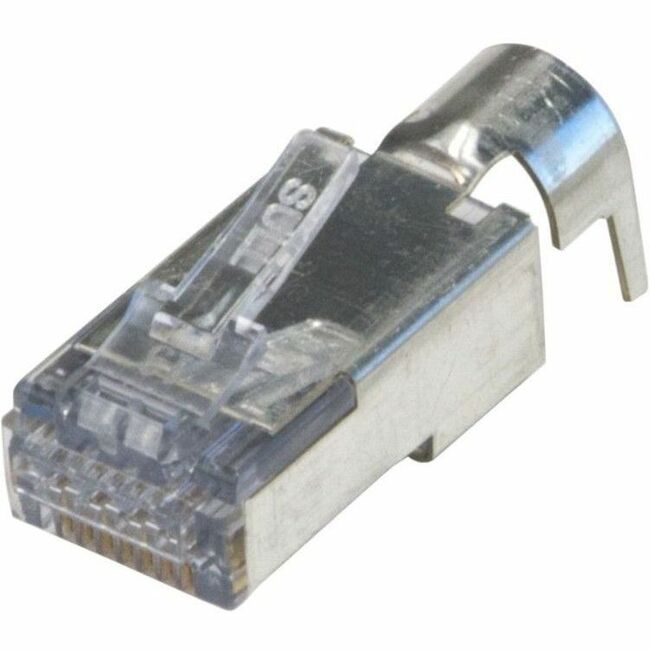

EZEX44 SHIELDED RJ45 EXTERNAL GROUND CONNECTOR 25/CLAMSHELL

Name: EZEX44 SHIELDED RJ45 EXTERNAL GROUND CONNECTOR 25/CLAMSHELL
Brand: ENET PLATINUM TOOLS
SKU: S12487
Price: 46.51 USD
Availability: InStock

ENET PLATINUM TOOLS

PCN#

S12487

MFG#

100025C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$46.51

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

25
1 x RJ
45 Network
Male
Shielding
Metal

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

NSI ezEX Network Connector

Overview

Tech Specs

Specifications

Manufacturer	NSI Industries
Manufacturer Part Number	100025C
Manufacturer Website Address	https:/siindustries.com/
Brand Name	NSI
Product Line	ezEX
Product Name	ezEX Network Connector

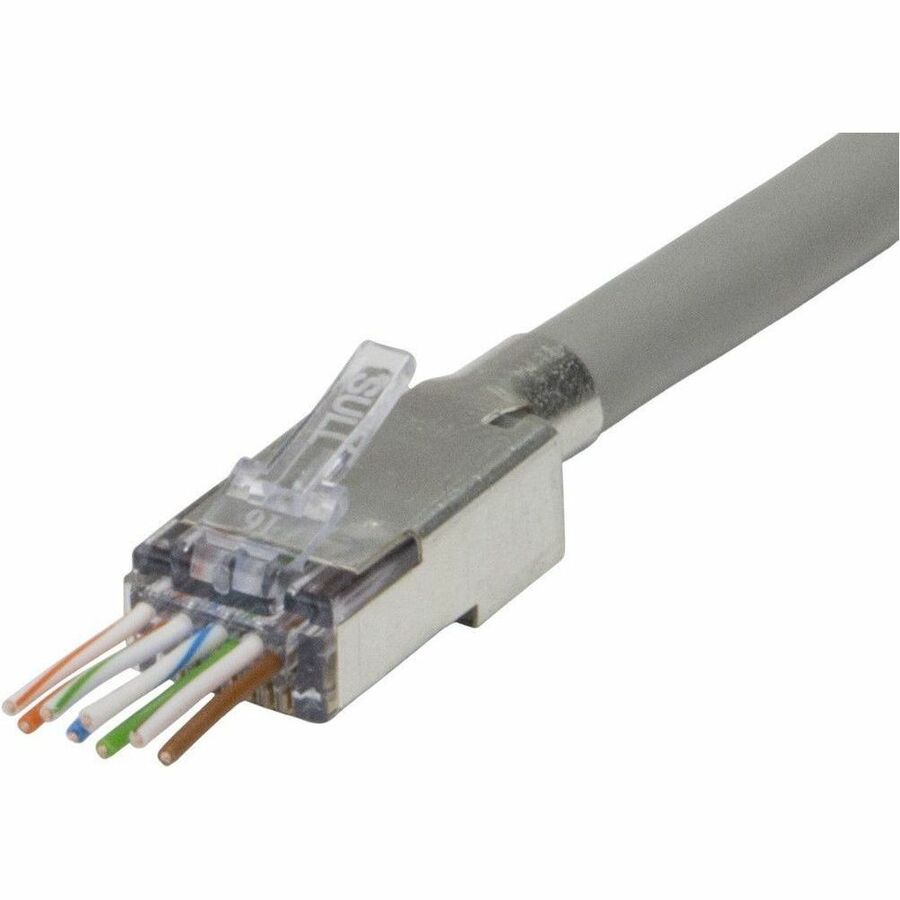

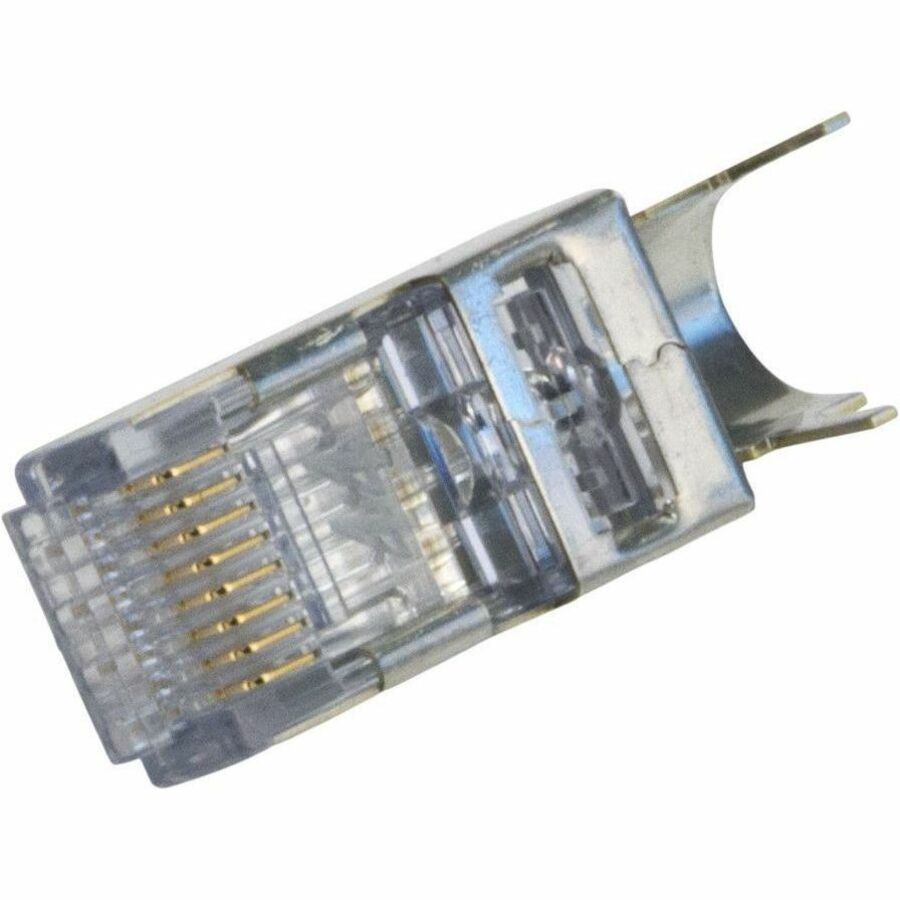

Marketing Information	ezEX-RJ45(44) Pass-Through RJ45 Connectors, CAT6 Shielded with External Ground - 25pcs in Clamshell ezEX-RJ45 (ezEX44 series) pass-through RJ45 connectors ezEX44 connectors are designed for cables with 0.039" - 0.044" (1.0 - 1.12mm) insulation diameter Shielded with external ground Package includes 25 pieces Retail-ready clamshell packaging 0.280" (7.11mm) max cable outer diameter 0.039" - 0.044" (1.0 - 1.12mm) max insulation diameter (conductors) Compatible with solid or stranded 24 - 22AWG twisted pair cable 50 micron gold plated contacts Hi-Lo stagger to isolate each conductor Simple one piece/pass through design does not require bars or liners Compatible with CAT5E cables TAA, TIA, RoHS, UL & FCC compliant US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents. Rated for data and PoE applications Recommended crimp tools: 100061 or 12520
Packaged Quantity	25
Packing	Clamshell
Package Type	Retail
Product Type	Network Connector

Technical Information

Connector Type	RJ-45 Network - Male
Connector Details	1 x RJ-45 Network - Male
Connector Gender	Male
Contact Plating	Gold
Shielding	Yes
Compatible Wire Gauge	22-24 AWG
Features	Stranded PoE Pass-thru Crimp Connector

Physical Characteristics

Color Family	Other
Product Color	Metal
Product Material	Polycarbonate

Miscellaneous

Country of Origin

United States
