EZEX38 SHIELDED RJ45 INTERNAL GROUND CONNECTORS 100/BAG

Name: EZEX38 SHIELDED RJ45 INTERNAL GROUND CONNECTORS 100/BAG
Brand: ENET PLATINUM TOOLS
SKU: S12521
Price: 161.96 USD
Availability: InStock

ENET PLATINUM TOOLS

PCN#

S12521

MFG#

105026

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$161.96

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

100 / Bag
1 x RJ
45 Network
Male
Shielding
Clear
TAA Compliant

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

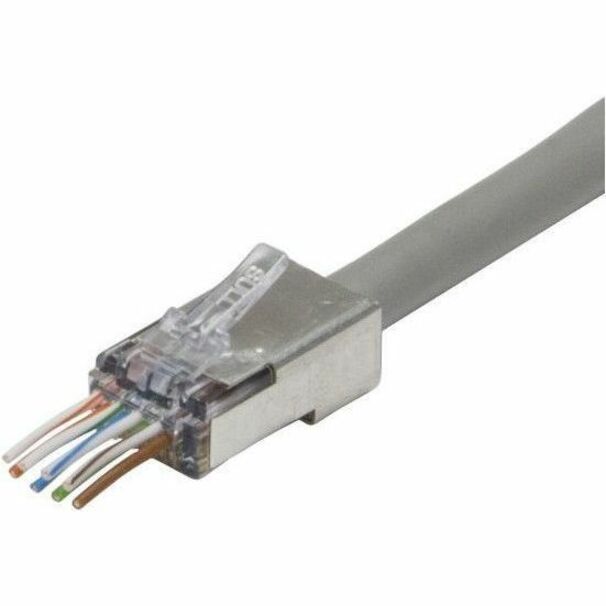

Platinum Tools ezEX38 - ezEX-RJ45 Cat5e Connector

Overview

Tech Specs

Specifications

Manufacturer	NSI Industries
Manufacturer Part Number	105026
Manufacturer Website Address	https:/siindustries.com/
Brand Name	Platinum Tools
Product Line	ezEX38
Product Name	ezEX38 - ezEX-RJ45 Cat5e Connector
Marketing Information	The patented ezEX38 connectors feature a unique integrated Hi-Lo stagger load bar and allows big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. These connectors are used with Cat5e (Sm. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. These connectors are also available in shielded (STP) internal ground style. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C). Hi-Lo stagger to isolate each conductor Simple one piece/pass through design, no bars or liners Insulation Diameter (Conductor) Size range: .033" - .038" (0.84 -0.97mm) Max Outer Diameter: .290" (7.36mm) 50 micron gold plated contacts 5e/6/6A compliant Solid or Stranded 24-22 AWG TIA, TAA, RoHS, UL & FCC compliant Typically used with Cat5e (Sm. 6) Shielded (STP) Internal Ground available Made in the USA US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
Packaged Quantity	100 / Bag
Packing	Bag
Product Type	Network Connector

Technical Information

Connector Type	RJ-45 Network - Male
Connector Details	1 x RJ-45 Network - Male
Connector Gender	Male
Contact Plating	Gold
Shielding	Yes
Compatible Wire Gauge	22-24 AWG
Features	PoE PoE+ Crimp Connector Pass-thru

Physical Characteristics

Color Family	Clear
Product Color	Clear

Miscellaneous

Country of Origin	United States
TAA Compliant	Yes
