WALL PLATE AP - TRI-RADIO (802.11 B/G/N/AX 2X2 MU-MIMO AND 802.11 A/N/AC/AX 2X2

Name: WALL PLATE AP - TRI-RADIO (802.11 B/G/N/AX 2X2 MU-MIMO AND 802.11 A/N/AC/AX 2X2
Brand: FORTINET
SKU: 6917BA
Price: 346.41 USD
Availability: InStock

FORTINET

PCN#

6917BA

MFG#

FAP-23JF-P

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$346.41

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

2.40 GHz, 5 GHz
3 x Internal Antenna(s)
Internal
MIMO Technology
Multi User MIMO
6 x Network (RJ
45)
Gigabit Ethernet
PoE Ports
17.50 W
Wall Plate, Desktop, Ceiling Mountable, Rail
mountable, Wall Mountable
IP67

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

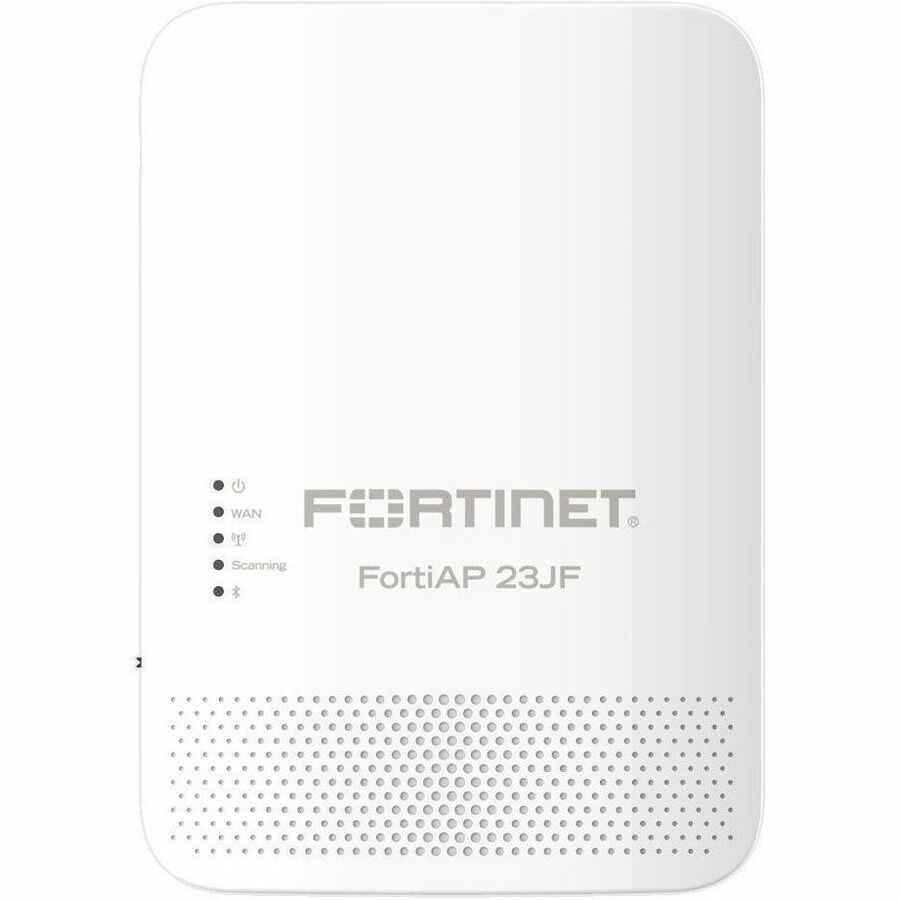

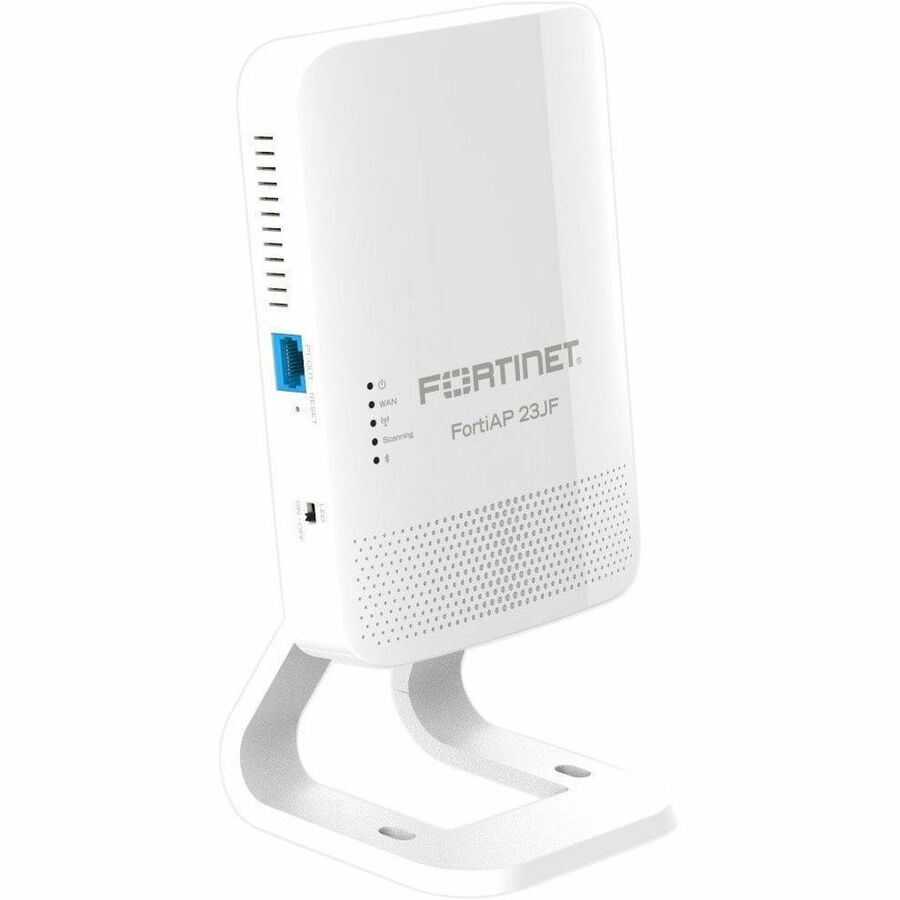

Fortinet FortiAP FAP-23JF Dual Band Wi-Fi 6 802.11ax 1.73 Gbit/s Wireless Access Point - Indoor

Overview

Tech Specs

Specifications

Manufacturer	Fortinet, Inc
Manufacturer Part Number	FAP-23JF-P
Manufacturer Website Address	http://www.fortinet.com
Brand Name	Fortinet
Product Line	FortiAP
Product Model	FAP-23JF
Product Name	FortiAP FAP-23JF Wireless Access Point
Marketing Information	This enterprise class Wi-Fi 6 wall plate AP provides three radios with internal antennas and two spacial streams, as well as features such as OFDMA and is PSE-capable. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications. Additional features include PoE out for downstream devices and RJ45 passthrough. This access point can be installed in minutes, right over the existing wall plate , or with the optional desk mount, makes a perfect remote / work from home AP.
Product Type	Wireless Access Point

Technical Information

Wireless LAN Standard	802.11ax
Network Band	Dual Band
Frequency Band	2.40 GHz 5 GHz
Total Number of Antennas	3
Number of Internal Antennas	3
Indoor/Outdoor	Indoor
Wireless Transmission Speed	1.73 Gbit/s
MIMO Technology	Yes
MIMO Type	Multi User MIMO
Data Encryption	Yes
Encryption Standard	WPA WPA2 WPA3 WEP WPA-PSK WPA2-PSK WPA3-PSK EAP-TLS EAP-TTLS EAP-MSCHAPv2 EAP-GTC PEAPv0 PEAPv1 EAP-AKA EAP-SIM EAP-FAST
Ingress Protection (IP) Rating	IP67
AI-powered	Yes

Interfaces/Ports

Ethernet Technology	Gigabit Ethernet
Number of Network (RJ-45) Ports	6
PoE (RJ-45) Port	Yes
PoE PD Port	Yes
Management Port	Yes

Network & Communication

Wi-Fi Generation

Wi-Fi 6

Power Description

Power Consumption

17.50 W

Physical Characteristics

Form Factor	Wall Plate Desktop Ceiling Mountable Rail-mountable Wall Mountable
Antenna Form Factor	Internal
Height	1.1"
Width	4.6"
Depth	6.6"
Weight (Approximate)	15.84 oz
