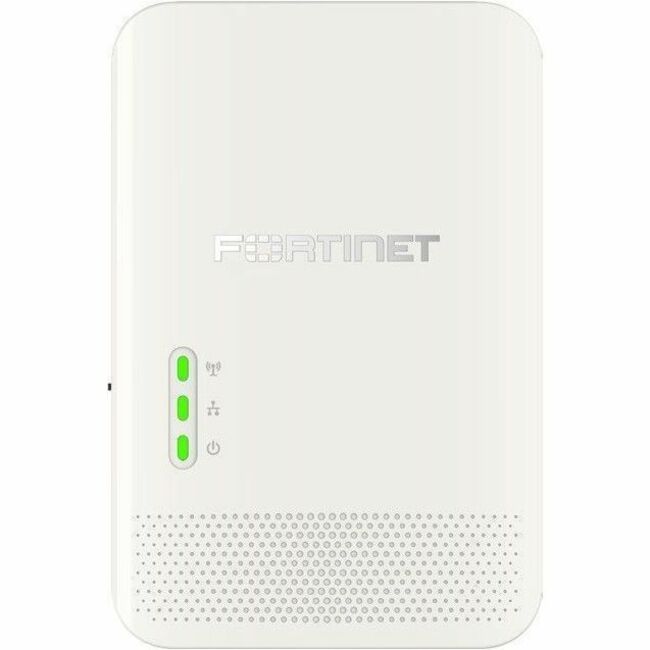

FORTIAP-23JK WALL PLATE AP - WI-FI-7 TRI-BAND 2.4/5/6GHZ 2+2+2 2

Name: FORTIAP-23JK WALL PLATE AP - WI-FI-7 TRI-BAND 2.4/5/6GHZ 2+2+2 2
Brand: FORTINET
SKU: SS3138
Price: 740.39 USD
Availability: InStock

FORTINET

PCN#

SS3138

MFG#

FAP-23JK-V

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$740.39

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

2.40 GHz, 5 GHz, 6 GHz
4 x Internal Antenna(s)
Internal
MIMO Technology
Multi User MIMO
6 x Network (RJ
45)
10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet
PoE Ports
Bluetooth 5.2
27.25 W
Wall Mountable, Tabletop, Wall Plate, Desktop

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

Fortinet FortiAP FAP-23JK Tri Band Wi-Fi 7 IEEE 802.11a/b/g/n/ac/ax/be/e/h/i/j/k/r/v 9.32 Gbit/s Wireless Access Point - Indoor

Overview

Tech Specs

Specifications

Manufacturer	Fortinet, Inc
Manufacturer Part Number	FAP-23JK-V
Manufacturer Website Address	http://www.fortinet.com
Brand Name	Fortinet
Product Line	FortiAP
Product Model	FAP-23JK
Product Name	FortiAP FAP-23JK Wireless Access Point
Marketing Information	These enterprise class Wi-Fi 7 indoor wall plate AP provide three radios and two spatial streams. These access points support the 6 GHz band and have one 10 Gigabit Ethernet and three 1 Gigabit Ethernet ports and one port supports the PSE OUT. The APs can provide 24/7 background scanning across all bands while still providing access on 2.4 GHz, 5 GHz, and 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and location applications.
Product Type	Wireless Access Point

Technical Information

Wireless LAN Standard	IEEE 802.11a/b/g/n/ac/ax/be/e/h/i/j/k/r/v
Bluetooth Standard	Bluetooth 5.2
Network Band	Tri Band
Frequency Band	2.40 GHz 5 GHz 6 GHz
Total Number of Antennas	4
Number of Internal Antennas	4
Indoor/Outdoor	Indoor
Wireless Transmission Speed	9.32 Gbit/s
MIMO Technology	Yes
MIMO Type	Multi User MIMO
Number of Bandwidth Streams	2
Data Encryption	Yes
Encryption Standard	EAP-TLS EAP-TTLS EAP-MSCHAPv2 PEAPv0 MSCHAPv2 PEAPv1 EAP-GTC EAP-SIM EAP-AKA EAP-FAST WPA WPA2 WPA3 WEP

Interfaces/Ports

Ethernet Technology	10 Gigabit Ethernet 5 Gigabit Ethernet 2.5 Gigabit Ethernet Gigabit Ethernet Fast Ethernet Ethernet
Number of Network (RJ-45) Ports	6
PoE (RJ-45) Port	Yes
PoE PD Port	Yes
Management Port	Yes

Network & Communication

Wi-Fi Generation

Wi-Fi 7

Power Description

Power Consumption

27.25 W

Physical Characteristics

Form Factor	Wall Mountable Tabletop Wall Plate Desktop
Antenna Form Factor	Internal
Height	1.6"
Width	4.7"
Depth	7.1"
Weight (Approximate)	1.15 lb

Miscellaneous

Package Contents	FortiAP FAP-23JK Wireless Access Point Standard Wall Mounting Kit
Application/Usage	Office
Certifications & Standards	802.3af 802.3at 802.3btCE CE FCC N
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
