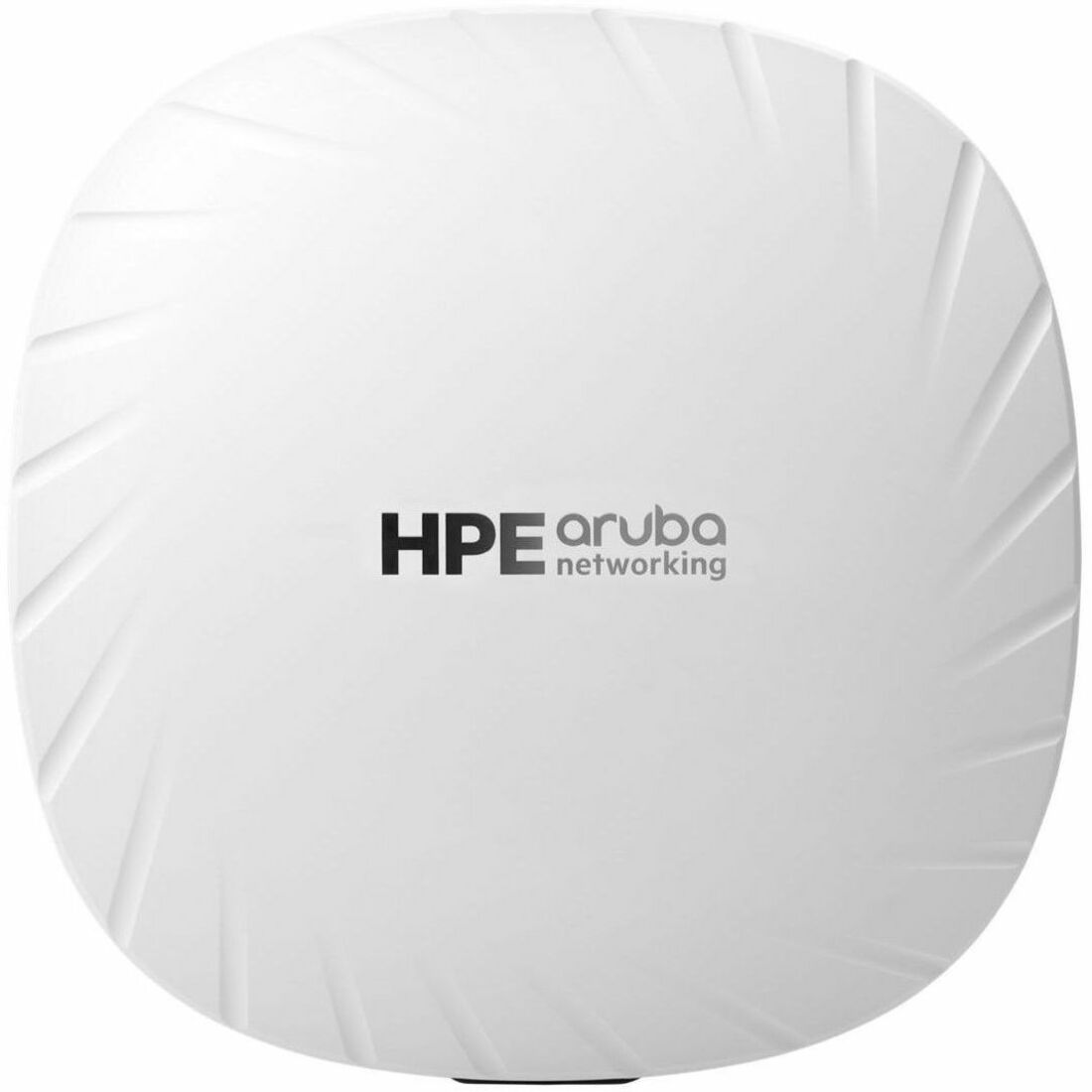

HPE ANW AP-515 (US) 10PK CAMPUS AP PL-VL

Cloud Management and Ready for IoTHPE Aruba Networking 510 Series Campus Access Points can be managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboardThe AP includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors.The target wake time (TWT) improves battery life of IoT devices.HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices. Simple and Secure AccessHPE Aruba Networking 510 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and errorprone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.For enhanced device assurance, the APs include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.Packaged Quantity10 PackProduct TypeWireless Access PointTechnical InformationWireless LAN StandardIEEE 802.11 a/b/g/n/ac/axBluetooth StandardBluetooth 5Network BandDual BandFrequency Band

• 5 GHz
• 2.40 GHz

Total Number of Antennas4Number of Internal Antennas4Indoor/OutdoorIndoorWireless Transmission Speed2.69 Gbit/sMIMO TechnologyYesMIMO TypeMulti User MIMOData EncryptionYesEncryption Standard

• WPA
• WPA2
• WPA3
• WPA3-SAE
• WPA3-CNSA

AI-poweredYesInterfaces/PortsEthernet Technology

• 2.5 Gigabit Ethernet
• Gigabit Ethernet

Number of Network (RJ-45) Ports2PoE PD PortYesUSBYesUSB StandardUSB 2.0 Type AManagement PortYesNetwork & CommunicationWi-Fi GenerationWi-Fi 6Power DescriptionPower Consumption9.70 WPhysical CharacteristicsAntenna Form FactorInternalHeight1.8"Width7.9"Depth7.9"Weight (Approximate)1.79 lbMiscellaneousCertifications & Standards

• FCC/ISED
• UL2043 plenum rating
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 62368-1
• EN 60601-1-1
• EN60601-1-2

Railway Certs (AP-515 Only)

• EN 50155
  2017-Railway Applications
• EN 50121-1
  2017-Railway EMC
• EN 50121-3-2-Railway EMC
• EN 50121-4
  2016-Railway Immunity
• IEC 61373 ed2
  2008-Railway Shock and Vibr

Environmental Compliance

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
