Icy Dock ToughArmor MB092VK-B Drive Enclosure for 3.5" PCI Express NVMe 4.0, U.2, U.3 - SFF-8654 SlimSAS Host Interface Internal - Black

by
ICY DOCK
PCN#
08RT36
MFG#
MB092VK-B
$220.68
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Hot Swappable Bays
  • 2 x SSD Supported
  • 2 x Total Bay

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 2 lbs.
Icy Dock ToughArmor MB092VK-B Drive Enclosure for 3.5" PCI Express NVMe 4.0, U.2, U.3 - SFF-8654 SlimSAS Host Interface Internal - Black
Tech Specs
Specifications

Manufacturer

Icy Dock

Manufacturer Part Number

MB092VK-B

Manufacturer Website Address

http://www.icydock.com

Brand Name

Icy Dock

Product Line

ToughArmor

Product Model

MB092VK-B

Product Name

ToughArmor MB092VK-B

Marketing Information

The ToughArmor MB092VK-B is a Ruggedized Removable DUAL U.2/U.3 NVMe PCIe 3.0/4.0 Mobile Rack Enclosure, supporting up to 64Gbps data transfer speeds through Slimline SAS (SFF-8654 4i) connection. This drive mobile rack fits an external 3.5" drive bay (floppy bay) space. With the advantage of removable drive trays in the frontal drive bay space, users can effortlessly access enterprise U.2 or U.3 drives without disassembling the computer case.

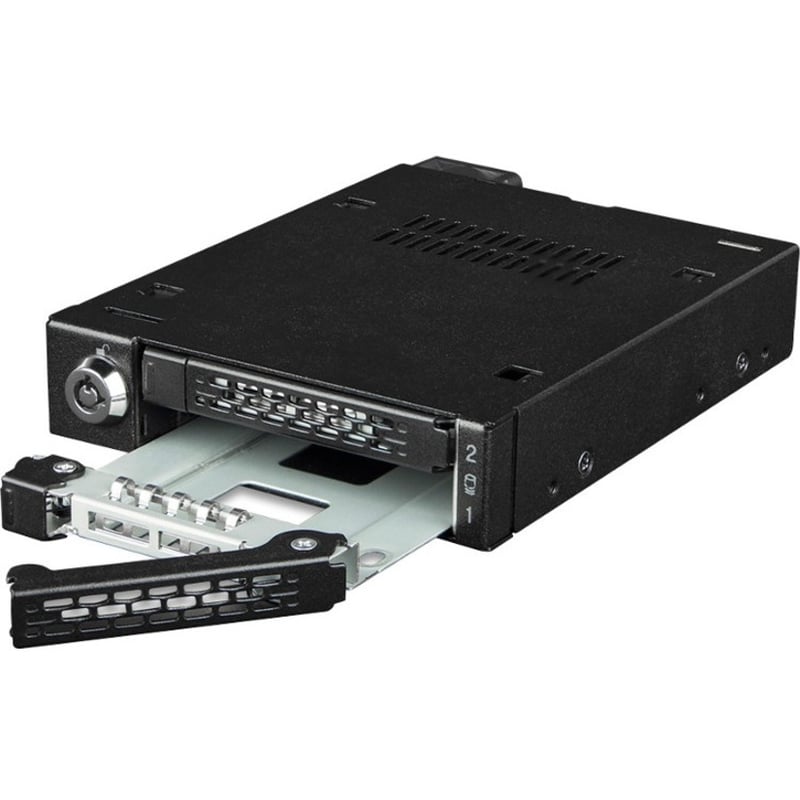

Innovative Removable Drive Design

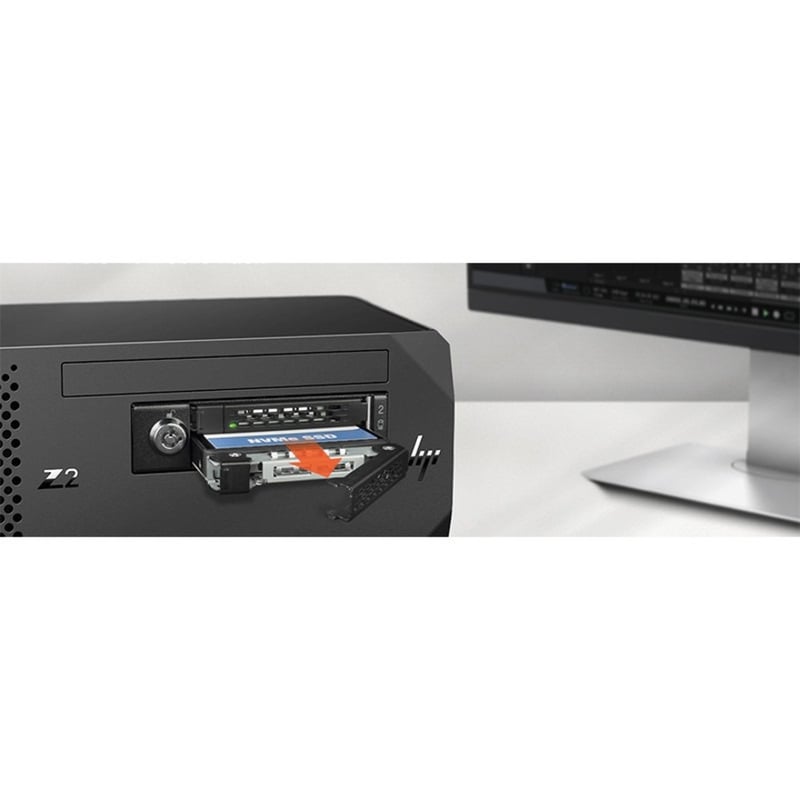

U.2 NVMe SSDs are typically designed to be installed internally, which can be tough to access when maintenance is needed. With the MB092VK-B, the U.2 drives are brought to the frontal 3.5" drive bay space where they can be easily accessed, making it a more efficient and straightforward process. In addition, each removable drive tray can support U.2 SSDs from 5mm to 9.5mm in height.-inch and M.2 installed simultaneously.

Superior Performance

To unlock the full performance of 64Gbps under PCIe 4.0 specification, the MB092VK-B uses 2x Slimline SAS (SFF-8654 4i) connectors and is also backward compatible with U.2 NVMe PCIe 3.0 x4 SSD up to 32Gbps.

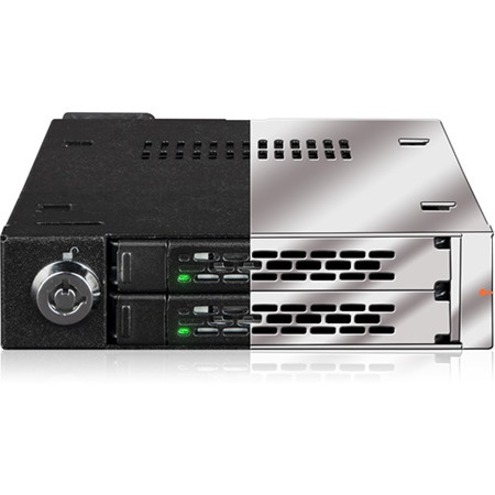

Full Metal Protection

Ensuring the drive enclosure can be relied upon for many years, the MB092VK-B is constructed out of heavy-duty metal throughout the entire device, including the drive trays, which are capable of holding up in harsh environments, such as military and medical systems that require a flammability rating.

Optimal Cooling Efficiency

The built-in 25mm cooling fan efficiently disperses the heat generated by the U.2 NVMe SSDs through the intelligently-placed ventilation holes around the enclosure. To adjust the fan speed, simply reposition the fan speed jumper in the rear (High, Low, & Off).

Packed with Features

The Slimline-SAS and SATA power connectors are compatible with cables with a locking latch design. So once the cables are connected, they will be secure in place.

An LED status light built into the tray lets you know when your drive is powered up and in use. The LED will automatically shut off when no drive is installed to save power.

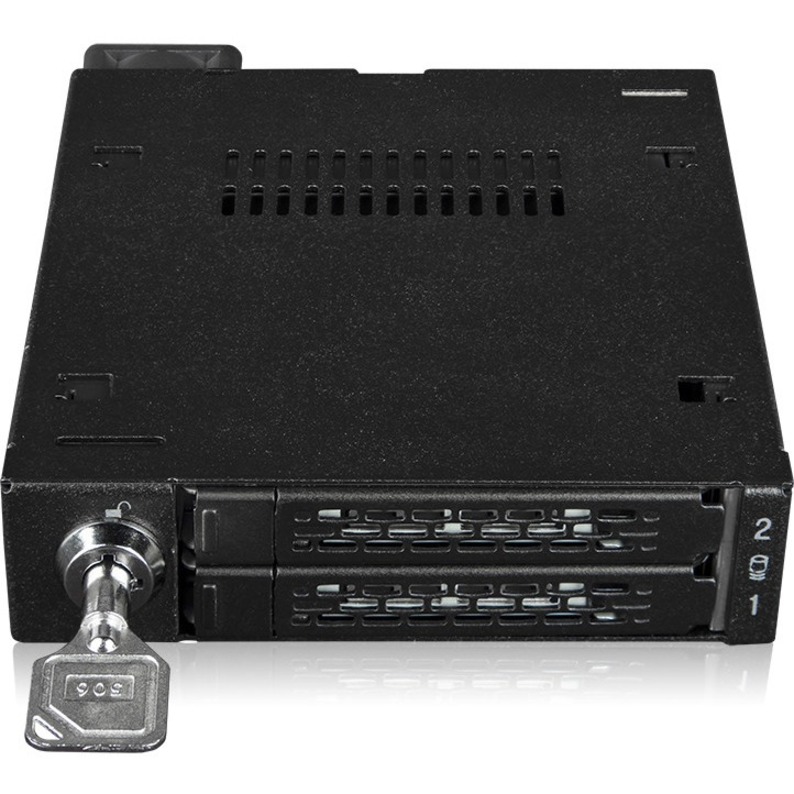

For an additional physical layer of security, the included 2-segment key-lock can be used to protect against unwanted access and secure drives in rough environments, such as military applications and in-vehicle PCs.

(Optional) M.2 NVMe SSD to U.2 NVMe SSD Adapter

Converting your M.2 NVMe SSD into U.2 NVMe SSD with EZConvert MB705M2P-B adapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs.

Product Type

Drive Enclosure
Technical Information

Number of Solid State Drive Supported

2

Number of Solid State Drive Installed

0
I/O Expansions

Number of Total Expansion Bays

2

Number of 2.5" Bays

2

Hot Swappable Bays

Yes
Network & Communication

Wireless LAN

No
Interfaces/Ports

Drive Interface

  • PCI Express NVMe 4.0
  • U.2
  • U.3

Host Interface

SFF-8654 SlimSAS
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Metal

Cooling Fan

Yes

Form Factor

Internal

Compatible Drive Bay Width

3.5"

Height

1"

Width

4"

Depth

5.6"

Weight (Approximate)

14.66 oz
Miscellaneous

Package Contents

  • ToughArmor MB092VK-B
  • User Manual
  • Screws

Environmentally Friendly

Yes

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty

Limited Warranty

5 Year
