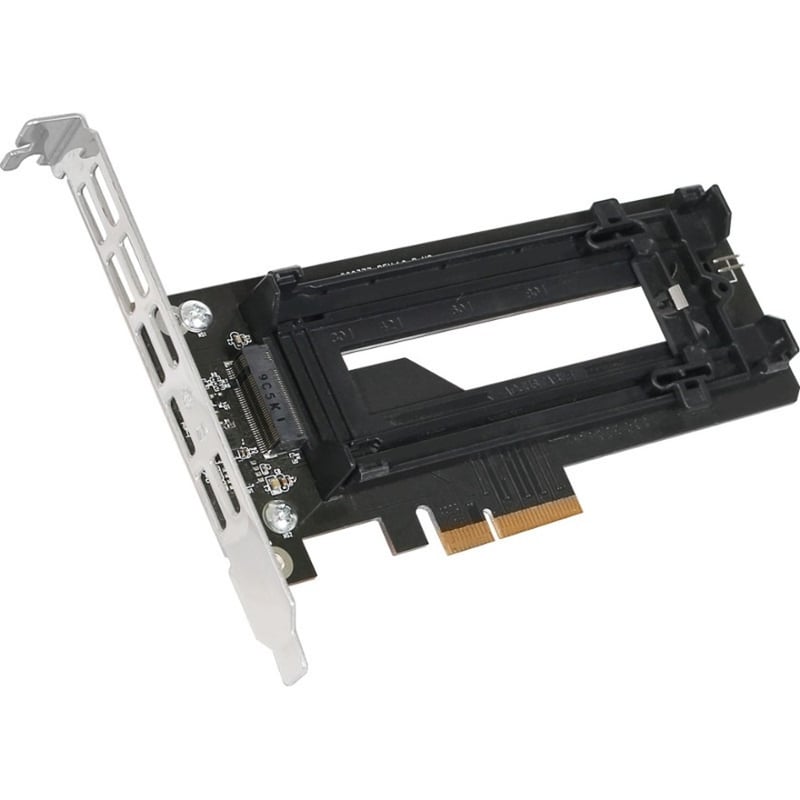

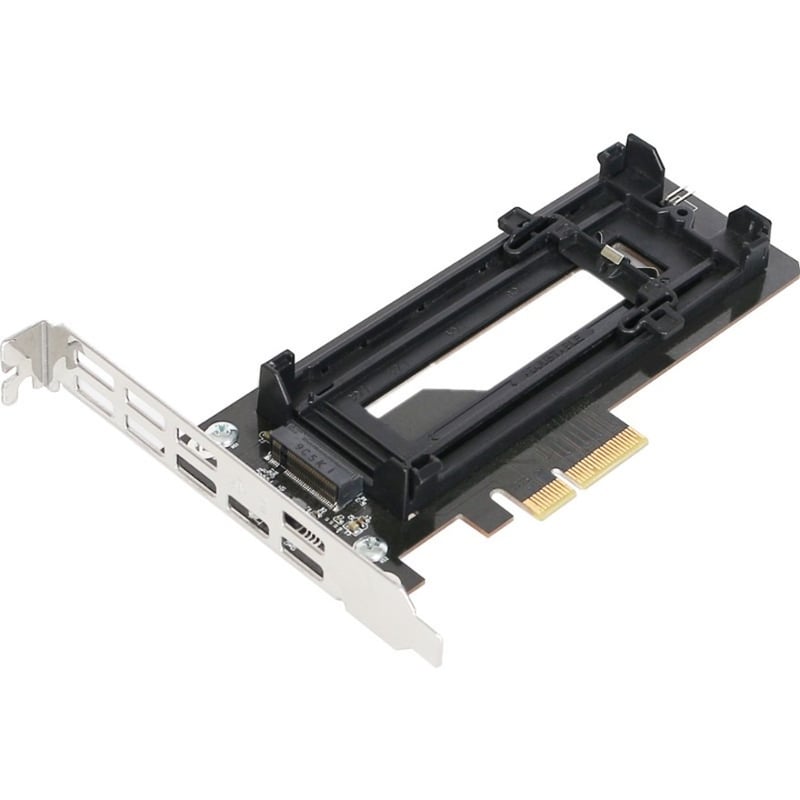

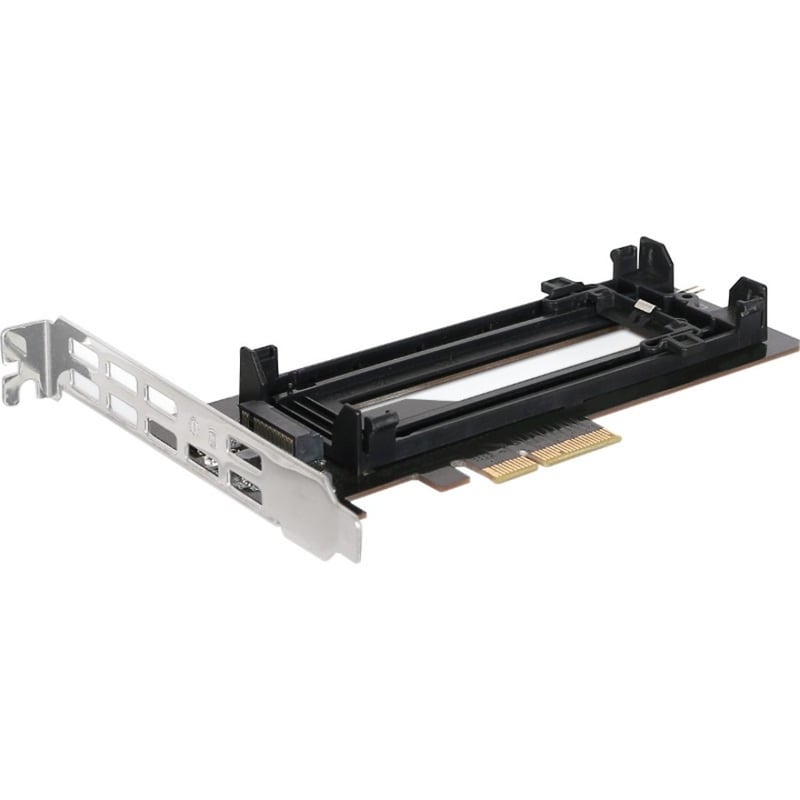

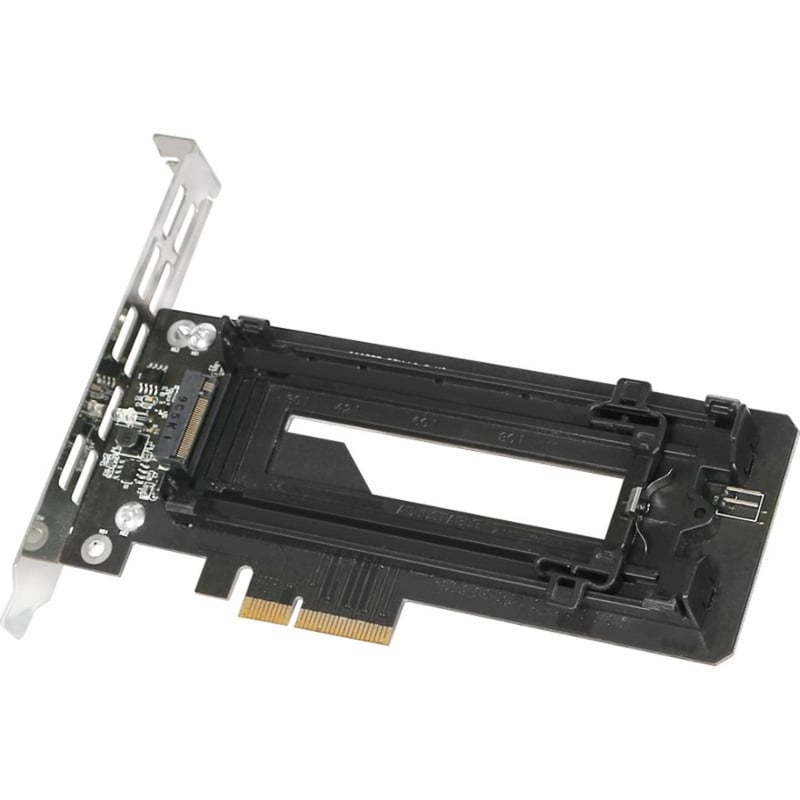

Icy Dock M.2 PCIe 3.0/4.0 NVMe SSD to PCIe 4.0 x4 Adapter


Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights: No Description Found
Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 1 lbs.
Icy Dock M.2 PCIe 3.0/4.0 NVMe SSD to PCIe 4.0 x4 Adapter
Tech Specs


Icy Dock

Manufacturer Part Number


Manufacturer Website Address


Brand Name

Icy Dock

Product Line


Product Model


Product Name

M.2 PCIe 3.0/4.0 NVMe SSD to PCIe 4.0 x4 Adapter

Marketing Information

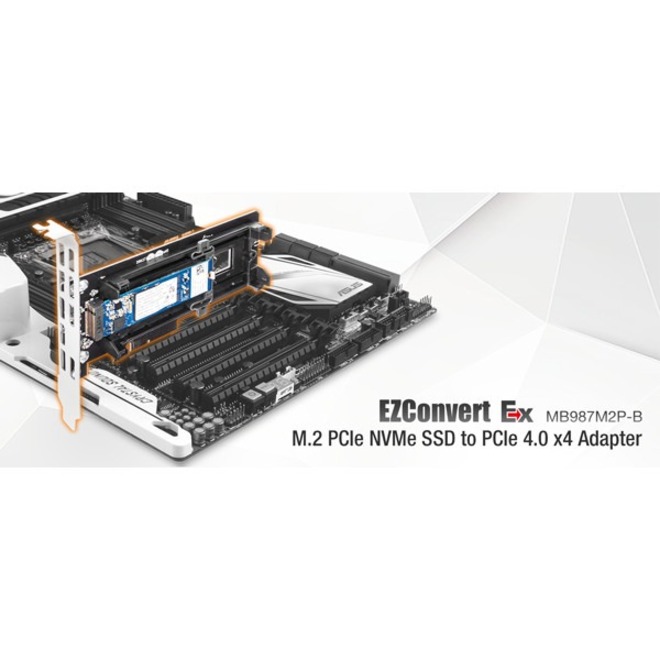

The EZConvert Ex MB987M2P-B provides an efficient, cost-effective, and simple way to upgrade your data storage system to high-speed M.2 PCIe NVMe SSD through PCIe 4.0 x4 / x8 / x16 expansion slot.

Space-Saving Design

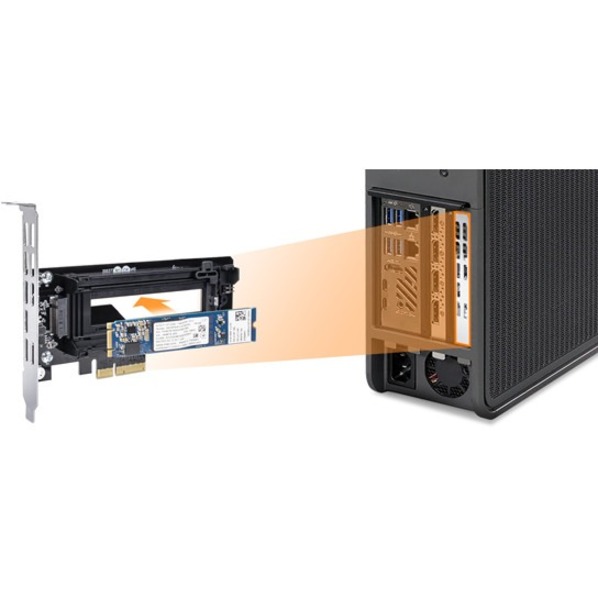

Utilizing the PCIe expansion slot, the MB987M2P-B lets you install a M.2 PCIe NVMe SSD on the PCIe slot to save space. MB987M2P-B is a perfect solution for systems that lack additional drive space, such as embedded computers, in-vehicle PCs, server rackmounts, compact gaming PCs, and workstation PCs.

State of the Art Tool-less Drive Installation

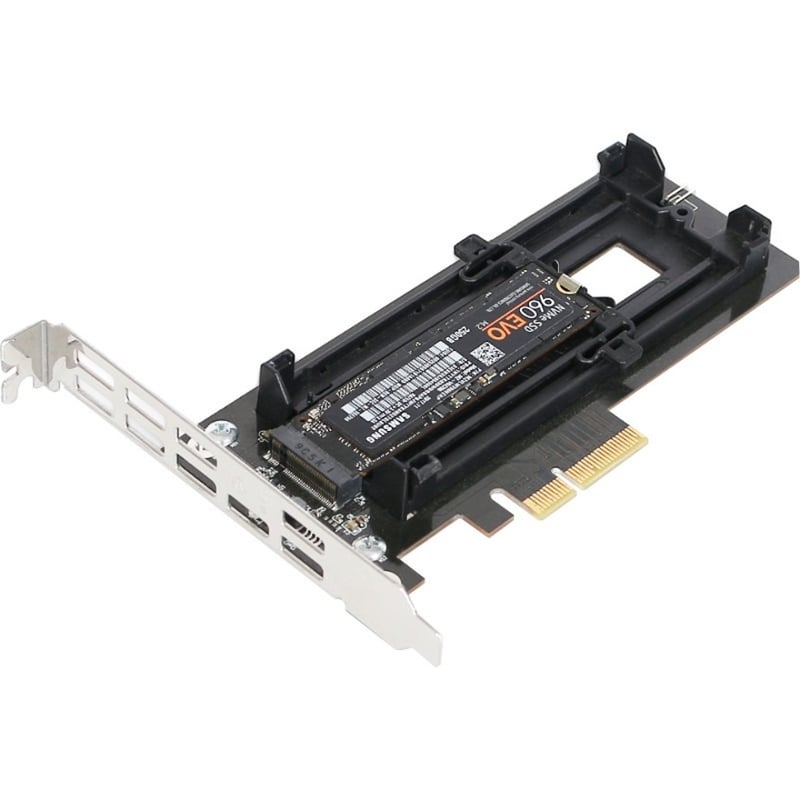

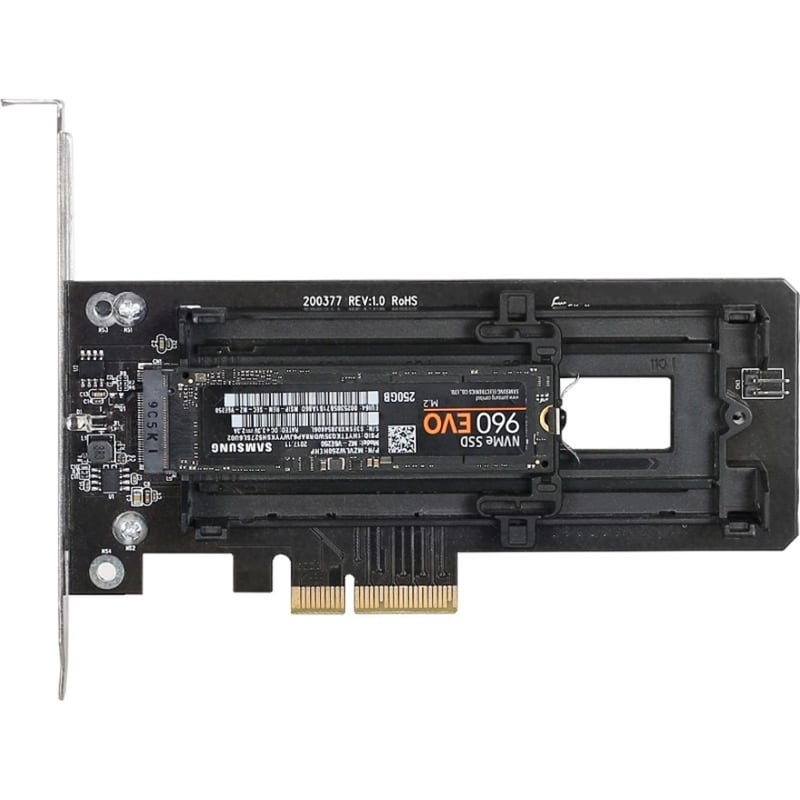

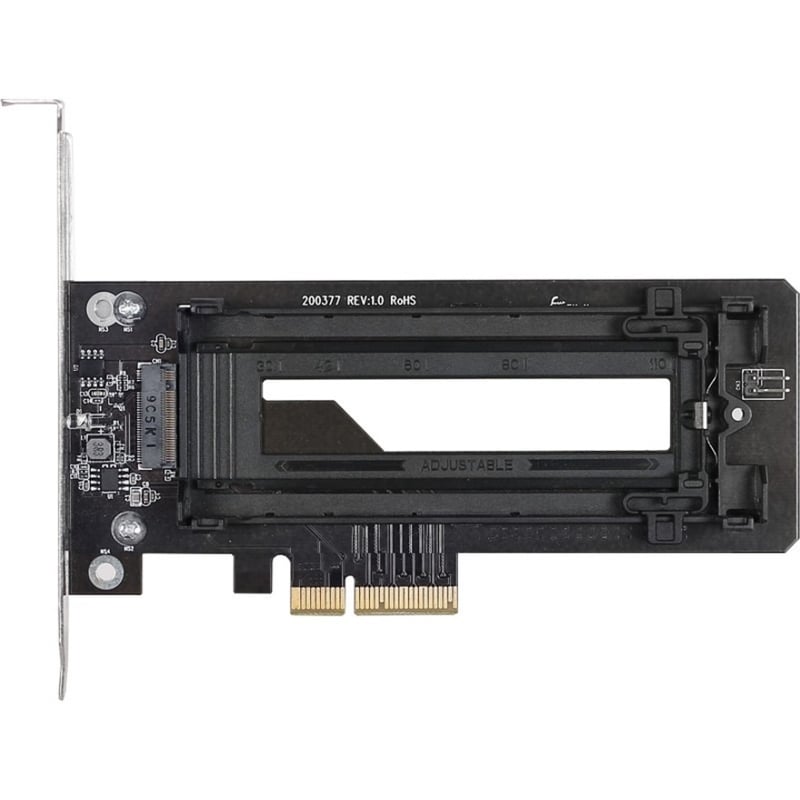

The EZConvert Ex accommodates all standard M.2 PCIe NVMe SSD drive length, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm). The unique M.2 adjustable locker clips into the M.2 SSD's screw hole to safely secure the drive without using tools or screws, saving you the time of dealing with tiny easy-to-lose screws while protecting your drive from vibration and movement damage.

Perfect Solution for Next-Gen PCIe SSD

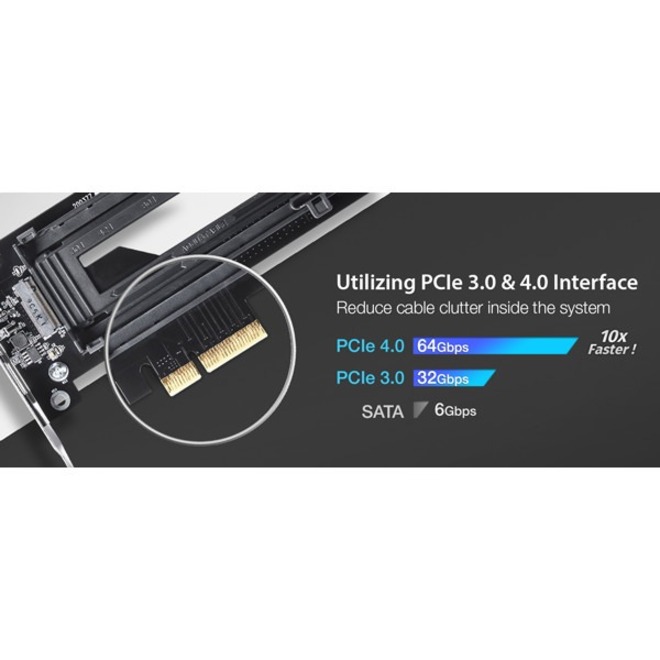

The PCIe 3.0/4.0 interface provides power and data transfer simultaneously, which ultimately reduces cable clutter in the system. The blazing-fast PCIe 4.0 x4 offers 64Gb/s transfer speed that is 10 times faster than SATA III standards, making the MB987M2P-B an ideal solution for data-intensive applications such as image processing, machine learning, cloud computing, data mining, and gaming.

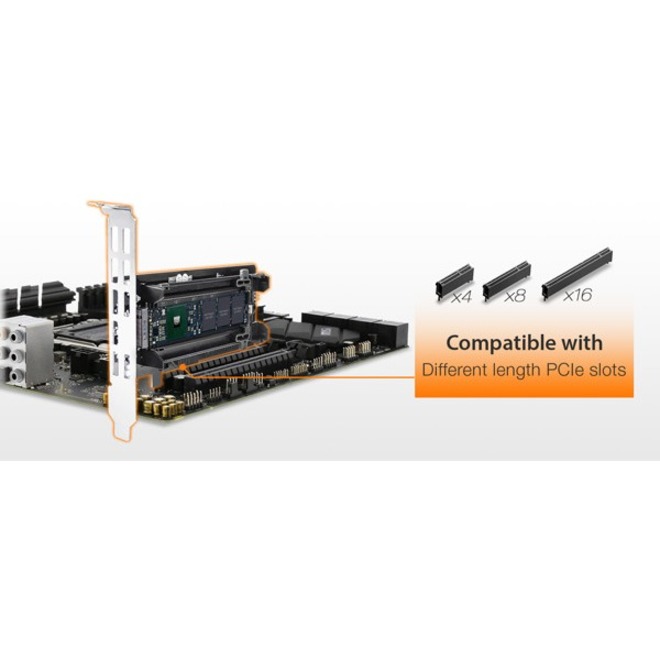

The EZConvert EX MB987M2P-B is designed for the PCIe 4.0 x4 slot. It is also compatible with PCIe 4.0 x8 and x16 slots.

Optimal Cooling

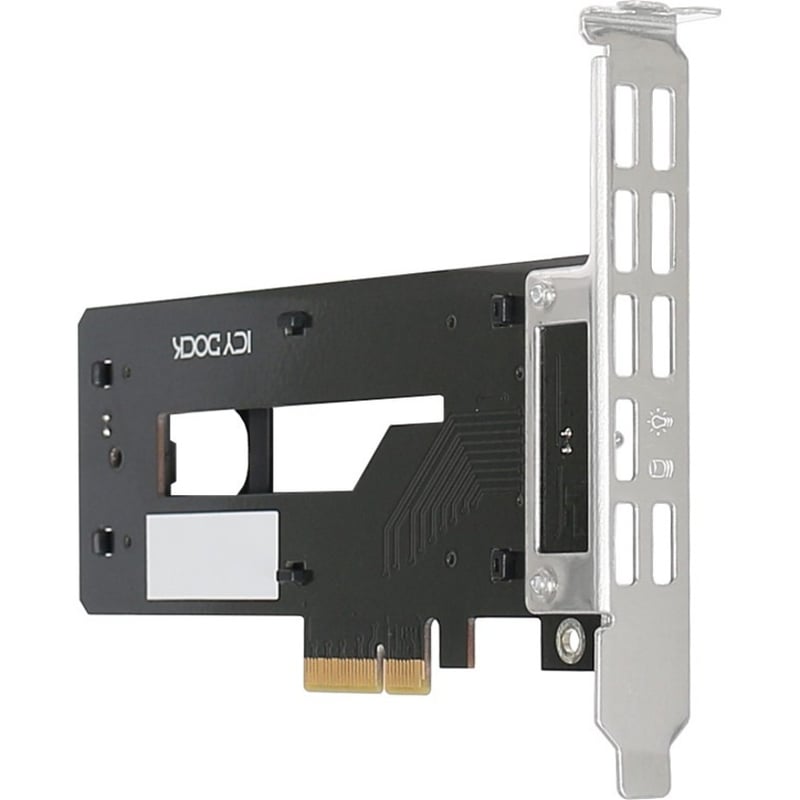

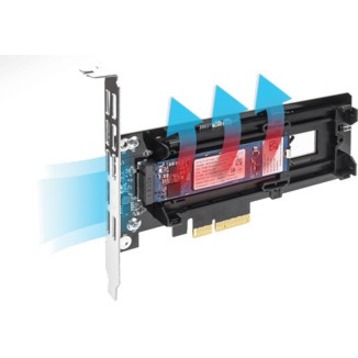

EZConvert Ex MB987M2P-B uses an open-air design to keep your M.2 NVMe SSD cool. It has large ventilation cut out underneath the M.2 SSD for maximum airflow throughout the drive and offer optimal cooling efficiency.

The large ventilation cut out underneath the M.2 SSD provides maximum airflow throughout the drive offers optimal cooling efficiency.

Compatible with M.2 SSD Heatsinks

Many M.2 NVMe drives are already equipped with preinstalled heatsink straight out of the factory in today's market. MB987M2P-B is designed to accommodate most of the M.2 NVMe heatsinks on the market, whether they are original equipped or aftermarket.

Support Different System Heights

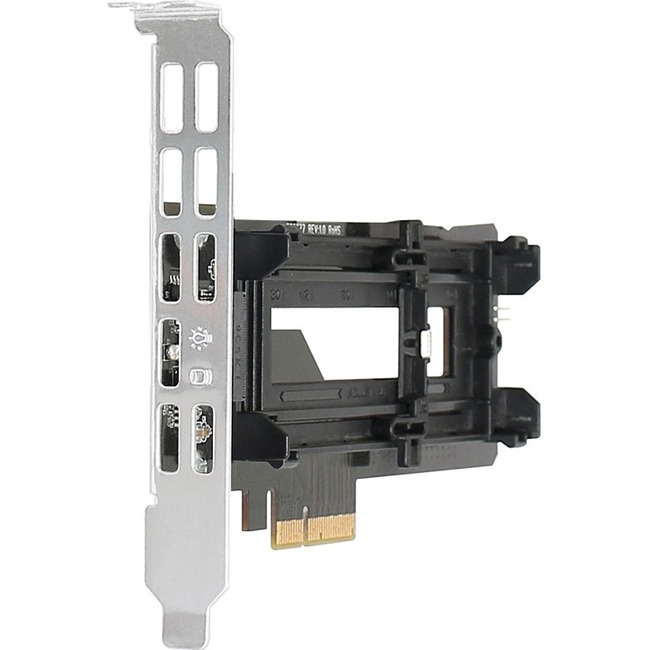

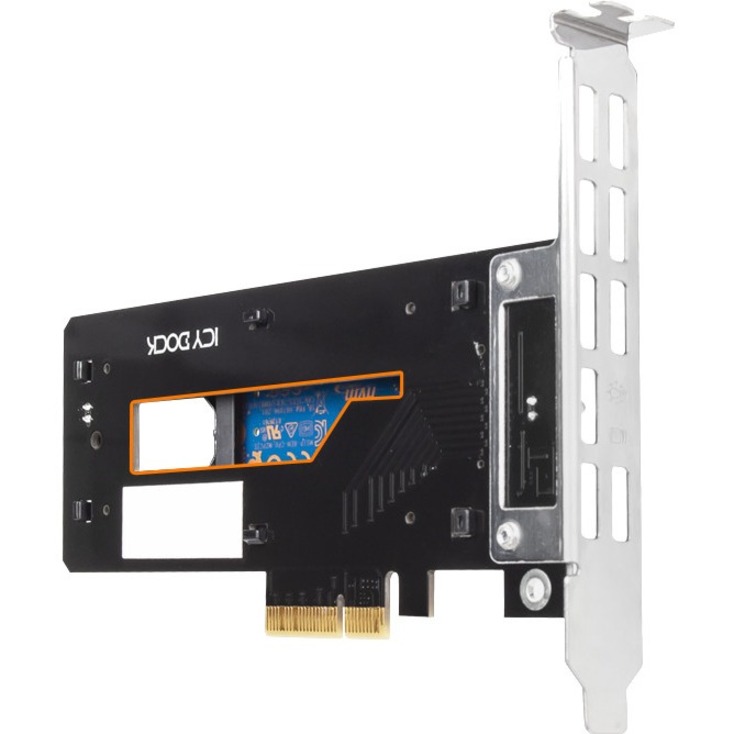

The PCIe slot bracket of the MB987M2P-B can be swapped between full and low profile for flexible system installation. If you have a need to customize the units by swapped an aftermarket low profile PCIe bracket (not included), go right on ahead --we've added the necessary screw hole spacing for this purpose.

Packed with Features

The MB987M2P-B is equipped with drive activity LED indicator that shows the drive power and activity. The LED is automatically powered off when no drive is installed to save power.

Product Type

M.2 NVMe to PCIe Adapter
Physical Characteristics

Product Color

  • Black
  • Silver

Product Material

  • Metal
  • Acrylonitrile Butadiene Styrene (ABS)







Weight (Approximate)

2.12 oz

Package Contents

  • M.2 PCIe 3.0/4.0 NVMe SSD to PCIe 4.0 x4 Adapter
  • User Manual

Additional Information

  • Storage Temperature : -35°C to 70°C (-31°F to 158°F)
  • Support Drive Size : 1 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
  • Compatible Drive Type : NVMe
  • Number of Drives : 1
  • Support Drive Length : 30mm - 110mm
  • Drive Bay : 1 x PCIe 4.0 x4 / x8 / x16 expansion slot
  • Host Interface : PCIe 3.0/4.0 x4
  • Power Input : Via PCIe
  • Transfer Rate : PCIe 3.0 up to 32Gbps / PCIe 4.0 up to 64Gbps (Depending on SSD Speed)
  • Support SSD Capacity : No Limitation
  • Drive Cooling (Passive) : Open air design with passive cooling
  • Structure / Material : Metal with partial ABS plastic
  • Drive Activity LED Indication : Drive power: solid green; Drive access: flashing green
  • M.2 Connector Insertion Rate : 5,000
  • Humidity : 5%~65% RH
  • Operating Temperature : 0°C to 60°C (32°F to 140°F)

Certifications & Standards


Environmentally Friendly


Country of Origin


Limited Warranty

3 Year
