QUANTUM THUNDERBOLT 5 DOCK PRO

Name: QUANTUM THUNDERBOLT 5 DOCK PRO
Brand: IOGEAR
SKU: SJ7890
Price: 299.99 USD
Availability: InStock

IOGEAR

PCN#

SJ7890

MFG#

GTD58KTAA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$299.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Mouse, Hard Drive, Keyboard, Notebook, Desktop PC
Charging Capability
Memory Card Reader
SD
180 W
Thunderbolt 5
3 Displays Supported
8K, 4K, 8K @ 60Hz, 4K @ 144Hz
7680 x 4320, 3840 x 2160
7 x USB Ports
4 x USB Type
A Ports
USB Type
A
USB Type
C
1 x RJ
45 Ports
Network (RJ
45)
Thunderbolt
Wired
2.5 Gigabit Ethernet
Windows 11, Windows 10, macOS Sonoma 14.4, macOS Sequoia 15
140W
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

IOGEAR Quantum Thunderbolt 5 Dock Pro

Overview

Tech Specs

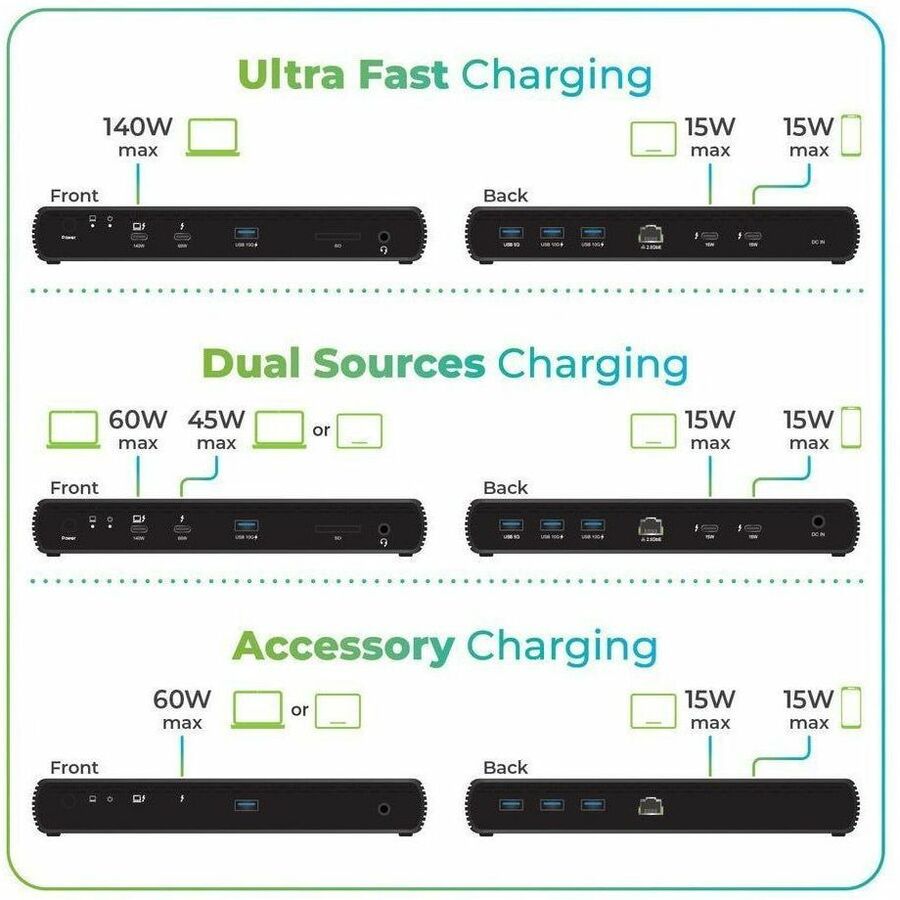

Your Vision, AmplifiedImmerse yourself in stunning visuals with support for up to dual 8K displays or triple 4K displays. Whether you're editing 8K video, designing complex graphics, or simply multitasking, the Quantum Thunderbolt™ 5 Dock Pro delivers the ultimate visual experience. Connect Your World, EffortlesslyStay connected to all your devices with a comprehensive range of ports, including Thunderbolt™ 5, USB-A, 2.5 gbEthernet, and a 3.5mm audio jack. Whether you're plugging in a keyboard, mouse, external hard drive, or network cable, the Quantum Thunderbolt™ 5 Dock Pro has you covered. Power Your DayKeep your laptop charged and ready to go with up to 140W of power delivery. No more worrying about low battery life, focus on your work and let the Quantum Thunderbolt™ 5 Dock Pro handle the rest Seamless Collaboration, SimplifiedBoost your productivity and streamline your workflow with Thunderbolt™ Share. Effortlessly share files, peripherals, and even your screen between two PCs. Packaged Quantity1Product TypeDocking StationTechnical InformationConnectivity TechnologyWiredCharging CapabilityYesDevice Supported

Mouse
Hard Drive
Keyboard
Notebook
Desktop PC

Memory Card ReaderYesMemory Card SupportedSDFeatures

Power Delivery Pass-through
Card Reader

Number of Displays Supported3Screen Mode Supported

8K
4K
8K @ 60Hz
4K @ 144Hz

Supported Resolutions

7680 x 4320
3840 x 2160

Maximum Data Transfer Rate10 GB/sNetwork & CommunicationEthernet Technology2.5 Gigabit EthernetInterfaces/PortsHost InterfaceThunderbolt 5Total Number of USB Ports7USB Type-AYesNumber of USB Type-A Ports4USB Type-CYesUSB Type-C Detail2x USB-C Thunderbolt™ 5(15W PD) 1x USB-C Thunderbolt™ 5 (60W)Network (RJ-45)YesNumber of RJ-45 Ports1Headphone/Microphone Combo PortYesThunderboltYesThunderbolt Ports Quantity3USB Power Delivery140WSoftwareOperating System Supported

Windows 11
Windows 10
macOS Sonoma 14.4
macOS Sequoia 15

Power DescriptionMaximum Power Supply Wattage180 WPower Source TypePower AdapterPhysical CharacteristicsHeight1.20"Width8.90"Length3.6"Weight (Approximate)1.60 lbMiscellaneousPackage Contents

Quantum Docking Station
1 x Thunderbolt 5 Cable
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card

System RequirementsPC OS requirements

Thunderbolt 5
Windows 11

macOS® requirements

Thunderbolt 5
macOS 14.4+

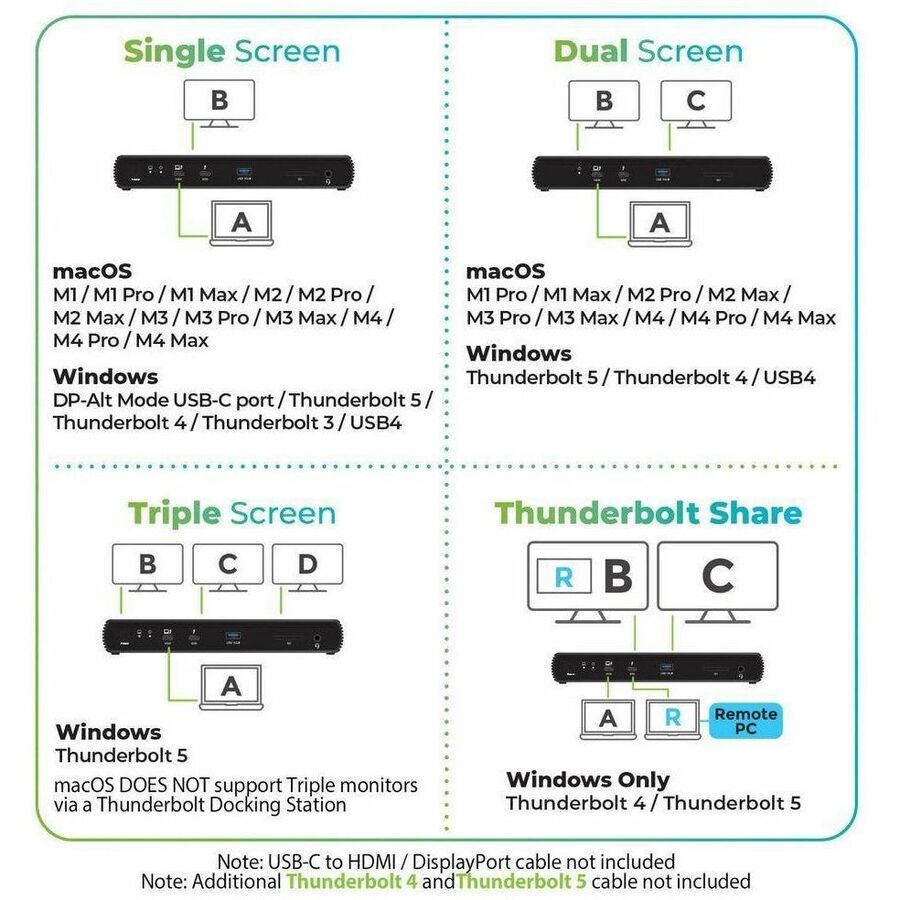

Dual Monitors

macOS users on M4, M1 Pro /M2 Pro /M3 Pro/ M4 Pro, M1 Max/M2 Max/M3 Max/M4 Max, M1 Ultra/M2 Ultra, or Intel based Macs can connect up to dual displays.

M1/M2/M3 Macs are limited to 1 external Display by Macbook internal design.

Windows PC Thunderbolt 5 and Thunderbolt 4 users can connect up to dual displays.

Triple Monitors

macOS DOES NOTsupport Triple monitors via a Thunderbolt Docking Station

Windows PC Thunderbolt 5 users can connect up to three displays on supported host computers.

Windows PC Thunderbolt 4 are limited to 2 displays and users cannot connect three displays.

Thunderbolt™ Share Requirements
Host Computer

1x Thunderbolt™ 4 or 5 port

Windows 11

Downstream (Second) Computer

1x Thunderbolt™ 4 or 5 port

Windows 11

TAA CompliantYesWarrantyLimited Warranty1 Year
