Overview

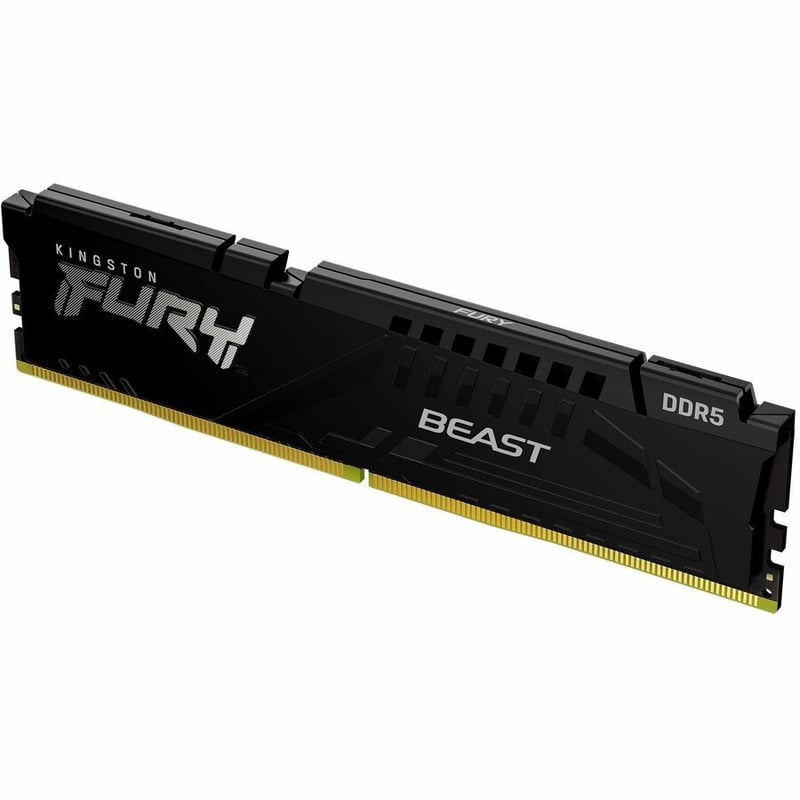

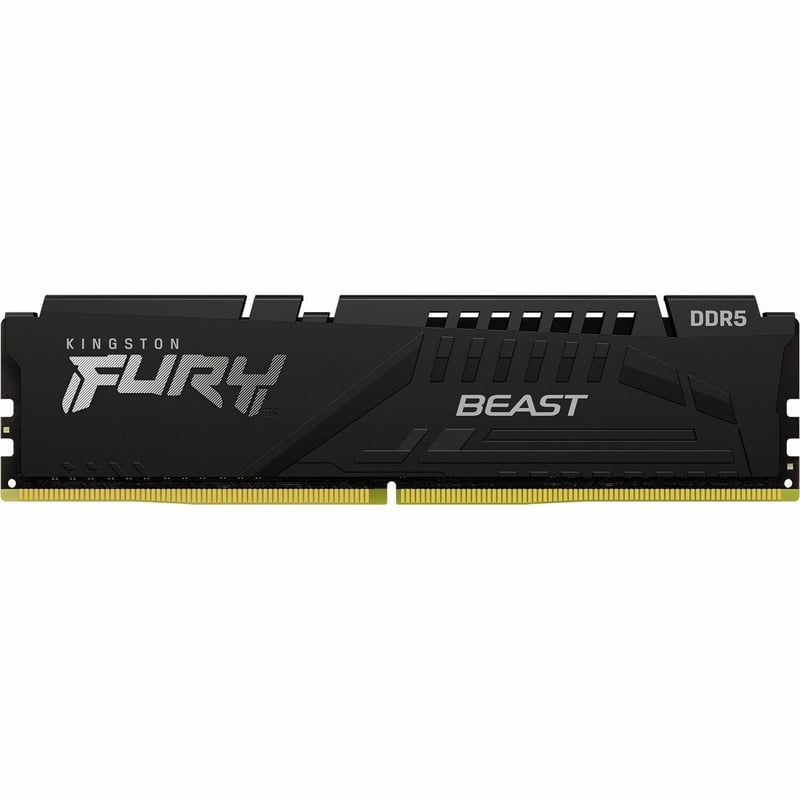

Kingston FURY KF560C30BB-8 is a 1G x 64-bit (8GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:FACTORY TIMING PARAMETERS Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V XMP Profile #3: DDR5-4800 CL38-38-38 @1.1VFEATURES Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC Height 1.37\" (34.9mm), w/heatsink
