Overview

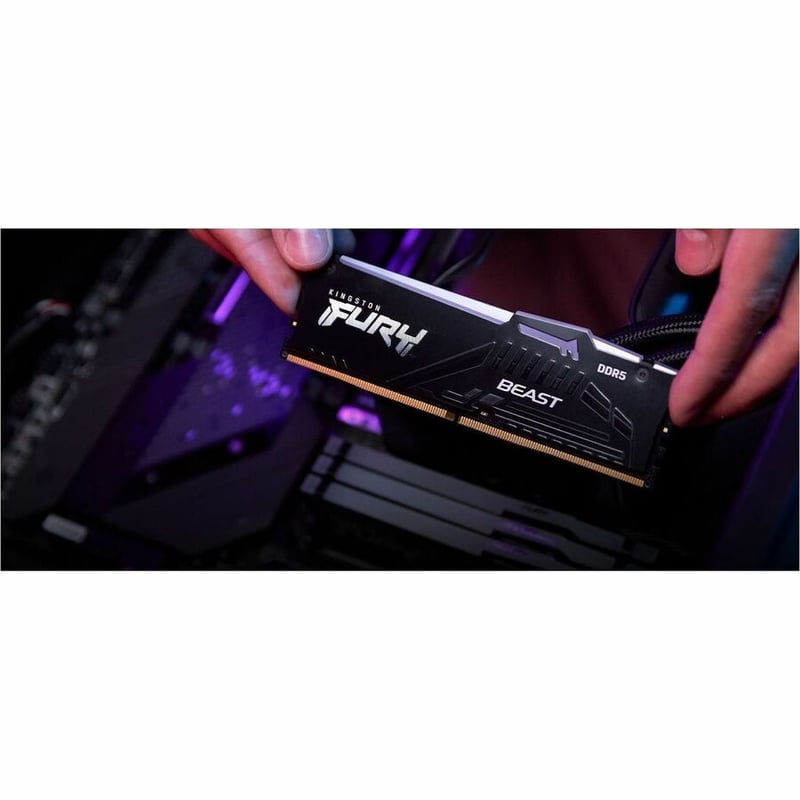

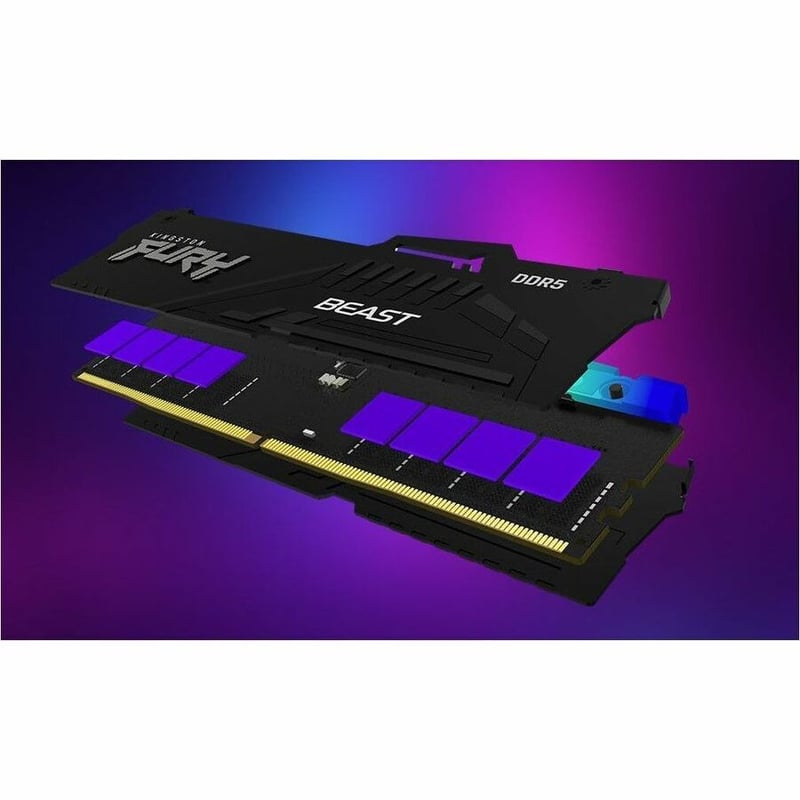

Kingston FURY KF564C32BBEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:FACTORY TIMING PARAMETERS Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V XMP Profile #2: DDR5-6000 CL30-36-36 @1.4VFEATURES Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC Height 1.66\" (42.23mm), w/heatsink
