IDS509F3C2MD2SD40XT 6PORT MNGD SW GE RJ FE SC 2XMM SM40KM XTMP

Name: IDS509F3C2MD2SD40XT 6PORT MNGD SW GE RJ FE SC 2XMM SM40KM XTMP
Brand: PERLE SYSTEMS
SKU: 7T4226
Price: 1949.39 USD
Availability: InStock

PERLE SYSTEMS

PCN#

7T4226

MFG#

07014170

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,949.39

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

9 Ports
Manageable
Fast Ethernet, Gigabit Ethernet
10/100/1000Base
T, 100Base
LX, 100Base
FX
3 Layer Supported
Single
mode, Multi
mode
Twisted Pair, Optical Fiber
DIN Rail Mountable, Compact, Wall Mountable, Panel
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

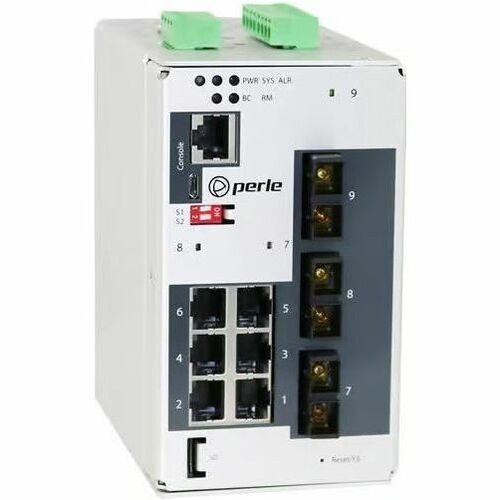

Perle IDS-509F3-C2MD2-SD40-XT - Industrial Managed Ethernet Switch

Overview

Tech Specs

Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications. With over 78 models, the Perle IDS-509F offers a choice of connectors, fiber types, temperature support and operating distances.Perle's Fast Setup feature provides simple Plug and Play installation to get your Ethernet devices networked immediately. The familiar Command Line Interface (CLI), via in-band Telnet or the out-band serial console port,will be appreciated by CCNA (Cisco Certified Network Associate) and CCNP (Cisco Certified Network Professional) trained engineers.The PRO feature set in the IDS-509F is ideal for sophisticated environments where additional extensive security and network integration functionality is required.

TACACS+ and RADIUS authentication, authorization and accounting (AAA) security services
SSH, SNMPv3, Telnet and HTTPS secure management sessions
IP address and IP Port number Management Access Lists (ACL)
Password Strength Checking
Protection of User Access Ports through IEEE 802.1x Authentication and Port Security
Advanced protocols to optimize the performance and intelligence of the network
LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping

MRP (IEC62439-2), PROFINET, Modbus TCP, management VLAN, QoS, RMON, N
1 port mirroring and local alert log, are only a few of the comprehensive management functions supported in the IDS-509. In addition, the switch can be managed with an IPv6 address.The IDS-509F, which comes in a variety of models, are rugged fan-less switches that are hardened to provide superior reliability in -10 to 60°C, or harsh extended operating temperatures from -40 to 75°C. Every component on every industrial (XT) model has been designed and tested to handle operating temperatures between -40 and 75C.Product TypeEthernet SwitchTechnical InformationFeatures

IP20
Remote Monitoring (RMON)
Plug and Play
Broadcast Storm Control
Fanless
Surge Protection

Interfaces/PortsTotal Number of Network Ports9Network (RJ-45)YesPort/Expansion Slot Details

6 x Gigabit Ethernet Network
2 x Fast Ethernet Duplex SC Connector
1 x Fast Ethernet Duplex SC Connector

Media & PerformanceMedia Type Supported

Twisted Pair
Optical Fiber

Fiber Mode Supported

Single-mode
Multi-mode

Fiber Optic Cable Wavelength1310 nmEthernet Technology

Fast Ethernet
Gigabit Ethernet

Network Technology

10/100/1000Base-T
100Base-LX
100Base-FX

Network & CommunicationLayer Supported3Networking Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.1D
IEEE 802.1w
IEEE 802.1Q
IEEE 802.1p
IEEE 802.3ad
IEEE 802.1ab

Management & ProtocolsManageableYesReliabilityMTBF101750 HourPower DescriptionInput Voltage

12 V DC
24 V DC
48 V DC
24 V AC

Power Source

Power Supply
AC/DC

Redundant Power Supply SupportedYesPlug/Connector TypeTerminal BlockPhysical CharacteristicsProduct MaterialMetalForm Factor

DIN Rail Mountable
Compact
Wall Mountable
Panel-mountable

Height4.8"Width5.1"Depth3"Weight (Approximate)1.41 lbMiscellaneousApplication/Usage

Network
Enterprise
Server
Automation Industry
Government
Outdoor
Industrial

Country of OriginCanada
