PM16-S 16IN PORTABLE LCD USB-C HDMI SPEAKER STAND

Name: PM16-S 16IN PORTABLE LCD USB-C HDMI SPEAKER STAND
Brand: PLANAR SMALL FORMAT
SKU: S95768
Price: 176.62 USD
Availability: InStock

PLANAR SMALL FORMAT

PCN#

S95768

MFG#

998-4077-00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$176.62

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

16" Viewable
In
plane Switching (IPS) Technology
1920 x 1200
16.7 Million Colors
400 Nit
3 ms
60 Hz Refresh Rate
Speakers
Tilt
USB Type
C
VESA Mount Compatible

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

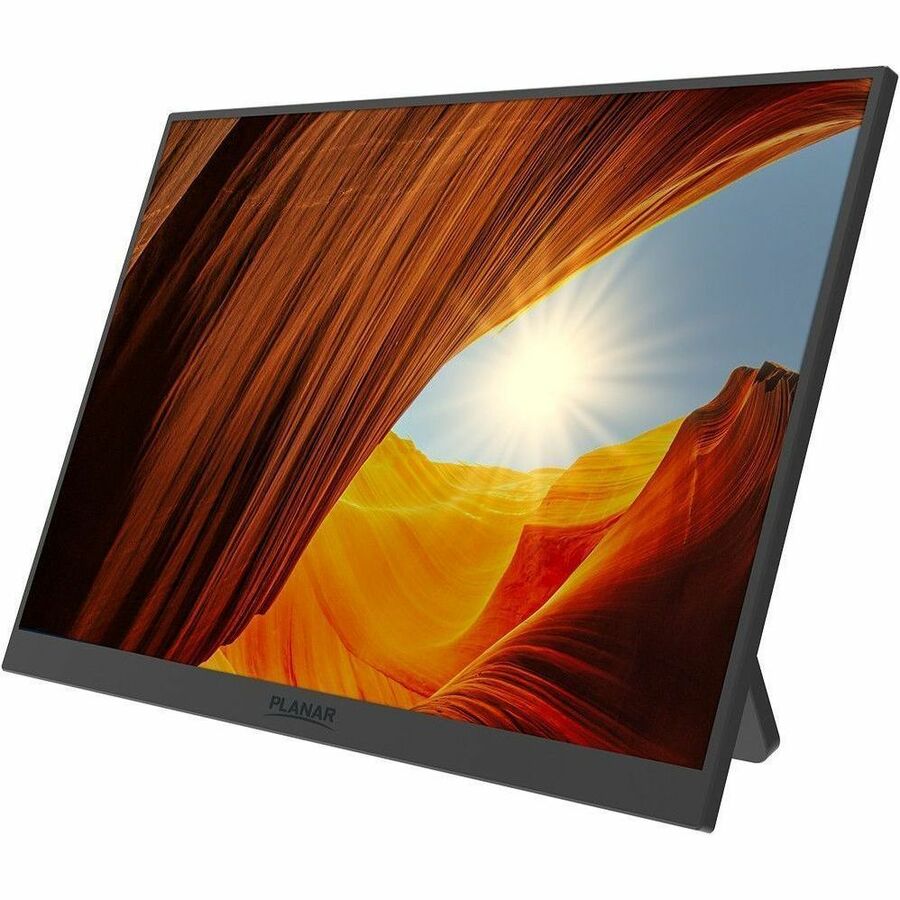

Planar PM16-S 16" Class WUXGA LCD Monitor - 16:10

Overview

Tech Specs

Specifications

Manufacturer	Leyard
Manufacturer Part Number	998-4077-00
Manufacturer Website Address	http://www.planar.com
Brand Name	Planar
Product Model	PM16-S
Product Name	PM16-S 16" Portable Desktop Monitor
Marketing Information	16" Portable Desktop Monitor The Planar® PM16-S is a 16" portable monitor featuring Full HD+ resolution of 1920x1200. The IPS display boasts high brightness and a 100% DCI-P3 color gamut, delivering vivid and accurate visuals. With 120 additional vertical lines when compared to 1080p resolution, it enhances productivity on the go. The built-in desk stand offers a tilt range from 15° to 53°, while the included carrying case protects the display in transit while ensuring easy set-up. The Planar PM16-S is equipped with two USB-C ports, a Mini-HDMI input, built-in speakers and a headphone jack for versatile connectivity.
Product Type	LCD Monitor

Technical Information

Number of Screens	1
Screen Size Class	16"
Viewable Screen Size	16"
Screen Mode	WUXGA
Panel Technology	In-plane Switching (IPS) Technology
Response Time	3 ms
Response Time Details	3 ms GTG
Aspect Ratio	16:10
Pixel Pitch	0.17950 mm x 0.17950 mm
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Mount Type	Desk Mountable
HDCP Supported	Yes
Features	Blue Light Reduction On-screen Display (OSD) Wide Viewing Angle Anti-glare Bezel-less Design
Stand Adjustments	Tilt

Video

Maximum Resolution	1920 x 1200
Standard Refresh Rate	60 Hz
Color Supported	16.7 Million Colors
Native Contrast Ratio	1,500:1
Brightness	400 Nit
Color Gamut	100% DCI-P3

Audio

Number of Speakers	2
Speakers	Yes

Interfaces/Ports

Mini HDMI	Yes
USB	Yes
USB Type-C	Yes
Total Number of Mini HDMI Ports	1
Number of USB Ports	2
Total Number of USB Type-C Ports	2

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 104°F (40°C)
Operating Humidity Range	10% to 90% (Non-condensing)

Power Description

Maximum Power Consumption

6 W

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Height	9.3"
Width	14"
Depth	0.7"
Weight (Approximate)	1.76 lb

Miscellaneous

Package Contents	PM16-S 16" Portable Desktop Monitor USB-C Cable Mini HDMI-HDMI Cable Adapter Carrying Case User's Guide
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
