PNY GEFORCE RTX 5060 8GB DUAL FAN - PNY APPROVAL ONLY

by
PNY
PCN#
SR4274
MFG#
VCG50608DFXPB1
$386.32
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • NVIDIA Blackwell Architecture, 8 GB GDDR7, 2497 MHz Boost Clock, 448 GB/s Memory Bandwidth, 128
  • bit Memory Interface, 154W Max Power Consumption, DisplayPort 2.1b (x3), HDMI 2.1b (x1), Dual
  • Slot Width.
Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 2 lbs.

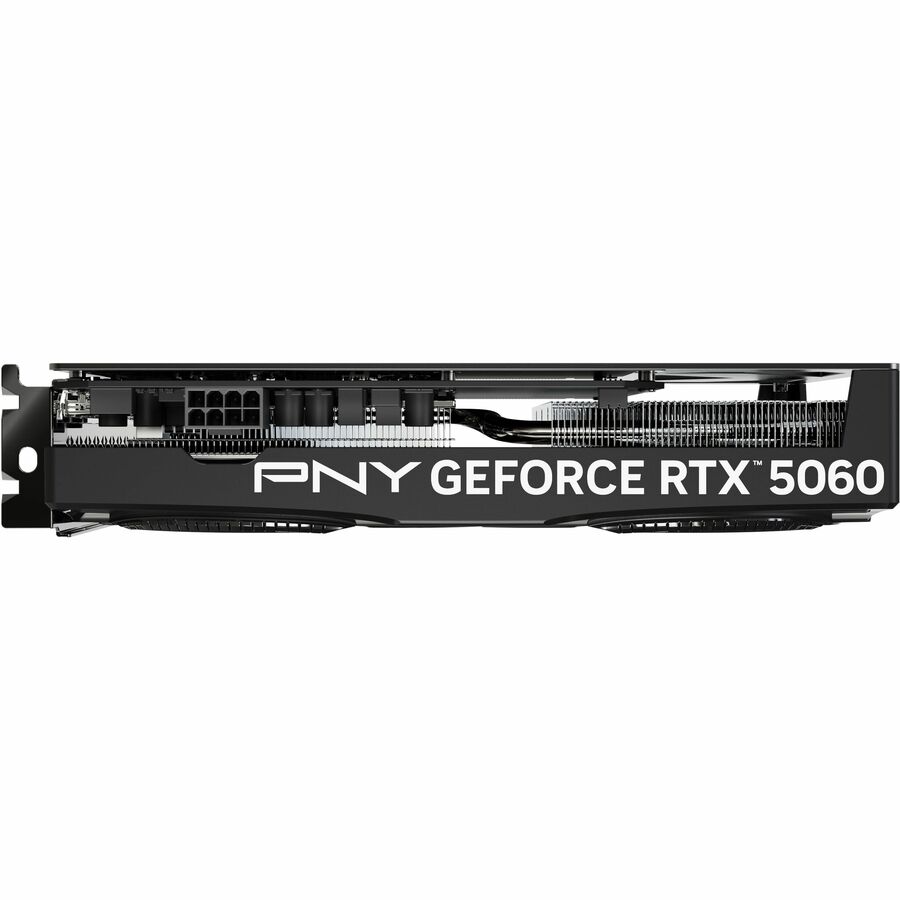

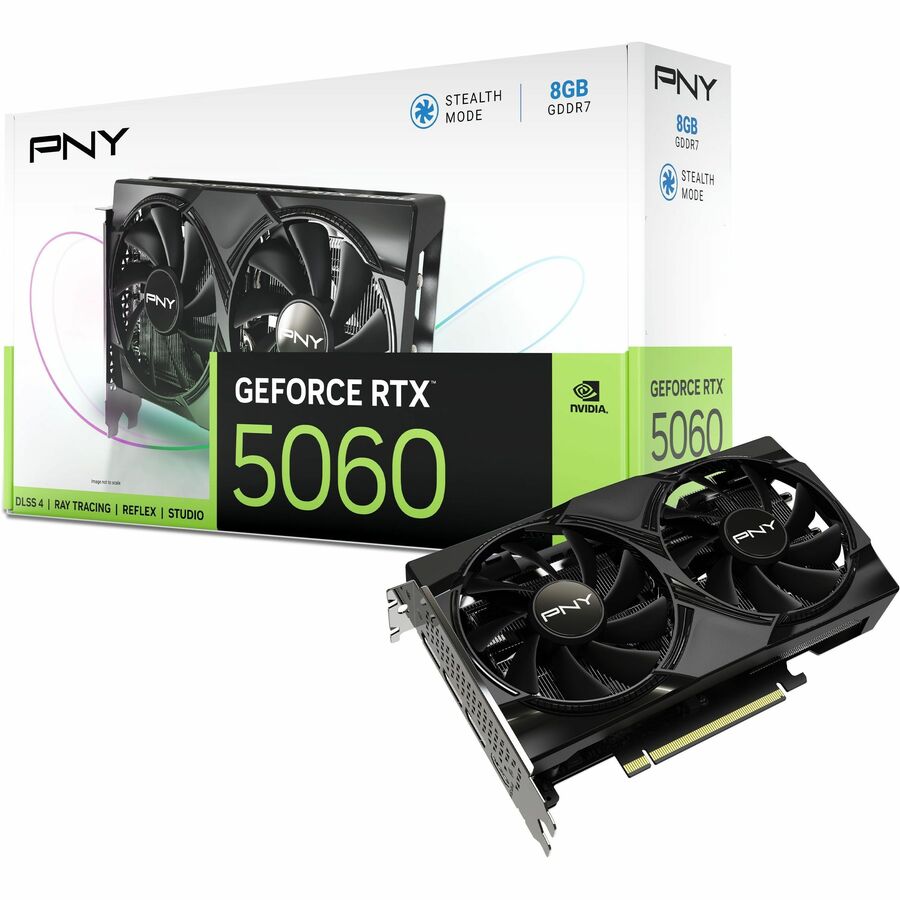

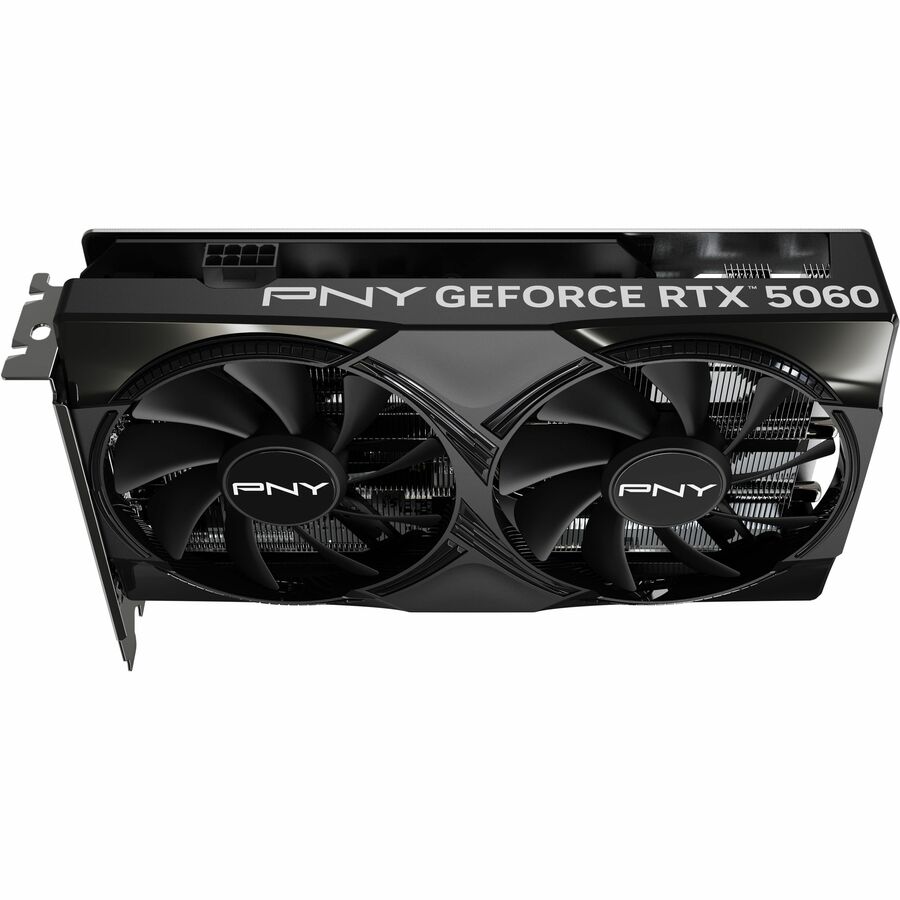

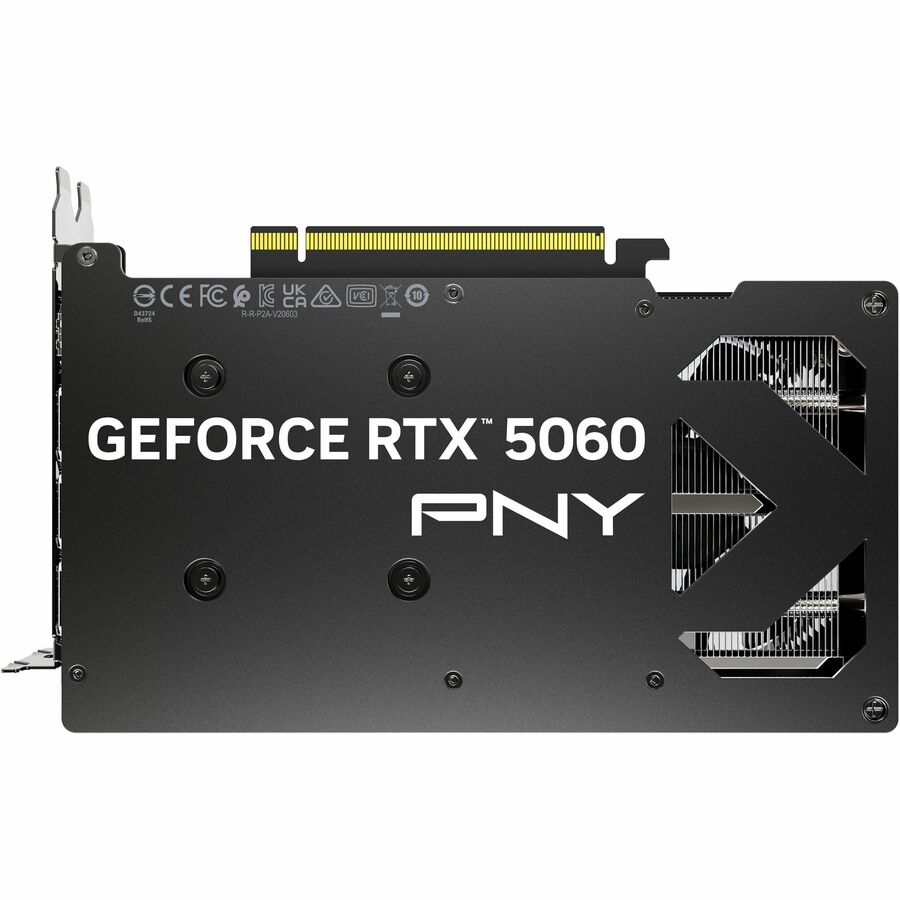

PNY GeForce RTX™ 5060 8GB Dual Fan GPU
Tech Specs
Specifications

Manufacturer

PNY Technologies

Manufacturer Part Number

VCG50608DFXPB1

Manufacturer Website Address

http://www.pny.com

Brand Name

PNY

Product Name

GeForce RTX 5060 8GB Dual Fan Graphic Card

Marketing Information

Get game-changing performance with the GeForce RTX™ 5060, powered by NVIDIA Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

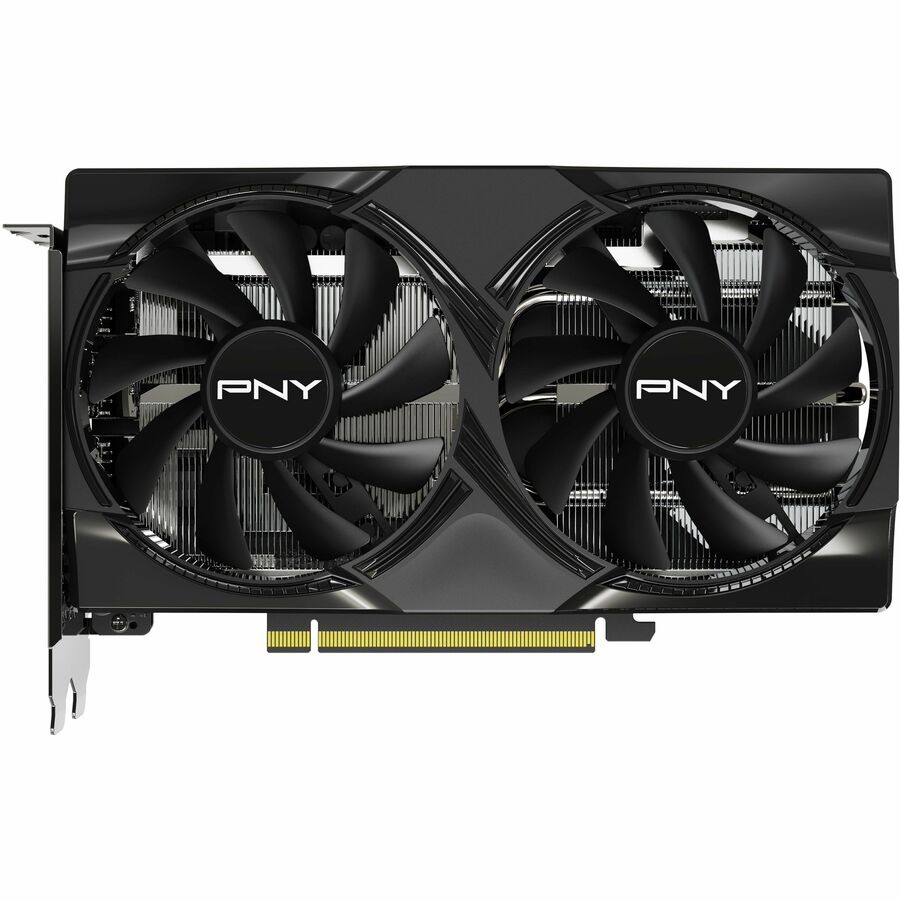

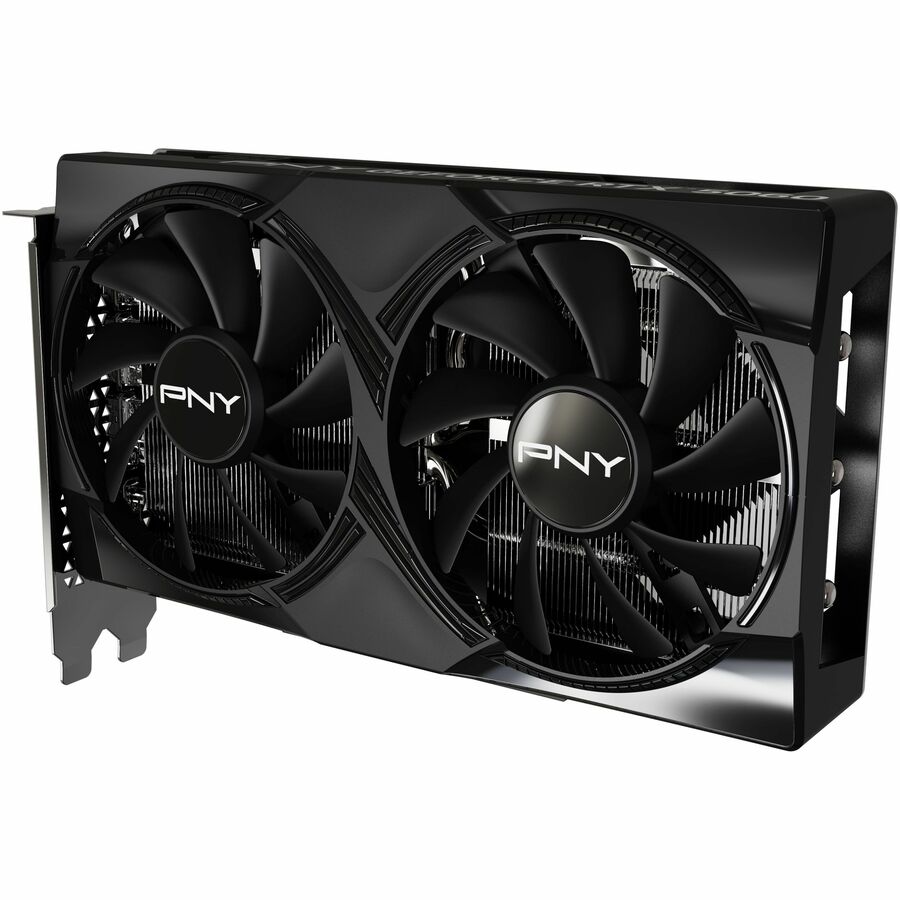

DUAL FAN COOLING

With two fans working together, heat is distributed and dissipated more efficiently across the GPU surface

SMALL FORM FACTOR

Compact design opens up possibliities for a wide away of PC system sizes and configurations

Product Type

Graphic Card
Technical Information

Number of Monitors Supported

4

Features

Dual-fan Cooler

Maximum Digital Display Resolution

7680 x 4320

CUDA Cores

3840

AI-powered

Yes
Processor & Chipset

Chipset Manufacturer

NVIDIA

Chipset Line

GeForce

Chipset Series

RTX

Chipset Model

RTX 5060

GPU Clock

2.28 GHz

GPU Boost Clock

2.50 GHz
Memory

Standard Memory

8 GB

Memory Speed

3.50 GB/s

Memory Technology

GDDR7

Bus Width

128 bit

Maximum Memory Bandwidth

448 GB/s
Interfaces/Ports

Host Interface

PCI Express 5.0 x8

DisplayPort

Yes

Number of DisplayPort Outputs

3

HDMI

Yes

Number of HDMI Outputs

1
Power Description

Power Supply Wattage

550 W

Power Connector

1x 8-pin
Physical Characteristics

Slot Space Required

Dual

Form Factor

Plug-in Card

Card Height

Full-height

Cooler Type

Fan Cooler

Height

1.6"

Width

4.7"

Length

7.9"
Miscellaneous

Platform Supported

  • PC
  • Linux

Environmental Compliance

  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty

Limited Warranty

3 Year
