SWITCH - ICX8200 - 1U - WIRED - 25GBPS - NETWORKING / PORTS QTY: 53 - GIGABIT ET

Name: SWITCH - ICX8200 - 1U - WIRED - 25GBPS - NETWORKING / PORTS QTY: 53 - GIGABIT ET
Brand: RUCKUS WIRELESS
SKU: 5406BU
Price: 6869.71 USD
Availability: InStock

RUCKUS WIRELESS

PCN#

5406BU

MFG#

ICX8200-48PF2-E2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$6,869.71

Extended & Accidental Damage Protection Plans Available Details

3-Year $493.99

2-Year $376.99

Free Shipping

Estimated Shipment:

Product Highlights:

48 Ports
Manageable
Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
10/100/1000Base
T, 1000Base
X, 10GBase
X, 25GBase
X
3 Layer Supported
1667 W Power Consumption
1440 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
1U
Rack
mountable
Lifetime Limited Warranty
TAA Compliant

Product Condition: New and Factory Fresh

Limited WarrantyLifetimeAdditional Warranty Information Three-year remote TAC support

Shipping Weight: 20 lbs.

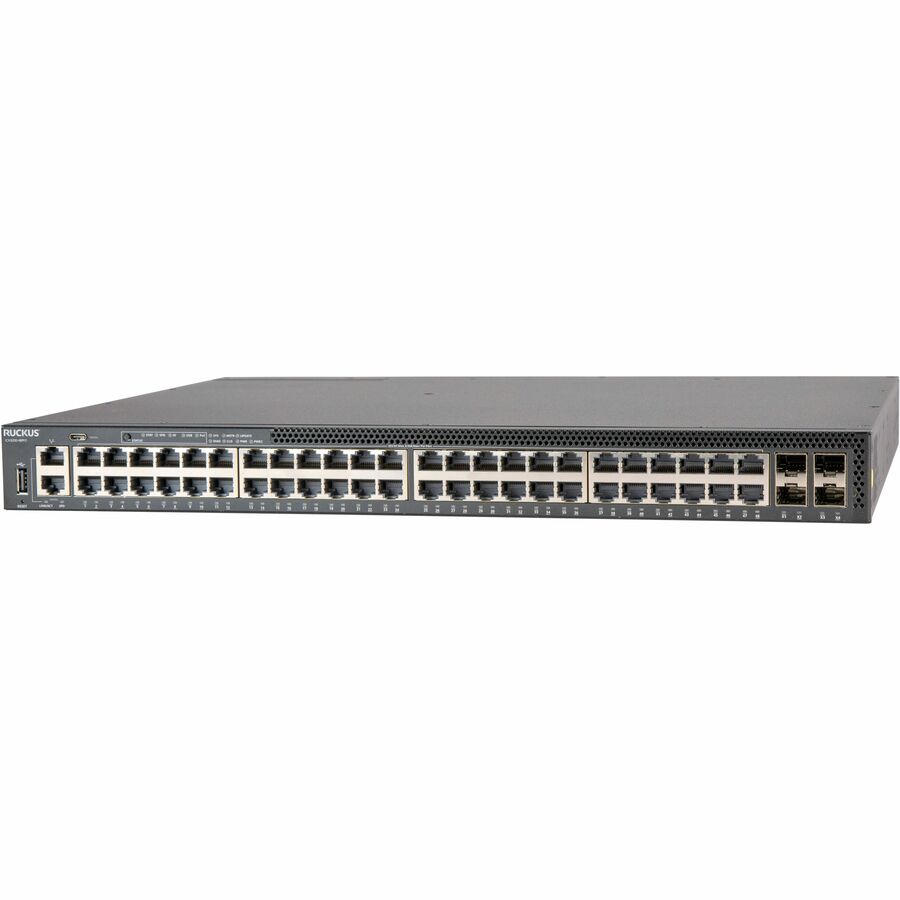

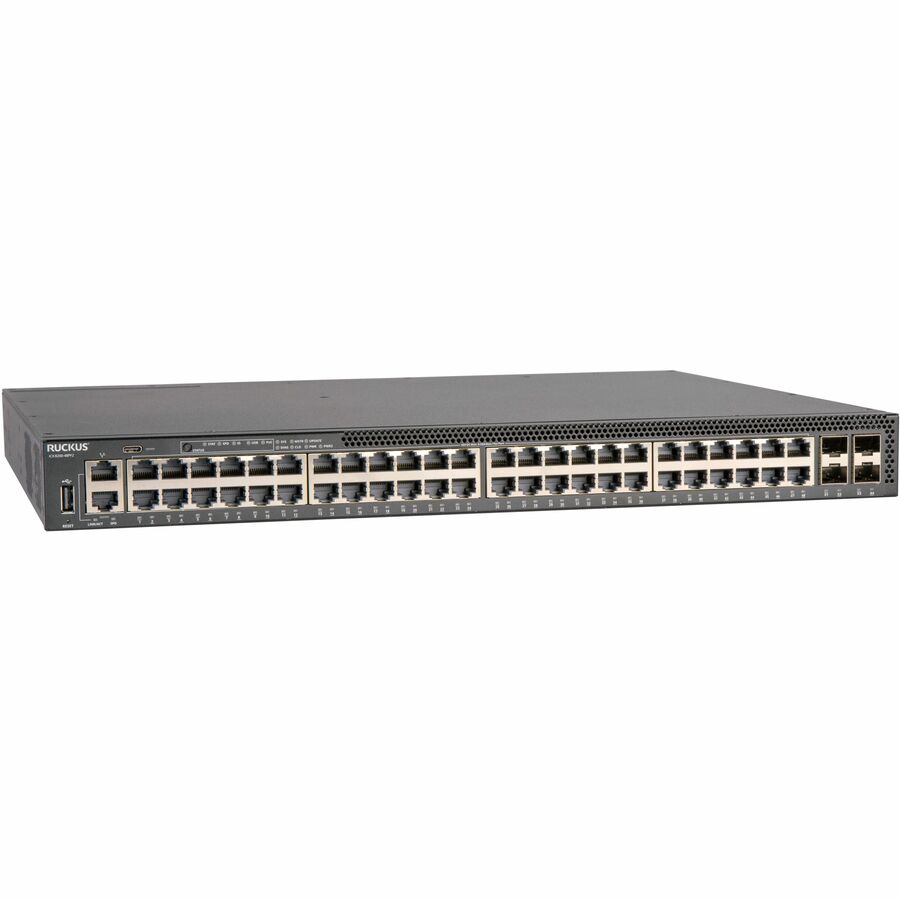

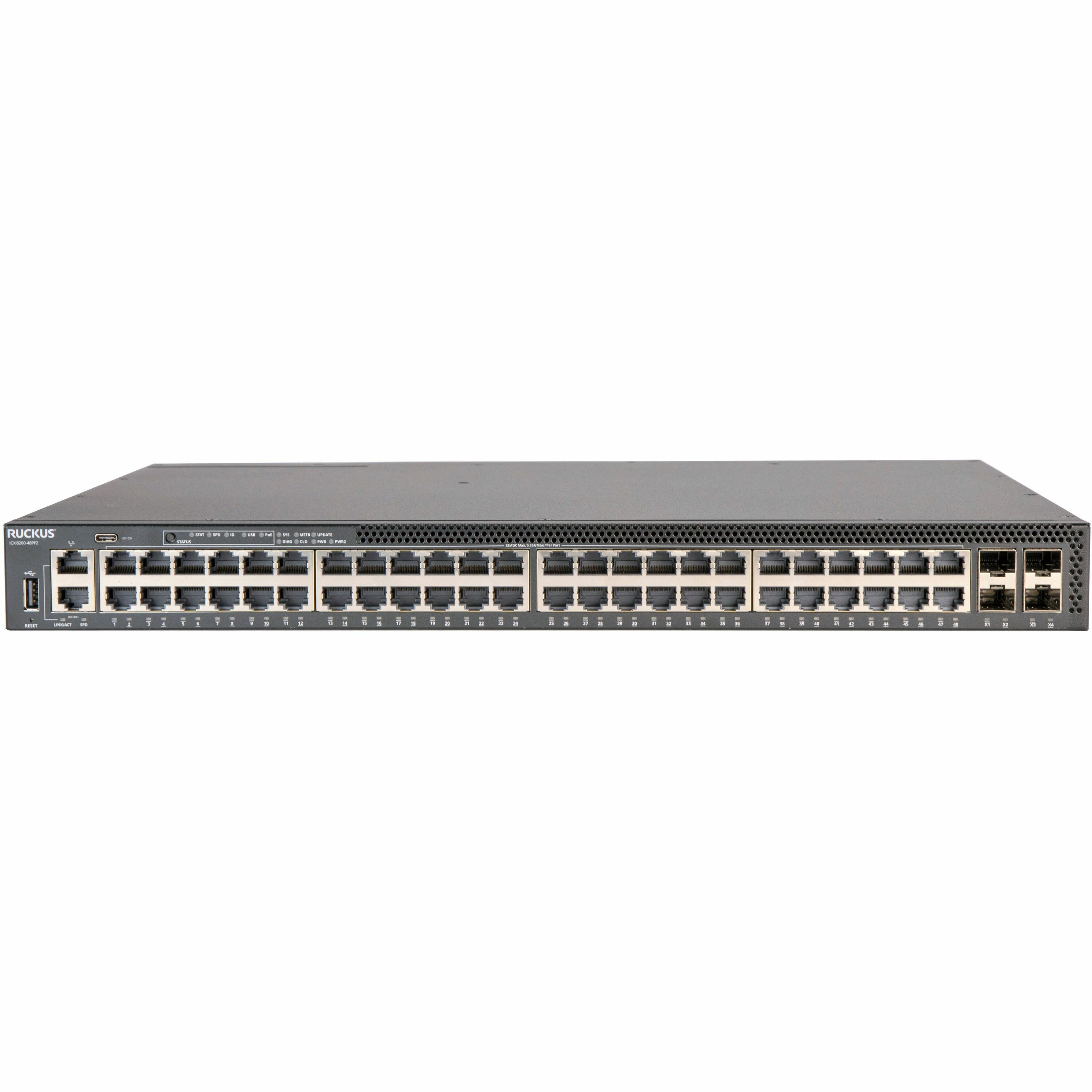

RUCKUS ICX 8200PF2 Ethernet Switch

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.

The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and "pay as you grow" scalability of stackable solution.

Overview

Benefits | Maximum flexibility

Gigabit, Multigigabit edge ports and Fiber to the Room Optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports.8, 24 and 48 Gigabit Ethernet portsUp to 24x 1/2.5G Multigigabit RJ45 portsUp to 4× 1/2.5/5/10 Gbps Multigigabit RJ-45 portsUp to 48x 1G SFP fiber ports · Up to 24x 10G SFP+ fiber portsProduct TypeEthernet SwitchTechnical InformationFeaturesHot-swappableEnergy EfficientIn-Service Software Upgrade (ISSU)DHCP SnoopingAccess Control ListHigh Availability SupportedYesInterfaces/PortsTotal Number of Network Ports48Uplink PortYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details48 × 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port4 × 25 Gigabit Ethernet SFP28 Expansion Slot1 x RJ-45 Ethernet Out-of-Band Management Port1 x USB Type-C Console Port1 x RJ-45 Serial Console Port1 x USB PortMedia & PerformanceMedia Type SupportedTwisted PairOptical FiberEthernet TechnologyGigabit Ethernet10 Gigabit Ethernet25 Gigabit EthernetNetwork Technology10/100/1000Base-T1000Base-X10GBase-X25GBase-XMaximum Data Transfer Rate3.13 GB/sI/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFPSFP+SFP28Network & CommunicationLayer Supported3Networking StandardsIEEE 802.1abIEEE 802.1DIEEE 802.1pIEEE 802.1sIEEE 802.1wIEEE 802.1xIEEE 802.3IEEE 802.3abIEEE 802.3adIEEE 802.1AXIEEE 802.3aeIEEE 802.3afIEEE 802.3atIEEE 802.3bzIEEE 802.3uIEEE 802.3xIEEE 802.3zIEEE 802.1QIEEE 802.1brIEEE 802.3azIEEE 802.3btManagement & ProtocolsManageableYesData Link ProtocolsHTTPHTTPSReliabilityMTBF561966 HourPower DescriptionPoE (RJ-45) PortYesPoE Budget1440 WInput Voltage120 V AC230 V ACFrequency50 Hz60 HzPower SourcePoEPoE+ACPower SupplyPoE++Redundant Power Supply SupportedYesNumber of Power Supplies Installed2Power Consumption1667 WPlug/Connector TypeC14Physical CharacteristicsCompatible Rack Unit1UForm FactorRack-mountableHeight1.7"Width17.3"Depth14.6"Weight (Approximate)14.09 lbMiscellaneousPackage ContentsICX 8200PF2 Ethernet Switch2 x Power Supplies2 x Front-to-Back FansApplication/UsageIoT DevicesCampusNetworkEnterpriseWireless Access PointIP CameraCertifications & StandardsCEFCCUL

Tech Specs

Power next generation APs and PoE devices

PoE+ 802.3at, 30W per port on all ports
PoE++ 802.3bt, 60/90W on multigigabit ports
Up to 1480W PoE budget with two power supplies 25 GbE uplinks/stacking for maximum performance and future-proofing
Stacking comes standard with all ICX 8200
Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking

Enhanced Security and data privacy

VXLAN support for advanced network segmentation and data confidentiality

Advanced L3 routing delivers network design flexibility

IPv4 and IPv6 L3 routing
Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR

Broad range of unified management options for maximum flexibility

On Premises
SmartZone
Cloud Based
RUCKUS Cloud
Controllerless
RUCKUS Unleashed
RUCKUS Analytics

Enhanced availability

Redundant, load-sharing power supplies and fans on specific models

Product TypeEthernet SwitchTechnical InformationFeatures

Hot-swappable
Energy Efficient
In-Service Software Upgrade (ISSU)
DHCP Snooping
Access Control List

High Availability SupportedYesInterfaces/PortsTotal Number of Network Ports48Uplink PortYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details

48 × 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
4 × 25 Gigabit Ethernet SFP28 Expansion Slot
1 x RJ-45 Ethernet Out-of-Band Management Port
1 x USB Type-C Console Port
1 x RJ-45 Serial Console Port
1 x USB Port

Media & PerformanceMedia Type Supported

Twisted Pair
Optical Fiber

Ethernet Technology

Gigabit Ethernet
10 Gigabit Ethernet
25 Gigabit Ethernet

Network Technology

10/100/1000Base-T
1000Base-X
10GBase-X
25GBase-X

Maximum Data Transfer Rate3.13 GB/sI/O ExpansionsTotal Number of Expansion Slots4Expansion Slot Type

SFP
SFP+
SFP28

Network & CommunicationLayer Supported3Networking Standards

IEEE 802.1ab
IEEE 802.1D
IEEE 802.1p
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.1AX
IEEE 802.3ae
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bz
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.1Q
IEEE 802.1br
IEEE 802.3az
IEEE 802.3bt

Management & ProtocolsManageableYesData Link Protocols

HTTP
HTTPS

ReliabilityMTBF561966 HourPower DescriptionPoE (RJ-45) PortYesPoE Budget1440 WInput Voltage

120 V AC
230 V AC

Frequency

50 Hz
60 Hz

Power Source

PoE
PoE+
AC
Power Supply
PoE++

Redundant Power Supply SupportedYesNumber of Power Supplies Installed2Power Consumption1667 WPlug/Connector TypeC14Physical CharacteristicsCompatible Rack Unit1UForm FactorRack-mountableHeight1.7"Width17.3"Depth14.6"Weight (Approximate)14.09 lbMiscellaneousPackage Contents

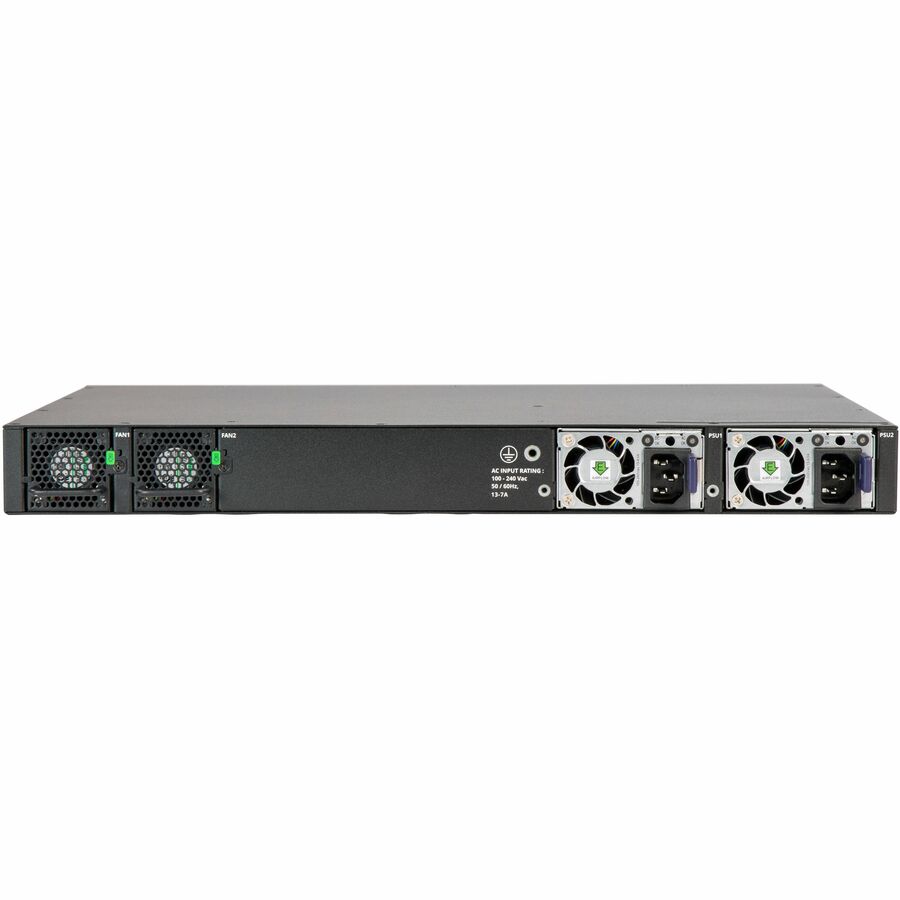

ICX 8200PF2 Ethernet Switch
2 x Power Supplies
2 x Front-to-Back Fans

Application/Usage

IoT Devices
Campus
Network
Enterprise
Wireless Access Point
IP Camera

Certifications & Standards

Electromagnetic emissions

FCC Part 15, Subpart B (Class A)
EN 55032 (CE mark) (Class A)
EN 55035 (CE mark) (Immunity) for Information Technology Equipment
EN 55024 (CE mark) (Immunity) for Information Technology Equipment
ICES-003 (Canada) (Class A)
AS/NZ 55032 (Australia/New Zealand) (Class A)
VCCI (Japan) (Class A)
EN 300 386
CNS 15936-1 (BSMI) (Taiwan) (Class A)
KN 32 (South Korea) (Class A)
KN 35 (South Korea) (Class A)
TCVN 7189 / TCVN 7317 (Vietnam) (Class A)
EN 61000-3-2
EN 61000-3-3

Safety

CAN/CSA-C22.2 No. 62368-1/UL 62368-1 - Safety of Information Technology Equipment
EN 60825 Safety of Laser Products - Part 1
Equipment Classification, Requirements and User's Guide
EN 60950-1/IEC 60950-1/EN 62368-1/EC 62368-1 Safety of Information Technology Equipment
CNS 15598-1 (BSMI) (Taiwan)

Environmental regulatory compliance

2014/35/EU and 2014/30/EU · 2011/65/EU
Restriction of the use of certain hazardous substance in electrical and electronic equipment (EU RoHS)
2012/19/EU - Waste electrical and electronic equipment (EU WEEE)

TAA CompliantYesEnvironmental Compliance

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Battery Directive

WarrantyLimited WarrantyLifetimeAdditional Warranty Information

Three-year remote TAC support
