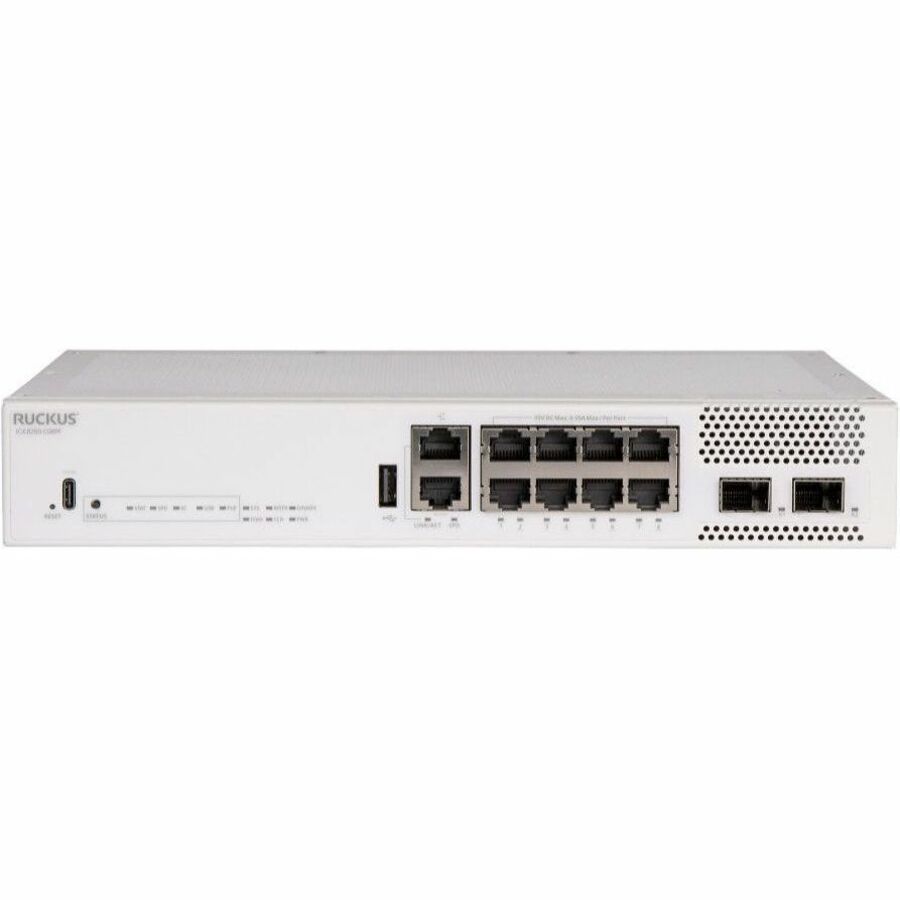

ICX8200-C08PF - RUCKUS ICX 8200 COMPACT SWITCH, 8 10/100/1000 MBPS POE+ PORTS, 2

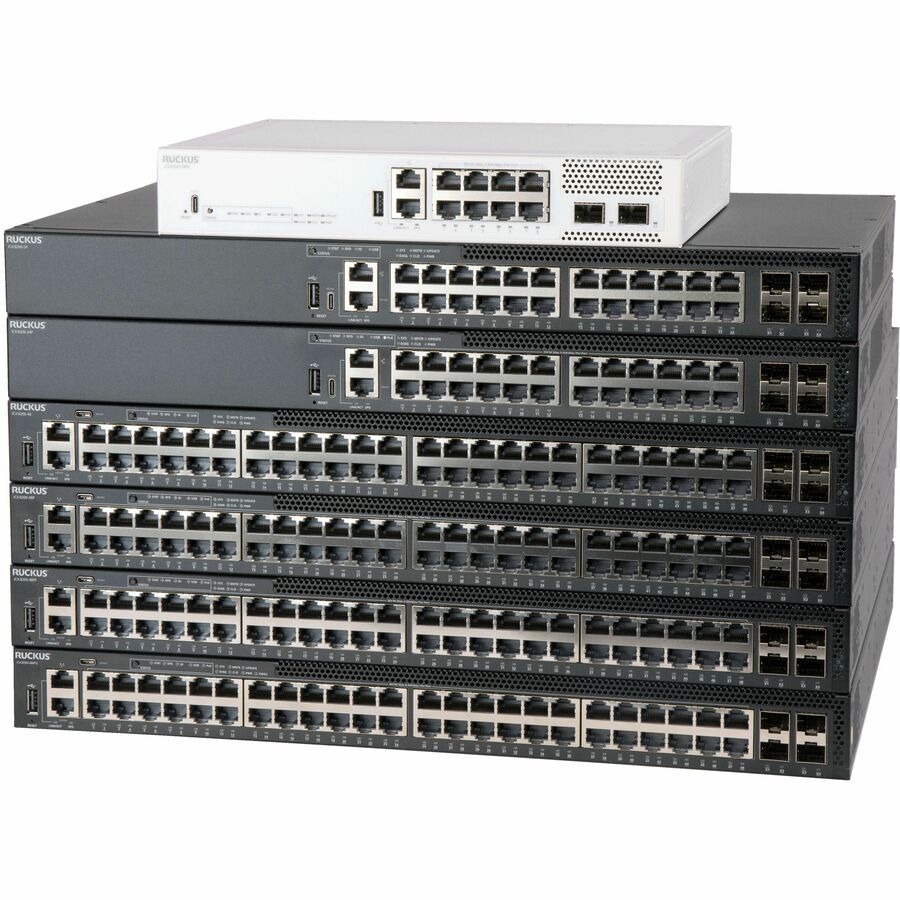

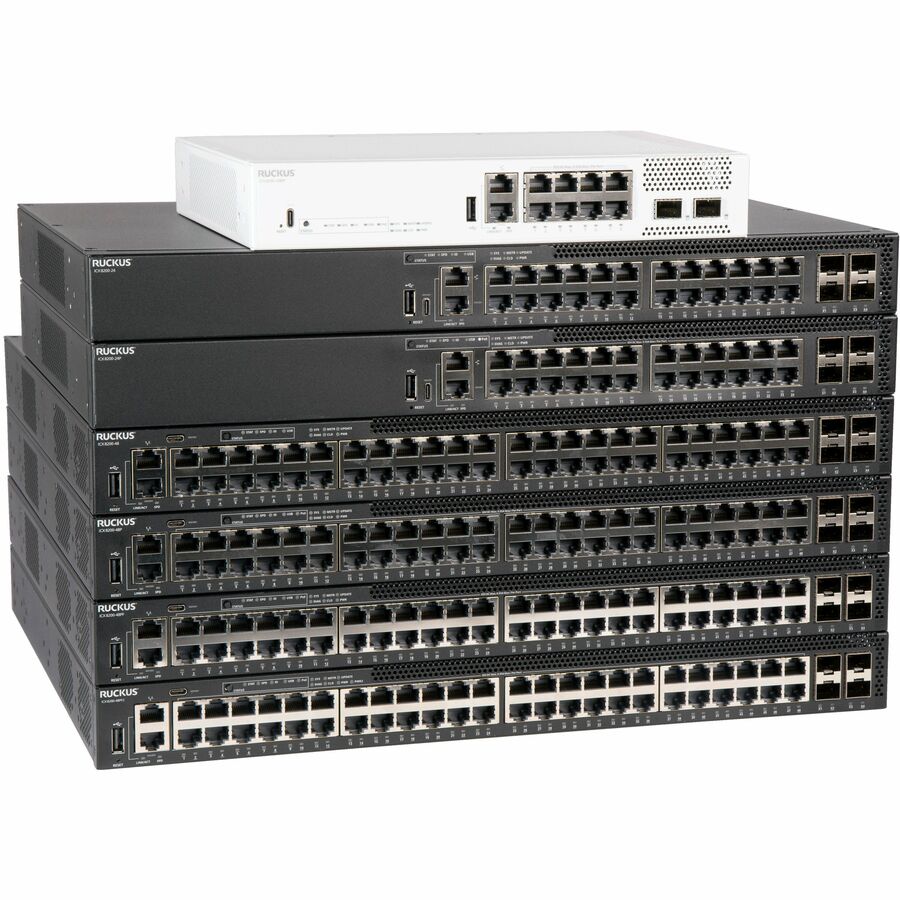

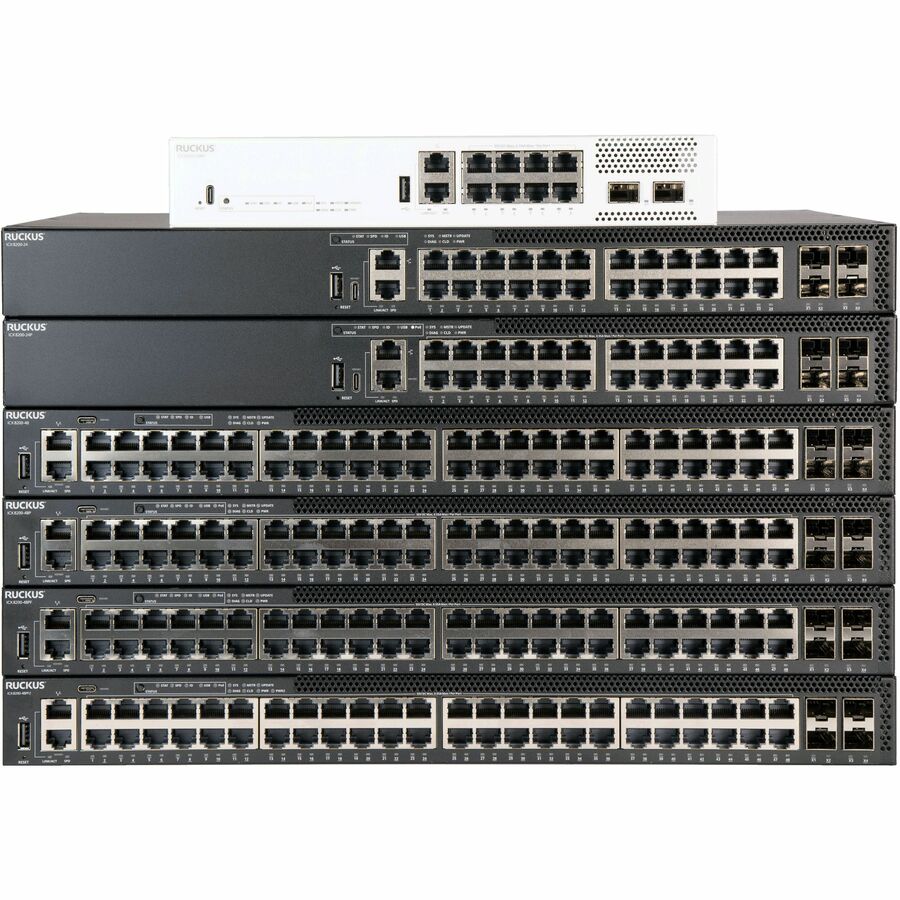

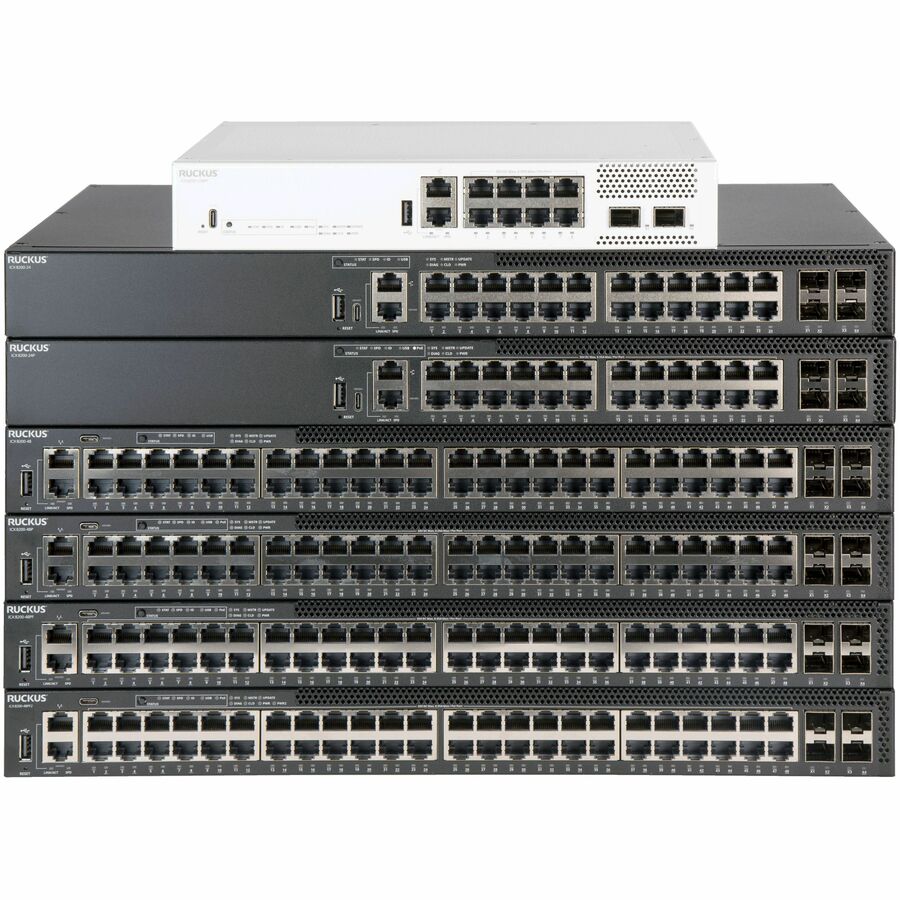

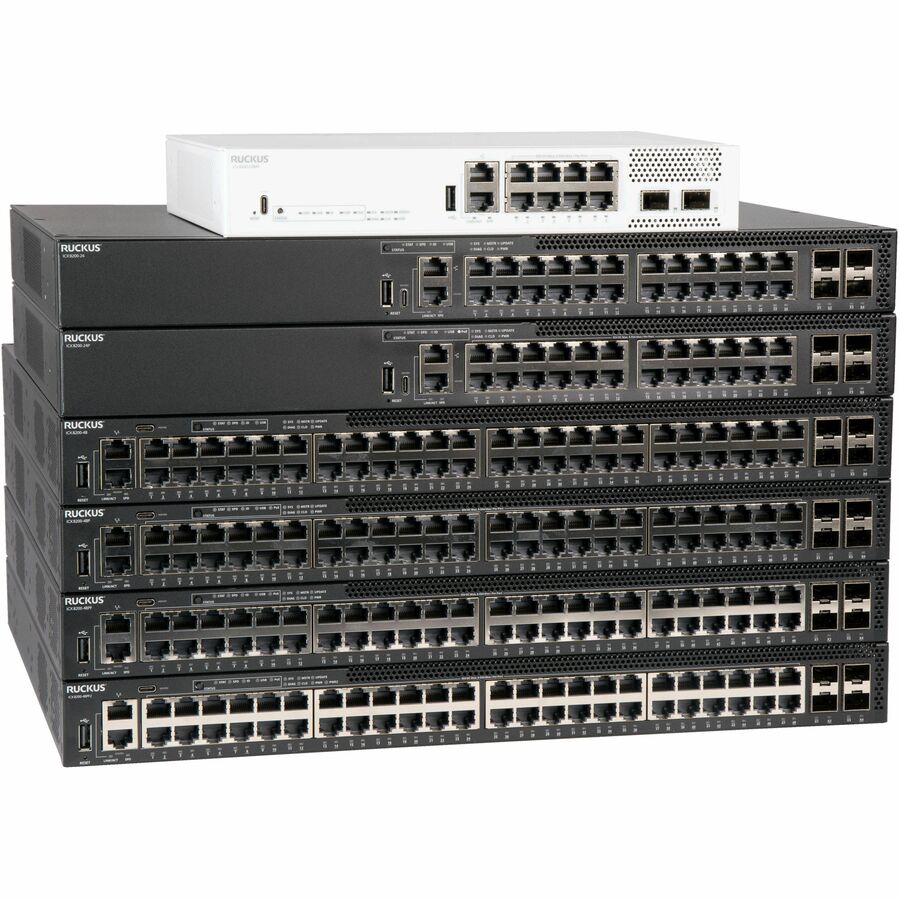

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.

The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and "pay as you grow" scalability of stackable solution.

Maximum flexibility: Gigabit, Multigigabit edge ports and Fiber to the Room

• Optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports.
• 8, 24 and 48 Gigabit Ethernet ports
• Up to 24x 1/2.5G Multigigabit RJ45 ports
• Up to 4× 1/2.5/5/10 Gbps Multigigabit RJ-45 ports
• Up to 48x 1G SFP fiber ports
• Up to 24x 10G SFP+ fiber ports

Power next generation APs and PoE devices

• PoE+ 802.3at, 30W per port on all ports · PoE++ 802.3bt, 60/90W on multigigabit ports
• Up to 1480W PoE budget with two power supplies

25 GbE uplinks/stacking for maximum performance and future-proofing

• Stacking comes standard with all ICX 8200
• Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking

Enhanced Security and data privacy

• VXLAN support for advanced network segmentation and data confidentiality

Advanced L3 routing delivers network design flexibility

• IPv4 and IPv6 L3 routing
• Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR

Broad range of unified management options for maximum flexibility

• On Premises: SmartZone
• Cloud Based: RUCKUS Cloud
• Controllerless: RUCKUS Unleashed
• RUCKUS Analytics

Enhanced availability

• Redundant, load-sharing power supplies and fans on specific models

Services and Support Included

• 3 Years remote TAC support included with every ICX 8200 model
• Limited lifetime warranty

• 2 x 10 Gigabit Ethernet Expansion Slot
• 8 x Gigabit Ethernet PoE+

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• 10 Gigabit Ethernet

• 10/100/1000Base-T
• 10GBase-X

• IEEE 802.3at
• IEEE 802.3az
• IEEE 802.1AX
• IEEE 802.1w
• IEEE 802.3ad
• IEEE802.3af
• IEEE 802.1ab
• IEEE 802.1p
• IEEE 802.3
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.3ae
• IEEE 802.1D
• IEEE 802.3ab
• IEEE 802.3bt
• IEEE 802.3z
• IEEE 802.3bz
• IEEE 802.3x
• IEEE 802.1Q
• IEEE 802.1br
• IEEE 802.3u

• 230 V AC
• 120 V AC

• AC
• PoE+
• Power Supply

• Wall Mountable
• Rack-mountable
• DIN Rail Mountable

• Business
• Enterprise
• Office
• Campus
• Industrial
• Network
