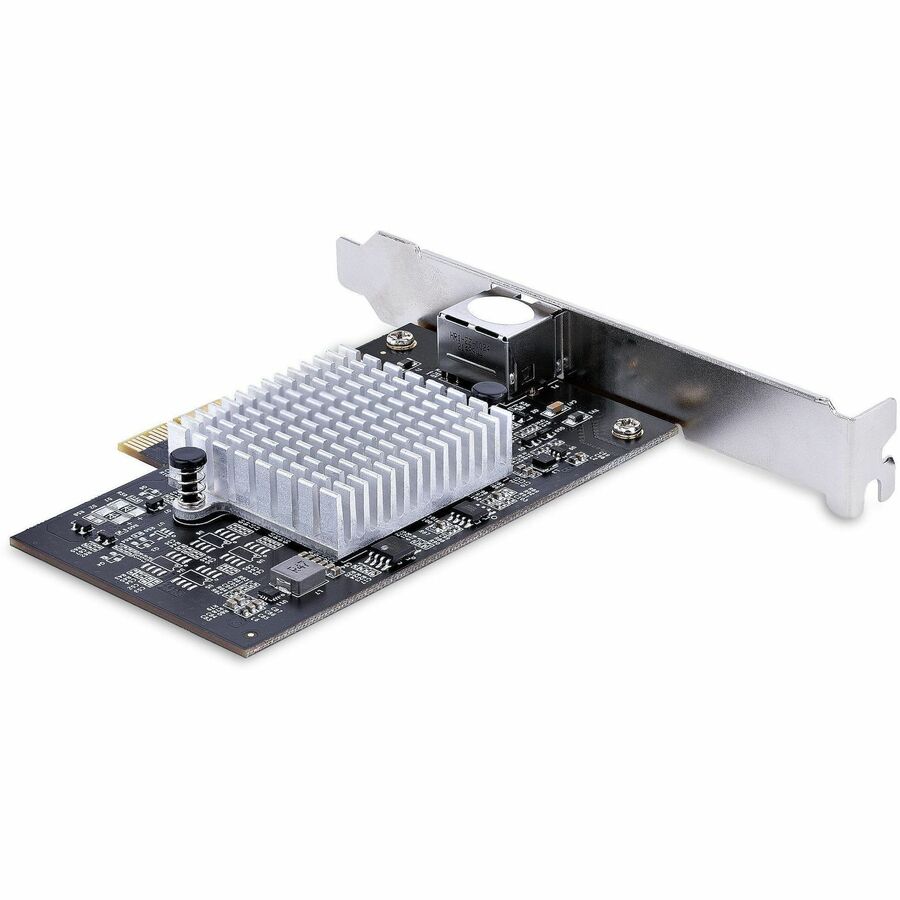

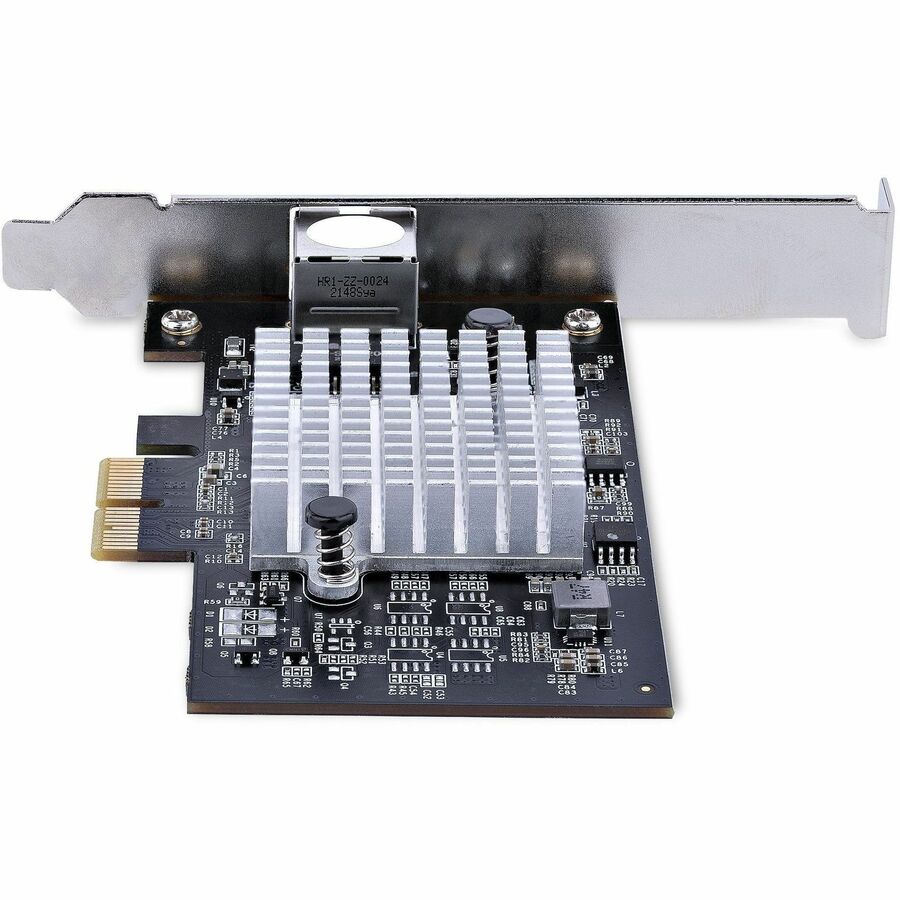

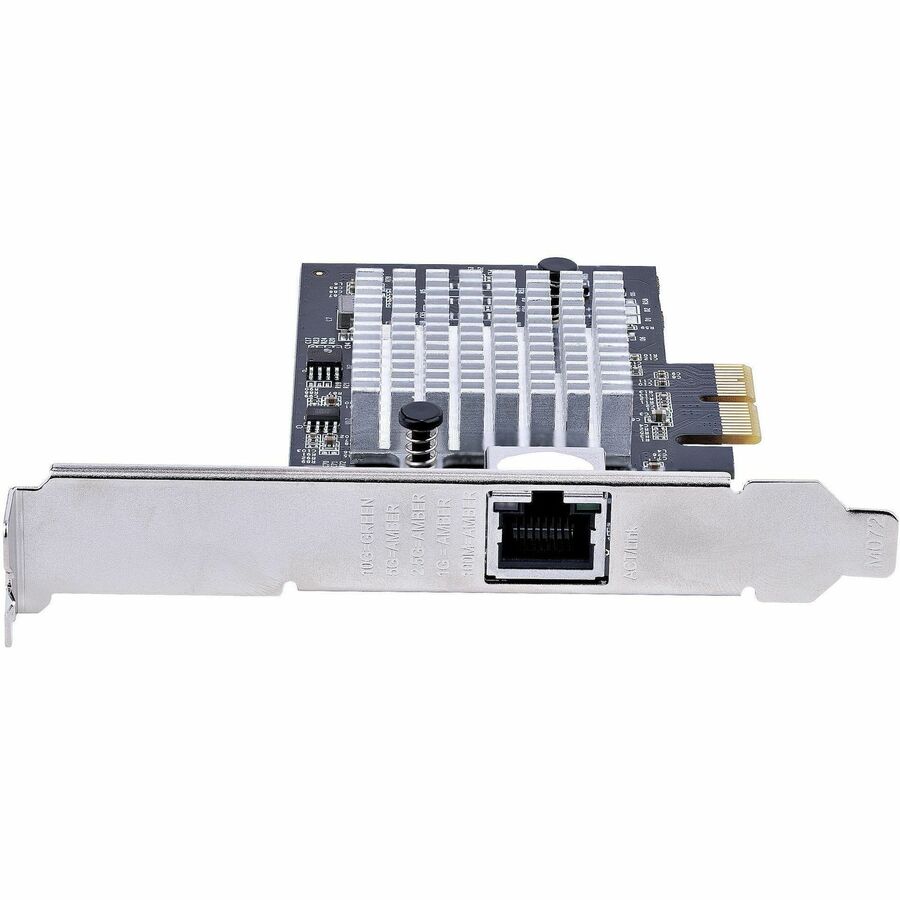

StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, PCIe Ethernet Card w/Jumbo Frame, NIC/LAN Interface Card

by
STARTECH
PCN#
08FY94
MFG#
ST10GSPEXNB2
$167.92
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • This 10G capable PCIe network adapter card leverages existing Cat5e/6/6a cabling
  • Six Speeds NIC 10G/5G/2.5G/1G/100M/10M; Marvell AQC113CS; PCIe 3.0 x2; 16K Jumbo; PXE Boot; AVB; PTP
  • The 10Gb network adapter card is compatible with Windows/Linux
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, PCIe Ethernet Card w/Jumbo Frame, NIC/LAN Interface Card
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

ST10GSPEXNB2

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

10Gigabit Ethernet Card

Marketing Information

Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Aruba®.

Increased Network Speeds

This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content. NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.

Enhance Existing Hardware

The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.

Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.

The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.

Packaged Quantity

1

Product Type

10Gigabit Ethernet Card
Technical Information

Chipset Manufacturer

Marvell

Chipset Model

AQC113CS
Interfaces/Ports

Host Interface

PCI Express 3.0 x2

Total Number of Ports

1

Number of Network (RJ-45) Ports

1
Media & Performance

Media Type Supported

Twisted Pair
Network & Communication

Network Technology

10GBase-T
Physical Characteristics

Product Color

Black

Form Factor

Plug-in Card

Bracket Height

Low Profile

Height

0.8"

Width

4.2"

Weight (Approximate)

2.50 oz
Miscellaneous

Package Contents

  • 10Gigabit Ethernet Card
  • 1 x Low-profile Bracket
  • 1x Quick-start Guide

Device Supported

Computer/Server

Environmentally Friendly

Yes

Country of Origin

Malaysia
Warranty

Limited Warranty

2 Year
