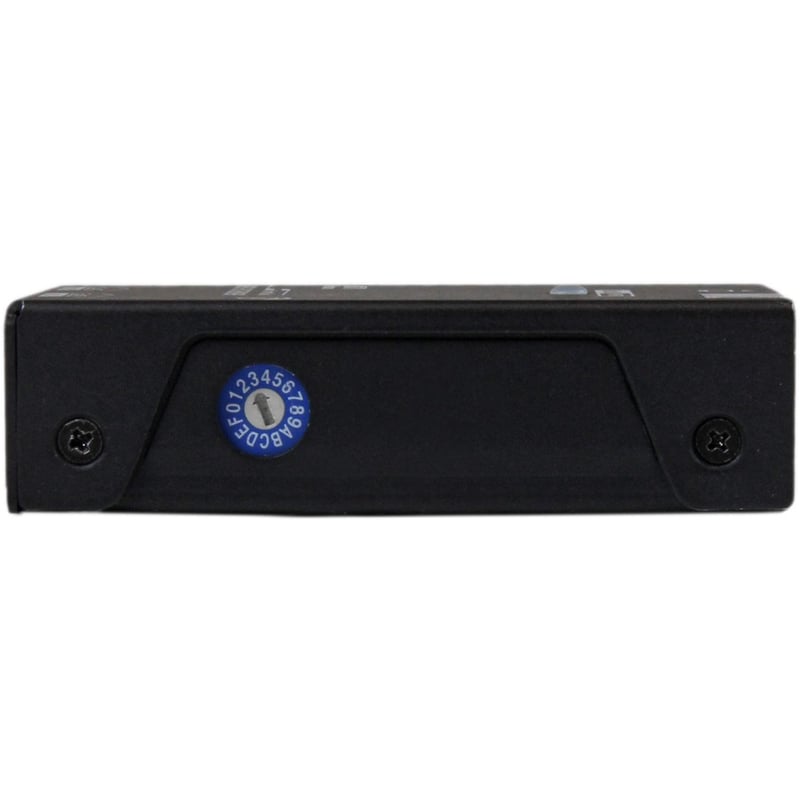

StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m)

by
STARTECH
PCN#
RZ4407
MFG#
ST121SHD50
$112.23
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Extend HDMI up to 165ft (50m) over Cat5e/6 cabling w/ Power over Cable to Receiver
  • HDMI over Cat5e
  • HDMI Cat5e Extender

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 2 lbs.
StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m)
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

ST121SHD50

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)

Marketing Information

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver.

With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.

For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Packaged Quantity Condition

Kit

Product Type

Video Extender Transmitter/Receiver
Technical Information

Connectivity Technology

Wired

Number of Input Devices Supported

1

Number of Output Devices Supported

1

Daisy Chain

No

Maximum Operating Distance

164.04 ft
Video

Graphics Modes

Full HD

Maximum Video Resolution

1920 x 1080
Interfaces/Ports

Network (RJ-45)

Yes

HDMI In

Yes

HDMI Out

Yes

Number of Network (RJ-45) Ports

4

Number of HDMI Inputs

1

Number of HDMI Outputs

1
Media & Performance

Media Type Supported

Twisted Pair

Twisted Pair Cable Standard

Category 6
Power Description

Input Voltage

  • 110 V AC
  • 220 V AC
Physical Characteristics

Product Color

Black

Product Material

Aluminum

Transmitter Height

0.80"

Transmitter Width

2"

Transmitter Depth

3.10"

Receiver Height

0.80"

Receiver Width

2"

Receiver Depth

3.10"

Length

3.1"

Form Factor

Rack-mountable

Transmitter Weight (Approximate)

11.08 oz

Receiver Weight (Approximate)

11.08 oz
Miscellaneous

Package Contents

  • 1 x HDMI over CAT5e/6 UTP Transmitter
  • 1 x HDMI over CAT5e/6 UTP Receiver
  • 1 x Universal Power Adapter (NA / EU / UK / AU)
  • 2 x Mounting Brackets
  • 2 x Foot Pad Set
  • 1 x Instruction Manual

Certifications & Standards

  • CE
  • FCC

Country of Origin

Taiwan

TAA Compliant

Yes

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE
  • REACH

Environmental Compliance

  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty

Limited Warranty

2 Year
