Overview

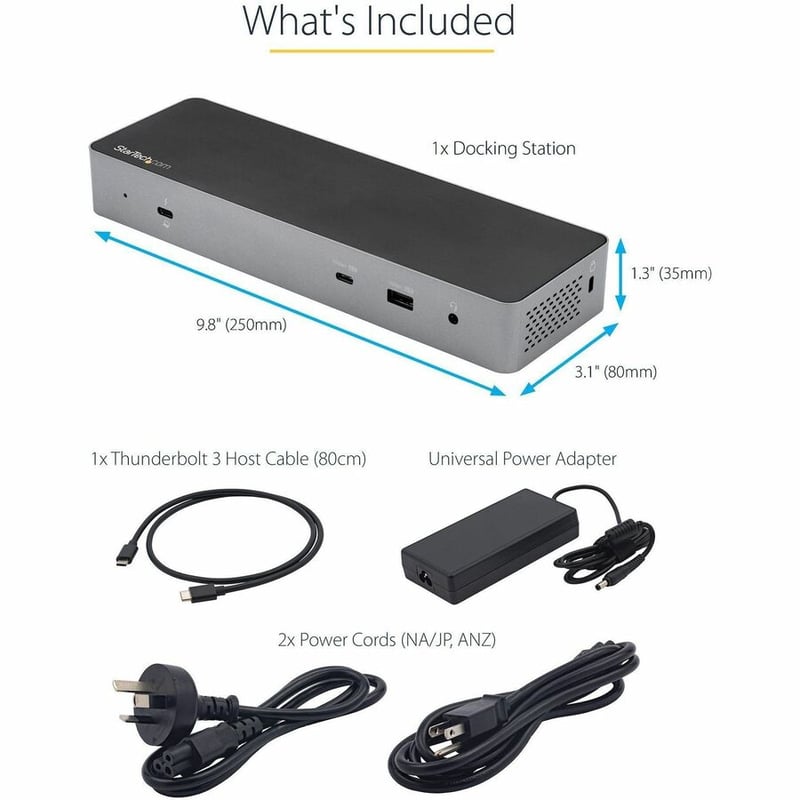

A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, Gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports. Flexible Dual Display Outputs This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways: DisplayPort + DisplayPort HDMI + HDMI DisplayPort + HDMI Resolutions and video outputs are host-dependent. More Downstream USB Ports Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports: Front Facing: 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging Back Facing: 2x USB 3.2 Gen 1 Type-A (5 Gbps) 1x USB 3.2 Gen 2 Type-C (10 Gbps) Easy to Set Up & Manage This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 2.6ft (0.8m) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility: To setup and save custom windows layouts. Mac Address Pass-Through Utility: To improve network security. USB Event Monitoring Utility: To track and log connected USB devices Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN. For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools More from the Manufacturer
