StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery - 3x USB 3.0, GbE

Name: StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery - 3x USB 3.0, GbE
Brand: STARTECH
SKU: 1DG519
Price: 272.1 USD
Availability: OutOfStock

STARTECH

PCN#

1DG519

MFG#

TB3DK2DPPD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

REPLACED BY TB3CDK2DH
Certified Thunderbolt 3 docking station with dual monitor 4K 60Hz DisplayPort + TB3 (USB
C), 85W Power Delivery, 2x USB
A, 1x USB
C, GbE, audio
Macbook Pro / Air, macOS, Windows
Incl. TB3 cable

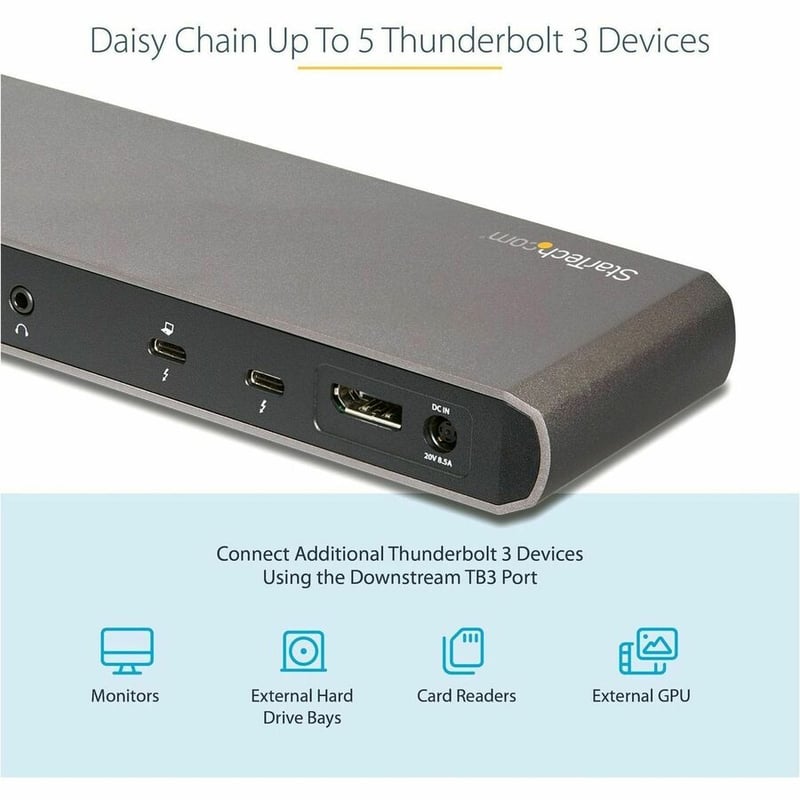

Daisychain TB3 devices

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 3 lbs.

StarTech Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery - 3x USB 3.0, GbE

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	TB3DK2DPPD
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Dual 4K Monitor Thunderbolt 3 Dock with 3x USB 3.0 Ports
Marketing Information	Easily transform your Thunderbolt 3™ equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features three USB 3.0 ports, 85W Power Delivery to charge your laptop. Create a Dual-4K Workstation Great for video editing and other Ultra HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources. Connect your laptop to: 1 x 4K monitor via the DP Port 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included) OR 1 x 5K monitor via the DP & TB3 USB-C port Easy Installation & Deployment Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required. Connect your Devices With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock's Fast-Charge and sync port. Connect a USB-C device with the USB-C port ( 5Gbps - data only ). Plenty of Charging Power The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility: To setup and save custom windows layouts. Mac Address Pass-Through Utility: To improve network security. USB Event Monitoring Utility: To track and log connected USB devices Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN. For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools TB3DK2DPPD features a rugged aluminum casing and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Packaged Quantity	1 Each
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Device Supported	Notebook
Number of Displays Supported	2
Screen Mode Supported	4K
Supported Resolutions	4096 x 2160 3840 x 2160

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Host Interface	Thunderbolt 3
Audio Line Out	Yes
Total Number of USB Ports	5
Number of USB 3.0 Ports	2
USB Type-A	Yes
USB Type-C	Yes
USB Type-C Detail	1 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45)	Yes
DisplayPort	Yes
Number of DisplayPort Outputs	1
Thunderbolt	Yes

Software

Operating System Supported

Windows 8
Windows 7
Windows 8.1
Windows 10
Windows 11
Mac OS X 10.12 Sierra

Power Description

Maximum Power Supply Wattage

85 W

Physical Characteristics

Color Family	Dual Color
Product Color	Black Gray

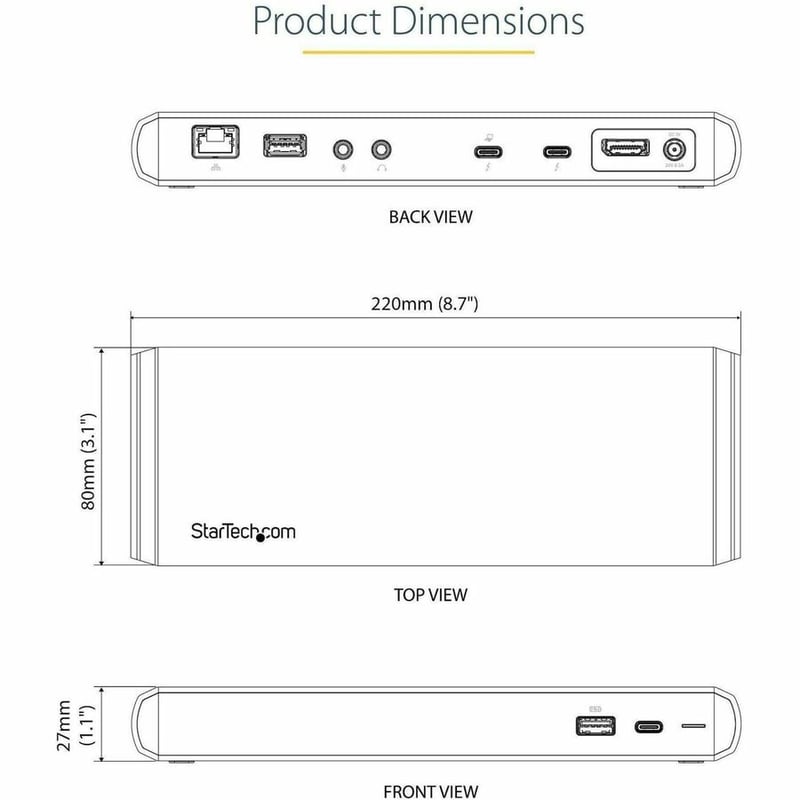

Height	1.06"
Width	3.15"
Length	8.7"
Weight (Approximate)	15.87 oz

Miscellaneous

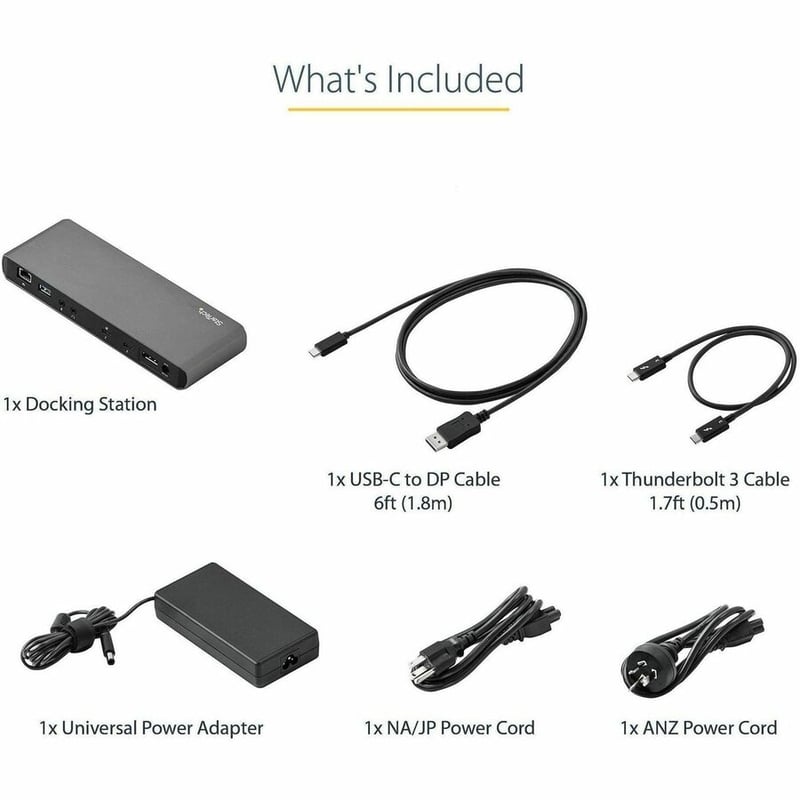

Package Contents	Dual 4K Monitor Thunderbolt 3 Dock with 3x USB 3.0 Ports Thunderbolt 3 Cable USB-C to DP Cable Universal Power Adapter Power Cords Instruction Manual
Compatibility	Apple MacBook Pro 13 & 16 Apple MacBook Air HP Notebooks Lenovo ThinkPad Notebooks Dell XPS Notebooks
Brand Compatibility	Apple Dell Lenovo HP
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin	China

Warranty

Limited Warranty

3 Year
