Overview

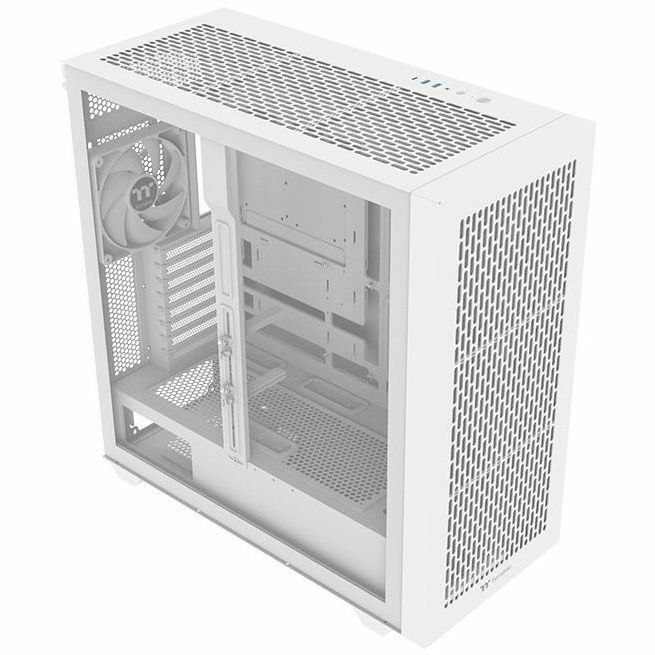

Compatible with Hidden-Connector MotherboardsThe AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.Compatible with hidden-connector motherboards:ASUS BTF SeriesMSI PROJECT ZERO SeriesGIGABYTE PROJECT STEALTH SeriesExcellent Radiator SupportUsers can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.Note: The top fan + radiator thickness limit is 82mmFour 140mm CT140 Fans Pre-installedFour 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.Superior Cooling SupportUp to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.GPU HolderThe AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.Storage SupportTwo drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5\" or two 2.5\" hard drives.Dimensions550*248*548mmCPU CoolerMax height 185mmMotherboard6.7\" x 6.7\" (Mini ITX), 9.6\" x 9.6\" (Micro ATX), 12\" x 9.6\" (ATX) , 12\" x 13\" (E-ATX), SSI-CEB, SSI-EEBPSUMax length 200mmGPULength limitation 460mmFan Capacity120mm140mmRadiator Capacity120mm140mm240mm280mm360mm420mmPerfect Dust ProtectionThe AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.Handy I/O PortsThe top I/O ports include:1 x USB 3.2 Gen 2 Type-C2 x USB 3.0 Type-AHD AudioReset ButtonHDD LEDPower Button with LED
