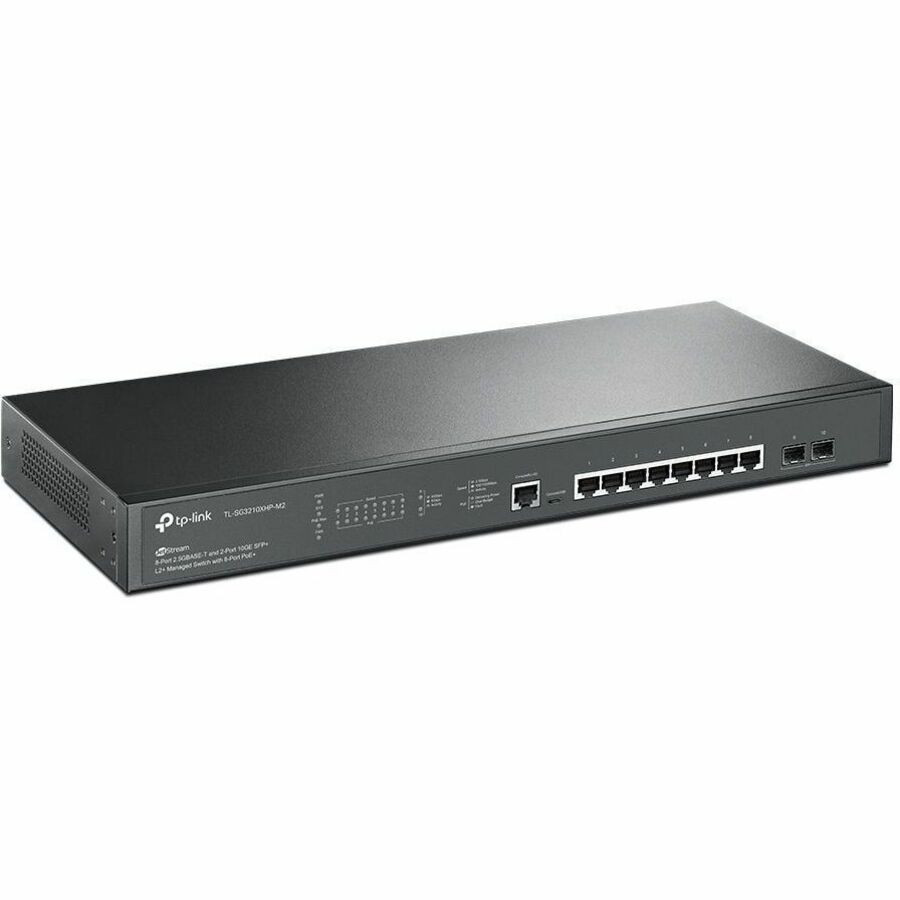

OMADA 8PORT POE+ L2+ MGNTSWITCH OMADA 8PORT POE+ L2+ MGNT SWITCH

Designed for workgroups and departments, TP-Link JetStream L2/L2+ Managed Switch provides wirespeed performance and abundant L2 management features. It provides a variety of service features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible solutions for a variable scale of networks. ACL, 802.1x and Dynamic ARP Inspection provide robust security strategies. QoS and IGMP snooping/filtering optimize voice and video application. Link aggregation (LACP) increases aggregated bandwidth, optimizing the transport of business critical data. SNMP, RMON, WEB and CLI Login bring abundant management policies. TP-Link JetStream L2/L2+ Managed Switch integrates multiple functions with excellent performance, and is friendly to manage, which can fully meet the need of the users demanding higher networking performance.

TL-SX3206HPP/ TL-SG3210XHP-M2/ TL-SG3218XP-M2/ TL-SG3428MP/ TL-SG3428XMP/ TLSG3428XPP-M2/TL-SG3452P/TL-SG3452XP is also a Power Sourcing Equipment (PSE*). All the RJ45 ports* on the switch support Power over Ethernet (PoE*) function, which can automatically detect and supply power to those powered devices (PDs*) complying with IEEE 802.3af, IEEE 802.3at and/or IEEE 802.3bt.

For TL-SG3218XP-M2, only port 1-8 supports the Power over Ethernet (PoE) function.

PSE: a device (switch or hub for instance) that provides power through an Ethernet cable.

PoE: This technology describes a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet.

PD: a device powered by a PSE and thus consumes energy. Examples include powering network cameras, wireless LAN access points, IP telephones, network hubs, embedded computers etc.

2.5G PoE+ Ports for WiFi 6: 8× 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.

10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.

240 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 240 W^*.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

• 8 × 100/1000/2500BASE-T RJ45 Network Ports
• 2× 10G SFP+ Expansion Slots
• 1 × RJ45 Console Port
• 1 × Micro-USB Console Port

• Twisted Pair
• Optical Fiber

• Fast Ethernet
• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

• 10/100/1000Base-T
• 2.5GBase-T
• 10GBase-X

• IEEE 802.3at
• IEEE 802.3af
• IEEE 802.1p
• IEEE 802.3ad
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.3x
• IEEE 802.1Q
• IEEE 802.1x
• IEEE 802.1ab

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz
