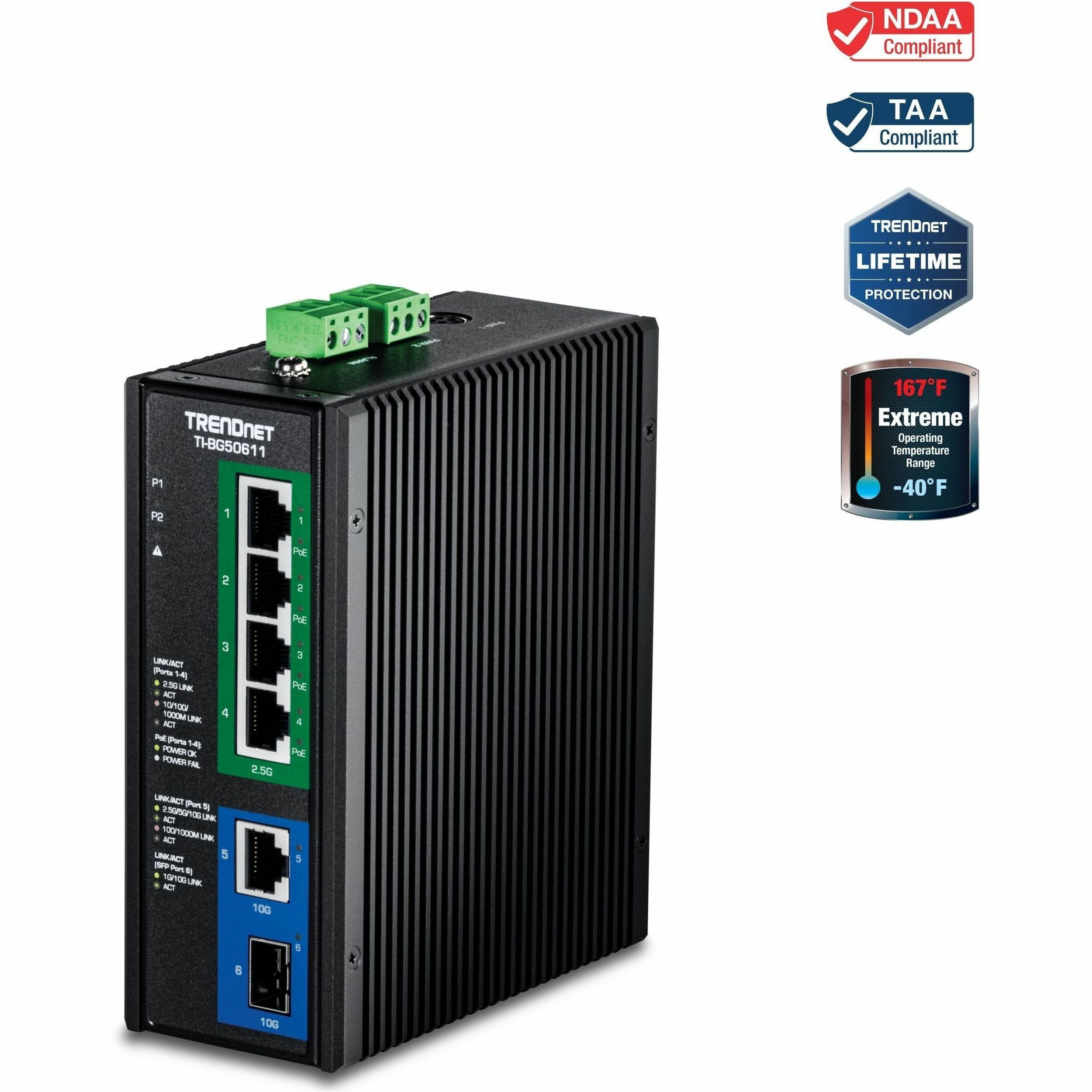

6-PORT INDUSTRIAL 2.5G POE DIN-RAIL SWITCH WITH 10G PORTS

Multi-Gigabit Equipped with four 2.5G Ethernet ports, one 10G Ethernet port, and one 10G SFP+ port that provides highspeed network connection. Industrial Hardened Design Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range of -40° - 75° C (-40°- 167° F). FEATURES | PoE Power Budget A 240W PoE power budget on this multi-gig DIN-Rail PoE++ switch supports up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power. Fast PoE With Fast PoE, the industrial multigig PoE++ switch provides power to the PoE device within a few seconds of the switch receiving power. No need to wait for the switch to fully boot up. Network Ports 4 x 2.5G PoE++ ports, 1 x 10G RJ-45 port, and 1 x 10G SFP+ port. DIN-Rail/Wall Mounts Metal enclosure with included DIN-Rail and wall mount hardware. IP50 Housing IP50 rated metal housing protects the industrial multi-gigabit PoE++ switch from most environments with dust particles. Switching Capacity 60Gbps switching capacity. Redundant Power Dual power inputs for redundancy with overload current protection (power supplies sold separately, models TI-S48048, TI-S24052, 48VDC3000). Alarm Relay Industrial PoE++ switch's alarm relay is triggered by power failure of primary and/or redundant power. Jumbo Frame Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance. Rated for Extreme Environments Rugged IP50 rated enclosure designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° - 75° C (- 40° - 167° F) for harsh environments. Shock and Vibration Resistant Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).Product TypeEthernet SwitchTechnical InformationFeatures

• IP30
• IP40

Interfaces/PortsTotal Number of Network Ports5Network (RJ-45)YesPort/Expansion Slot Details

• 4 x 2.5 Gigabit Ethernet PoE++
• 1 x 10 Gigabit Ethernet Network
• 1 x 10 Gigabit Ethernet Expansion Slot

Media & PerformanceMedia Type Supported

• Twisted Pair
• Optical Fiber

Ethernet Technology

• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology

• 2.5GBase-T
• 10GBase-T
• 10GBase-X

I/O ExpansionsTotal Number of Expansion Slots1Expansion Slot TypeSFP+Number of SFP+ Slots1Network & CommunicationLayer Supported2Networking Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3ae
• IEEE802.3af
• IEEE 802.3an
• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.3bz

Management & ProtocolsManageableNoReliabilityMTBF83000 HourPower DescriptionPoE (RJ-45) PortYesPoE Budget240 WInput Voltage

• 48 V DC
• 57 V DC
• 120 V AC
• 230 V AC

Frequency

• 50 Hz
• 60 Hz

Power Source

• Power Supply
• PoE++
• AC/DC
• Power Adapter

Redundant Power Supply SupportedYesNumber of Power Supplies Supported2Power Consumption10.20 WPlug/Connector TypeTerminal BlockPhysical CharacteristicsProduct MaterialMetalForm Factor

• DIN Rail Mountable
• Wall Mountable

Height1.9"Width6.1"Depth4.8"Weight (Approximate)1.39 lbMiscellaneousPackage Contents

• 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports
• Quick Installation Guide
• Removable Terminal Blocks
• DIN-Rail And Wall Mount Kit

Application/Usage

• Industrial
• Network
• Wireless Access Point
• IP Camera
• VoIP Phone

Country of OriginTaiwanWarrantyLimited WarrantyLifetime
