9-PORT INDUSTRIAL 2.5G DIN-RAIL POE SWITCH WITH 10G SFP PORT

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Multi-Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as highpower wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls

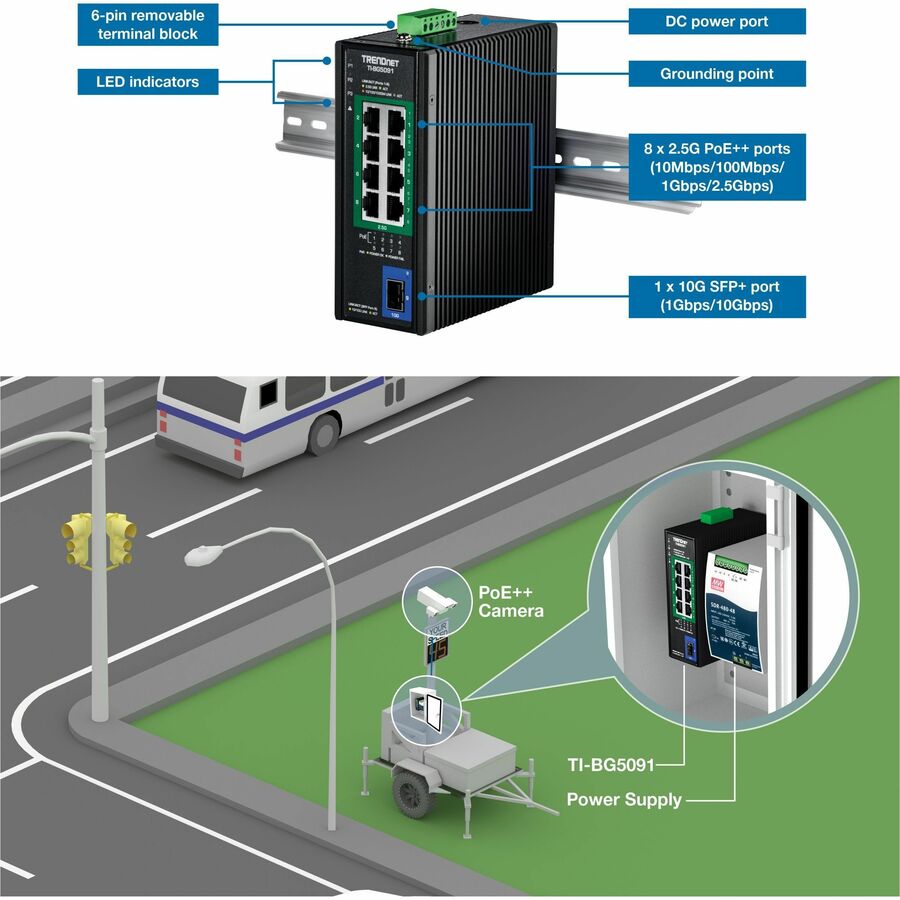

DEVICE INTERFACE: 8 x 2.5G PoE++ Ports; 1 x 10G SFP+ Port; 60Gbps Switching Capacity; 2 x 3-Pin Removable Terminal
Blocks; LED Indicators; DIN-Rail Mount; Wall Mount; Grounding Point
POWER SUPPLY SOLD SEPARATELY: Compatible power supplies for this switch (TI-S48048, TI-S24052, 48VDC3000)
TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-BG5091 Industrial Switch is secured with Lifetime
Manufacturer Protection from TRENDnet.
NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that
government customers demand today. (U.S. and Canada only)
RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your
needs during normal business hours. We take pride in being there for our customers.
POE POWER: Up to a 480W PoE power budget on this industrial switch supports up to eight Power over Ethernet devices with
PoE (15.4W), PoE+ (30W), or PoE++ (95W) power
INDUSTRIAL PROTECTION: Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge
protection, and a wide operating temperature range of -40° - 75° C (-40°- 167° F).
FAST POE: With Fast PoE, the industrial multi-gig switch provides power to a connected PoE device within a few seconds of the
switch receiving power-no need to wait for the switch to fully boot up

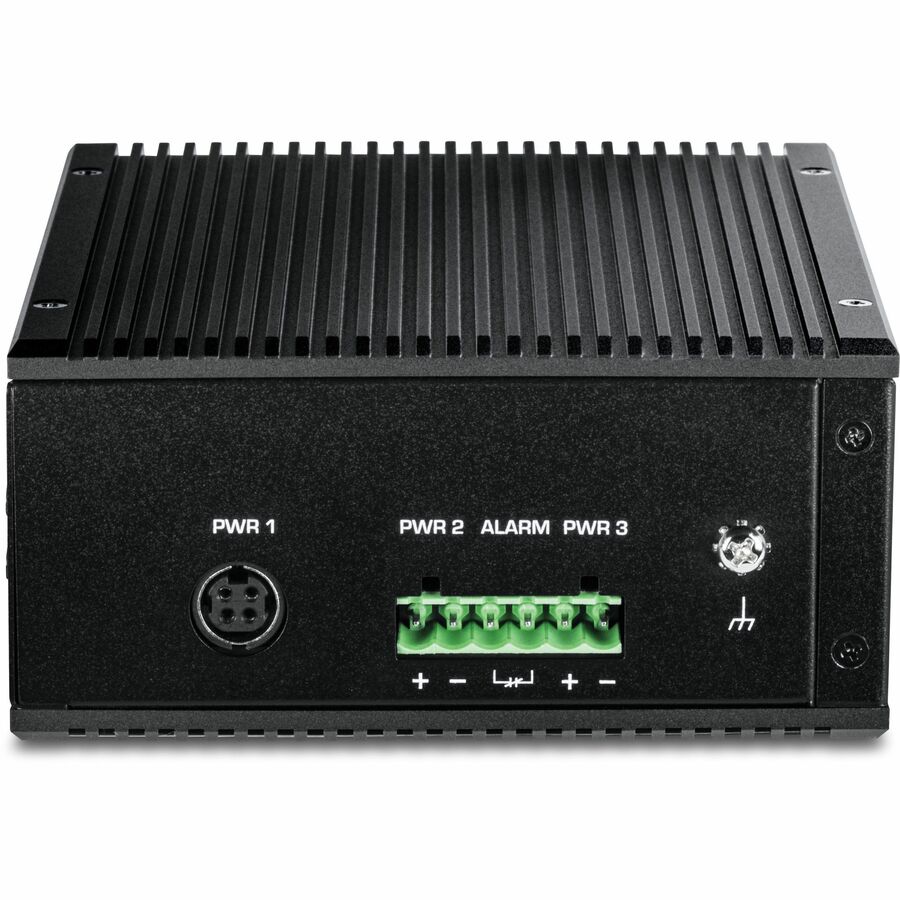

POWER FAILURE ALERT: Alarm relay is triggered by power failure of primary and/or redundant power

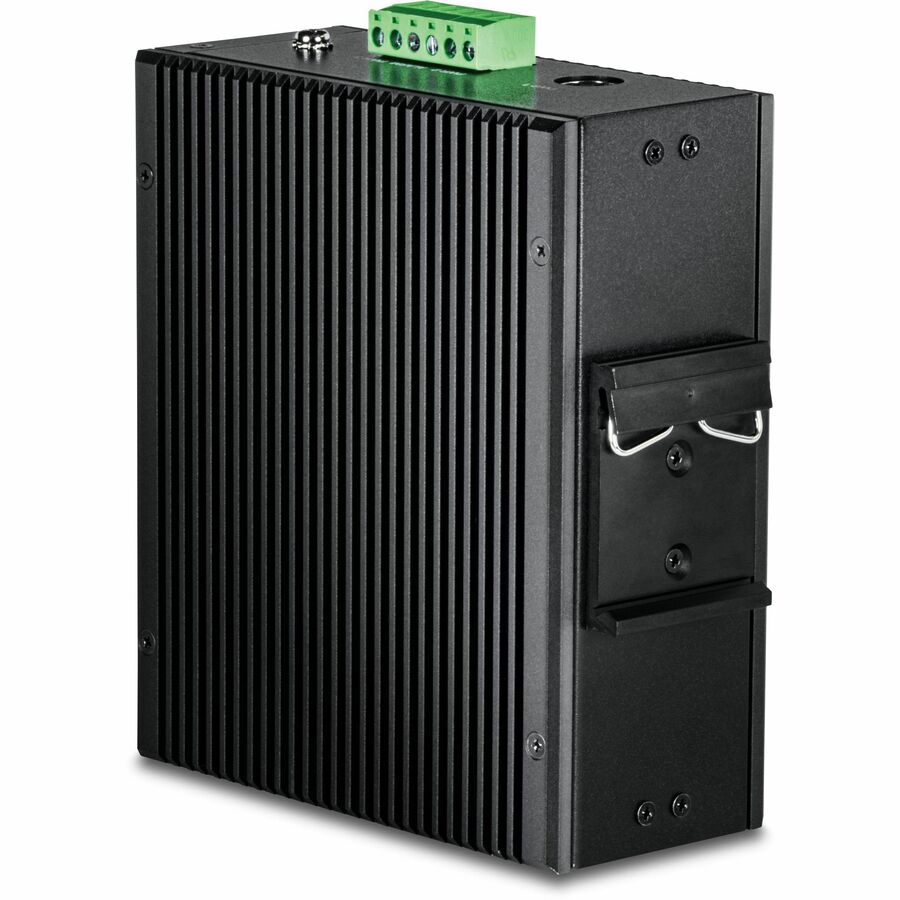

DIN-RAIL MOUNT: Metal enclosure with included DIN-Rail and wall mount hardware

• IP30
• IP40

• 8 x 2.5 Gigabit Ethernet PoE++
• 1 x 10 Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

• 2.5GBase-T
• 10GBase-X

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3ae
• IEEE802.3af
• IEEE 802.3an
• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.3bz

• 48 V DC
• 57 V DC
• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• Power Supply
• PoE++
• AC/DC
• Power Adapter

• DIN Rail Mountable
• Wall Mountable

• 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port
• Quick Installation Guide
• Removable Terminal Blocks
• DIN-Rail And Wall Mount Kit

• Industrial
• Network
• Wireless Access Point
• IP Camera
• VoIP Phone
