TRENDnet 5-Port Industrial Gigabit PoE+ Switch, Wide Temperature Range -20 - 65C (-4 - 149F), DIN-Rail Switch, 50-55V DC, 4 x Gigabit PoE+ Ports, 1 x Gigabit SFP Slot, TI-PGM541, Black

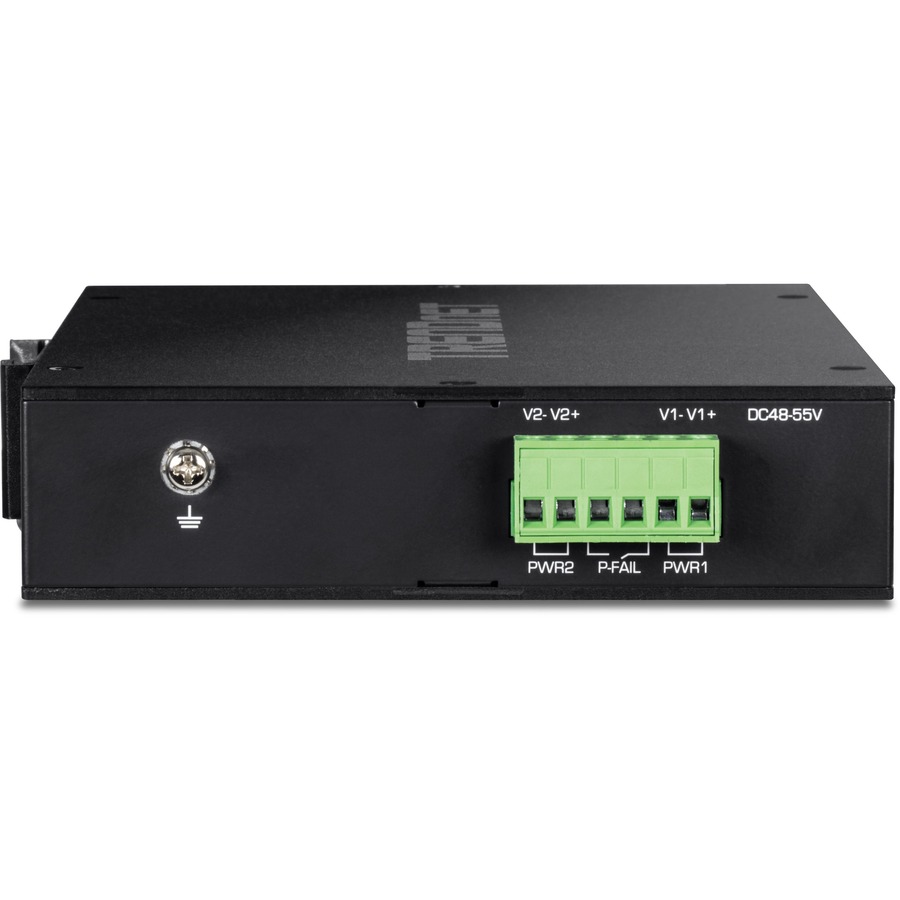

• DEVICE INTERFACE: 4 x Gigabit PoE+ Ports; 1 Gigabit SFP Slot; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point
• POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 10Gbps switching capacity, and a 120W @56V DC PoE power budget supplies up to four Power over Ethernet devices with PoE+ power.
• DIN-RAIL & WALL MOUNT KIT: This 5-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets.
• WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments.
• REDUNDANT POWER: The 5-port network switch has dual redundant power inputs with overload current protection (powersupply sold separately: models:TI-S12048 / 48VDC3000)
• ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power
• TRENDnet LIFETIME PROTECTION: The TI-PGM541 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer Protection.

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM541, has four gigabit PoE+ ports with a 120W PoE power budget, plus one gigabit SFP slot for long distance fiber applications. Users are able to connect four PoE+ devices to the switch, while still providing one gigabit SFP slot for an additional network connection. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments.

PoE Power

A 120W PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance

Features redundant power inputs with overload current protection and output alarm relay.

Industrial Hardened Design

Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).

NETWORKING SOLUTION | FEATURES | Full PoE+ Power Budget

Supplies up to 30W of PoE/PoE+ power per port with a 120W PoE power budget

Switching Capacity

10Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Network Ports

4 x Gigabit PoE+ ports and 1 x Gigabit SFP slot

Redundant Power

Redundant power inputs with overload current protection (

Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048)

Wide Operating Temperature

Rated for an operating temperature range of -20° - 65°C (-4° - 149°F)

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware

Alarm Relay

Alarm relay triggered by power failure of primary and/or redundant power

Grounding Point

Grounding point protects equipment from external electrical surges

• 4 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

• 1000Base-FX
• 1000Base-T

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at

• 50 Hz
• 60 Hz

• DIN Rail Mountable
• Wall Mountable

• 5-port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
• Quick Installation Guide
• Removable Terminal Block
• DIN-Rail and Wall-mount Hardware
