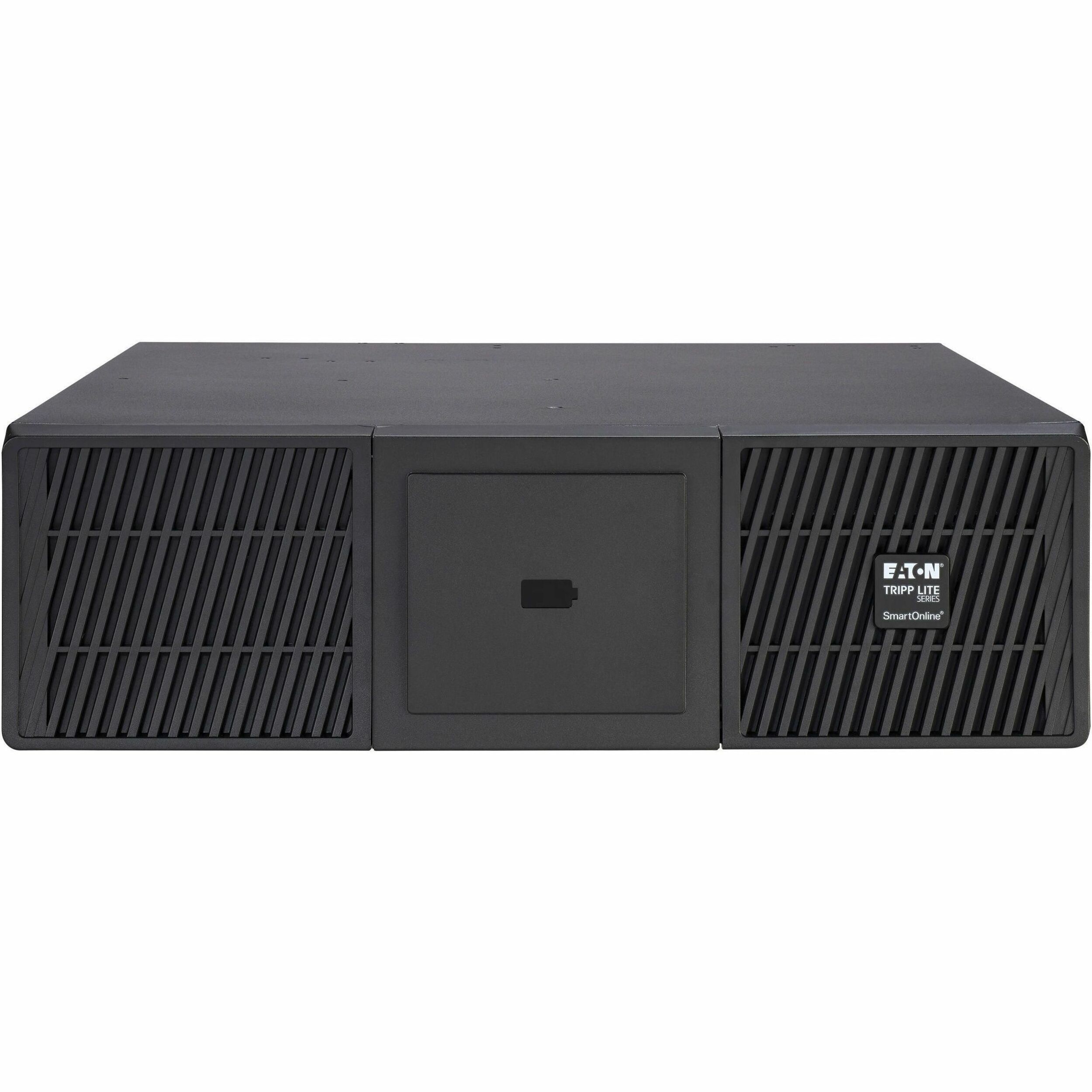

180V EXTENDED BATTERY MODULE SMARTONLINE UPS SYSTEMS 3URM TAA

Backup Battery Module Gives Your Compatible UPS System Extended Runtime The valve-regulated lead-acid (VRLA) BP180RT3UTAA offers extended battery runtime when used in conjunction with the SU6000RT3UTAA SmartOnline UPS system. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. Versatile Installation Options You can mount the hot-swappable BP180RT3UTAA in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands. TAA-Compliant for GSA Schedule Purchases The BP180RT3UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.Product TypeBattery UnitTechnical InformationBattery CharacteristicsValve-regulated/User ReplaceableBattery ChemistryLead AcidHot SwappableYesOutput Voltage180 V DCBattery SizeProprietary Battery SizeEnvironmental ConditionsMinimum Operating Temperature32°F (0°C)Maximum Operating Temperature104°F (40°C)Physical CharacteristicsHeight5.1"Width17.3"Depth25.4"Weight (Approximate)150 lbMiscellaneousPackage Contents

• BP180RT3UTAA Battery Unit
• External Battery Cable
• Rack-Mounting Hardware
• Tower Support Stands
• Quick Start Guide

CompatibilityTripp Lite SU6000RT3UTAA SmartOnline UPSCertifications & Standards

• UL 1778
• cTUVus
• CE
• FCC

Energy StarYesCountry of OriginTaiwanTAA CompliantYesEnvironmental Compliance

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

WarrantyLimited Warranty2 Year
